namespace: Atlfast
class: ClusterMaker
Author: Atlfast Team
Description: Makes Clusters

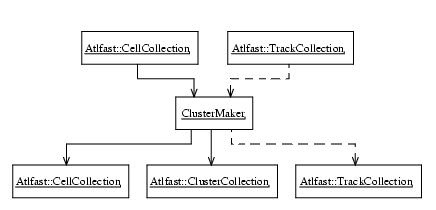

| Input/Output: Takes in an Atlfast::CellCollection from the TDS and ouputs an Atlfast::ClusterCollection. Also Outputs a Atlfast::CellCollection containg all the Cells not associated with clusters. Also has the option of Taking in an Atlfast::TrackCollection and outputing an Atlfast::TrackCollection containg all the unassociated Tracks. |
|
|---|
|
Option |
Type |
Default Value |
Description |
|---|---|---|---|
|
|
|
|
|
|
InputCellLocation |
std::string | "/Event/AtlfastCells" | StoreGate Key for input Atlfast::Cells |
|
InputTrackLocation |
std::string | "/Event/AtlfastTracks" | StoreGate Key for input Atlfast::Tracks |
|
RConeBarrel |
double | 0.401 | Radius Of Cluster Cone in Barrel region |
|
RConeForward |
double | 0.401 | Radius Of Cluster Cone in Forward region |
|
Strategy |
std::string | "Cone" | Set clustering Algorithm. This Can be "Cone", "Kt", or "Shared". Shared is as Cone, except it also performs Cell Energy Sharing after clustering |
|
minClusterET |
double | 5.0*GeV | Minimum eT far a Cluster to be accepted |
|
ProcessCells |
bool | true | Use Atlfas::Cells as clustering objects |
|
UsusedCellLocation |
std::string | "/Event/AtlfastUnusedCells" | StoreGate Key for output unassociated Atlfast::Cells |
|
OutputLocation |
std::string | "/Event/AtlfastClusters" | StoreGate Key for output Atlfast::Clusters |
|
minInitiatorET |
double | 1.5*GeV | Minimum eT of Cell to count as a seed in Cone Algorithm |
|
ProcessTracks |
bool | false | Use Atlfast::Tracks as clustering objects |
