namespace: Atlfast
class: JetMaker
Author: Atlfast Team

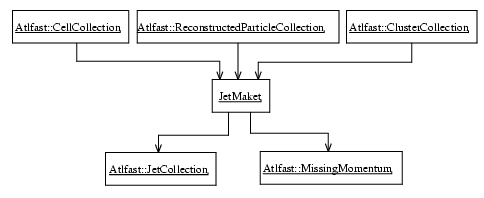

Description: Reads clusters and muons from TDS and makes flavour-tagged, smeared Jets from them. Also calculates the Missing momentum from the unused cells and clusters
| Input/Output: Reads in Atlfast::Clusters, nonIsolated Muons and unused Atlfast::Cells ouputs Atlfast::Jets and Atlfast::MissingMomentum |
|
|---|
|
Option |
Type |
Default Value |
Description |
|---|---|---|---|
|
|
|
|
|
|
tauMaxDeltaR |
double | 0.3 | Something to do with tau-jet-tagging |
|
cMaxDeltaR |
double | 0.2 | Something to do with c-jet-tagging |
|
cPtMin |
double | 5.0*GeV | Something to do with c-jet-tagging |
|
bPtMin |
double | 5.0 | Something to do with b-jet-tagging |
|
MuonLocation |
std::string | "/Event/AtlfastNonIsolatedMuons" | StoreGate key for input nonIsolated Atlfast Muons |
|
bMaxDeltaR |
double | 0.2 | Something to do with b-jet-tagging |
|
UnusedCellLocation |
std::string | "/Event/AtlfastUnusedCells" | StoreGate key for input unused Atlfast::Cells |
|
tauPtMin |
double | 10.0*GeV | Something to do with tau-jet-tagging |
|
MissingMomentumLocation |
std::string | "/Event/AtlfastMissingMomentum" | StoreGate key for output Atlfast::Missing momentum |
|
DoSmearing |
bool | true | flag to swithc smearing on |
|
etaTagMax |
double | 2.5 | Something to do with tau-jet-tagging |
|
tauJetPtRatio |
double | 0.9 | Something to do with tau-jet-tagging |
|
MinimumPT |
double | 10.0*GeV | Minimum transverse momentum for a jet |
|
OutputLocation |
std::string | "/Event/AtlfastJets" | StoreGate key for output Atlfast::Jets |
|
InputLocation |
std::string | "/Event/AtlfastClusters" | StoreGate key for input Atlfast::Clusters |
|
RconeF |
double | 0.4 | radius of cone to cluster Atlfast::Clusters in Forward region |
|
MaximumEta |
double | 5.0 | Maximum eta for a jet |
|
RconeB |
double | 0.4 | radius of cone to cluster Atlfast::Clusters in Barrel region |
