ATLAS_2012_I1093738

Back to index

A measurement of the production cross section for isolated photons in association with jets in $pp$ collisions at $\sqrt{s} = 7$ TeV. Photons with $|\eta|<1.37$ and $E_T>25$ GeV and jets with $|y|<4.4$ and $p_T>20$ GeV are selected. The differential cross section as a function of the photon transverse energy is measured, for three leading jet rapidity configurations, separately for the cases where the photon and jet rapidities have the same or the opposite sign. The measurement uses 37 pb$^{-1}$ of integrated luminosity collected with the ATLAS detector.

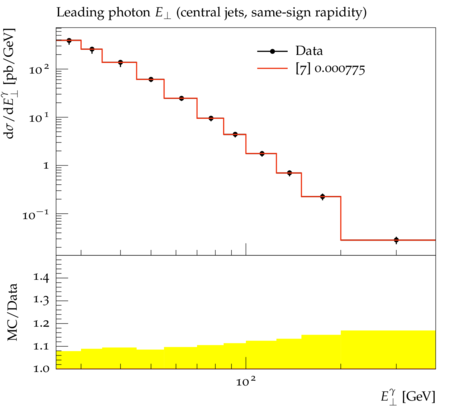

ATLAS_2012_I1093738_d01-x01-y01:

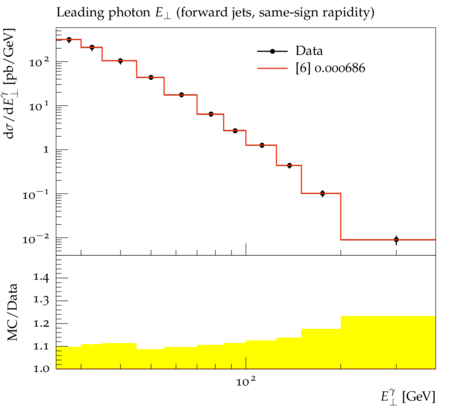

ATLAS_2012_I1093738_d02-x01-y01:

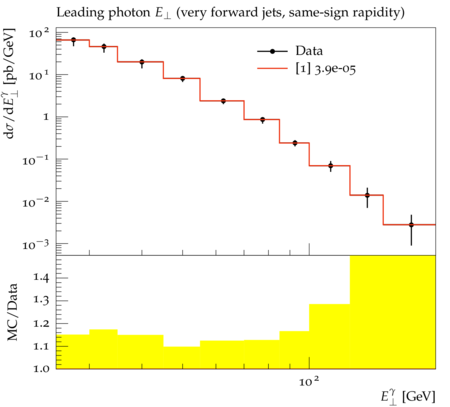

ATLAS_2012_I1093738_d03-x01-y01:

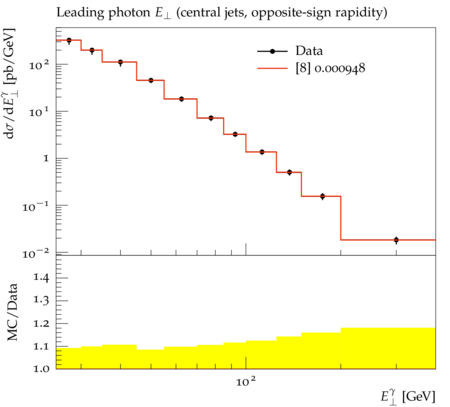

ATLAS_2012_I1093738_d04-x01-y01:

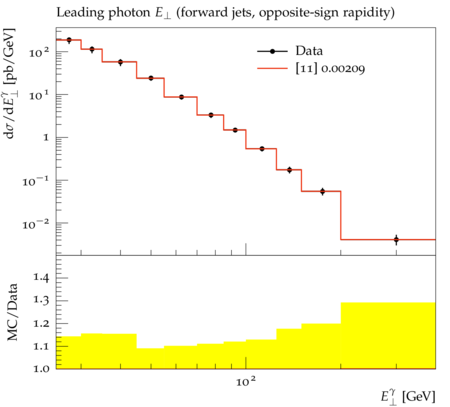

ATLAS_2012_I1093738_d05-x01-y01:

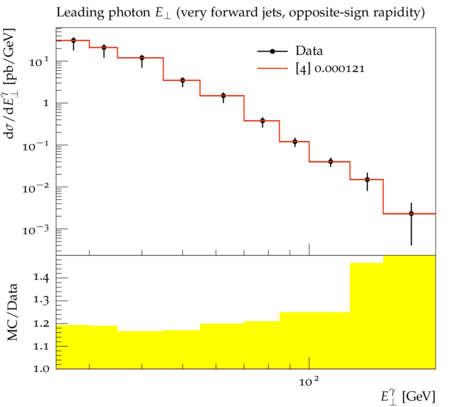

ATLAS_2012_I1093738_d06-x01-y01:
