2003 T7 Runs
70707 -1.8 4.4/1.0 nf (near/far)
70712 -1.8 4.3/1.0 nf
71198 +10 0.1/2.0 nf
71263 +1.8 4.2/4.2 nf
71267 +2.0 4.0/4.0 nf
71272 +3.0 2.0/2.0 nf
71399 +4.0 1.0/3.0 nf
71400 +5.0 0.2/3.0 nf
90056 -4.0 0.5/1.0 nn
90060 +4.0 0.5/1.0 nn (near/near)
90064 +4.0 0.5/3.0 nn
90068 +5.0 0.4/3.0 nn

2003 T11 Runs
100267 - -1.8 4.3/4.3
100279 - -2.8 2.1/2.1
100314 +2.2 1.0/3.0
100318 +2.8 1.0/1.98 atm
100322 +3.0 1.1/1.80 atm
100326 -2.2 1.1/3.33 atm

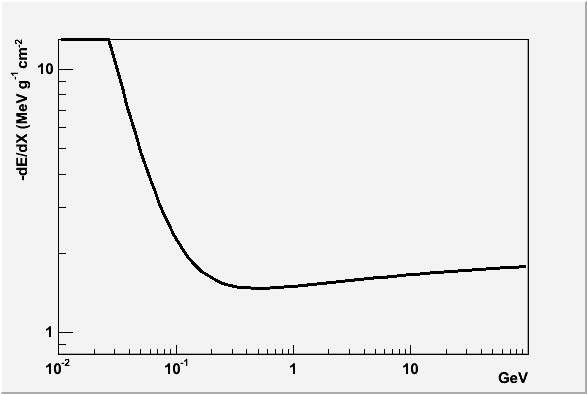

dE/dX vs muon momentum

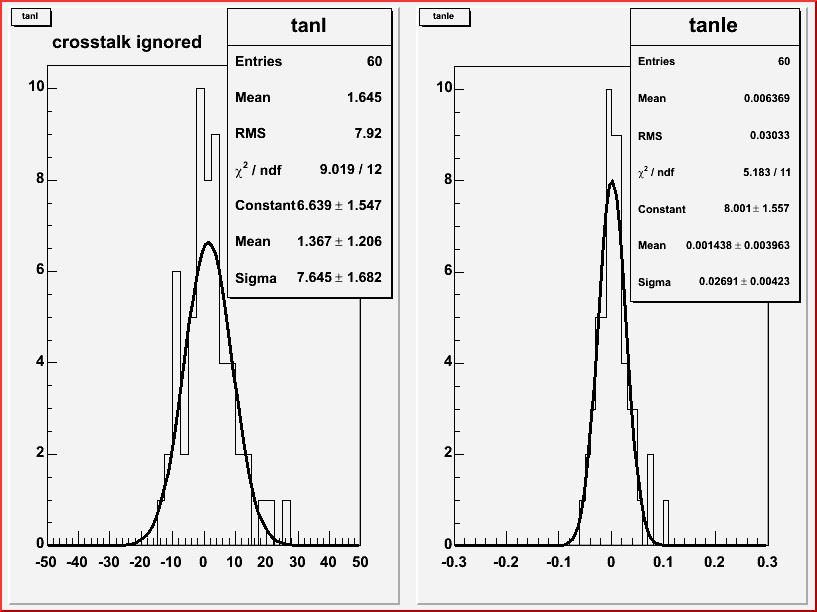

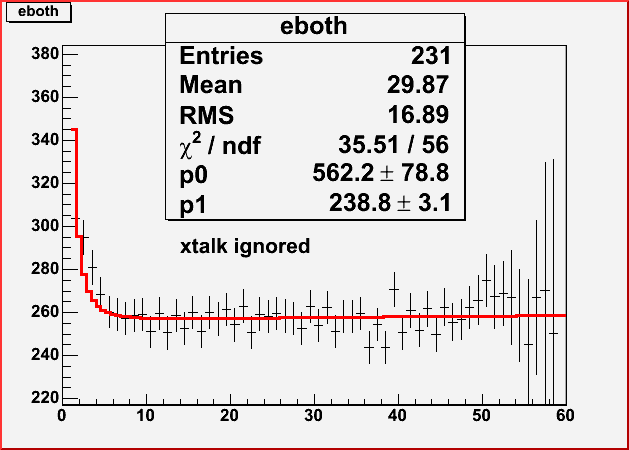

2:

Crosstalk ignored: most is out in wings, some is included in tracking

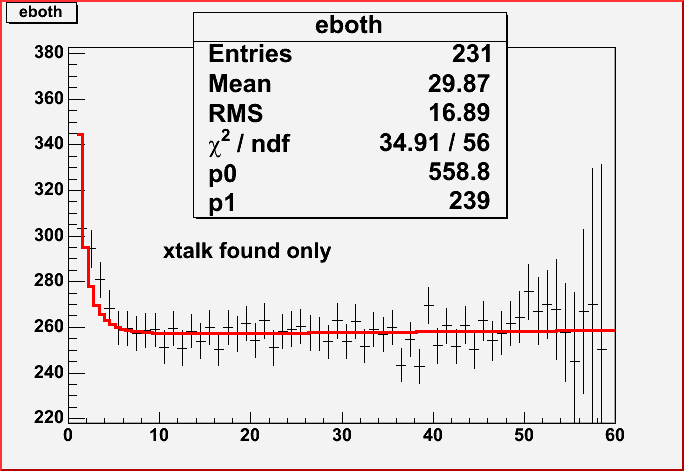

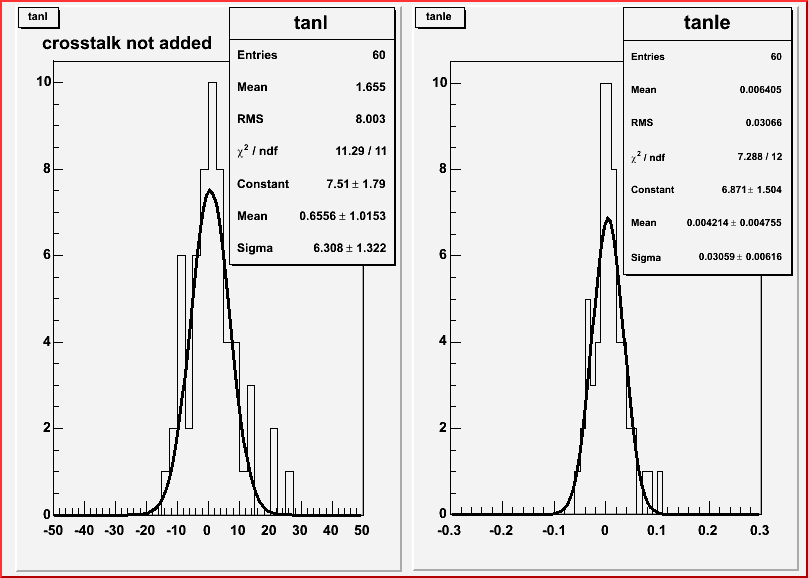

3:

Crosstalk is identified: Not passed to the tracker but otherwise ignored

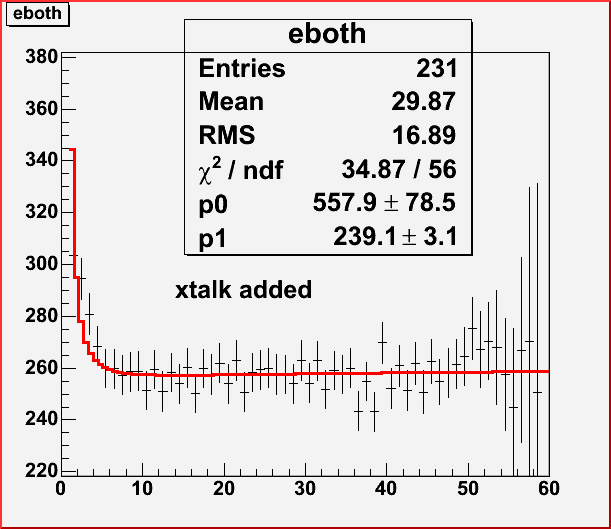

4:

Crosstalk is found and added back to the hit it originated from

5:

Left: Data-Fit (ADCs) Right: Percentage
All hits passed to tracker

6:

Left: Data-Fit (ADCs) Right: Percentage
Crosstalk not passed to tracker

7:

Left: Data-Fit (ADCs) Right: Percentage
Crosstalk not passed to tracker and crosstalk added back
