The following LEDs are of interest:
2 and 4 on Plane 4 West - LEDs 1 and 3 appear to be swapped
8 on Plane 2 West - no light seen from one LED on one side - box->LIM fibre snapped / LED broken ?
12 on Plane 3 East light not seen in some strips from one LED on one side - LIM edge ?
13 and 14 on Plane 1 West - LEDs 13 and 14 appear to be swapped
18 on Plane 2 West - no light seen from one LED on one side - box->LIM fibre snapped / LED broken ?
19 and 20 on Plane 4 East and West - LEDs 18 and 19 appear to be swapped

LED 1

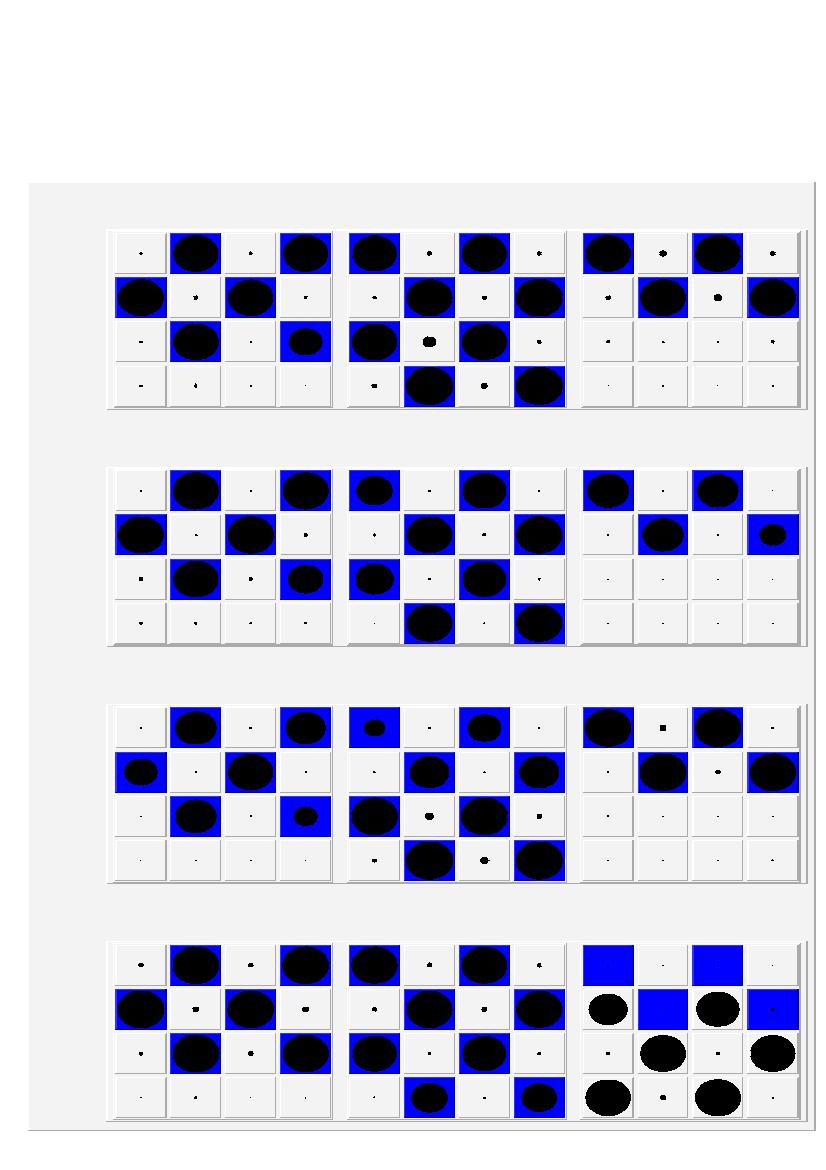

LED 2 - led 4 pattern matches - solution: swap fibres

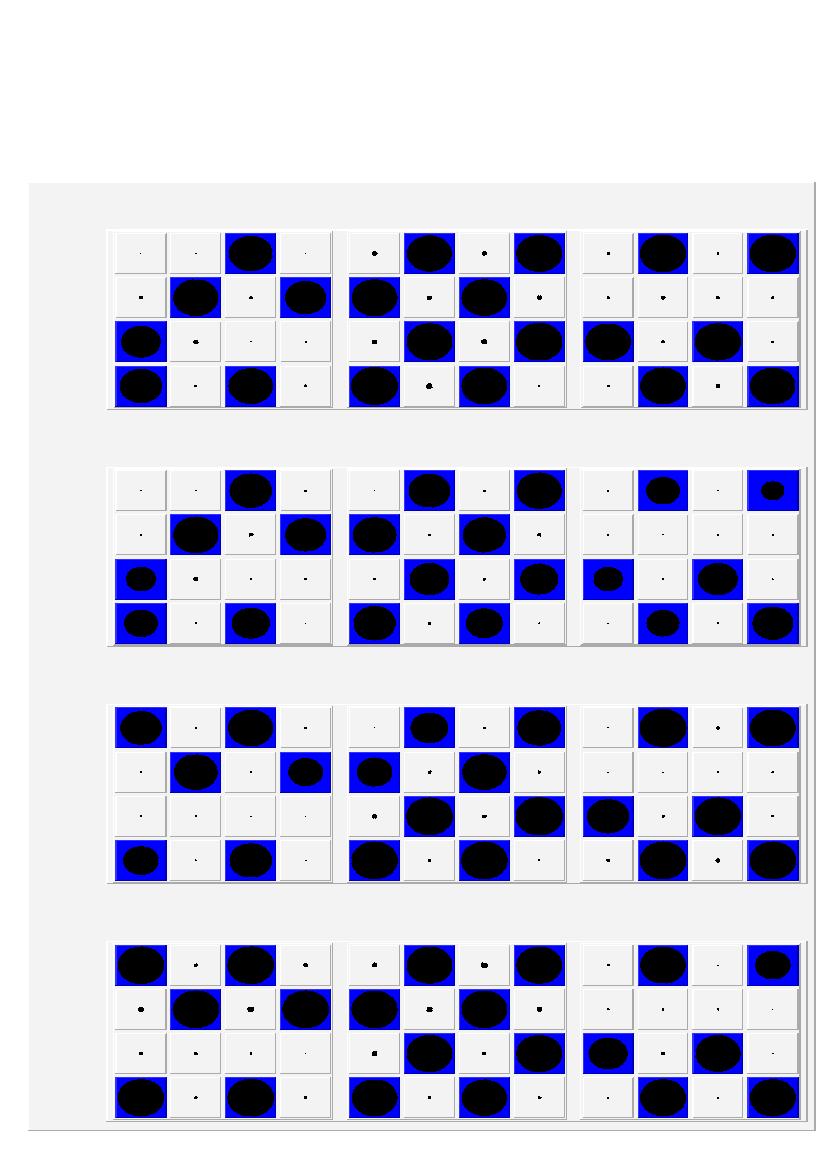

LED 3

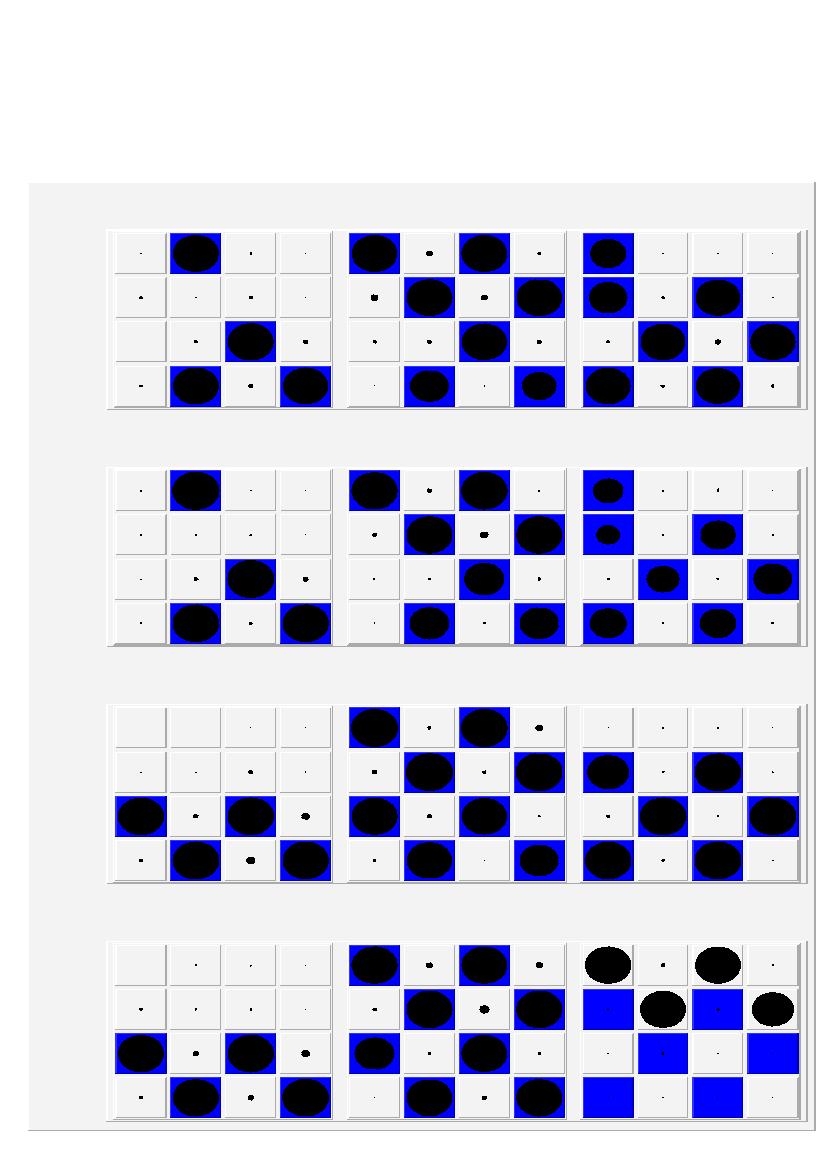

LED 4 - led 2 pattern matches - solution: swap fibres

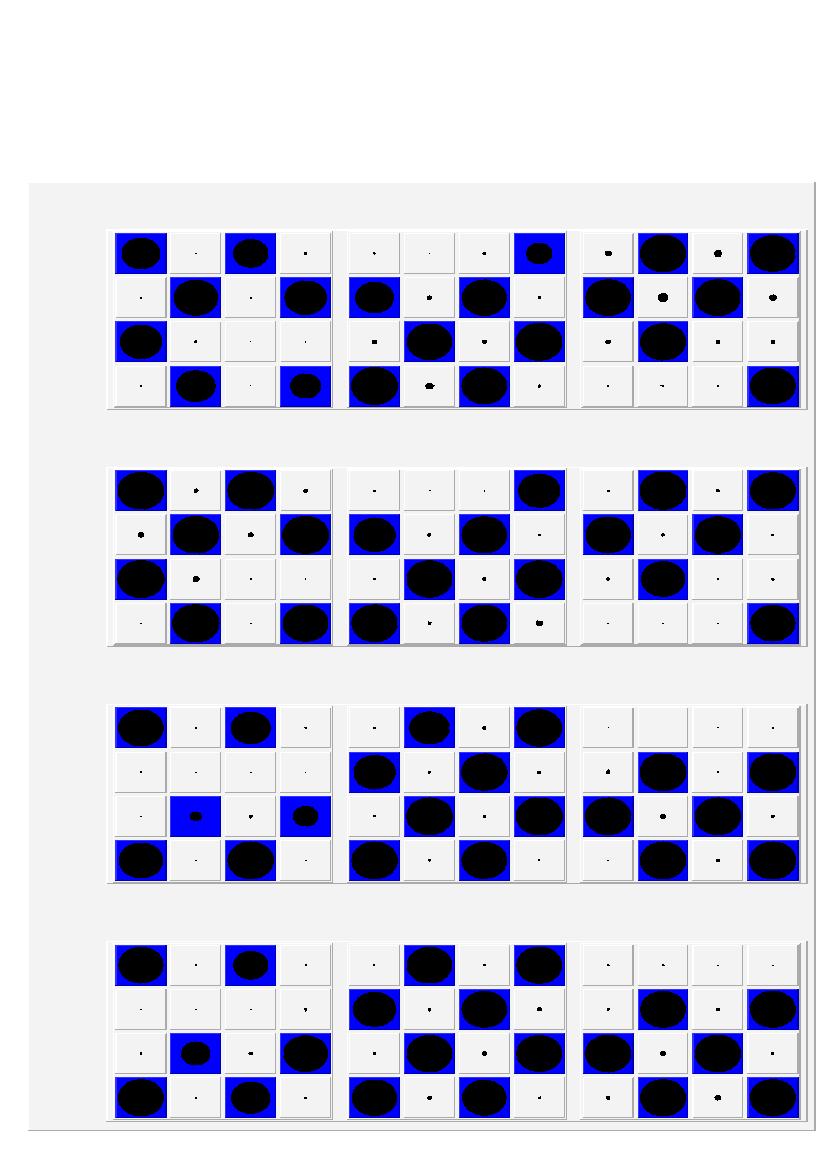

LED 5

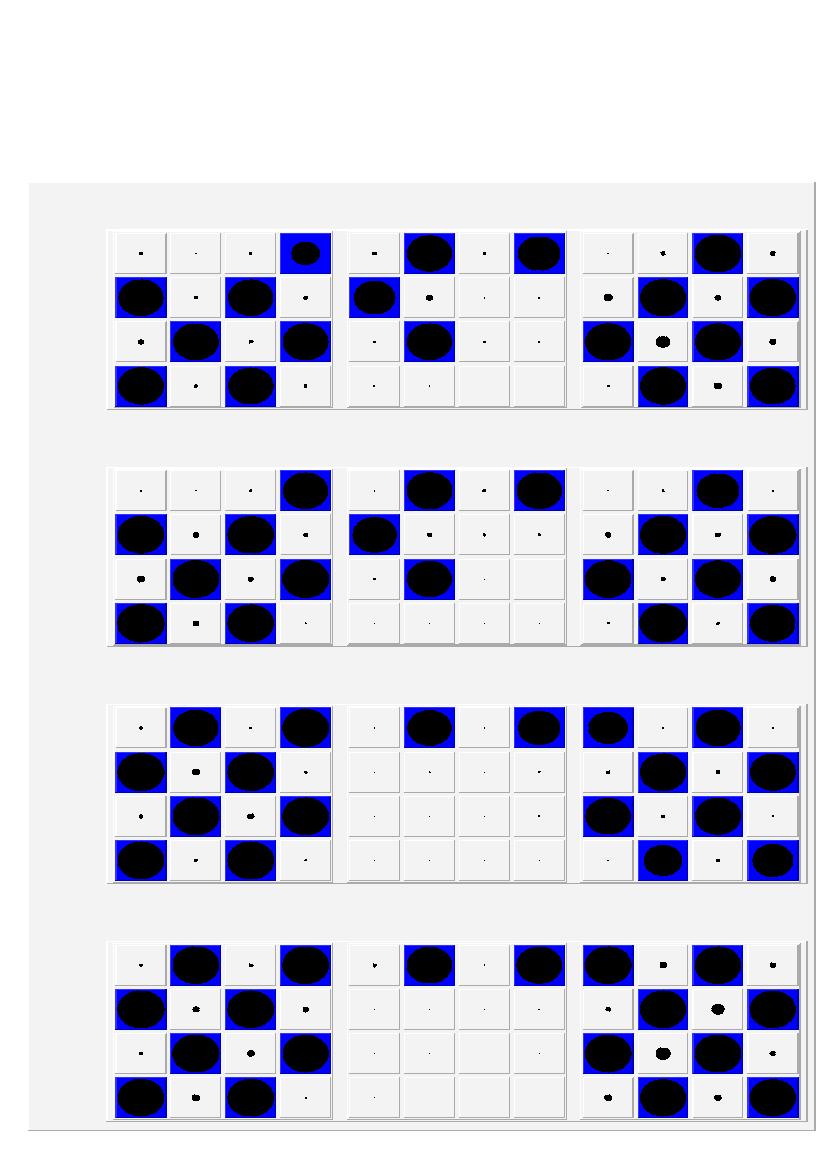

LED 6

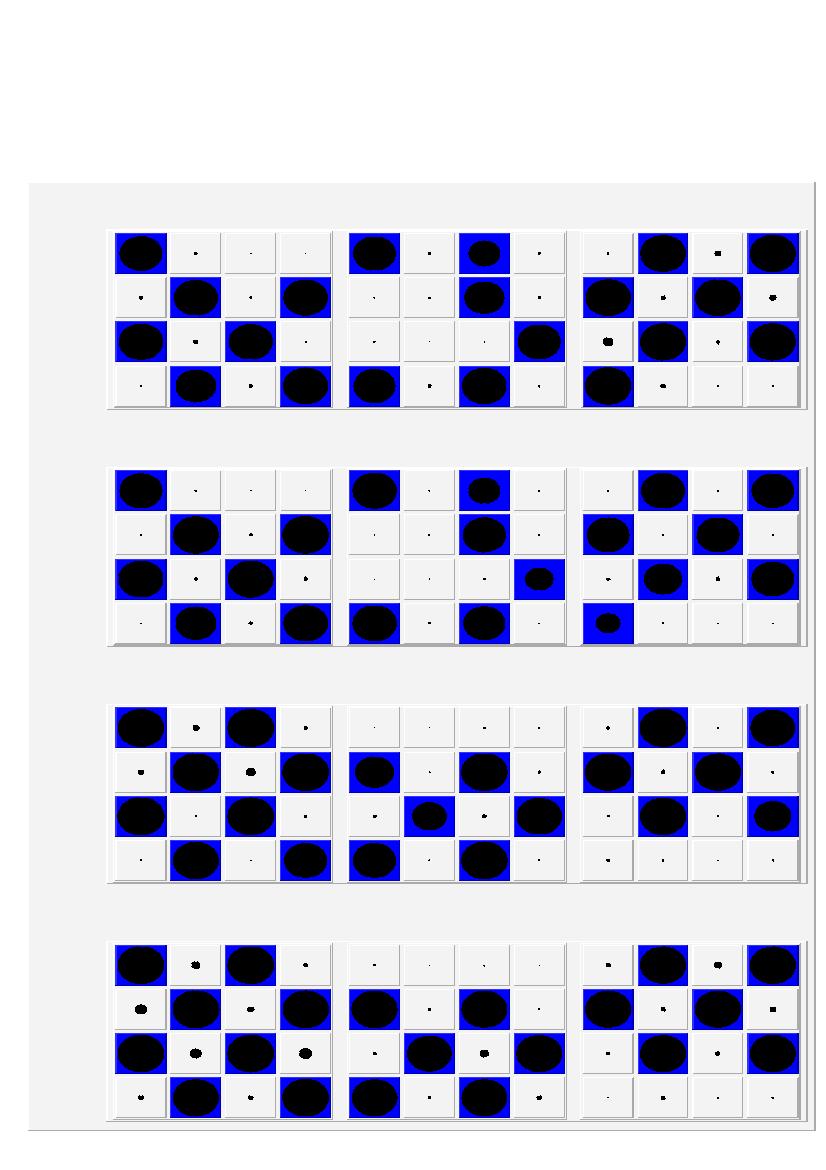

LED 7

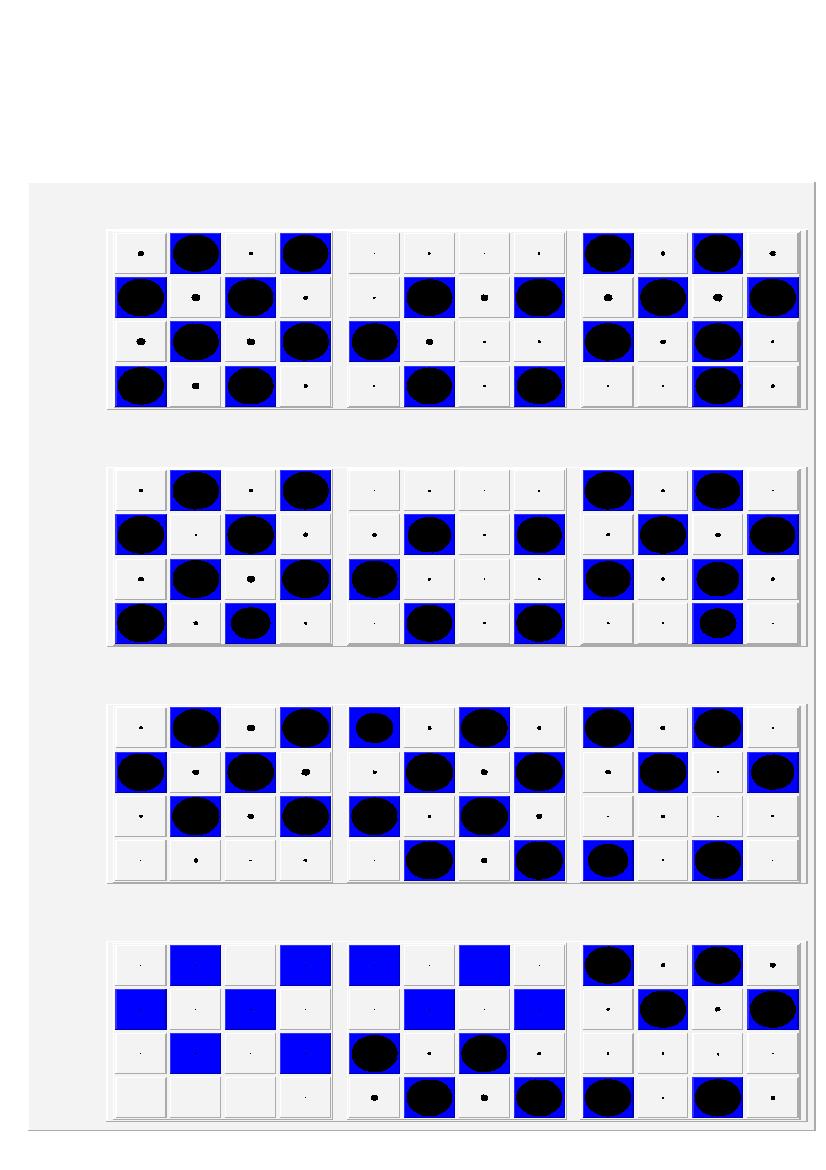

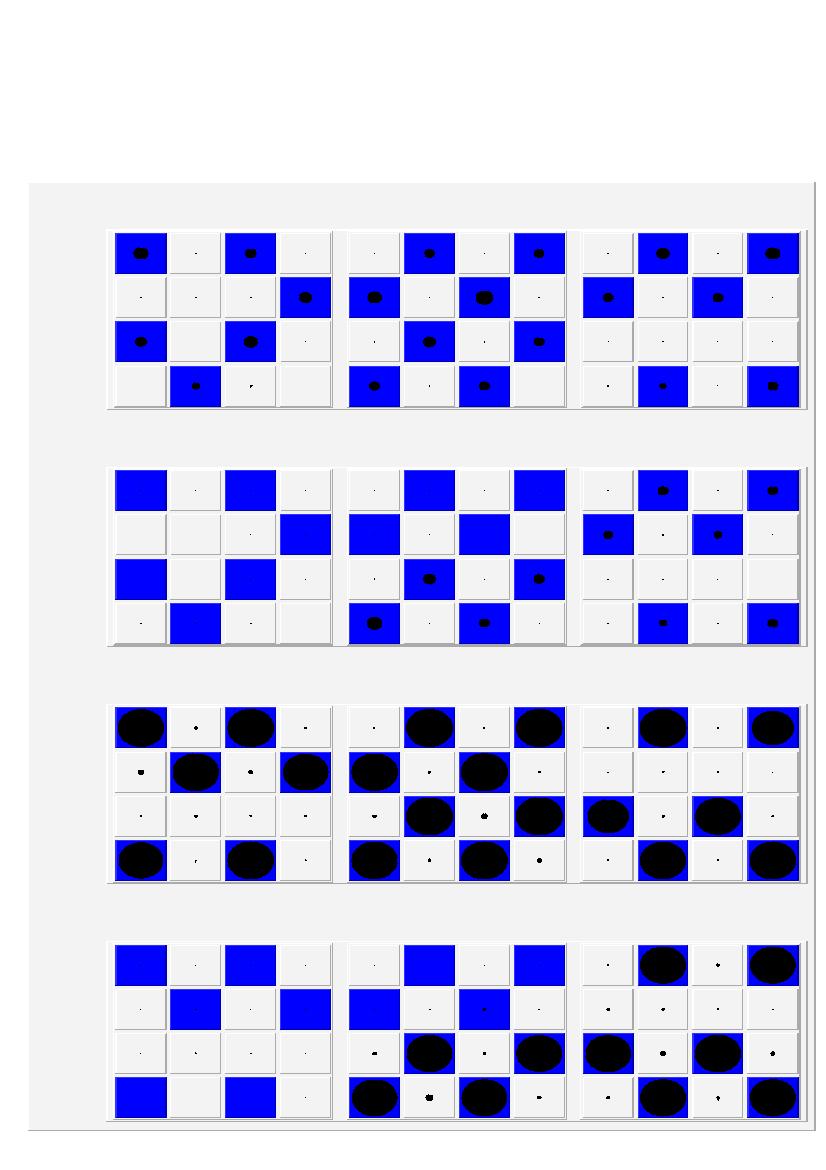

LED 8 - top right - light seen from same side as flashing LED - no signal here either = no light seen from LED at all - solution: ?

LED 9

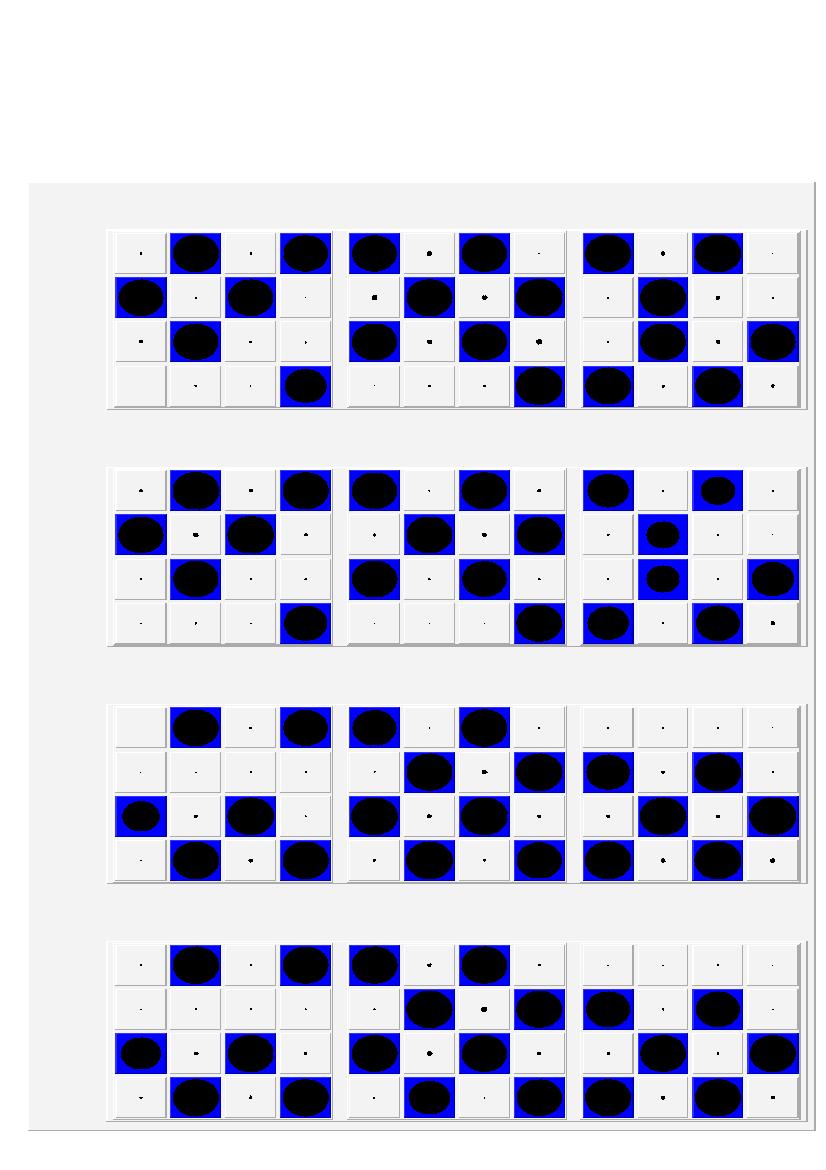

LED 10

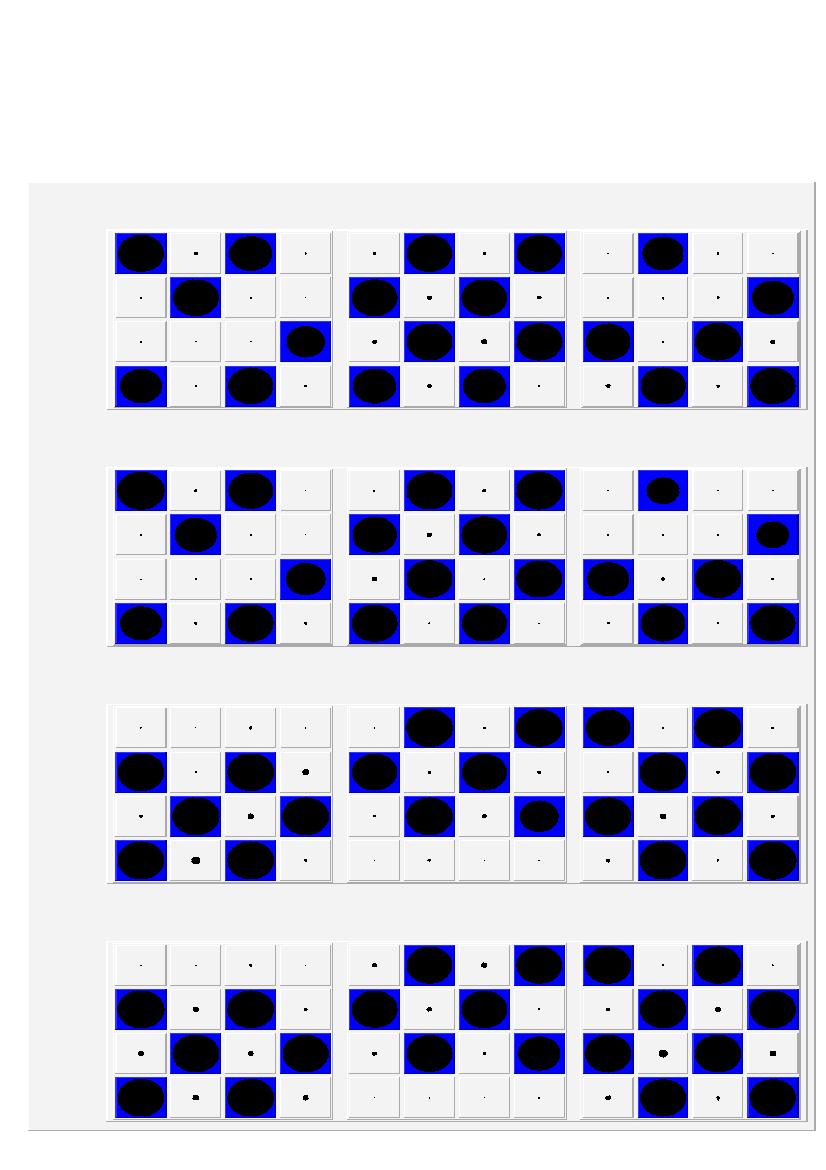

LED 11

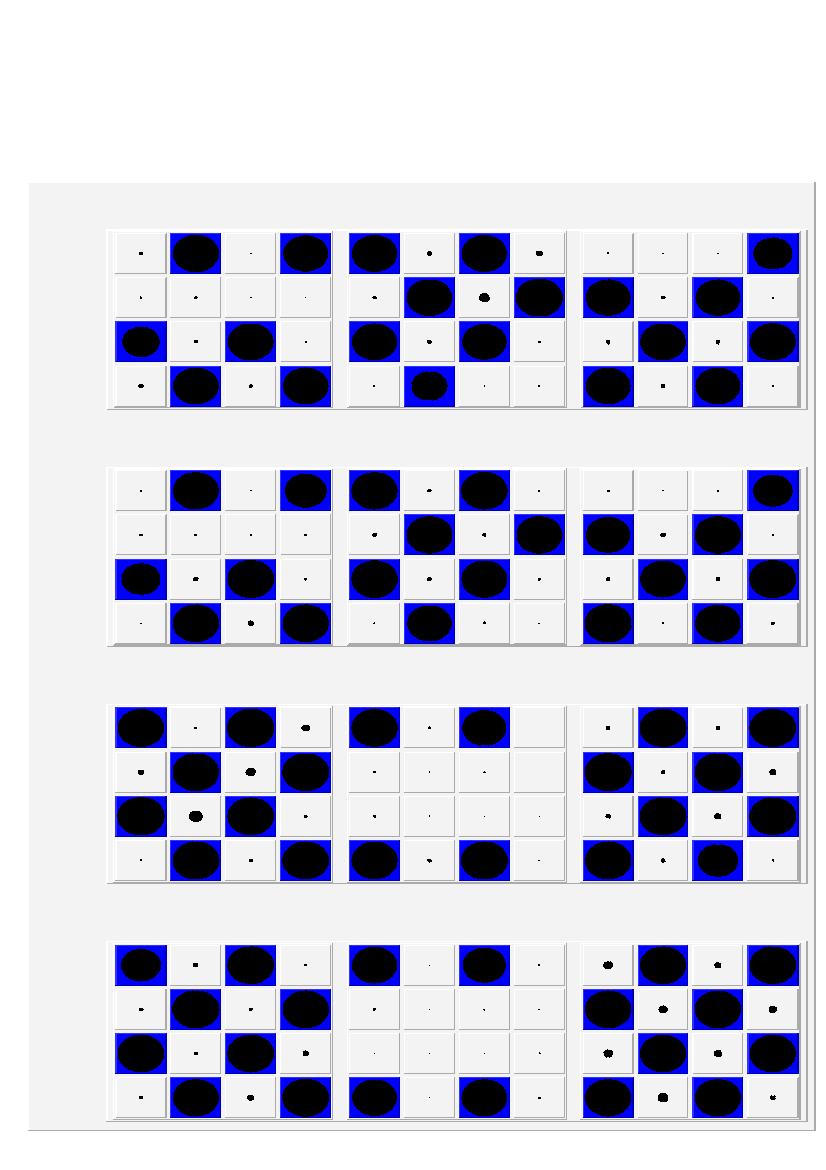

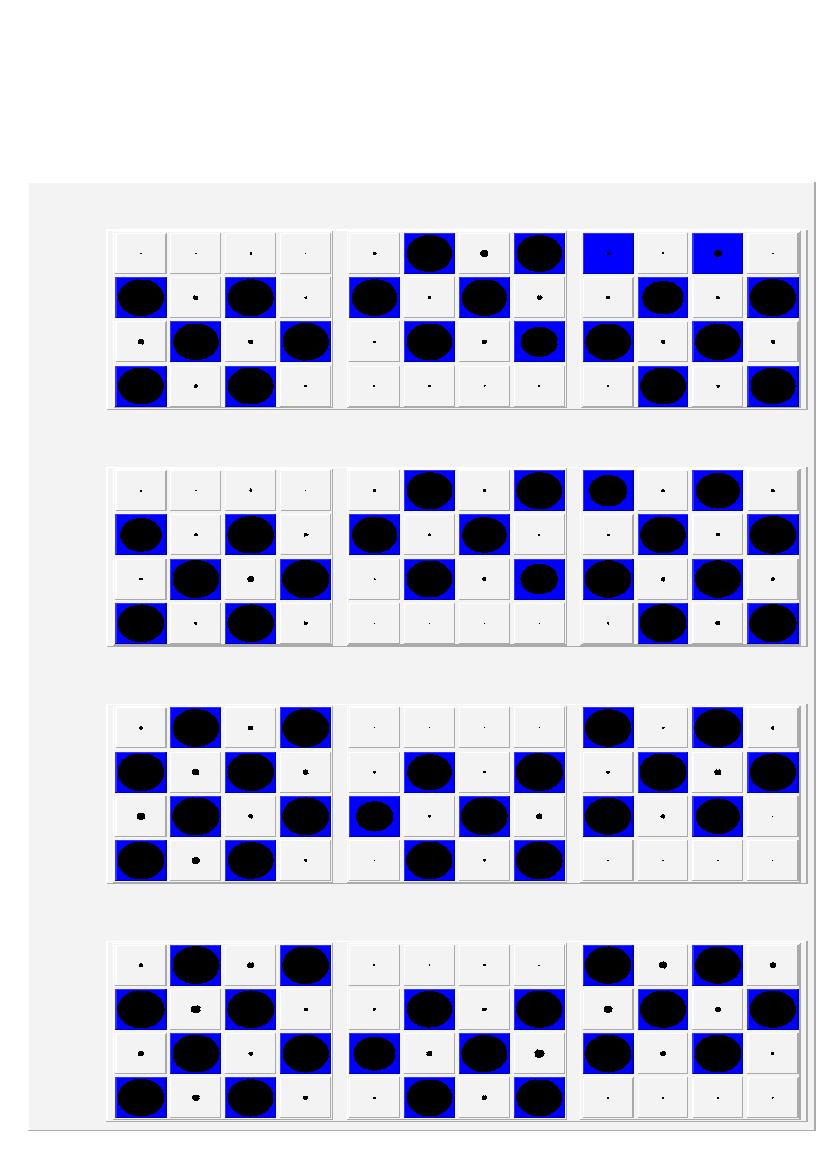

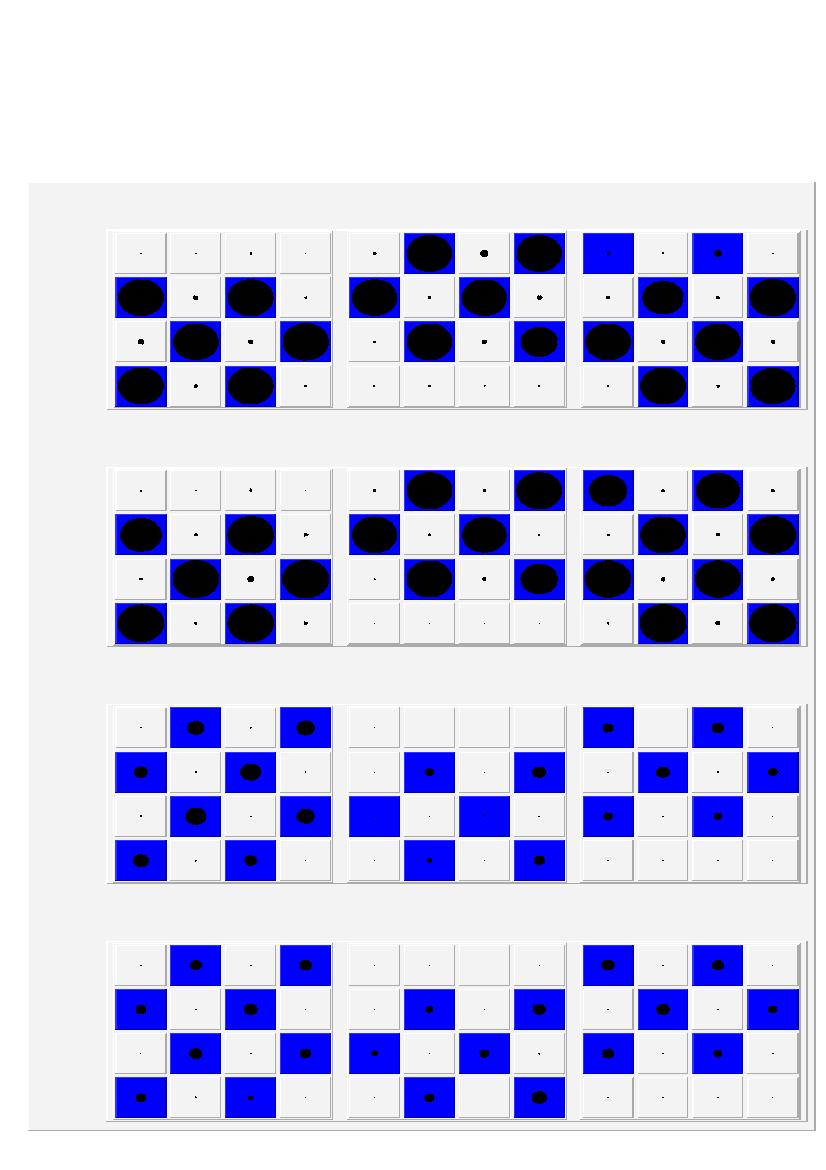

LED 12 - bottom right - light seen from same side as flashing LED - no light seen from LED in two pixels at both ends - solution: ?

LED 13 - led 14 pattern matches - solution: swap fibres

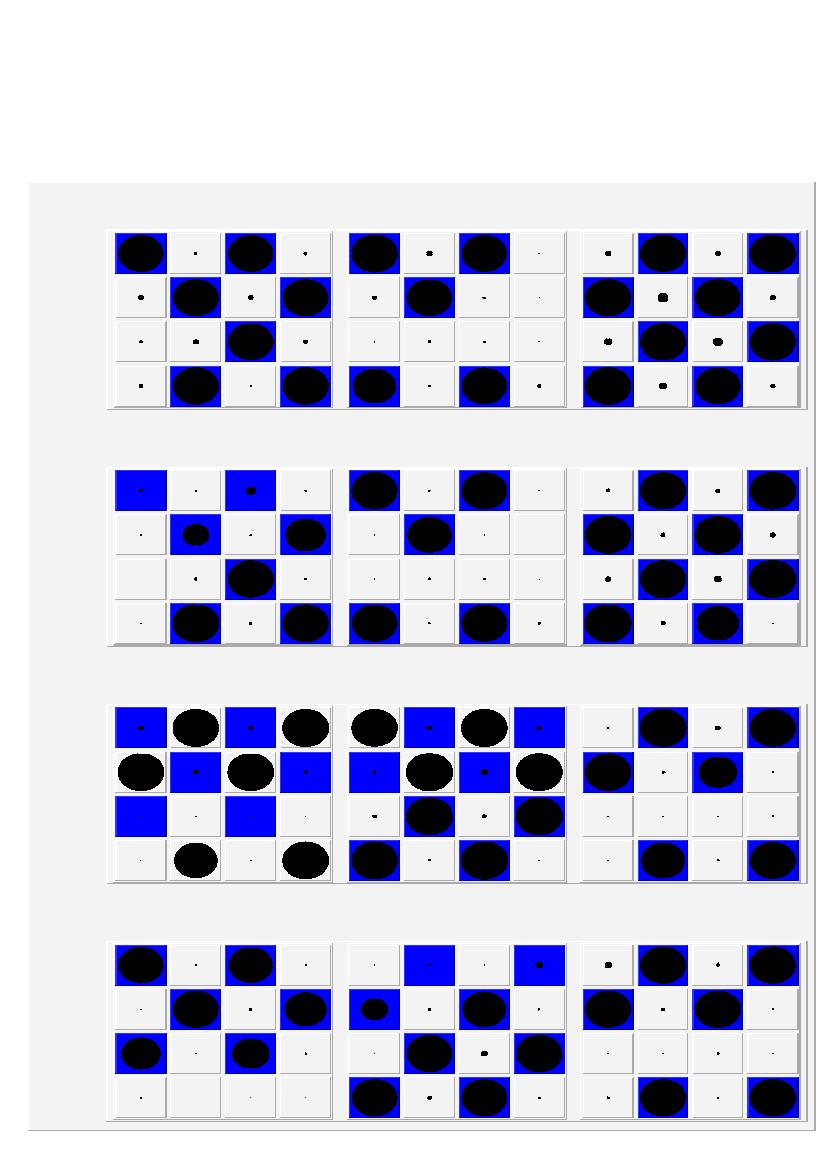

LED 14 - led 13 pattern matches - solution: swap fibres

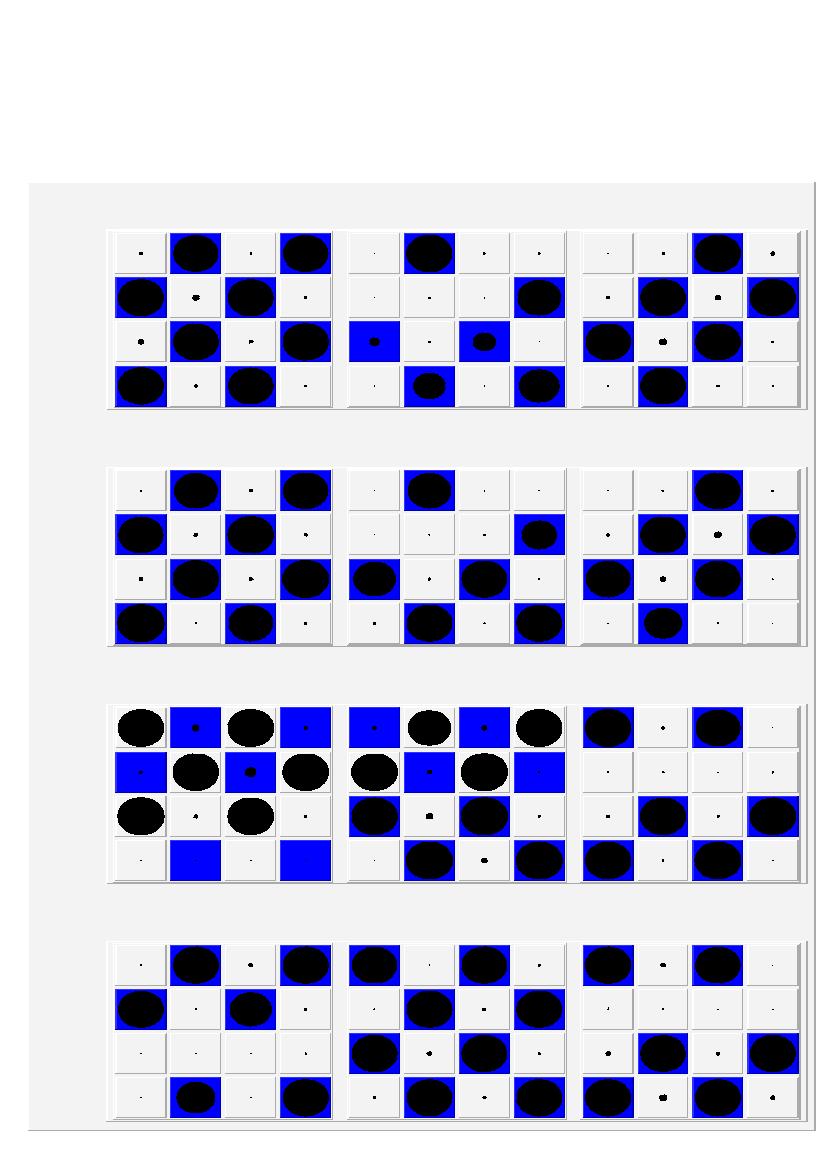

LED 15

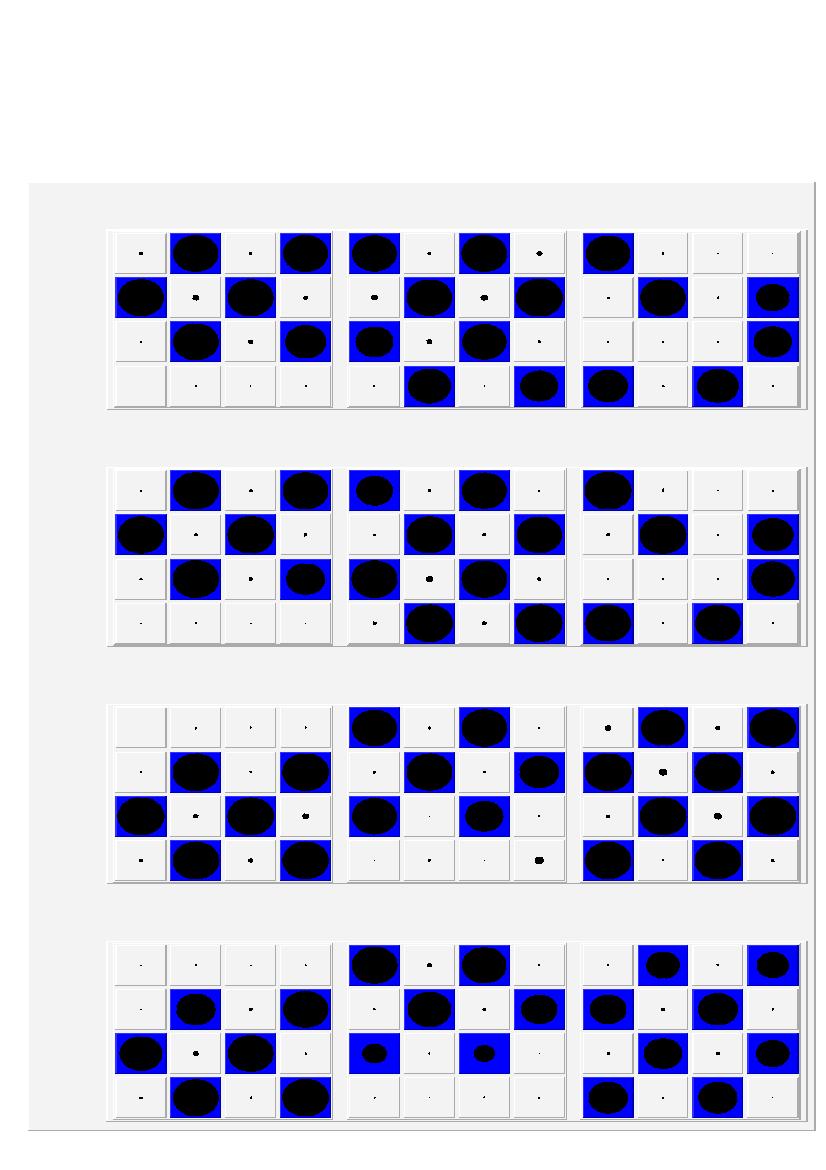

LED 16

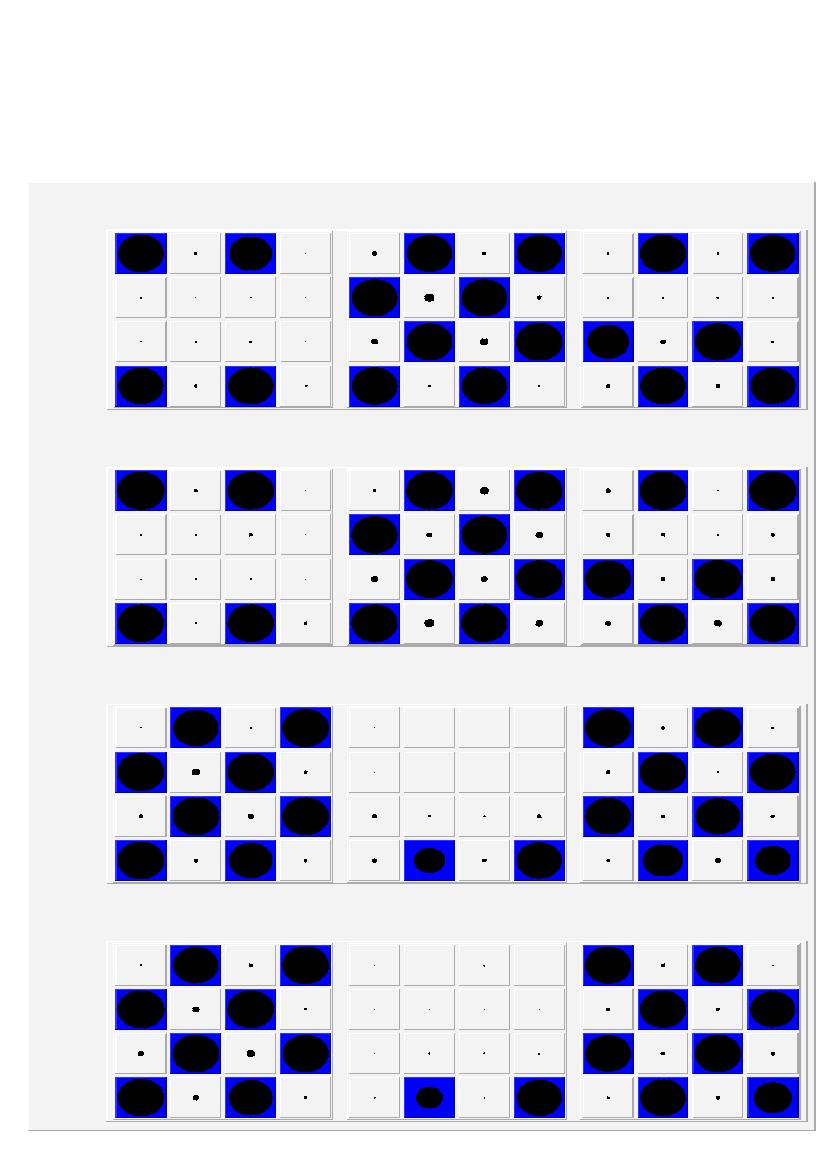

LED 17

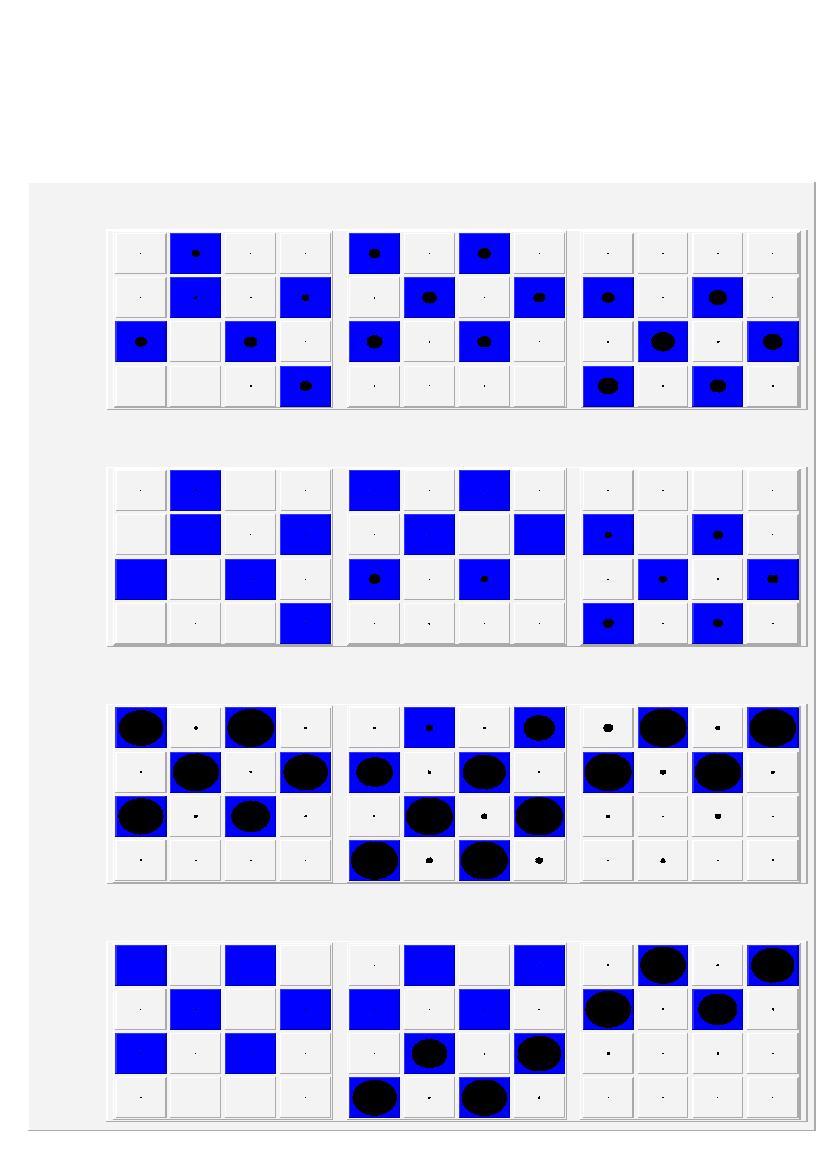

LED 18 - top right - light seen from same side as flashing LED - no signal here either = no light seen from LED at all - solution: ?

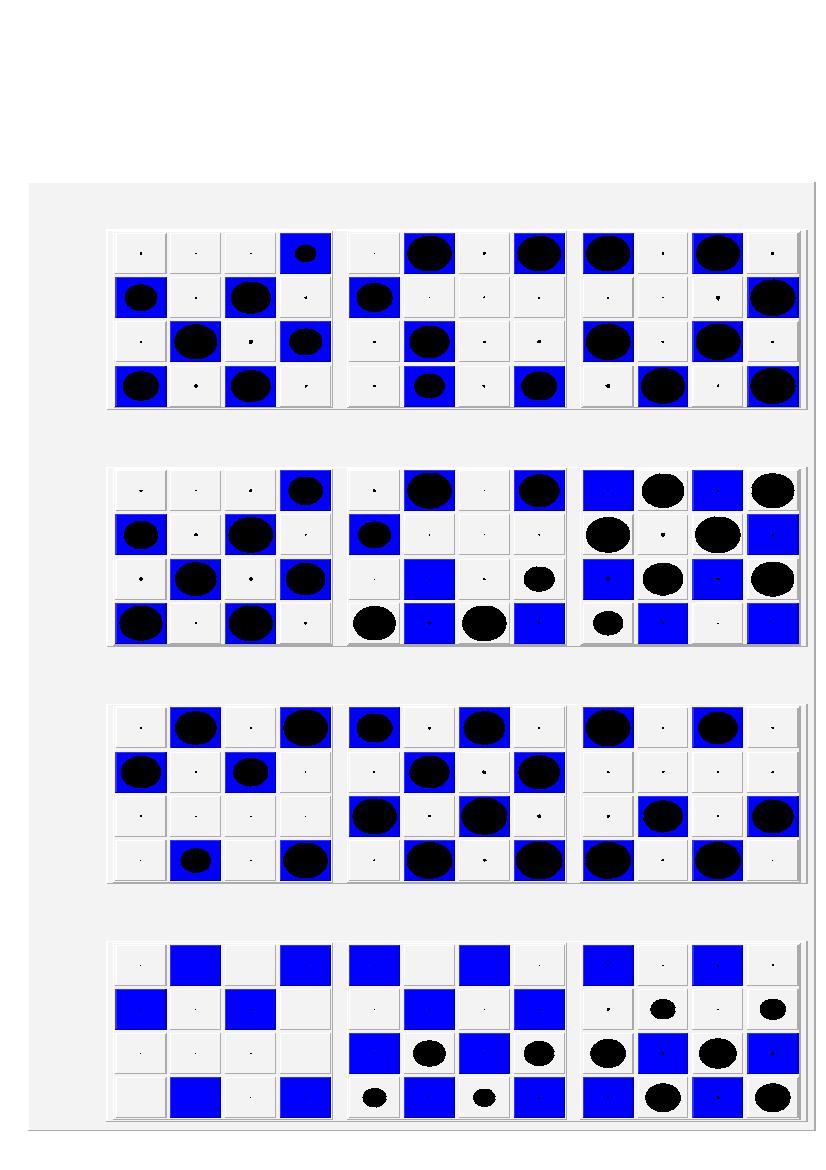

LED 19 - led 20 pattern matches - solution: swap fibres 18 and 19

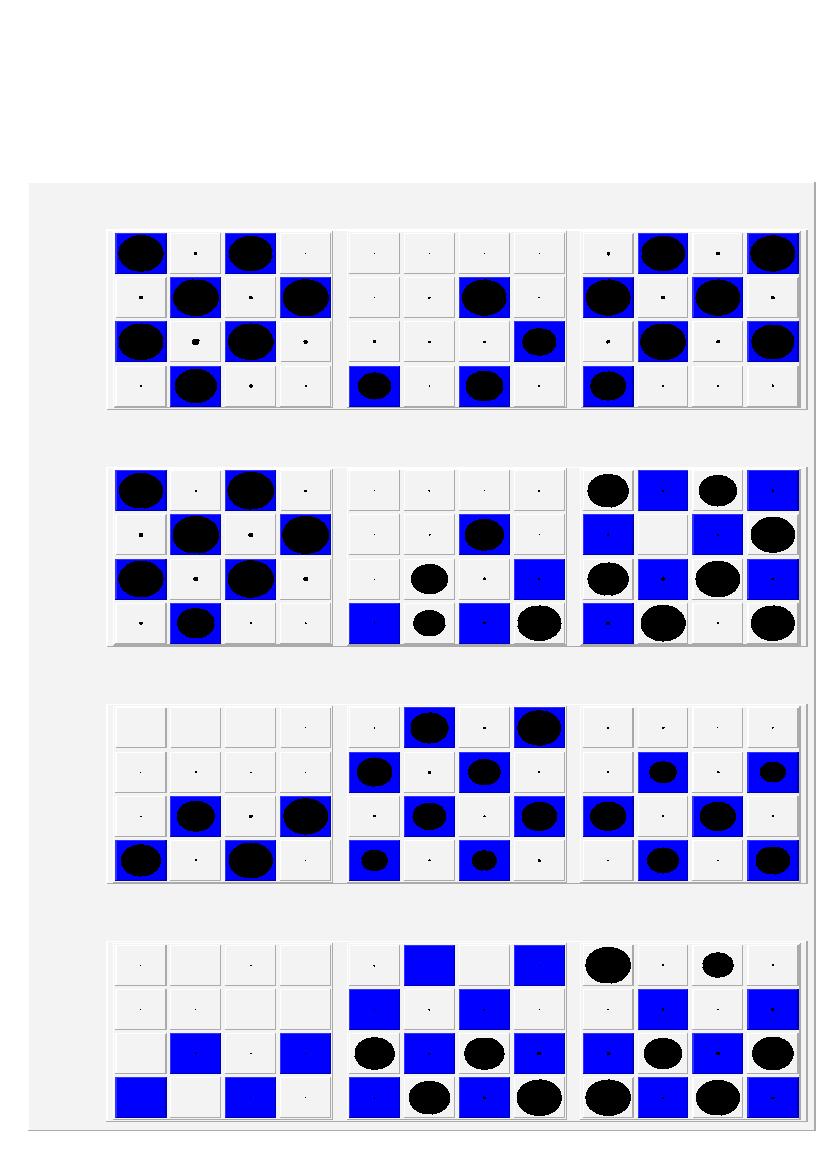

LED 20 - led 19 pattern matches - solution: swap fibres 18 and 19
