MINOS

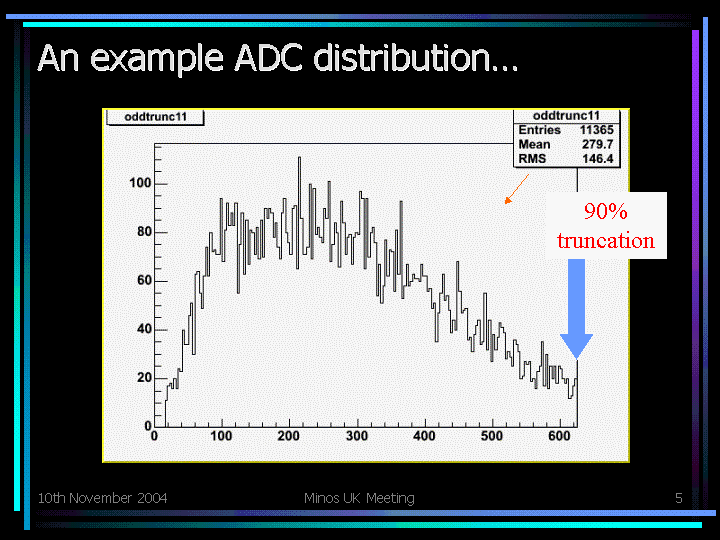

Mean and RMS extracted for dE/dX

6:

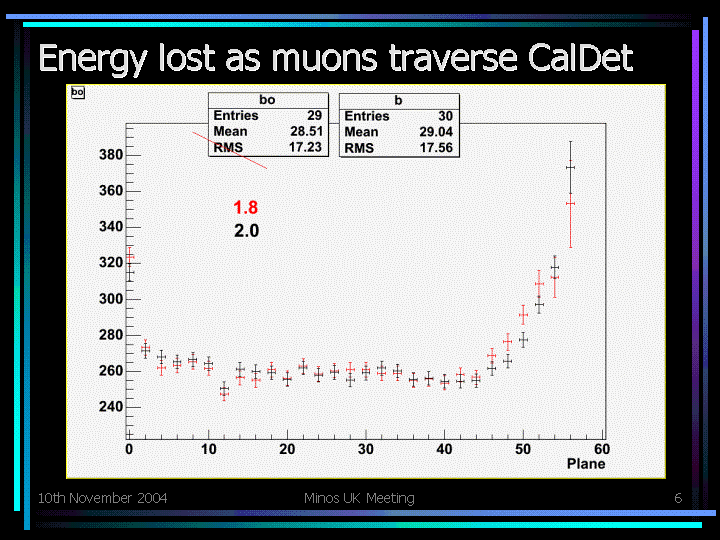

1.8 and 2.0 GeV - plane 12 seems in the wrong place outside of errors for both errors -> calibration constant problem?

7:

Bethe-Bloch energy deposition for muons through steel

8:

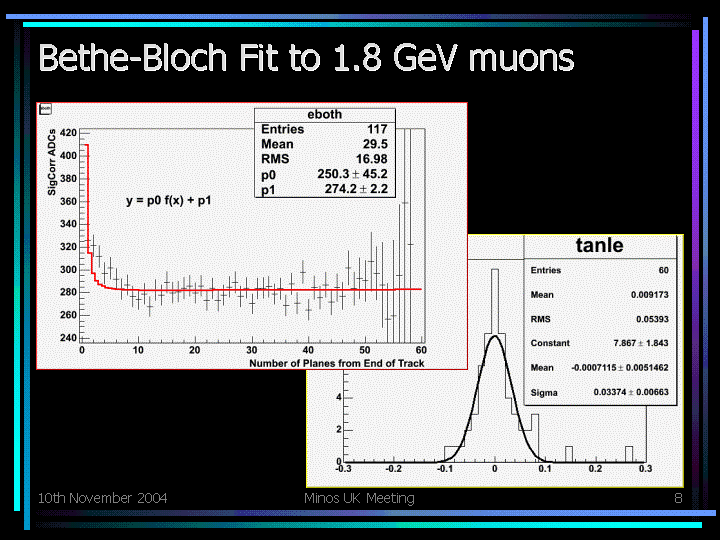

Fit made to energy deposition seen in data. y=(p0*bethe-bloch)+p1. Fit Parameters extracted.

9:

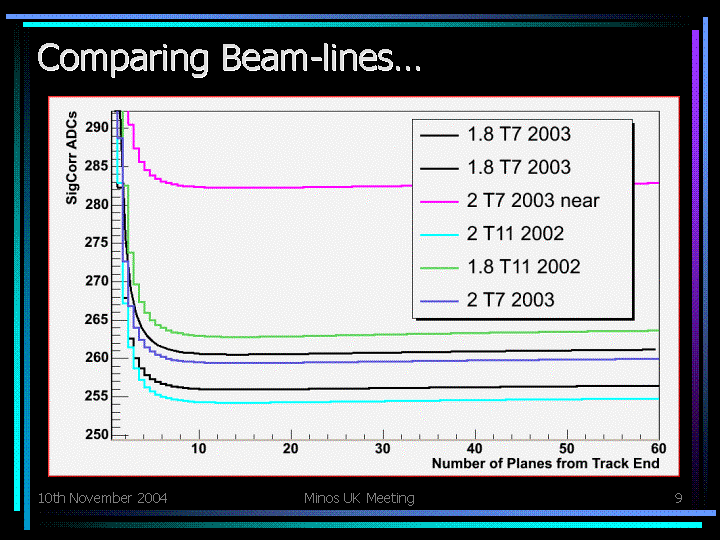

A sample of fits from different beam lines (and energies) The black lines give an estimate of the error with the expected value lying centrally between them. Every fit has a similar error associated with it (not shown)

10:

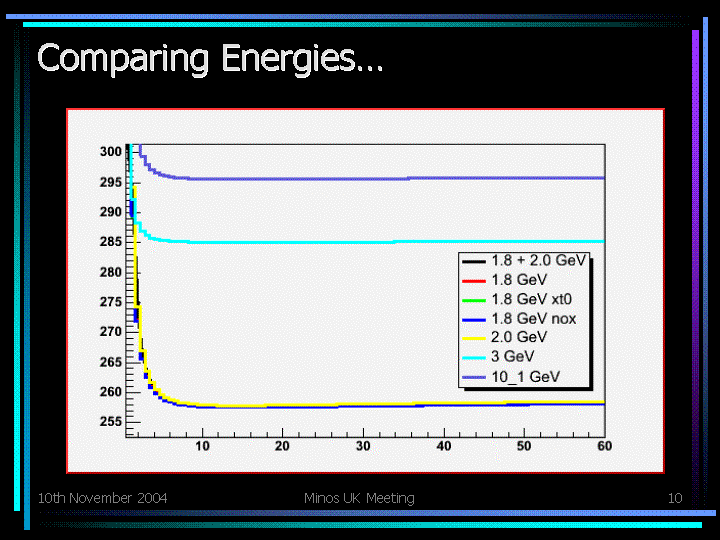

The 3 GeV line is a bit closer to 10 GeV than I expected simplistically... will try to run over more files to see if this was a fluke...

11:

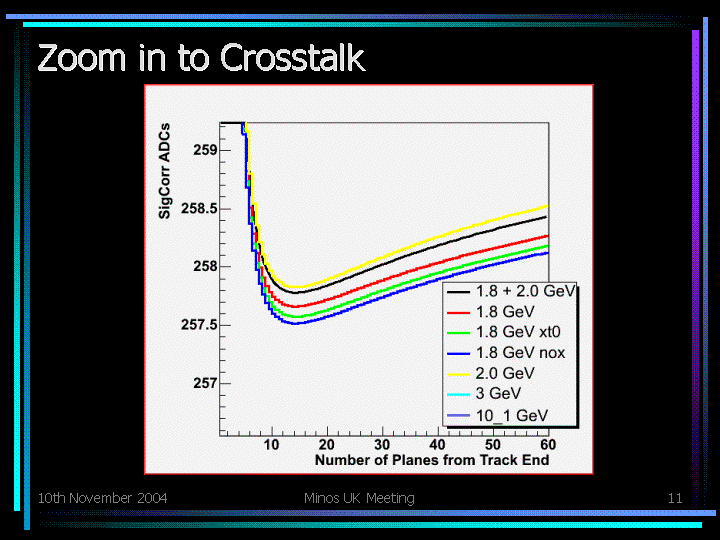

Zoom in on above graph. Blue: All hits passed to tracker. Green: Crosstalk is identified and not passed to tracker but otherwise ignored. Red: Crosstalk is added back to the its source. Not much difference.
