New length Cooling Transition pipes and Capillaries - preliminary
The new length cooling transition pipe layout has been modelled on all four quadrants of the +Z end
T.J.FRASER 11th September 2003

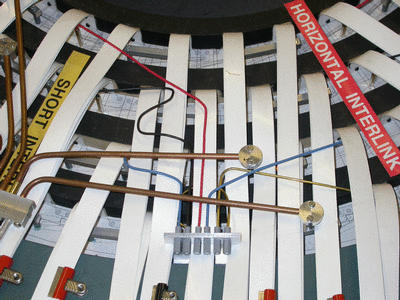

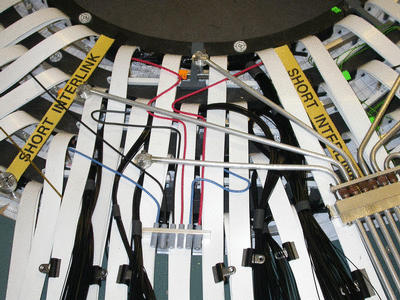

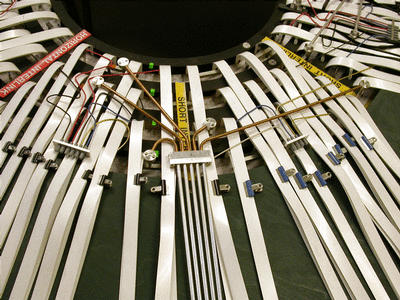

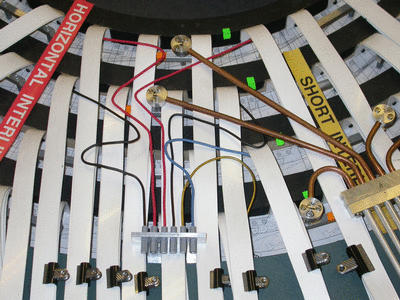

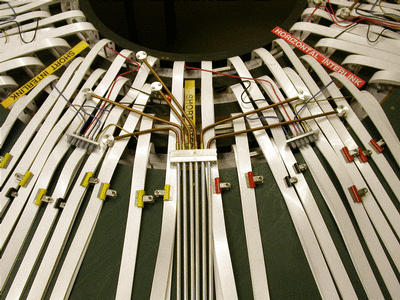

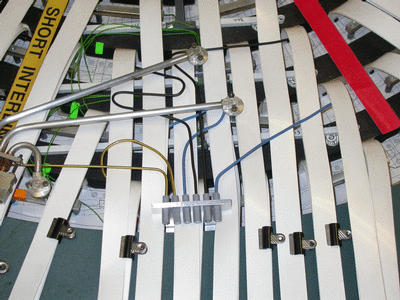

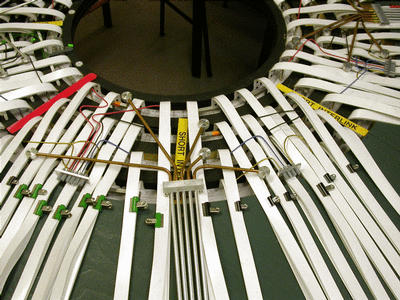

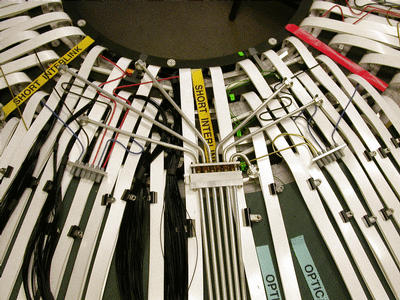

photos of the 360 deg barrel end model at UCL
Imagine you are walking round PPB1 as photos are taken from this angle.
Note that barrel 3, 4, and 5 pipes are modelled using heavy wire. B6 pipes are modelled using metal rod - lengths are unchanged.
B3 transition pipes are 345mm long - RED
B4 transition pipes are 320mm long - BLACK (1 pipe 340 long)
B5 transition pipes are 230mm long - BLUE
B6 transition pipes are 'tailored lengths' unchanged from August
(click for a larger view)
