Introduction
quadratic parameterisation:
quad_corrected_adc = QuadCorrected(adct2)*(QuadCorrected(drift_adc)/drift_pin)t1/(QuadCorrected(drift_adc)/drift_pin)t2
Quadratic terms for each strip-end come from Phil.
Work done
I want to compare MIP values on a
strip-end by strip-end basis for a range of different runs to ensure that
the above procedure is valid.
I've been looking at:
Runs before and after the HV change
Looking at two 3 GeV runs taken 2 weeks apart and straddling the HV change, I examined the ability of the drift calibration to correct for the ~20% gain change. Using the driftpoints, I corrected the ADC value back to a time before the HV change and then obtained the MIP values in terms of photoelectrons using Ryan's old gains.

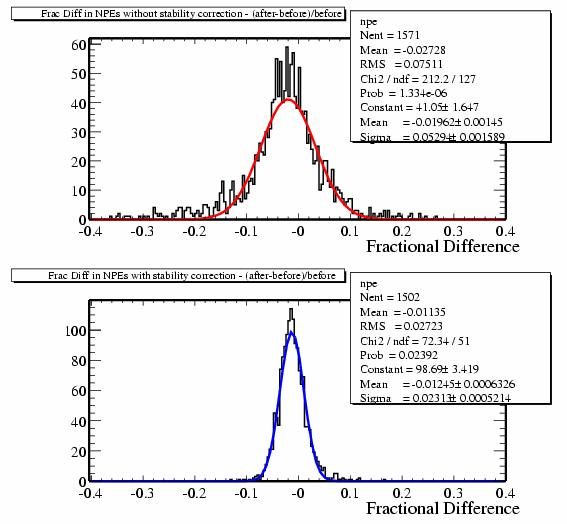

The plots below show the fractional difference between the sets of MIP values. The upper plot is without the stability correction and lower plot is with:
The stability correction narrows the distribution significantly as we would hope. However, although the mean value changes, it is still not consistent with zero after the correction i.e. the MIP values have changed by ~1.2% between the two runs.
Encouraging Aside:
I also looked at two 2 GeV runs separated by ~24h both of which were

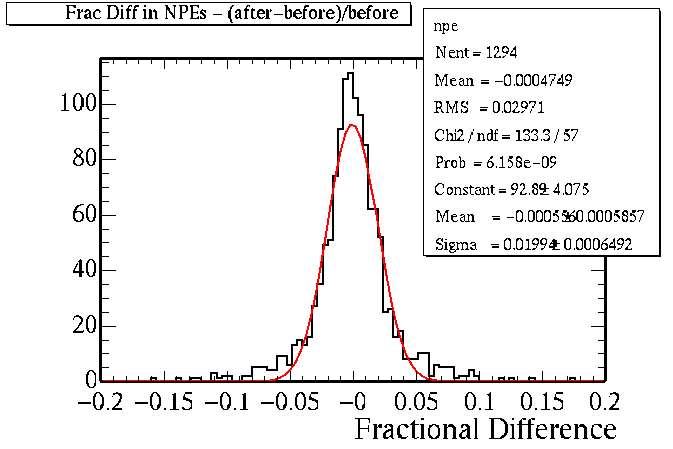

before the HV change. The plot below is the fractional difference in MIP
value between the earlier and later runs:
The mean of the distribution is consistent with zero and the statistical
variation on the fit results is ~ 2%
On short timescales therefore, we can see there are no significant
shifts in the MIP values.
Notice that there are a surplus of entries in the wings of the Gaussian;

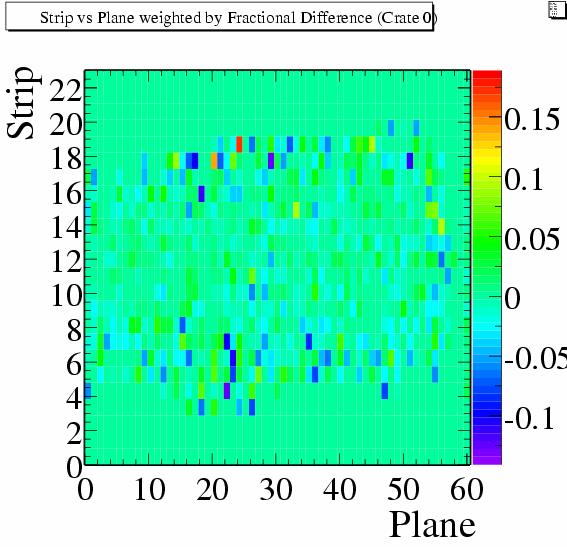

these can be understood in a 2D histogram of strip vs plane weighted by
fractional difference. Only the central strips contain enough beam muon
energy deposits to be fitted, however at the boundary between the fitted
and not fitted strips there are a number of poor fits, and it is these
entries that can be seen in the gaussian wings in the plot above.
Changes in Strip Response
The sets of data used in the plot above were the first ~2 hours of two long runs that started in the evening and ran overnight until morning. The MIP values were found for each ~2 hour period to see whether there was a trend that would point to a temperature dependance. The scintillator light output is expected to vary with temperature; approximately 0.3% per degree.

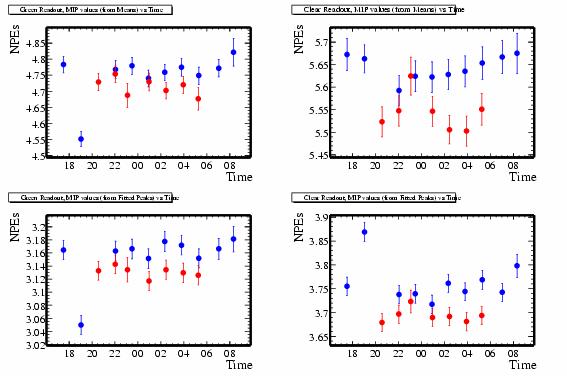

The graphs below show the variation in the average MIP value in terms of NPEs vs time (click on the plot for an eps version):
(The blue dots are the run before the HV change and red after)

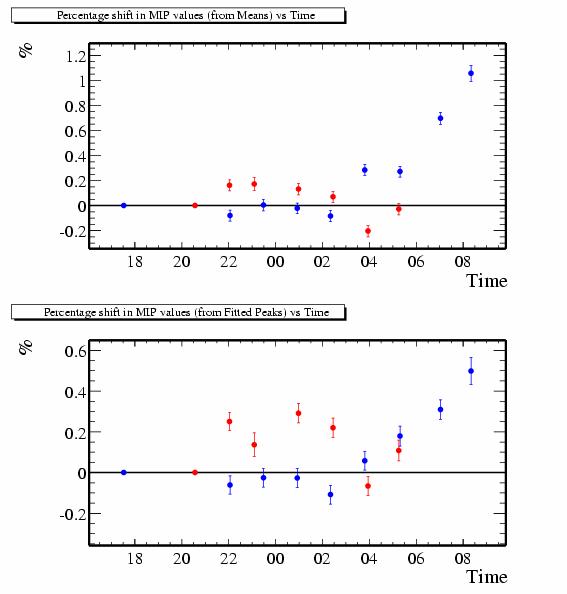

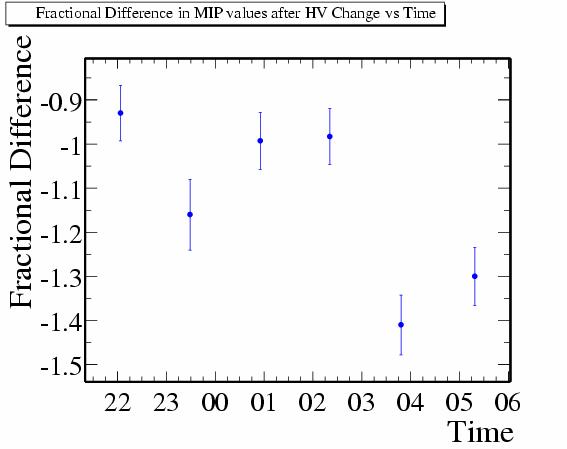

(Fractional Difference between blue and red runs on a strip-end by strip-end basis vs time)
(I have left out the 2nd blue point which shows a ~ -1% shift from the first point so that the rest could be seen more clearly)
In this plot, significant changes in the MIP values can be seen for the blue run, especially in the morning.
(The blue run was dated 23rd Sept, and the red 7th Oct.)

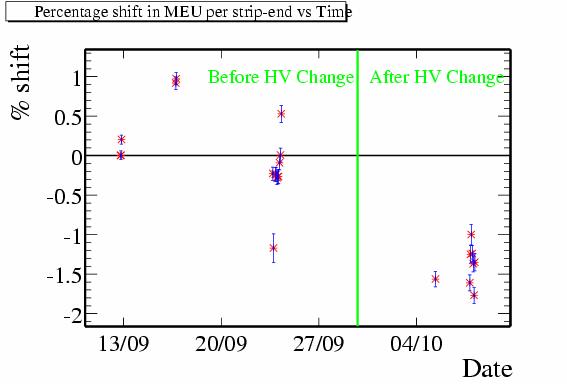

I have also looked at all other +/- 3 GeV runs and plotted the % shifts vs time from the first run in the series:
Work using Phil's Quadratic Corrections
Only some channels are available at present and only for runs after the HV change.
Comparing runs 11285 and11285++, (using the same sample of channels):
Using the simple correction:

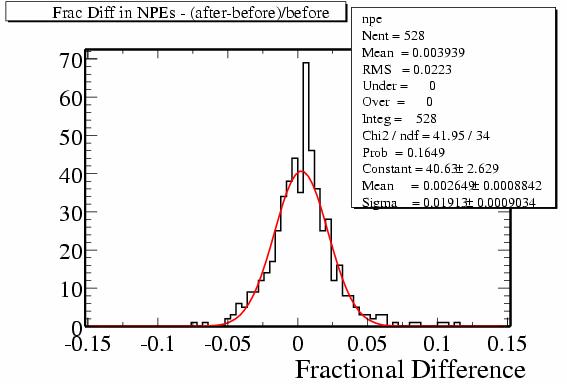

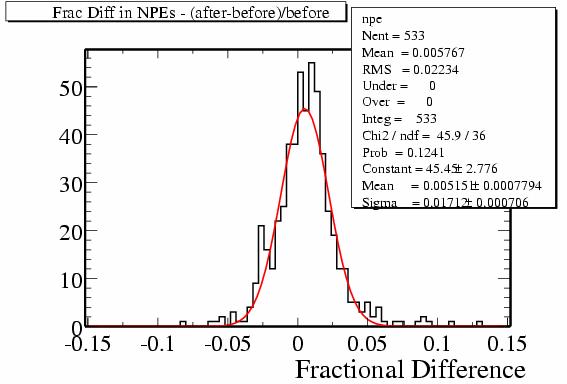

Using the quadratic:
The width is ~10% narrower using the quadratic corrections. The mean
is further from zero, (in the same direction).
Looking at Cosmics
Started looking for cosmics out to 70degrees wrt beamline.
I histogram the path length corrected ADCs and fit as usual.
Remarks and Conclusions
The beam makes it possible to investigate certain properties of muons at CalDet, including:

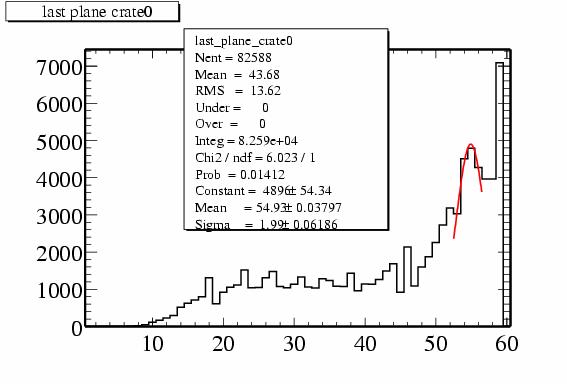

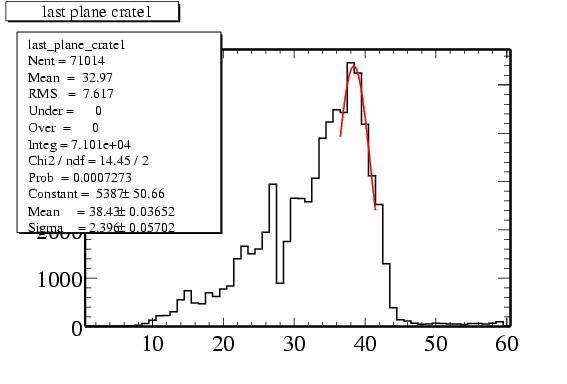

Looking at some last plane hit distributions:
2GeV
1.4GeV
Taking muons that stop in the fitted
peaks a clean sample of beam energy muons can be obtained.
Measurements of the range and dE/dx
have been made at several beam energies, the relevant plots are below (eps
versions):
Range plot
green dE/dx plot
clear dE/dx plot
Another measurement that has been made is the change in dedx as a function
of plane for 2 GeV muons. To do this I look at the average MIP value per

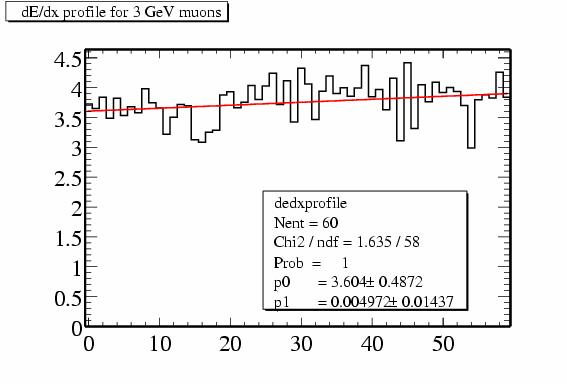

plane for 2 GeV muons ( dedx for 2GeV muons
), and then remove scintillator variations by dividing by the 3 GeV numbers

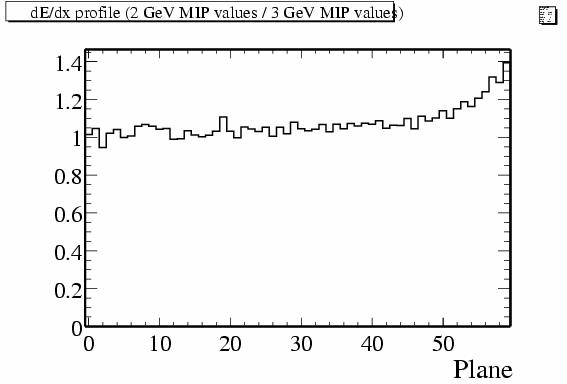

( dedx for 3GeV muons ):
The increase in dedx for the stopping muons can clearly be seen, (measured stopping plane for 2 GeV muons is ~ plane 55).

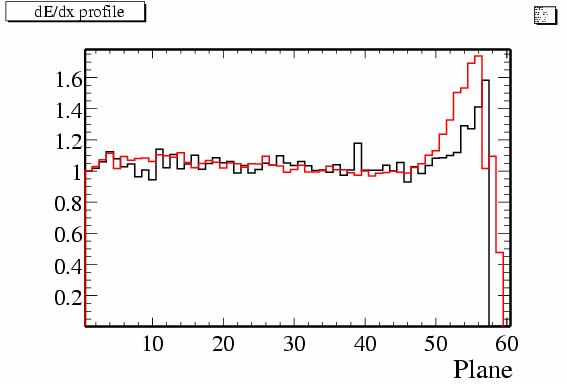

The plot below is the same thing, except that now, I have demanded that the muon stops in planes 54, 55 or 56. The red line is MC generated by Leo : (n.b. the black line is wrong, all entries should be shifted one bin to the right)
The main difference before plane 56 is that the MC rises more quickly. This is because I am cutting on stopping plane whereas Leo is not.
