SUSY CSC5 Two-Jet Analysis

  • Two-Jet Final Plots
  • Significances
  • List of Cuts
  • Datasets and Cut Flows
  • Datasets and Cut Flows (normalised to 1fb-1)

    Two-Jet Final Plots

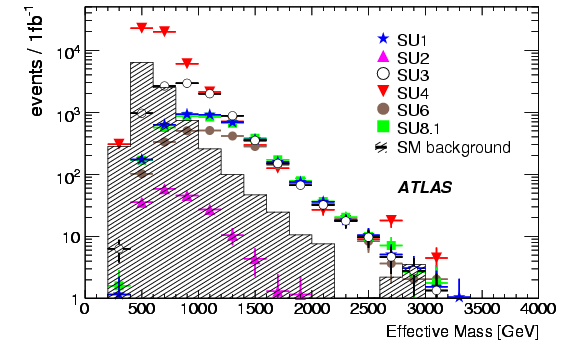

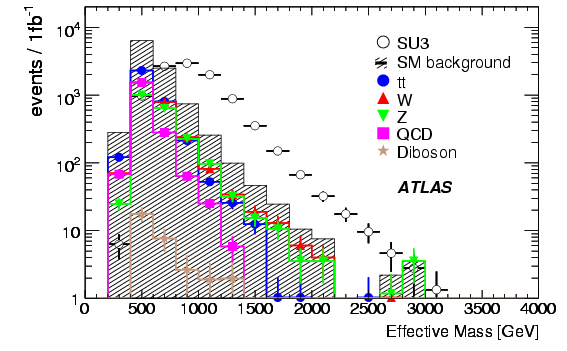

    Effective Mass:

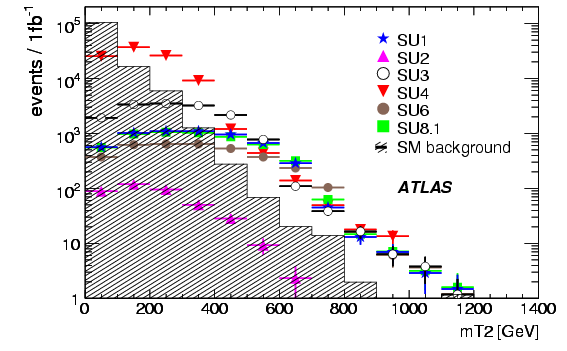

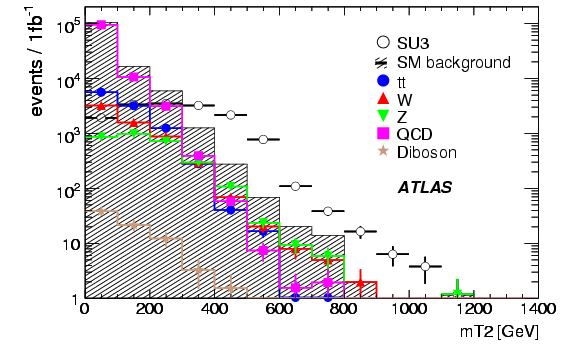

    mT2:

    Significances

    Effective Mass:
    Model (S) Meff Cut [GeV] S B S/B S/sqrt(B) Significance Z0 (including systematics: 50% QCD, 20% all other BG)
    SU3 800 6432.2 1205.8 5.3 185.2 13.3

    mT2:
    Model (S) MT2 Cut [GeV] S B S/B S/sqrt(B) Significance Z0 (including systematics: 50% QCD, 20% all other BG)
    SU3 400 3106.1 382.4 8.1 158.8 15.6

    Cut list

    Cut No. Description Cut value
    0 No cut
    1 No. leptons in crack 0
    2 First jet pt 150
    3 Second jet pt 100
    4 EtMiss 100
    5 EtMiss>x*Meff 0.3
    6 |phi(Jet1,2)-phi(EtMiss)| 0.2
    7 No. isolated leptons 0
    Trigger J70_XE70 1
    8 Meff 800

    Table with event counts

    NOTE: For MC@NLO files (T1, TTbar), the event numbers are the number of positive minus the number of negative weights [Weight+ - Weight-] (i.e. not simply the number of processed events).

    Sample Dataset Sigma Filter eff Events before cuts Cut 1 Cut 2 Cut 3 Cut 4 Cut 5 Cut 6 Cut 7 Trigger Cut 8
    SU1 trig1_misal1_csc11.005401.SU1_jimmy_susy.recon.AOD.v12000601 7.43 1 198600 195998 172904 149150 140811 99255 97253 73091 73067 58446
    SU2 trig1_misal1_csc11.005402.SU2_jimmy_susy.recon.AOD.v12000601 4.86 1 49700 49214 6799 5510 4447 2213 2085 1281 1279 626
    SU3 trig1_misal1_csc11.005403.SU3_jimmy_susy.recon.AOD.v12000601 18.59 1 498150 491619 430193 366488 335833 225315 219875 180960 180877 115758
    SU4 trig1_misal1_csc11.006400.SU4_jimmy_susy.recon.AOD.v12000601 262. 1 89950 88665 52993 37620 27558 14426 13905 11654 11626 2110
    SU6 trig1_misal1_csc11.005404.SU6_jimmy_susy.recon.AOD.v12000601 4.48 1 29950 29539 26241 23286 22120 15461 15008 11933 11932 9804
    SU8.1 trig1_misal1_csc11.005406.SU8_jimmy_susy1.recon.AOD.v12000601 6.44 1 49250 48777 43686 38173 36143 25375 24805 21537 21529 17366
    J4 trig1_misal1_mc12.008090.pythia_J4_Nj2_FMET100.recon.AOD.v12000601 316000 0.0029 67750 67335 50840 38736 4637 393 124 124 124 2
    J5 trig1_misal1_mc12.008091.pythia_J5_Nj2_FMET100.recon.AOD.v12000601 12500 0.0524 85550 85153 84891 83505 6850 254 38 38 37 9
    J6 trig1_misal1_mc12.008092.pythia_J6_Nj2_FMET100.recon.AOD.v12000601 344 0.196 34900 34761 34761 34738 4098 42 8 8 8 6
    J7 trig1_misal1_mc12.008093.pythia_J7_Nj2_FMET100.recon.AOD.v12000601 5.3 1 3500 3486 3486 3486 936 0 0 0 0 0
    J8 trig1_misal1_mc12.008094.pythia_J8_Nj2_FMET100.recon.AOD.v12000601 0.0221 1 4250 4241 4241 4241 2434 2 1 1 1 1
    T1 trig1_misal1_mc12.005200.T1_McAtNlo_Jimmy.recon.AOD.v12000604 461 1 437068 428172 81396 51982 16595 6078 5597 3439 3401 296
    TTbar trig1_misal1_mc12.005204.TTbar_FullHad_McAtNlo_Jimmy.recon.AOD.v12000601 369 1 71914 71260 16598 13385 109 3 3 3 3 0
    Wenu trig1_misal1_mc12.008270.pythia_Wenu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.143 50000 48338 18884 3645 2673 1257 1186 720 718 92
    Wmunu trig1_misal1_mc12.008271.pythia_Wmunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.0835 30000 29896 11103 2405 2405 1183 1158 532 532 69
    Wtaunu trig1_misal1_mc12.008272.pythia_Wtaunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.163 54500 53974 21941 5412 4204 2088 1758 1522 1520 233
    Zee trig1_misal1_mc12.008194.pythia_Zee_qg_ckin80_Nj2.recon.AOD.v12000601 46.2 1 4750 4461 705 269 0 0 0 0 0 0
    Zmumu trig1_misal1_mc12.008195.pythia_Zmumu_qg_ckin80_Nj2.recon.AOD.v12000601 46.4 0.207 5000 4985 1464 274 37 20 20 13 13 0
    Ztautau trig1_misal1_mc12.008191.pythia_Ztautau_qg_ckin80_Nj2.recon.AOD.v12000601 46.3 0.0972 5000 4911 2573 853 564 147 118 75 75 10
    Znunu trig1_misal1_mc12.008190.pythia_Znunu_qg_ckin80_Nj2.recon.AOD.v12000601 246 0.168 35000 34870 11509 2373 2239 1712 1664 1663 1663 324
    WW trig1_misal1_csc11.005985.WW_Herwig.recon.AOD.v12000601 24.5 1 50000 48944 1563 533 127 60 57 27 27 6
    WZ trig1_misal1_csc11.005987.WZ_Herwig.recon.AOD.v12000601 7.8 1 49900 48720 2011 817 163 79 70 35 35 6
    ZZ trig1_misal1_csc11.005986.ZZ_Herwig.recon.AOD.v12000601 2.1 1 48550 47203 2018 973 90 35 30 19 19 7

    Table with event counts normalised to 1fb-1

    Same as above but with event numbers normalised to 1 fb-1.

    NOTE: For MC@NLO files (T1, TTbar), the event numbers are the number of positive minus the number of negative weights [Weight+ - Weight-] (i.e. not simply the number of processed events).

    Sample Dataset Sigma Filter eff K Factor Events before cuts Cut 1 Cut 2 Cut 3 Cut 4 Cut 5 Cut 6 Cut 7 Trigger Cut 8
    SU1 trig1_misal1_csc11.005401.SU1_jimmy_susy.recon.AOD.v12000601 7.43 1 1.461642 10860 10717.7 9454.9 8155.9 7700.0 5427.54 5318.07 3996.8 3995.5 3196.0
    SU2 trig1_misal1_csc11.005402.SU2_jimmy_susy.recon.AOD.v12000601 4.86 1 1.477366 7180 7109.8 982.2 796.0 642.4 319.7 301.2 185.1 184.8 90.4
    SU3 trig1_misal1_csc11.005403.SU3_jimmy_susy.recon.AOD.v12000601 18.59 1 1.488973 27680 27317.1 23904 20364.1 18660.7 12519.8 12217.5 10055.2 10050.5 6432.2
    SU4 trig1_misal1_csc11.006400.SU4_jimmy_susy.recon.AOD.v12000601 262. 1 1.535076 402190 396444 236945 168209 123219 64502.4 62172.9 52108 51982.9 9434.4
    SU6 trig1_misal1_csc11.005404.SU6_jimmy_susy.recon.AOD.v12000601 4.48 1 1.354911 6070 5986.7 5318.3 4719.4 4483.09 3133.5 3041.69 2418.5 2418.3 1987.0
    SU8.1 trig1_misal1_csc11.005406.SU8_jimmy_susy1.recon.AOD.v12000601 6.44 1 1.350932 8700 8616.5 7717.1 6743.3 6384.7 4482.5 4381.8 3804.5 3803.1 3067.7
    J4 trig1_misal1_mc12.008090.pythia_J4_Nj2_FMET100.recon.AOD.v12000601 316000 0.0029 1 916400 910787 687672 523951 62721 5315.8 1677.25 1677.25 1677.25 27.1
    J5 trig1_misal1_mc12.008091.pythia_J5_Nj2_FMET100.recon.AOD.v12000601 12500 0.0524 1 655000 651960 649954 639343 52445.9 1944.7 290.9 290.9 283.3 68.9
    J6 trig1_misal1_mc12.008092.pythia_J6_Nj2_FMET100.recon.AOD.v12000601 344 0.196 1 67424 67155.5 67155.5 67111 7917.0 81.1 15.5 15.5 15.5 11.6
    J7 trig1_misal1_mc12.008093.pythia_J7_Nj2_FMET100.recon.AOD.v12000601 5.3 1 1 5300 5278.8 5278.8 5278.8 1417.4 0 0 0 0 0
    J8 trig1_misal1_mc12.008094.pythia_J8_Nj2_FMET100.recon.AOD.v12000601 0.0221 1 1 22.1 22.1 22.1 22.1 12.7 0.01 0.01 0.01 0.01 0.01
    T1 trig1_misal1_mc12.005200.T1_McAtNlo_Jimmy.recon.AOD.v12000604 461 1 0.976139 450000 440841 83804.4 53520 17086 6257.8 5762.6 3540.8 3501.6 304.8
    TTbar trig1_misal1_mc12.005204.TTbar_FullHad_McAtNlo_Jimmy.recon.AOD.v12000601 369 1 1.03794 383000 37951788397.7 71285.9 580.5 16.0 16.0 16.0 16.0 0
    Wenu trig1_misal1_mc12.008270.pythia_Wenu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.143 1 49049 47418.6 18524.8 3575.7 2622.2 1233.1 1163.4 706.3 704.3 90.3
    Wmunu trig1_misal1_mc12.008271.pythia_Wmunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.0835 1 28640.5 28541.2 10599.8 2296.0 1952.3 1129.4 1105.5 507.9 507.9 65.9
    Wtaunu trig1_misal1_mc12.008272.pythia_Wtaunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.163 1 55909 55369.4 22508.2 5551.9 4312.7 2142.0 1803.5 1561.4 1561.4 239.0
    Zee trig1_misal1_mc12.008194.pythia_Zee_qg_ckin80_Nj2.recon.AOD.v12000601 46.2 1 1 46200 43389.1 6857.1 2616.4 0 0 0 0 0 0
    Zmumu trig1_misal1_mc12.008195.pythia_Zmumu_qg_ckin80_Nj2.recon.AOD.v12000601 46.4 0.207 1 9604.8 9576.0 2812.8 526.3 71.1 38.4 38.4 25.0 25.0 0
    Ztautau trig1_misal1_mc12.008191.pythia_Ztautau_qg_ckin80_Nj2.recon.AOD.v12000601 46.3 0.0972 1 4500 4419.9 2315.7 767.7 507.6 132.3 106.2 67.5 67.5 9
    Znunu trig1_misal1_mc12.008190.pythia_Znunu_qg_ckin80_Nj2.recon.AOD.v12000601 246 0.168 1 41328 41174.5 13589.8 2802.0 2643.8 2021.5 1964.9 1663.7 1663.7 382.6
    WW trig1_misal1_csc11.005985.WW_Herwig.recon.AOD.v12000601 24.5 1 1.594 39053 38228.3 1220.84 416.4 99.1 46.9 44.5 21.0 21.0 4.6
    WZ trig1_misal1_csc11.005987.WZ_Herwig.recon.AOD.v12000601 7.8 1 1.803 14063.4 13730.9 566.7 230.2 46.0 22.2 19.7 9.9 9.9 1.6
    ZZ trig1_misal1_csc11.005986.ZZ_Herwig.recon.AOD.v12000601 2.1 1 1.348 2830.8 2752.2 117.7 56.8 5.3 2.0 1.8 1.1 1.1 0.4
