SUSY CSC5 Three-Jet Analysis

  • Three-Jet Final Plots
  • Significances
  • List of Cuts
  • Datasets and Cut Flows
  • Datasets and Cut Flows (normalised to 1fb-1)

    Three-Jet Final Plots

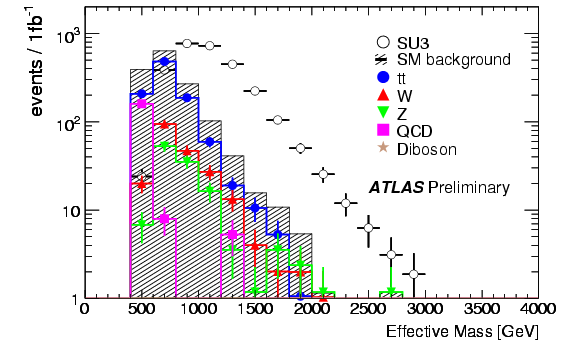

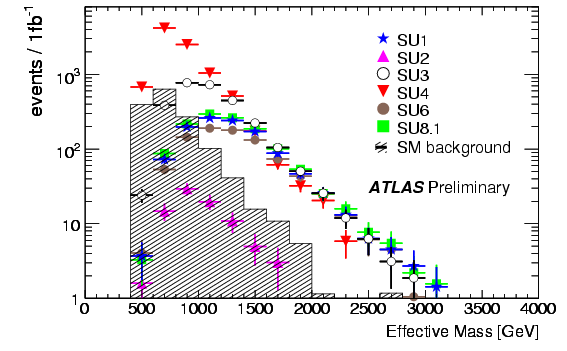

    Effective Mass:

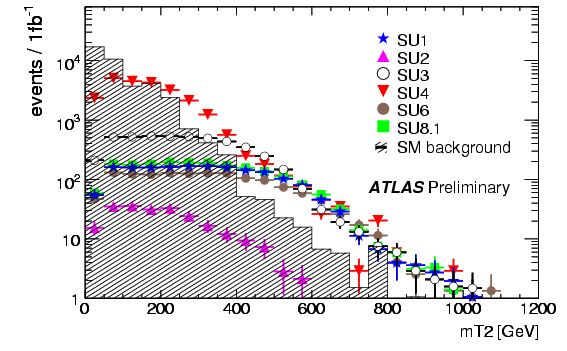

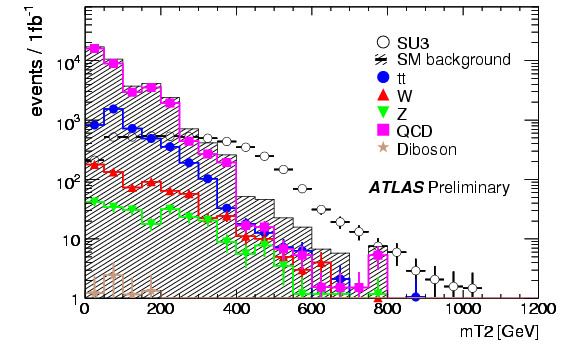

    mT2:

    Significances

    Effective Mass:
    Model (S) Meff Cut [GeV] S B S/B S/sqrt(B) Significance Z0(including systematics: 50% QCD, 20% all other BG)
    SU3 800 3514.0 467.7 7.5 162.5 17.0

    mT2:
    Model (S) MT2 Cut [GeV] S B S/B S/sqrt(B) Significance Z0(including systematics: 50% QCD, 20% all other BG)
    SU3 400 1334.3 172.2 7.7 101.7 11.9

    Cut list

    Cut No. Description Cut value
    0 No cut
    1 No. leptons in crack 0
    2 First jet pt 150
    3 Third jet pt 100
    4 EtMiss 100
    5 EtMiss>x*Meff 0.25
    6 |phi(Jet1,2,3)-phi(EtMiss)| 0.2
    7 No. isolated leptons 0
    Trigger J70_XE70 1
    8 Meff 800

    Table with event counts

    NOTE: For MC@NLO files (T1, TTbar), the event numbers are the number of positive minus the number of negative weights [Weight+ - Weight-] (i.e. not simply the number of processed events).

    Sample Dataset Sigma Filter eff Events before cuts Cut 1 Cut 2 Cut 3 Cut 4 Cut 5 Cut 6 Cut 7 Trigger Cut 8
    SU1 trig1_misal1_csc11.005401.SU1_jimmy_susy.recon.AOD.v12000601 7.43 1 198600 195998 172904 65211 61614 42597 39741 30077 30072 28009
    SU2 trig1_misal1_csc11.005402.SU2_jimmy_susy.recon.AOD.v12000601 4.86 1 49700 49214 6799 4274 3593 1663 1461 894 893 721
    SU3 trig1_misal1_csc11.005403.SU3_jimmy_susy.recon.AOD.v12000601 18.59 1 498150 491619 430193 165116 151428 97028 89496 74270 74270 63240
    SU4 trig1_misal1_csc11.006400.SU4_jimmy_susy.recon.AOD.v12000601 262. 1 89950 88665 52993 13693 9722 4119 3681 3158 3152 1490
    SU6 trig1_misal1_csc11.005404.SU6_jimmy_susy.recon.AOD.v12000601 4.48 1 29950 29539 26241 12247 11632 7992 7325 5800 5799 5418
    SU8.1 trig1_misal1_csc11.005406.SU8_jimmy_susy1.recon.AOD.v12000601 6.44 1 49250 48777 43686 18153 17165 11845 11017 9562 9558 8864
    J4 trig1_misal1_mc12.008090.pythia_J4_Nj2_FMET100.recon.AOD.v12000601 316000 0.0029 67750 67335 50840 13408 1462 86 4 4 4 0
    J5 trig1_misal1_mc12.008091.pythia_J5_Nj2_FMET100.recon.AOD.v12000601 12500 0.0524 85550 85153 84891 47068 2077 77 6 6 5 4
    J6 trig1_misal1_mc12.008092.pythia_J6_Nj2_FMET100.recon.AOD.v12000601 344 0.196 34900 34761 34761 24350 2230 29 1 1 1 1
    J7 trig1_misal1_mc12.008093.pythia_J7_Nj2_FMET100.recon.AOD.v12000601 5.3 1 3500 3486 3486 1464 361 0 0 0 0 0
    J8 trig1_misal1_mc12.008094.pythia_J8_Nj2_FMET100.recon.AOD.v12000601 0.0221 1 4250 4241 4241 1572 887 2 1 1 1 1
    T1 trig1_misal1_mc12.005200.T1_McAtNlo_Jimmy.recon.AOD.v12000604 461 1 437068 428172 81396 15576 5588 1677 1407 927 922 266
    TTbar trig1_misal1_mc12.005204.TTbar_FullHad_McAtNlo_Jimmy.recon.AOD.v12000601 369 1 71914 71260 16598 5432 58 -1 -1 -1 -1 0
    Wenu trig1_misal1_mc12.008270.pythia_Wenu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.143 50000 48338 18884 346 256 112 96 57 57 18
    Wmunu trig1_misal1_mc12.008271.pythia_Wmunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.0835 30000 29896 11103 169 151 88 82 34 34 19
    Wtaunu trig1_misal1_mc12.008272.pythia_Wtaunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.163 54500 53974 21941 542 465 218 141 120 119 59
    Zee trig1_misal1_mc12.008194.pythia_Zee_qg_ckin80_Nj2.recon.AOD.v12000601 46.2 1 4750 4461 705 31 0 0 0 0 0 0
    Zmumu trig1_misal1_mc12.008195.pythia_Zmumu_qg_ckin80_Nj2.recon.AOD.v12000601 46.4 0.207 5000 4985 1464 12 0 0 0 0 0 0
    Ztautau trig1_misal1_mc12.008191.pythia_Ztautau_qg_ckin80_Nj2.recon.AOD.v12000601 46.3 0.0972 5000 4911 2573 120 91 25 9 4 4 2
    Znunu trig1_misal1_mc12.008190.pythia_Znunu_qg_ckin80_Nj2.recon.AOD.v12000601 246 0.168 35000 34870 11509 142 137 111 102 102 102 53
    WW trig1_misal1_csc11.005985.WW_Herwig.recon.AOD.v12000601 24.5 1 50000 48944 1563 75 8 1 1 0 0 0
    WZ trig1_misal1_csc11.005987.WZ_Herwig.recon.AOD.v12000601 7.8 1 49900 48720 2011 155 33 10 7 5 5 2
    ZZ trig1_misal1_csc11.005986.ZZ_Herwig.recon.AOD.v12000601 2.1 1 48550 47203 2018 168 10 1 0 0 0 0

    Table with event counts (normalised to 1fb-1)

    Same as above but with event numbers normalised to 1 fb-1.

    NOTE: For MC@NLO files (T1, TTbar), the event numbers are the number of positive minus the number of negative weights [Weight+ - Weight-] (i.e. not simply the number of processed events).

    Sample Dataset Sigma Filter eff K Factor Events before cuts Cut 1 Cut 2 Cut 3 Cut 4 Cut 5 Cut 6 Cut 7 Trigger Cut 8
    SU1 trig1_misal1_csc11.005401.SU1_jimmy_susy.recon.AOD.v12000601 7.43 1 1.461642 10860 10717.7 9454.9 3565.9 3369.2 2329.3 2173.2 1644.7 1644.4 1531.6
    SU2 trig1_misal1_csc11.005402.SU2_jimmy_susy.recon.AOD.v12000601 4.86 1 1.477366 7180 7109.8 982.2 617.5 519.1 240.2 211.1 129.2 129.0 104.2
    SU3 trig1_misal1_csc11.005403.SU3_jimmy_susy.recon.AOD.v12000601 18.59 1 1.488973 27680 27317.1 23904 9174.77 8414.2 5391.4 4972.9 4126.85 4125.18 3514.0
    SU4 trig1_misal1_csc11.006400.SU4_jimmy_susy.recon.AOD.v12000601 262. 1 1.535076 402190 396444 236945 61225 43469.7 18417.1 16458.8 14120.2 14093.4 6662.2
    SU6 trig1_misal1_csc11.005404.SU6_jimmy_susy.recon.AOD.v12000601 4.48 1 1.354911 6070 5986.7 5318.3 2482.1 2357.5 1619.7 1484.6 1175.5 1175.3 1098.1
    SU8.1 trig1_misal1_csc11.005406.SU8_jimmy_susy1.recon.AOD.v12000601 6.44 1 1.350932 8700 6378.2 7717.1 3206.7 3032.2 2092.4 1946.2 1689.1 1688.4 1565.8
    J4 trig1_misal1_mc12.008090.pythia_J4_Nj2_FMET100.recon.AOD.v12000601 316000 0.0029 1 916400 910787 687672 181359 19775.3 1163.25 54.1 54.1 54.1 0
    J5 trig1_misal1_mc12.008091.pythia_J5_Nj2_FMET100.recon.AOD.v12000601 12500 0.0524 1 655000 651960 649954 360369 15902.2 589.5 45.9 45.9 38.2 30.6
    J6 trig1_misal1_mc12.008092.pythia_J6_Nj2_FMET100.recon.AOD.v12000601 344 0.196 1 67424 67155.5 67155.5 47042.2 4308.18 56.0 1.9 1.9 1.9 1.9
    J7 trig1_misal1_mc12.008093.pythia_J7_Nj2_FMET100.recon.AOD.v12000601 5.3 1 1 5300 5278.8 5278.8 2216.9 546.7 0 0 0 0 0
    J8 trig1_misal1_mc12.008094.pythia_J8_Nj2_FMET100.recon.AOD.v12000601 0.0221 1 1 22.1 22.1 22.1 8.2 4.6 0.01 0.01 0.01 0.01 0.01
    T1 trig1_misal1_mc12.005200.T1_McAtNlo_Jimmy.recon.AOD.v12000604 461 1 0.976139 450000 440841 83804.4 16036.9 5753.3 1726.6 1448.6 954.4 949.3 273.9
    TTbar trig1_misal1_mc12.005204.TTbar_FullHad_McAtNlo_Jimmy.recon.AOD.v12000601 369 1 1.03794 383000 379517 88397.7 28929.8 308.9 -5.3 -5.3 -5.3 -5.3 0
    Wenu trig1_misal1_mc12.008270.pythia_Wenu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.143 1 49049 47418.6 18524.8 339.4 251.1 119.9 94.2 55.9 55.9 17.7
    Wmunu trig1_misal1_mc12.008271.pythia_Wmunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.0835 1 28640.5 28541.2 10599.8 161.3 144.2 84.0 78.3 32.5 32.5 18.1
    Wtaunu trig1_misal1_mc12.008272.pythia_Wtaunu_qg_ckin80_Nj2.recon.AOD.v12000601 343 0.163 1 55909 55369.4 22508.2 556.0 477.0 223.6 144.6 123.1 122.1 60.5
    Zee trig1_misal1_mc12.008194.pythia_Zee_qg_ckin80_Nj2.recon.AOD.v12000601 46.2 1 1 46200 43389.1 6857.1 301.5 0 0 0 0 0 0
    Zmumu trig1_misal1_mc12.008195.pythia_Zmumu_qg_ckin80_Nj2.recon.AOD.v12000601 46.4 0.207 1 9604.8 9576.0 2812.3 23.1 0 0 0 0 0 0
    Ztautau trig1_misal1_mc12.008191.pythia_Ztautau_qg_ckin80_Nj2.recon.AOD.v12000601 46.3 0.0972 1 4500 4419.9 2315.7 108 81.9 22.5 8.1 3.6 3.6 1.8
    Znunu trig1_misal1_mc12.008190.pythia_Znunu_qg_ckin80_Nj2.recon.AOD.v12000601 246 0.168 1 41328 41174.5 13589.8 167.7 161.8 131.1 120.4 120.4 120 62.6
    WW trig1_misal1_csc11.005985.WW_Herwig.recon.AOD.v12000601 24.5 1 1.594 39053 38227.6 1220.8 58.6 6.2 0.78 0.78 0 0 0
    WZ trig1_misal1_csc11.005987.WZ_Herwig.recon.AOD.v12000601 7.8 1 1.803 14063.4 13730.8 566.8 43.6 9.3 2.8 2.0 1.4 1.4 0.6
    ZZ trig1_misal1_csc11.005986.ZZ_Herwig.recon.AOD.v12000601 2.1 1 1.348 2830.8 2752.3 117.7 9.8 0.58 0.06 0 0 0 0
