Plots from Rivet analyses

Measurement of the inelastic proton-proton cross section at sqrt(s)=7 TeV (CMS_2012_I1193338)

Spires | arXiv:1210.6718 [hep-ex]

The inelastic cross-section is measured through two independent methods based on information from (i) forward calorimetry (for pseudorapidity $3 < |\eta| < 5$), in collisions where at least one proton loses more than $\xi > 5 \times 10^{-6}$ of its longitudinal momentum, and (ii) the central tracker ($|\eta| < 2.4$), in collisions containing an interaction vertex with more than 1, 2, or 3 tracks with pT > 200 MeV/c.

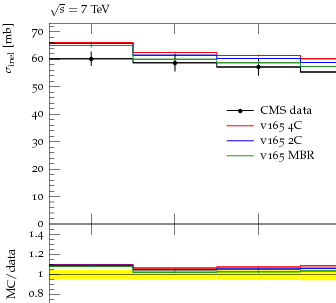

CMS_2012_I1193338/d01-x01-y01.pdf:

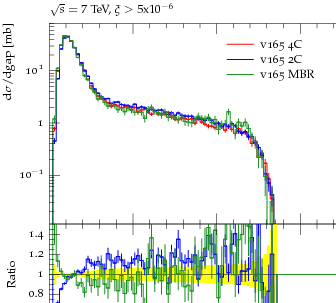

CMS_2012_I1193338/gap.pdf:

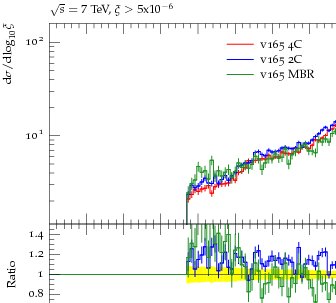

CMS_2012_I1193338/xi.pdf:

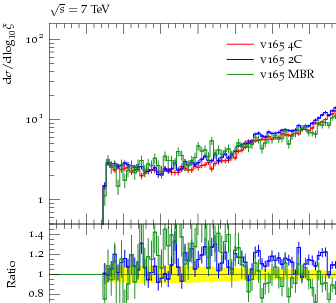

CMS_2012_I1193338/xibefore.pdf:

Generated at Sunday, 16. December 2012 10:27PM
