Plots from Rivet analyses

Traditional leading jet UE measurement at $\sqrt(s)=0.9$ and 7 TeV (CMS_2011_S9120041)

Spires | J. High Energy Phys 09 (2011) 109

A measurement of the underlying activity in scattering processes with a hard scale in the several GeV region is performed in proton-proton collisions at Energies of 0.9 and 7 TeV, using data collected by the CMS experiment at the LHC. The production of charged particles with pseudorapidity |eta| < 2 and transverse momentum pT > 0.5 GeV/c is studied in the azimuthal region transverse to that of the leading set of charged particles forming a track-jet. Various comparisons are made between the two different energies and also beteen two sets of cuts on pT for leading track jet pT-leading > 3 GeV and pT-leading > 20 GeV. The activity is studied using 5 types of plots. 2 profile plots for the multiplcity of charged particles and the scalar sum of pT. and 3 distributions for the two previous quantities as well we pT for all the particles in the transverse region.

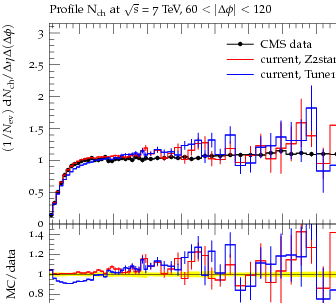

CMS_2011_S9120041/d01-x01-y01.pdf:

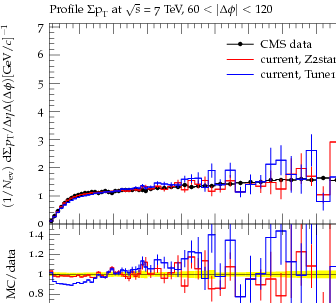

CMS_2011_S9120041/d02-x01-y01.pdf:

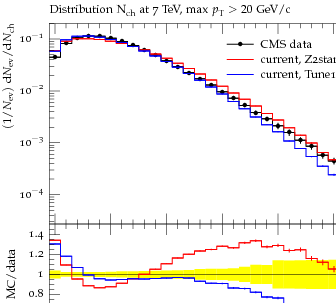

CMS_2011_S9120041/d05-x01-y01.pdf:

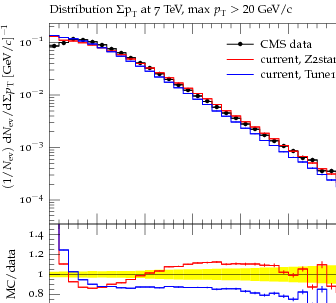

CMS_2011_S9120041/d06-x01-y01.pdf:

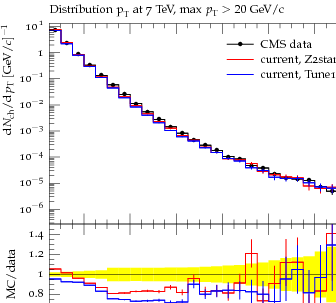

CMS_2011_S9120041/d07-x01-y01.pdf:
CMS_2011_S9120041/d08-x01-y01.pdf:

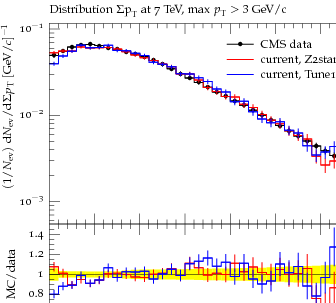

CMS_2011_S9120041/d09-x01-y01.pdf:

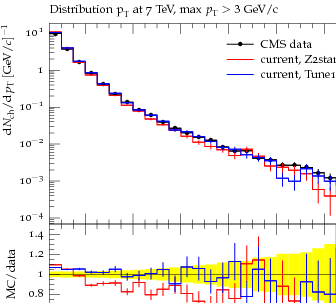

CMS_2011_S9120041/d10-x01-y01.pdf:

Generated at Thursday, 10. January 2013 12:03AM
