Atlfast::CalSection Class Reference

This class provides rudimentary geometry information for a calorimeter section. More...

#include <CalSection.h>

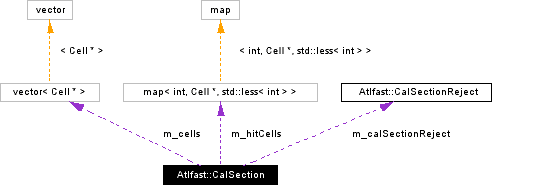

Collaboration diagram for Atlfast::CalSection:

[legend]List of all members.

Public Methods
	CalSection (MsgStream &log, const double minEta, const double maxEta, const double granEta, const double granPhi, const double minPhi=-M_PI, const double maxPhi=M_PI)
	Constructor takes sensitivity parameters.
	CalSection (const CalSection &c)
	~CalSection ()
void	reset ()
	Resets the contents of the calorimeter section.
void	deposit (TransportedParticleCollectionIter &, TransportedParticleCollectionIter &)
	Takes the TransportedParticle (transported through mag field) and deposits it within the calorimeter section.
void	deposit (std::vector< Atlfast::EPileupDeposit * >::iterator &, std::vector< Atlfast::EPileupDeposit * >::iterator &)
	Takes the Energy pileup map and deposits it within the calorimeter section.
void	giveHits (const ICellSelector *, CellCollection *) const
	Returns a list of hit cells within the calorimeter section.
void	smearCells (ISmearer *)
	Smear the cells resolution.
Private Methods
void	newHit (const TransportedParticleCollectionCIter &)
	Registers a new hit in the calorimeter section.
void	newHit (const std::vector< Atlfast::EPileupDeposit * >::iterator &)
	Registers a new energy pileup in the calorimeter section.
Private Attributes
const double	m_minEta
	minimum Eta sensitivity
const double	m_maxEta
	maximum Eta sensitivity
const double	m_minPhi
	minimum phi sensitivity
const double	m_maxPhi
	maximum phi sensitivity
double	m_granEta
	granularity in eta
double	m_granPhi
	granularity in phi
int	m_nPhi
	number of cells in phi space
CalSectionReject	m_calSectionReject
	Calorimeter selection object.
std::vector< Cell * >	m_cells
	Cells owned by calorimeter section.
std::map< int, Cell *, std::less< int > >	m_hitCells
Cell *	lnkCell
	0..*

---

Detailed Description

This class provides rudimentary geometry information for a calorimeter section.

It is used by the Calorimeter object to deposit HepMc particles

Definition at line 41 of file CalSection.h.

---

Constructor & Destructor Documentation

Atlfast::CalSection::CalSection (  MsgStream &    log, const double    minEta, const double    maxEta, const double    granEta, const double    granPhi, const double    minPhi = -M_PI, const double    maxPhi = M_PI )

Constructor takes sensitivity parameters. Definition at line 31 of file CalSection.cxx. References m_calSectionReject, m_cells, m_granEta, m_granPhi, m_maxPhi, m_minPhi, and m_nPhi. 00039 : 00040 m_minEta(minEta), m_maxEta(maxEta), 00041 m_minPhi(minPhi), m_maxPhi(maxPhi), 00042 m_calSectionReject(minEta, maxEta, minPhi, maxPhi) 00043 { 00044 log <<MSG::DEBUG<< "CalSection: construction. Eta range: " 00045 <<minEta<<" - "<<maxEta<<endreq; 00046 log <<MSG::DEBUG<< " Phi range: " 00047 <<minPhi<<" - "<<maxPhi<<endreq; 00048 log <<MSG::DEBUG<< " starting granularity Eta: "<<granEta 00049 << " phi: "<<granPhi 00050 <<endreq; 00051 00052 log <<MSG::DEBUG<<"CalSectionReject parameters:"<<endreq; 00053 log <<MSG::DEBUG<<m_calSectionReject<<endreq; 00054 00055 int nEta = int(((maxEta-minEta)/granEta)+0.5); 00056 m_granEta = (maxEta-minEta)/int(nEta); 00057 m_nPhi = 1+int(((m_maxPhi-m_minPhi)/granPhi)+0.5); 00058 m_granPhi = (m_maxPhi-m_minPhi)/double(m_nPhi); 00059 log <<MSG::DEBUG<< " final granularity Eta: "<<m_granEta 00060 << " phi: "<<m_granPhi 00061 <<endreq; 00062 log <<MSG::DEBUG<< " final Bins in Eta: "<<nEta 00063 << " phi: "<<m_nPhi 00064 <<endreq; 00065 00066 for (int ieta=0; ieta<nEta; ieta++){ 00067 for (int iphi=0; iphi<m_nPhi; iphi++){ 00068 00069 double eta = minEta+((double(ieta)+0.5)*double(m_granEta)); 00070 double phi = m_minPhi + ((double(iphi)+0.5)*double(m_granPhi)); 00071 CellDescriptor id = CellDescriptor(eta,phi); 00072 Cell* cell = new Cell(id); 00073 00074 m_cells.push_back(cell); 00075 } 00076 } 00077 } CalSection::~CalSection(){

Atlfast::CalSection::CalSection (  const CalSection &    c )

Definition at line 82 of file CalSection.cxx. References m_cells. 00082 : 00083 m_minEta(c.m_minEta), 00084 m_maxEta(c.m_maxEta), 00085 m_minPhi(c.m_minPhi), 00086 m_maxPhi(c.m_maxPhi), 00087 m_calSectionReject(c.m_calSectionReject){ 00088 std::vector<Cell*>::const_iterator i=c.m_cells.begin(); 00089 for(;i<c.m_cells.end();++i) m_cells.push_back(new Cell(*(*i))); 00090 } //----------------------------------------------------------------

Atlfast::CalSection::~CalSection (    )

Definition at line 78 of file CalSection.cxx. References m_cells. { std::vector<Cell*>::iterator i=m_cells.begin(); for(;i<m_cells.end();++i) delete *i; }

---

Member Function Documentation

void Atlfast::CalSection::reset (    )

Resets the contents of the calorimeter section. Definition at line 194 of file CalSection.cxx. References m_hitCells. Referenced by Atlfast::Calorimeter::reset(). { //reset the cells of this CalSection std::map<int, Cell*>::const_iterator i = m_hitCells.begin(); for(;i!=m_hitCells.end();++i) (*i).second->resetCell(); m_hitCells.erase(m_hitCells.begin(), m_hitCells.end()); }

void Atlfast::CalSection::deposit (  TransportedParticleCollectionIter &   , TransportedParticleCollectionIter &    )

Takes the TransportedParticle (transported through mag field) and deposits it within the calorimeter section. Definition at line 92 of file CalSection.cxx. References m_calSectionReject, newHit(), Atlfast::TransportedParticleCollectionCIter, and Atlfast::TransportedParticleCollectionIter. { // remove particles not in acceptance TransportedParticleCollectionIter divider; divider = std::partition(f, l, m_calSectionReject); // fill cells TransportedParticleCollectionCIter i=divider; for(; i<l; ++i) newHit(i); // assume sections do not overlap: do not reprocess. // hits processed here: set last to end of unprocessed hits l=divider; }

void Atlfast::CalSection::deposit (  std::vector< Atlfast::EPileupDeposit * >::iterator &   , std::vector< Atlfast::EPileupDeposit * >::iterator &    )

Takes the Energy pileup map and deposits it within the calorimeter section. Definition at line 133 of file CalSection.cxx. References m_calSectionReject, and newHit(). { // remove pileup deposits not in acceptance std::vector<Atlfast::EPileupDeposit*>::iterator divider; divider = std::partition(f, l, m_calSectionReject); // fill cells std::vector<Atlfast::EPileupDeposit*>::iterator i=divider; for(; i<l; ++i) newHit(i); // assume sections do not overlap: do not reprocess. // hits processed here: set last to end of unprocessed hits l=divider; }

void Atlfast::CalSection::giveHits (  const ICellSelector *   , CellCollection *    )  const

Returns a list of hit cells within the calorimeter section. Definition at line 167 of file CalSection.cxx. Referenced by Atlfast::Calorimeter::giveHitCells(). { std::map<int, Cell*, std::less<int> >::const_iterator i; for(i=m_hitCells.begin(); i!=m_hitCells.end(); ++i){ //test cell before newing and filling vector if( (*p_cellselect) (((*i).second))){ Cell* cell = new Cell(*((*i).second)); //Need to copy cells because Athena deletes container AND POINTERS // AND POINTEES cells->push_back(cell); } } }

void Atlfast::CalSection::smearCells (  ISmearer *    )

Smear the cells resolution. Definition at line 182 of file CalSection.cxx. Referenced by Atlfast::Calorimeter::smearCells(). { std::map<int, Cell*, std::less<int> >::const_iterator i; for(i=m_hitCells.begin(); i!=m_hitCells.end(); ++i){ if((*((*i).second)).momentum().e() > 0){ HepLorentzVector temp = p_smearer->smear((*((*i).second)).momentum()); (*((*i).second)).setPt(temp); } } }

void Atlfast::CalSection::newHit (  const TransportedParticleCollectionCIter &    )  [private]

Registers a new hit in the calorimeter section. Definition at line 107 of file CalSection.cxx. References m_cells, m_granEta, m_granPhi, m_hitCells, m_minEta, m_minPhi, m_nPhi, and Atlfast::TransportedParticleCollectionCIter. Referenced by deposit(). { const HepMC::GenParticle* particle = (*tpPtr)->particle(); const double eta = particle->momentum().pseudoRapidity(); const double phi = (*tpPtr)->phi(); // if(eta <= m_minEta || eta > m_maxEta) return; // if(phi <= m_minPhi || phi > m_maxPhi) return false; int iphi = int((phi-m_minPhi)/m_granPhi); int ieta = int((eta-m_minEta)/m_granEta); int index = m_nPhi*ieta + iphi; //check cell is reasonable Cell* cell = m_cells[index]; assert(abs(eta-(cell->eta()))<m_granEta); assert(abs(phi-(cell->phi()))<m_granPhi); cell->newHit(particle); //use a map to store pointers to hit cells to avoid //duplicate entries if the cell is hit more than once. m_hitCells[index] = cell; return; }

void Atlfast::CalSection::newHit (  const std::vector< Atlfast::EPileupDeposit * >::iterator &    )  [private]

Registers a new energy pileup in the calorimeter section. Definition at line 149 of file CalSection.cxx. References m_cells, m_granEta, m_granPhi, m_hitCells, m_minEta, m_minPhi, and m_nPhi. { const double eta = (*tpPtr)->eta(); const double phi = (*tpPtr)->phi(); int iphi = int((phi-m_minPhi)/m_granPhi); int ieta = int((eta-m_minEta)/m_granEta); int index = m_nPhi*ieta + iphi; //check cell is reasonable Cell* cell = m_cells[index]; assert(abs(eta-(cell->eta()))<m_granEta); assert(abs(phi-(cell->phi()))<m_granPhi); cell->newHit(*tpPtr); //use a map to store pointers to hit cells to avoid //duplicate entries if the cell is hit more than once. m_hitCells[index] = cell; return; }

---

Member Data Documentation

const double Atlfast::CalSection::m_minEta [private]

minimum Eta sensitivity Definition at line 91 of file CalSection.h. Referenced by newHit().

const double Atlfast::CalSection::m_maxEta [private]

maximum Eta sensitivity Definition at line 93 of file CalSection.h.

const double Atlfast::CalSection::m_minPhi [private]

minimum phi sensitivity Definition at line 95 of file CalSection.h. Referenced by CalSection(), and newHit().

const double Atlfast::CalSection::m_maxPhi [private]

maximum phi sensitivity Definition at line 97 of file CalSection.h. Referenced by CalSection().

double Atlfast::CalSection::m_granEta [private]

granularity in eta Definition at line 99 of file CalSection.h. Referenced by CalSection(), and newHit().

double Atlfast::CalSection::m_granPhi [private]

granularity in phi Definition at line 101 of file CalSection.h. Referenced by CalSection(), and newHit().

int Atlfast::CalSection::m_nPhi [private]

number of cells in phi space Definition at line 103 of file CalSection.h. Referenced by CalSection(), and newHit().

CalSectionReject Atlfast::CalSection::m_calSectionReject [private]

Calorimeter selection object. Definition at line 107 of file CalSection.h. Referenced by CalSection(), and deposit().

std::vector<Cell*> Atlfast::CalSection::m_cells [private]

Cells owned by calorimeter section. Definition at line 111 of file CalSection.h. Referenced by CalSection(), newHit(), and ~CalSection().

std::map<int, Cell*, std::less<int> > Atlfast::CalSection::m_hitCells [private]

Definition at line 112 of file CalSection.h. Referenced by newHit(), and reset().

Cell* Atlfast::CalSection::lnkCell [private]

0..* Definition at line 120 of file CalSection.h.

---

The documentation for this class was generated from the following files:

• CalSection.h
• CalSection.cxx

---
