Atlfast::AtlfastProtoJetMaker Class Reference

This Algorithm constructs AtlfastProtoJets from Cells, Clusters and final state particles. More...

#include <AtlfastProtoJetMaker.h>

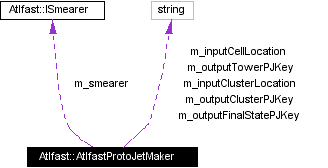

Collaboration diagram for Atlfast::AtlfastProtoJetMaker:


Public Methods
	AtlfastProtoJetMaker (const std::string &name, ISvcLocator *pSvcLocator)
	Standard Athena-Algorithm Constructor.
	~AtlfastProtoJetMaker ()
	Default Destructor.
StatusCode	initialize ()
	standard Athena-Algorithm method
StatusCode	execute ()
	standard Athena-Algorithm method
StatusCode	finalize ()
	standard Athena-Algorithm method
Private Methods
template<class T1, class T2> StatusCode	FillProtoJets (const std::vector< T1 * > &, T2 *, const std::string &)
template<class T1, class T2> StatusCode	FillProtoJets (const std::vector< T1 * > &, T2 *, const std::string &, bool)
template<class T1, class T2> StatusCode	FillProtoJets (const std::vector< T1 * > &, T2 *)
Private Attributes
std::string	m_inputCellLocation
	StoreGate Keys for input objects (Cells,CLusters).
std::string	m_inputClusterLocation
std::string	m_outputTowerPJKey
	StoreGate Keys for output objects (ProtoJets).
std::string	m_outputClusterPJKey
std::string	m_outputFinalStatePJKey
TesIO *	m_tesIO
	member variables
bool	m_towerPJConstruct
bool	m_clusterPJConstruct
bool	m_finalStatePJConstruct
bool	m_towerPJSmearOn
bool	m_clusterPJSmearOn
ISmearer *	m_smearer

Detailed Description

This Algorithm constructs AtlfastProtoJets from Cells, Clusters and final state particles.

It stores them in the TES via StoreGate.

Author:: Jon Couchman

Definition at line 37 of file AtlfastProtoJetMaker.h.

Constructor & Destructor Documentation

Atlfast::AtlfastProtoJetMaker::AtlfastProtoJetMaker	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard Athena-Algorithm Constructor.

Definition at line 40 of file AtlfastProtoJetMaker.cxx.

References m_clusterPJConstruct, m_clusterPJSmearOn, m_finalStatePJConstruct, m_inputCellLocation, m_inputClusterLocation, m_outputClusterPJKey, m_outputFinalStatePJKey, m_outputTowerPJKey, m_towerPJConstruct, and m_towerPJSmearOn.

00040                                                                                             :
00041     Algorithm(name,pSvcLocator){
00042
00043     //default paths for entities in the TES
00044     m_inputCellLocation     = "/Event/AtlfastCells";
00045     m_inputClusterLocation  = "/Event/AtlfastClusters";
00046
00047     m_outputTowerPJKey      = "/Event/AtlfastTowerProtoJets";
00048     m_outputClusterPJKey    = "/Event/AtlfastClusterProtoJets";
00049     m_outputFinalStatePJKey = "/Event/AtlfastFinalStateProtoJets";
00050
00051
00052     m_towerPJConstruct      = true;
00053     m_clusterPJConstruct    = true;
00054     m_finalStatePJConstruct = true;
00055
00056     m_towerPJSmearOn = false;
00057     m_clusterPJSmearOn = false;
00058
00059     declareProperty("InputCellLocation",      m_inputCellLocation);
00060     declareProperty("InputClusterLocation",   m_inputClusterLocation);
00061
00062     declareProperty("OutputTowerPJKey",       m_outputTowerPJKey);
00063     declareProperty("OutputClusterPJKey",     m_outputClusterPJKey);
00064     declareProperty("OutputFinalStatePJKey",  m_outputFinalStatePJKey);
00065
00066     declareProperty("TowerPJConstruct",       m_towerPJConstruct);
00067     declareProperty("ClusterPJConstruct",     m_clusterPJConstruct);
00068     declareProperty("FinalStatePJConstruct",  m_finalStatePJConstruct);
00069
00070     declareProperty("TowerPJSmearOn",         m_towerPJSmearOn);
00071     declareProperty("ClusterPJSmearOn",       m_clusterPJSmearOn);
00072   }

Atlfast::AtlfastProtoJetMaker::~AtlfastProtoJetMaker

(

)

Default Destructor.

Definition at line 75 of file AtlfastProtoJetMaker.cxx.

00076   {
00077     MsgStream log( messageService(), name() ) ;
00078     log << MSG::INFO << "AtlfastProtoJetMaker destructor called" << endreq;
00079   }

Member Function Documentation

StatusCode Atlfast::AtlfastProtoJetMaker::initialize

(

)

standard Athena-Algorithm method

Definition at line 81 of file AtlfastProtoJetMaker.cxx.

References Atlfast::GlobalEventData::barrelForwardEta(), Atlfast::GlobalEventData::lumi(), m_clusterPJConstruct, m_clusterPJSmearOn, m_finalStatePJConstruct, m_inputCellLocation, m_inputClusterLocation, m_outputClusterPJKey, m_outputFinalStatePJKey, m_outputTowerPJKey, m_smearer, m_tesIO, m_towerPJConstruct, m_towerPJSmearOn, and Atlfast::GlobalEventData::randSeed().

00082   {
00083
00084     MsgStream log( messageService(), name() );
00085     log << MSG::DEBUG <<"AtlfastProtoJetllMaker initialize()" << endreq;
00086     m_tesIO = new TesIO();
00087     //get the Global Event Data using singleton pattern
00088     GlobalEventData* ged = GlobalEventData::Instance();
00089
00090     int lumi                  = ged->lumi();
00091     int randSeed              = ged->randSeed() ;
00092     double barrelForwardEta   = ged->barrelForwardEta();
00093
00094     m_smearer = new JetSmearer(randSeed,
00095                                lumi,
00096                                0.,
00097                                0.,
00098                                barrelForwardEta);
00099
00100     HeaderPrinter hp("Atlfast-ProtoJet Maker:", log);
00101     hp.add("Input Cell Key                  ", m_inputCellLocation);
00102     hp.add("Input Cluster Key               ", m_inputClusterLocation);
00103     hp.add("Output  Tower PJ Key            ", m_outputTowerPJKey);
00104     hp.add("Output Cluster PJ Key           ", m_outputClusterPJKey);
00105     hp.add("Output FinalState PJ Key        ", m_outputFinalStatePJKey);
00106     hp.add("Construct Tower ProtoJets       ", m_towerPJConstruct);
00107     hp.add("Construct Cluster ProtoJets     ", m_clusterPJConstruct);
00108     hp.add("Construct Final State ProtoJets ", m_finalStatePJConstruct);
00109     hp.add("Smear Tower  ProtoJets          ", m_towerPJSmearOn);
00110     hp.add("Smear Cluster ProtoJets         ", m_clusterPJSmearOn);
00111     hp.print();
00112
00113
00114     return StatusCode::SUCCESS;
00115   }

StatusCode Atlfast::AtlfastProtoJetMaker::execute

(

)

standard Athena-Algorithm method

get'em back std::vector<ProtoJet*> afpj; TesIoStat stat = m_tesIO->copy(afpj,m_outputTowerPJKey); message = stat? "Found Tower PJs in TES":"No Tower PJs in TES"; log<<MSG::DEBUG << message <<endreq; if(stat){ std::vector<ProtoJet*>::const_iterator itr = afpj.begin(); for (; itr != afpj.end(); ++itr) { log<<MSG::DEBUG << "the PJ ex" << (*itr)->ex() << endreq; log<<MSG::DEBUG << "the PJ ey" << (*itr)->ey() << endreq; log<<MSG::DEBUG << "the PJ ez" << (*itr)->ez() << endreq;; } }

Definition at line 125 of file AtlfastProtoJetMaker.cxx.

References FillProtoJets(), m_clusterPJSmearOn, m_inputCellLocation, m_inputClusterLocation, m_outputClusterPJKey, m_outputFinalStatePJKey, m_outputTowerPJKey, m_tesIO, and m_towerPJSmearOn.

00126   {
00127     //.............................................
00128
00129     MsgStream log( messageService(), name() );
00130     std::string message;
00131     log << MSG::DEBUG << "AtlfastProtoJetMaker execute()" << endreq;
00132
00133     AtlfastProtoJet* proJ;
00134      //do protojet filling from now on---------------------
00135     if(m_towerPJConstruct){
00136     //Get the cells from storeGate
00137       std::vector<const ICell*> cells;
00138       TesIoStat stat =
00139         m_tesIO->copy<ICellCollection>(cells,m_inputCellLocation);
00140       message = stat?  "Found Cells in TES":"No Cells in TES";
00141       log<<MSG::DEBUG << message <<endreq;
00142       if(stat){
00143         if(!this->FillProtoJets(cells,proJ,m_outputTowerPJKey,m_towerPJSmearOn)){
00144           return StatusCode::FAILURE;
00145         }
00146       }
00147     }
00148
00149     if(m_clusterPJConstruct){
00150     //Get the clusters from storeGate
00151       std::vector<Cluster*> clusters;
00152       TesIoStat stat =
00153         m_tesIO->copy<ClusterCollection>(clusters,m_inputClusterLocation);
00154       message = stat?  "Found Clusters in TES":"No Clusters in TES";
00155       log<<MSG::DEBUG << message <<endreq;
00156       if(stat){
00157         if(!this->FillProtoJets(clusters,proJ,m_outputClusterPJKey,m_clusterPJSmearOn)){
00158           return StatusCode::FAILURE;
00159         }
00160       }
00161     }
00162     if(m_finalStatePJConstruct){
00163     //Get the FinalStateParticles from storeGate
00164       HepMC_helper::IsFinalState ifs;
00165       MCparticleCollection particles;
00166       TesIoStat stat = m_tesIO->getMC(particles, &ifs);
00167       message = stat?  "Found FS Particles in TES":"No FS Particles in TES";
00168       log<<MSG::DEBUG << message <<endreq;
00169       if(stat){
00170         if(!this->FillProtoJets(particles,proJ,m_outputFinalStatePJKey)){
00171           return StatusCode::FAILURE;
00172         }
00173       }
00174     }
00190   return StatusCode::SUCCESS;
00191   }

StatusCode Atlfast::AtlfastProtoJetMaker::finalize

(

)

standard Athena-Algorithm method

Definition at line 117 of file AtlfastProtoJetMaker.cxx.

00118   {
00119     MsgStream log( messageService(), name() );
00120     log << MSG::DEBUG <<"AtlfastProtoJetllMaker finalize()" << endreq;
00121     return StatusCode::SUCCESS;
00122   }

template<class T1, class T2>
StatusCode Atlfast::AtlfastProtoJetMaker::FillProtoJets	(	const std::vector< T1 * > &	,
		T2 *	,
		const std::string &
	)	`[inline, private]`

Definition at line 94 of file AtlfastProtoJetMaker.h.

Referenced by execute().

00096                                                                           {
00097     bool smear = false;
00098     return this->FillProtoJets(vec,
00099                                proJ,
00100                                PJoutputLocation,
00101                                smear);
00102   }//----------------------------------------------------------------------

template<class T1, class T2>
StatusCode Atlfast::AtlfastProtoJetMaker::FillProtoJets	(	const std::vector< T1 * > &	,
		T2 *	,
		const std::string &	,
		bool
	)	`[inline, private]`

Definition at line 106 of file AtlfastProtoJetMaker.h.

References m_smearer, m_tesIO, and Atlfast::ISmearer::smear().

00109                                                    {
00110     MsgStream log( messageService(), name() ) ;
00111     ProtoJetCollection<ProtoJet>* pjs = new ProtoJetCollection<ProtoJet>;
00112     typename std::vector<T1*>::const_iterator itr = vec.begin();
00113     HepLorentzVector hepvec;
00114       for (; itr != vec.end(); ++itr) {
00115       hepvec = (*itr)->momentum();
00116       if(smear){
00117         hepvec = m_smearer->smear(hepvec);
00118       }
00119       proJ = new T2(hepvec);
00120       pjs->push_back(proJ);
00121       }
00122     log << MSG::DEBUG << "Size of vector"<<pjs->size() << endreq;
00123     //store protojets
00124     TesIoStat stat = m_tesIO -> store(pjs, PJoutputLocation);
00125     std::string message;
00126     message = stat ? "AtlfastProtoJet stored by key":
00127       "Failed to store AtlfastProtoJet by key";
00128     log<<MSG::DEBUG<<message<<endreq;
00129     if (!stat) {return StatusCode::FAILURE;}
00130     return (stat)? StatusCode::SUCCESS:StatusCode::FAILURE;
00131   }//-------------------------------------------------------------------------

template<class T1, class T2>
StatusCode Atlfast::AtlfastProtoJetMaker::FillProtoJets	(	const std::vector< T1 * > &	,
		T2 *
	)	`[inline, private]`

Definition at line 135 of file AtlfastProtoJetMaker.h.

References m_tesIO.

00135                                                                           {
00136     MsgStream log( messageService(), name() ) ;
00137     ObjectVector<ProtoJet>* pjs = new ObjectVector<ProtoJet>;
00138     typename std::vector<T1*>::const_iterator itr = vec.begin();
00139     for (; itr != vec.end(); ++itr) {
00140       proJ = new T2((*itr)->momentum());
00141       pjs->push_back(proJ);
00142     }
00143     log << MSG::DEBUG << "Size of vector"<<pjs->size() << endreq;
00144     //store protojets
00145     TesIoStat stat = m_tesIO -> store(pjs);
00146     message = stat ? "AtlfastProtoJet stored by type":
00147       "Failed to store AtlfastProtoJet type";
00148     log<<MSG::DEBUG<<message<<endreq;
00149     return (stat)? StatusCode::SUCCESS:StatusCode::FAILURE;
00150   }
