Atlfast::DefaultReconstructedParticleMaker Class Reference

Reads Monte Carlo particle truth information from the TES and selects a specific particle species (set via a parameter).
For each such MC truth particle it creates a ReconstructedParticle instance. More...

#include <DefaultReconstructedParticleMaker.h>

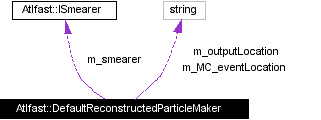

Collaboration diagram for Atlfast::DefaultReconstructedParticleMaker:

Collaboration graph
[legend]
List of all members.

Public Methods

 DefaultReconstructedParticleMaker (const std::string &name, ISvcLocator *pSvcLocator)
 Standard Athena-Algorithm Constructor.

virtual ~DefaultReconstructedParticleMaker ()
 Default Destructor.

virtual StatusCode initialize ()
 Standard Athena-Algorithm method.

virtual StatusCode execute ()
 Standard Athena-Algorithm method.

virtual StatusCode finalize ()
 Standard Athena-Algorithm method.


Private Types

typedef std::vector< HepMC::GenParticle * > t_MC_particleCollection
typedef std::vector< HepMC::GenParticle
* >::iterator
t_MC_particleIterator

Private Methods

void getSmearer (int lumi, int seed, MsgStream &log)
 Creates ReconstructedParticle from MC particles.

virtual ReconstructedParticle * create (MsgStream &, const HepMC::GenParticle *)
 Creates ReconstructedParticle from MC particles.

virtual bool isAcceptable (MsgStream &, const ReconstructedParticle *)
 Applies acceptance cuts.


Private Attributes

int m_particleType
 Species to process.

double m_mcPtMin
 Minimum transverse momentum required.

double m_mcEtaMax
 Maximum required eta.

double m_PtMin
 minimum transverse momentum post construction

double m_EtaMax
 Maximum eta.

bool m_doSmearing
 Flag to switch off smearing for debugging purposes.

std::string m_MC_eventLocation
 TES location of HepMC::GenParticles.

std::string m_outputLocation
 TES output location.

int m_muSmearKey
 Muon smearing key.

HepMC_helper::IMCselector * m_ncutter
 Used to select HepMC::GenParticles by type 1.

ISmearerm_smearer
 Smearer object which specialises the algorithm for a specific particle species 1.

ReconstructedParticle * lnkReconstructedParticle
 0..*

TesIO * m_tesIO
 Gets MC particles from TES.


Detailed Description

Reads Monte Carlo particle truth information from the TES and selects a specific particle species (set via a parameter).
For each such MC truth particle it creates a ReconstructedParticle instance.

The ReconstructedParticle is created with a smeared energy which can be different for different species.
The ReconstructedParticles are written to the TES

Definition at line 86 of file DefaultReconstructedParticleMaker.h.


Member Typedef Documentation

typedef std::vector<HepMC::GenParticle*> Atlfast::DefaultReconstructedParticleMaker::t_MC_particleCollection [private]


Definition at line 121 of file DefaultReconstructedParticleMaker.h.

typedef std::vector<HepMC::GenParticle*>::iterator Atlfast::DefaultReconstructedParticleMaker::t_MC_particleIterator [private]


Definition at line 122 of file DefaultReconstructedParticleMaker.h.


Constructor & Destructor Documentation

Atlfast::DefaultReconstructedParticleMaker::DefaultReconstructedParticleMaker const std::string &    name,
ISvcLocator *    pSvcLocator


Standard Athena-Algorithm Constructor.

Definition at line 49 of file DefaultReconstructedParticleMaker.cxx.

00050     : Algorithm( name, pSvcLocator ){
00051
00052     // Set the parameter defaults.
00053     m_particleType      = 11;
00054     m_mcPtMin           = 0.0;
00055     m_mcEtaMax          = 100.0;
00056     m_PtMin             = 5.0;
00057     m_EtaMax            = 2.5;
00058     m_doSmearing        = true;
00059     m_muSmearKey        = 1;
00060     m_MC_eventLocation  = "/Event/McEventCollection" ;
00061     m_outputLocation    = "/Event/AtlfastReconstructedParticle" ;
00062
00063     // Declare the paramemters to Gaudi so that
00064     // they can be over-written via the job options file
00065     declareProperty( "ParticleType", m_particleType ) ;
00066     declareProperty( "mcMinimumPt", m_mcPtMin ) ;
00067     declareProperty( "mcMaximumEta", m_mcEtaMax ) ;
00068     declareProperty( "MinimumPt", m_PtMin ) ;
00069     declareProperty( "MaximumEta", m_EtaMax ) ;
00070     declareProperty( "DoSmearing",m_doSmearing );
00071     declareProperty( "MC_eventLocation", m_MC_eventLocation ) ;
00072     declareProperty( "OutputLocation", m_outputLocation ) ;
00073     declareProperty( "MuonSmearKey",m_muSmearKey );
00074
00075   }

Atlfast::DefaultReconstructedParticleMaker::~DefaultReconstructedParticleMaker   [virtual]


Default Destructor.

Definition at line 81 of file DefaultReconstructedParticleMaker.cxx.

References m_ncutter, m_smearer, and m_tesIO.

00081                                                                         {
00082     MsgStream log( messageService(), name() ) ;
00083     log << MSG::INFO << "Destructor Called" << endreq;
00084
00085     if (m_smearer) {
00086       log << MSG::INFO << "Deleting smearer" << endreq;
00087       delete m_smearer;
00088     }
00089     if (m_tesIO) {
00090       log << MSG::INFO << "Deleting smearer" << endreq;
00091       delete m_tesIO;
00092     }
00093     if (m_ncutter) {
00094       log << MSG::INFO << "Deleting smearer" << endreq;
00095       delete m_ncutter;
00096     }
00097   }

Member Function Documentation

StatusCode Atlfast::DefaultReconstructedParticleMaker::initialize   [virtual]


Standard Athena-Algorithm method.

Definition at line 104 of file DefaultReconstructedParticleMaker.cxx.

References getSmearer(), Atlfast::GlobalEventData::lumi(), m_doSmearing, m_EtaMax, m_MC_eventLocation, m_mcEtaMax, m_mcPtMin, m_muSmearKey, m_ncutter, m_outputLocation, m_particleType, m_PtMin, m_smearer, m_tesIO, and Atlfast::GlobalEventData::randSeed().

00105   {
00106     MsgStream log( messageService(), name() ) ;
00107
00108     // This method is called by Athena once only, after all
00109     // properties have been set.
00110
00111     // Set up NCutter to select the required HepMC::GenParticles
00112     typedef HepMC_helper::IMCselector Selector;
00113
00114     Selector* typeSelector = new HepMC_helper::SelectType( m_particleType);
00115     Selector* kineSelector = new HepMC_helper::MCCuts(m_mcPtMin, m_mcEtaMax);
00116     Selector* fstaSelector = new HepMC_helper::IsFinalState();
00117
00118     vector<HepMC_helper::IMCselector*> selectors;
00119     selectors.push_back(fstaSelector);
00120     selectors.push_back(typeSelector);
00121     selectors.push_back(kineSelector);
00122
00123     m_ncutter = new  HepMC_helper::NCutter(selectors);
00124
00125     delete typeSelector;
00126     delete fstaSelector;
00127     delete kineSelector;
00128     //=======================================================
00129
00130
00131     //    m_tesIO = new TesIO(eventDataService());
00132     m_tesIO = new TesIO();
00133     //=====================
00134
00135
00136     //get the Global Event Data using singleton pattern
00137     GlobalEventData* ged = GlobalEventData::Instance();
00138     int lumi = ged->lumi();
00139     log << MSG::DEBUG << "got lumi " << endreq;
00140     int randSeed = ged->randSeed() ;
00141     if (m_doSmearing) this->getSmearer(lumi, randSeed, log);
00142     else m_smearer = NULL;
00143
00144     HeaderPrinter hp("Atlfast ReconstructedParticle Maker:", log);
00145     hp.add("Particle Type           ", m_particleType);
00146     hp.add("Luminosity              ", lumi);
00147     hp.add("Minimum four-vector Pt  ", m_mcPtMin);
00148     hp.add("Maximum four-vector Eta ", m_mcEtaMax);
00149     hp.add("Minimum particle    Pt  ", m_PtMin);
00150     hp.add("Maximum particle    Eta ", m_EtaMax);
00151     hp.add("Do Smearing             ", m_doSmearing);
00152     hp.add("Muon  Smearing Flag     ", m_muSmearKey);
00153     hp.add("Random Number Seed      ", randSeed);
00154     hp.add("MC location             ", m_MC_eventLocation);
00155     hp.add("Output Location         ", m_outputLocation);
00156     hp.print();
00157
00158
00159
00160
00161
00162     // We have to build an appropriate smearer object here.
00163     // The code which follows is to be regarded as a temporary fix to
00164     // get around the fact that Algorithms cannot be specialised by
00165     // constructor arguments.
00166     // When tools become avialable we will probably instead just pass
00167     // an appropriate tool via job options
00168     return StatusCode::SUCCESS ;
00169   }

StatusCode Atlfast::DefaultReconstructedParticleMaker::execute   [virtual]


Standard Athena-Algorithm method.

Definition at line 207 of file DefaultReconstructedParticleMaker.cxx.

References create(), isAcceptable(), m_ncutter, m_outputLocation, and m_tesIO.

00208   {
00209
00210     MsgStream log( messageService(), name() ) ;
00211     std::string mess;
00212     log << MSG::DEBUG << "Execute() " << endreq;
00213
00214
00215     //.............................
00216     // Obtain the truth HepMC::GenParticles which we want to process.
00217     // We fill a local collection with pointers to these Particles.
00218     // The private method which is used applies selection criteria
00219     // to the HepMC::GenParticles before placing them in the collection
00220
00221     MCparticleCollection  my_MC_particles ;
00222     MCparticleCollectionCIter src ;
00223
00224     TesIoStat stat = m_tesIO->getMC( my_MC_particles, m_ncutter ) ;
00225     mess = stat? "Retrieved MC from TES ":"Failed MC retrieve from TES";
00226     log << MSG::DEBUG << mess << endreq;
00227
00228     // ......................
00229     // Make a container object which will store pointers to all
00230     // ReconstructedParticles which are successfully created.
00231     // Since it is going into the TES, it has to be a special Athena type
00232     // of container. This is defined in an include file.
00233
00234     ReconstructedParticleCollection* myReconstructedParticles
00235       = new ReconstructedParticleCollection ;
00236
00237
00238     //.........................................................
00239     // From each mc truth Particle, create a ReconstructedParticle candidate.
00240     // If it satisfies requirements add to the output collection
00241
00242     ReconstructedParticle* candidate ;
00243
00244     for(src = my_MC_particles.begin() ; src != my_MC_particles.end() ; ++src){
00245
00246
00247       candidate = this->create( log, *src );
00248
00249       if( this->isAcceptable( log, candidate ) ) {
00250         myReconstructedParticles->push_back( candidate ) ;
00251       }else{
00252         delete candidate ;
00253       }
00254
00255     }
00256
00257
00258     //.....................................
00259     // Sort into ascending order of pT
00260
00261     if( myReconstructedParticles->size() > 0 ){
00262       sort( myReconstructedParticles->begin(),
00263             myReconstructedParticles->end(),
00264             SortAttribute::DescendingPT()
00265             ) ;
00266     }
00267
00268
00269     //......................................
00270     // Deal with resulting ReconstructedParticles (if any)
00271
00272     stat =m_tesIO->store( myReconstructedParticles, m_outputLocation );
00273     mess = stat? "Store to TES success":"Store to TES failure";
00274     log << MSG::DEBUG << mess << endreq;
00275
00276     log << MSG::DEBUG << "Ending<-------- " << endreq;
00277
00278     StatusCode sc=StatusCode::SUCCESS;
00279     return sc ;
00280
00281   }

StatusCode Atlfast::DefaultReconstructedParticleMaker::finalize   [virtual]


Standard Athena-Algorithm method.

Definition at line 175 of file DefaultReconstructedParticleMaker.cxx.

00176   {
00177
00178     MsgStream log( messageService(), name() ) ;
00179
00180     log << MSG::INFO << "Finalizing" << endreq;
00181
00182     return StatusCode::SUCCESS ;
00183   }

void Atlfast::DefaultReconstructedParticleMaker::getSmearer int    lumi,
int    seed,
MsgStream &    log
[private]


Creates ReconstructedParticle from MC particles.

Definition at line 386 of file DefaultReconstructedParticleMaker.cxx.

References m_muSmearKey, m_particleType, and m_smearer.

Referenced by initialize().

00388                                                                     {
00389
00390     if (m_particleType == 11)
00391       {
00392         log << MSG::DEBUG << "instantiating an ElectronSmearer" << endreq;
00393         m_smearer = new ElectronSmearer(randSeed, lumi);
00394       }
00395     else if (m_particleType == 13)
00396       {
00397         log << MSG::DEBUG << "instantiating a MuonSmearer" << endreq;
00398         m_smearer = new MuonSmearer(randSeed, lumi, m_muSmearKey);
00399       }
00400     else if (m_particleType == 22)
00401       {
00402         log << MSG::DEBUG << "instantiating a PhotonSmearer" << endreq;
00403         m_smearer = new PhotonSmearer(randSeed, lumi);
00404       }
00405     else
00406       {
00407         log << MSG::ERROR
00408             << "No specific smearer known for particle type "
00409             << m_particleType
00410             << " using a default which is probably not what you need!"
00411             << endreq;
00412         m_smearer = new DefaultSmearer(randSeed);
00413       }
00414   }

ReconstructedParticle * Atlfast::DefaultReconstructedParticleMaker::create MsgStream &   ,
const HepMC::GenParticle *
[private, virtual]


Creates ReconstructedParticle from MC particles.

Definition at line 298 of file DefaultReconstructedParticleMaker.cxx.

References m_smearer, and Atlfast::ISmearer::smear().

Referenced by execute().

00300                                                                           {
00301
00302     ReconstructedParticle* candidate ;
00303
00304     if (m_doSmearing) {
00305
00306       // Ask our Smearer make a smeared 4-vector
00307       HepLorentzVector evec = m_smearer->smear( src->momentum() );
00308
00309       log << MSG::DEBUG
00310           << "\n\t"
00311           << "Unsmeared four-vector: "
00312           << src->momentum()
00313           << "\n\t"
00314           << "Smeared four-vector  : "
00315           << evec
00316           << endreq;
00317
00318       // Note:It would really make sense to apply the kinematic cuts here.
00319       // rather than in isAcceptable method.
00320       // However we leave this to next design phase as we also need to
00321       // consider where to put Isolation cuts.
00322
00323       //Make a new ReconstructedParticle with smeared 4-vector
00324       //RMS Fix unsigned pdg_id
00325       candidate =  new ReconstructedParticle
00326         (src->pdg_id() /*m_particleType*/, evec, src ) ;
00327     }else{
00328       // Just use the original unsmeared four-momentum
00329       candidate = new ReconstructedParticle
00330         ( src->pdg_id() /*m_particleType*/, src->momentum(), src );
00331     }
00332
00333
00334     log << MSG::DEBUG
00335         << "Created ReconstructedParticle: \n\t "
00336         << candidate
00337         << endreq;
00338
00339     return candidate ;
00340
00341   }

bool Atlfast::DefaultReconstructedParticleMaker::isAcceptable MsgStream &   ,
const ReconstructedParticle *
[private, virtual]


Applies acceptance cuts.

Definition at line 352 of file DefaultReconstructedParticleMaker.cxx.

Referenced by execute().

00352                                                            {
00353
00354     // Apply kinematic criteria to the candidate DefaultReconstructedParticle
00355
00356     if( candidate->pT() < m_PtMin ) {
00357       log << MSG::DEBUG
00358           << "Candidate failed pt cut: pt was "
00359           << candidate->pT()
00360           << " cut was "
00361           << m_PtMin
00362           << endreq;
00363       return false ;
00364     }
00365
00366     if( abs(candidate->eta()) > m_EtaMax ) {
00367       log << MSG::DEBUG
00368           << "Candidate failed max eta cut: eta was "
00369           << candidate->eta()
00370           << " cut was "
00371           << m_EtaMax
00372           << endreq;
00373       return false ;
00374     }
00375
00376     log << MSG::DEBUG
00377         << "Candidate passed selection cuts "
00378         << endreq ;
00379
00380     return true ;
00381   }

Member Data Documentation

int Atlfast::DefaultReconstructedParticleMaker::m_particleType [private]


Species to process.

Definition at line 131 of file DefaultReconstructedParticleMaker.h.

Referenced by getSmearer(), and initialize().

double Atlfast::DefaultReconstructedParticleMaker::m_mcPtMin [private]


Minimum transverse momentum required.

Definition at line 133 of file DefaultReconstructedParticleMaker.h.

Referenced by initialize().

double Atlfast::DefaultReconstructedParticleMaker::m_mcEtaMax [private]


Maximum required eta.

Definition at line 135 of file DefaultReconstructedParticleMaker.h.

Referenced by initialize().

double Atlfast::DefaultReconstructedParticleMaker::m_PtMin [private]


minimum transverse momentum post construction

Definition at line 139 of file DefaultReconstructedParticleMaker.h.

Referenced by initialize().

double Atlfast::DefaultReconstructedParticleMaker::m_EtaMax [private]


Maximum eta.

Definition at line 141 of file DefaultReconstructedParticleMaker.h.

Referenced by initialize().

bool Atlfast::DefaultReconstructedParticleMaker::m_doSmearing [private]


Flag to switch off smearing for debugging purposes.

Definition at line 144 of file DefaultReconstructedParticleMaker.h.

Referenced by initialize().

std::string Atlfast::DefaultReconstructedParticleMaker::m_MC_eventLocation [private]


TES location of HepMC::GenParticles.

Definition at line 148 of file DefaultReconstructedParticleMaker.h.

Referenced by initialize().

std::string Atlfast::DefaultReconstructedParticleMaker::m_outputLocation [private]


TES output location.

Definition at line 150 of file DefaultReconstructedParticleMaker.h.

Referenced by execute(), and initialize().

int Atlfast::DefaultReconstructedParticleMaker::m_muSmearKey [private]


Muon smearing key.

Definition at line 154 of file DefaultReconstructedParticleMaker.h.

Referenced by getSmearer(), and initialize().

HepMC_helper::IMCselector* Atlfast::DefaultReconstructedParticleMaker::m_ncutter [private]


Used to select HepMC::GenParticles by type 1.

Definition at line 161 of file DefaultReconstructedParticleMaker.h.

Referenced by execute(), initialize(), and ~DefaultReconstructedParticleMaker().

ISmearer* Atlfast::DefaultReconstructedParticleMaker::m_smearer [private]


Smearer object which specialises the algorithm for a specific particle species 1.

Definition at line 172 of file DefaultReconstructedParticleMaker.h.

Referenced by create(), getSmearer(), initialize(), and ~DefaultReconstructedParticleMaker().

ReconstructedParticle* Atlfast::DefaultReconstructedParticleMaker::lnkReconstructedParticle [private]


0..*

Definition at line 177 of file DefaultReconstructedParticleMaker.h.

TesIO* Atlfast::DefaultReconstructedParticleMaker::m_tesIO [private]


Gets MC particles from TES.

Definition at line 184 of file DefaultReconstructedParticleMaker.h.

Referenced by execute(), initialize(), and ~DefaultReconstructedParticleMaker().


The documentation for this class was generated from the following files:
Generated on Tue Mar 18 11:18:54 2003 for AtlfastAlgs by doxygen1.3-rc1
