Atlfast::EventHeaderMaker Class Reference

Algorithm which makes the Atlfast Event Header This must be run as the final algorithm in the Atlfast suite as it requires the information from all the earlier makers. More...

#include <EventHeaderMaker.h>

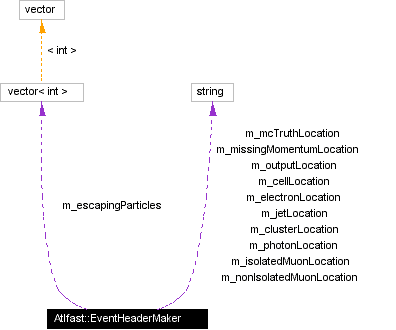

Collaboration diagram for Atlfast::EventHeaderMaker:

[legend]List of all members.


Public Methods
	EventHeaderMaker (const std::string &name, ISvcLocator *pSvcLocator)
	Standard Athena-Algorithm Constructor.
virtual	~EventHeaderMaker ()
	Default Destructor.
StatusCode	initialize ()
	Standard Athena-Algorithm method.
StatusCode	execute ()
	Standard Athena-Algorithm method.
StatusCode	finalize ()
	Standard Athena-Algorithm method.
Private Methods
template<class Collection> int	numberInList (std::string tesAddress)
	finds out how many entries are in a TES list
int	numberJetFlavor (std::string tesAddress, int)
	finds out how many numbers of jets by flavor
HepLorentzVector	missingMomentum (MsgStream &)
	calculate the reconstructed missing momentum
HepLorentzVector	escapedMomentum (MsgStream &)
	calculated the momentum of escaping particles from MC truth
template<class Collection> HepLorentzVector	momentumSum (std::string tesAddress)
	returns the summed momentum of a list of IKinematic objects in the TES
template<class Type> HepLorentzVector	smearAndSum (std::string tesAddress, Type dummy)
	returns the summed momentum of a list of IKinematic objects in the TES
template<class Collection, class AssType> HepLorentzVector	assocMomentumSum (std::string tesAddress)
	returns the summed momentum of a list of associated IKinematic objects in the TES
HepLorentzVector	unusedClusterSum ()
	summed momentum of unused clusters
HepLorentzVector	unusedMuonSum ()
	summed momentum of unused non-isolated muons
HepLorentzVector	unusedCellSum ()
	smeared + summed p of unused cells above cut
Private Attributes
std::string	m_electronLocation
std::string	m_photonLocation
std::string	m_isolatedMuonLocation
std::string	m_nonIsolatedMuonLocation
std::string	m_jetLocation
std::string	m_cellLocation
std::string	m_clusterLocation
std::string	m_mcTruthLocation
std::string	m_outputLocation
std::string	m_missingMomentumLocation
bool	m_testMode
double	m_beamEnergy
std::vector< int >	m_escapingParticles
int	m_lumi
double	m_barrelForwardEta
TesIO *	m_tesIO
HepMC_helper::IMCselector *	m_visibleToAtlas

Detailed Description

Algorithm which makes the Atlfast Event Header This must be run as the final algorithm in the Atlfast suite as it requires the information from all the earlier makers.

Definition at line 65 of file EventHeaderMaker.h.

Constructor & Destructor Documentation

Atlfast::EventHeaderMaker::EventHeaderMaker	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard Athena-Algorithm Constructor.

Definition at line 51 of file EventHeaderMaker.cxx.

00052     : Algorithm( name, pSvcLocator ){
00053
00054     // Default paths for entities in the TES
00055     m_electronLocation         = "/Event/AtlfastIsolatedElectrons";
00056     m_photonLocation           = "/Event/AtlfastIsolatedPhotons";
00057     m_isolatedMuonLocation     = "/Event/AtlfastIsolatedMuons";
00058     m_nonIsolatedMuonLocation  = "/Event/AtlfastNonIsolatedMuons";
00059     m_jetLocation              = "/Event/AtlfastJets";
00060     m_cellLocation             = "/Event/AtlfastCells";
00061     m_clusterLocation          = "/Event/AtlfastClusters";
00062     m_mcTruthLocation          = "/Event/McEventCollection";
00063     m_outputLocation           = "/Event/AtlfastEventHeader";
00064     m_missingMomentumLocation  = "/Event/AtlfastMissingMomentum";
00065     m_beamEnergy               = 7000.0;
00066     m_testMode                 = false;
00067
00068
00069
00070     declareProperty( "MissingMomentumLocation", m_missingMomentumLocation ) ;
00071     declareProperty( "ElectronLocation",        m_electronLocation ) ;
00072     declareProperty( "PhotonLocation",          m_photonLocation );
00073     declareProperty( "IsolatedMuonLocation",    m_isolatedMuonLocation );
00074     declareProperty( "NonIsolatedMuonLocation", m_nonIsolatedMuonLocation );
00075     declareProperty( "JetLocation",             m_jetLocation );
00076     declareProperty( "McTruthLocation",         m_mcTruthLocation );
00077     declareProperty( "OutputLocation",          m_outputLocation );
00078     declareProperty( "BeamEnergy",              m_beamEnergy );
00079
00080     declareProperty( "TestMode",                m_testMode ) ;
00081
00082
00083
00084   }

Atlfast::EventHeaderMaker::~EventHeaderMaker ( ) [virtual]

Default Destructor.

Definition at line 90 of file EventHeaderMaker.cxx.

References m_tesIO.

00090                                      {
00091     delete m_tesIO;
00092   }

Member Function Documentation

StatusCode Atlfast::EventHeaderMaker::initialize

(

)

Standard Athena-Algorithm method.

Definition at line 97 of file EventHeaderMaker.cxx.

References m_barrelForwardEta, m_beamEnergy, m_cellLocation, m_clusterLocation, m_electronLocation, m_escapingParticles, m_isolatedMuonLocation, m_jetLocation, m_lumi, m_mcTruthLocation, m_missingMomentumLocation, m_nonIsolatedMuonLocation, m_outputLocation, m_photonLocation, m_tesIO, m_testMode, and m_visibleToAtlas.

00098   {
00099     // .. put any initialisation in here...
00100     MsgStream log(messageService(), name());
00101     log << MSG::DEBUG << "in initialize()" << endreq;
00102
00103     //set up the list of particles which are considered as "escaping"
00104     m_escapingParticles.push_back(ParticleCodes::NU_E);
00105     m_escapingParticles.push_back(ParticleCodes::NU_MU);
00106     m_escapingParticles.push_back(ParticleCodes::NU_TAU);
00107
00108     //    m_tesIO = new TesIO(eventDataService());
00109     m_tesIO = new TesIO();
00110
00111     //get the Global Event Data from singleton pattern
00112     GlobalEventData* ged = GlobalEventData::Instance();
00113     m_visibleToAtlas   = ged -> visibleToAtlas();
00114     m_lumi             = ged -> lumi();
00115     m_barrelForwardEta = ged ->  barrelForwardEta();
00116     HeaderPrinter hp("Atlfast EventHeader Maker:", log);
00117     hp.add("TestMode                    ", m_testMode);
00118     hp.add("EndCap Begins at (eta)      ", m_barrelForwardEta);
00119     hp.add("Luminosity                  ", m_lumi);
00120     hp.add("Beam Energy                 ", m_beamEnergy);
00121     hp.add("MC location                 ", m_mcTruthLocation);
00122     hp.add("Electron Location           ", m_electronLocation);
00123     hp.add("Photon   Location           ", m_photonLocation);
00124     hp.add("Isolated Muon Location      ", m_isolatedMuonLocation);
00125     hp.add("Non-Isolated Muon Location  ", m_nonIsolatedMuonLocation);
00126     hp.add("Jet Location                ", m_jetLocation);
00127     hp.add("Cell Location               ", m_cellLocation);
00128     hp.add("Cluster Location            ", m_clusterLocation);
00129     hp.add("Unused cell+cluster sum     ", m_missingMomentumLocation);
00130     hp.add("Output Location             ", m_outputLocation);
00131     hp.print();
00132
00133
00134
00135
00136     return StatusCode::SUCCESS ;
00137   }

StatusCode Atlfast::EventHeaderMaker::execute

(

)

Standard Athena-Algorithm method.

Definition at line 154 of file EventHeaderMaker.cxx.

References escapedMomentum(), m_jetLocation, m_outputLocation, m_tesIO, missingMomentum(), and numberJetFlavor().

00155   {
00156
00157     //................................
00158     // make a message logging stream
00159
00160     MsgStream log( messageService(), name() ) ;
00161     log << MSG::DEBUG << "Executing " << endreq;
00162     std::string mess;
00163
00164
00165
00166     //
00167     // Check each particle list in turn and get the number of entries
00168     //
00169     int nElectrons         =
00170       numberInList<ReconstructedParticleCollection>(m_electronLocation);
00171     int nPhotons           =
00172       numberInList<ReconstructedParticleCollection>(m_photonLocation);
00173     int nIsolatedMuons     =
00174       numberInList<ReconstructedParticleCollection>(m_isolatedMuonLocation);
00175     int nNonIsolatedMuons  =
00176       numberInList<ReconstructedParticleCollection>(m_nonIsolatedMuonLocation);
00177     int nJets              = numberInList<JetCollection>(m_jetLocation);
00178     int nBJets             = numberJetFlavor(m_jetLocation,
00179                                              ParticleCodes::BQUARK);
00180     int nCJets             = numberJetFlavor(m_jetLocation,
00181                                              ParticleCodes::CQUARK);
00182     int nTauJets           = numberJetFlavor(m_jetLocation,
00183                                              ParticleCodes::TAU);
00184     nTauJets              += numberJetFlavor(m_jetLocation,
00185                                              -ParticleCodes::TAU);
00186
00187     log << MSG::DEBUG << "Electrons: " << nElectrons << endreq;
00188     log << MSG::DEBUG << "Photons: " << nPhotons << endreq;
00189     log << MSG::DEBUG << "IsolatedMuons: " << nIsolatedMuons << endreq;
00190     log << MSG::DEBUG << "NonIsolatedMuons: " << nNonIsolatedMuons << endreq;
00191     log << MSG::DEBUG << "Jets: " << nJets << endreq;
00192
00193
00194     // Event Shape variable calculations
00195
00196     double jetCircularity = 0.0; //FIXME not written yet
00197     double eventCircularity = 0.0; //FIXME not written yet
00198     double thrust = 0.0; //FIXME not written yet
00199     double oblateness = 0.0; //FIXME not written yet
00200
00201     //missing momentum
00202     HepLorentzVector pMiss = missingMomentum(log);
00203
00204     log << MSG::DEBUG << "Missing momentum " <<pMiss<<endreq;
00205
00206     HepLorentzVector pEscaped = escapedMomentum(log);
00207
00208     log << MSG::DEBUG << "Escaped momentum " << pEscaped<<endreq;
00209
00210     EventHeader* header =
00211       new EventHeader(
00212                       nElectrons,
00213                       nIsolatedMuons,
00214                       nNonIsolatedMuons,
00215                       nPhotons,
00216                       nJets,
00217                       nBJets,
00218                       nCJets,
00219                       nTauJets,
00220                       jetCircularity,
00221                       eventCircularity,
00222                       thrust,
00223                       oblateness,
00224                       pMiss,
00225                       pEscaped);
00226
00227     TesIoStat stat = m_tesIO->store(header,m_outputLocation) ;
00228     std::string message = stat? "Stored Evt Header":"Failed to Evt Header";
00229     log<<MSG::DEBUG<<message<<endreq;
00230      return stat;
00231
00232   }

StatusCode Atlfast::EventHeaderMaker::finalize

(

)

Standard Athena-Algorithm method.

Definition at line 142 of file EventHeaderMaker.cxx.

00143   {
00144     // .. put any finalisation in here...
00145     MsgStream log( messageService(), name() ) ;
00146     log << MSG::INFO << "finalizing " << endreq;
00147
00148     return StatusCode::SUCCESS ;
00149   }

template<class Collection>
int Atlfast::EventHeaderMaker::numberInList	(	std::string	tesAddress	)	`[inline, private]`

finds out how many entries are in a TES list

Definition at line 168 of file EventHeaderMaker.h.

References m_tesIO.

00168                                                            {
00169     DataHandle<Collection> dh;
00170     if( !m_tesIO->getDH(dh, tesAddress) ) throw "Error in numberInList";
00171     return dh->size();
00172     //    Collection aList;
00173     //    if( !m_tesIO->copy<(aList, tesAddress) ) throw "Error in numberInList";
00174     //if( !m_tesIO->get(aList) ) throw "Error in numberInList";
00175     //    return aList.size();
00176   }

int Atlfast::EventHeaderMaker::numberJetFlavor	(	std::string	tesAddress,
		int
	)	`[inline, private]`

finds out how many numbers of jets by flavor

Definition at line 182 of file EventHeaderMaker.h.

References m_tesIO.

Referenced by execute().

00184                                                       {
00185     std::vector<Jet*> theJets;
00186     int temp=0;
00187     if(m_tesIO->copy<JetCollection >(theJets, tesAddress)){
00188       //if(m_tesIO->get(theJets)){
00189       std::vector<Jet*>::const_iterator jet  = theJets.begin();
00190       for (; jet != theJets.end(); ++jet) {
00191         if( (*jet)->pdg_id()==flavor ) ++temp;
00192       }
00193     }
00194     return temp;
00195   }

HepLorentzVector Atlfast::EventHeaderMaker::missingMomentum ( MsgStream & ) [private]

calculate the reconstructed missing momentum

Definition at line 236 of file EventHeaderMaker.cxx.

References m_beamEnergy, m_missingMomentumLocation, and m_tesIO.

Referenced by execute().

00236                                                                    {
00237
00238     HepLorentzVector unused(0., 0., 0., 0.);
00239     const DataHandle<MissingMomentum> mm;
00240     TesIoStat stat = m_tesIO->getDH(mm,m_missingMomentumLocation );
00241     if(!stat){
00242       log << MSG::WARNING<<"Could Not Find Missing momentum in TES"<<endreq;
00243       return unused;
00244     }
00245     log << MSG::DEBUG<<"Found Missing Momentum in TES"<<endreq;
00246
00247     unused = mm->momentum();
00248
00249     HepLorentzVector temp(0.0,0.0,0.0,0.0);
00250
00251
00252     temp = unused
00253       +  momentumSum<ReconstructedParticleCollection> (m_electronLocation)
00254       +  momentumSum<ReconstructedParticleCollection> (m_photonLocation)
00255       +  momentumSum<ReconstructedParticleCollection> (m_isolatedMuonLocation)
00256       +  momentumSum<JetCollection>                   (m_jetLocation)
00257       +  momentumSum<ReconstructedParticleCollection> (m_nonIsolatedMuonLocation)
00258       -  assocMomentumSum<JetCollection, ReconstructedParticle> (m_jetLocation)
00259       ;
00260
00261     log<<MSG::DEBUG
00262        <<"Total Imbalanced momentum     "
00263        <<temp
00264        <<endreq;
00265
00266
00267
00268     if(m_testMode){
00269         HepLorentzVector totCluster =
00270           momentumSum<ClusterCollection> (m_clusterLocation);
00271
00272         HepLorentzVector clusterAssE =
00273           assocMomentumSum<ReconstructedParticleCollection, Cluster>
00274           (m_electronLocation);
00275
00276         HepLorentzVector clusterAssP =
00277           assocMomentumSum<ReconstructedParticleCollection, Cluster>
00278           (m_photonLocation);
00279
00280         HepLorentzVector clusterAssM =
00281           assocMomentumSum<ReconstructedParticleCollection, Cluster>
00282           (m_isolatedMuonLocation);
00283
00284         HepLorentzVector clusterAssJ =
00285           assocMomentumSum<JetCollection, Cluster>(m_jetLocation);
00286
00287       HepLorentzVector clusterDiff = totCluster-
00288         clusterAssJ-
00289         clusterAssE-
00290         clusterAssM-
00291         clusterAssP;
00292
00293       HepLorentzVector totCell =
00294         momentumSum<ITwoCptCellCollection>(m_cellLocation);
00295
00296       HepLorentzVector cellAssCluster =
00297         assocMomentumSum<ClusterCollection, Cell>(m_clusterLocation);
00298
00299       HepLorentzVector cellDiff = totCell-cellAssCluster;
00300
00301       HepLorentzVector diffS  = clusterDiff+cellDiff-unused;
00302
00303
00304
00305       log<<MSG::DEBUG<<"Total cluster    "<<totCluster<<endreq;
00306       log<<MSG::DEBUG<<"Clus Ass Jet     "<<clusterAssJ<<endreq;
00307       log<<MSG::DEBUG<<"Clus Ass El      "<<clusterAssE<<endreq;
00308       log<<MSG::DEBUG<<"Clus Ass Mu      "<<clusterAssM<<endreq;
00309       log<<MSG::DEBUG<<"Clus Ass Ph      "<<clusterAssP<<endreq;
00310       log<<MSG::DEBUG<<"Clus diff        "<<clusterDiff<<endreq;
00311       log<<MSG::DEBUG<<"Total Cell       "<<totCell<<endreq;
00312       log<<MSG::DEBUG<<"Cell Ass Clus    "<<cellAssCluster<<endreq;
00313       log<<MSG::DEBUG<<"Clus diff        "<<cellDiff<<endreq;
00314       log<<MSG::DEBUG<<"Cell+Clus diff   "<<cellDiff<<endreq;
00315       log<<MSG::DEBUG<<"Unused           "<<unused<<endreq;
00316       log<<MSG::DEBUG<<"diff             "<<diffS<<endreq;
00317
00318       log<<MSG::DEBUG<<endreq;
00319
00320       assert( diffS.rho() <0.001);
00321
00322
00323
00324
00325
00326       HepLorentzVector temp2 =
00327         momentumSum<ReconstructedParticleCollection>    (m_electronLocation)
00328         +  momentumSum<ReconstructedParticleCollection> (m_photonLocation)
00329         +  momentumSum<ReconstructedParticleCollection> (m_isolatedMuonLocation)
00330         +  momentumSum<JetCollection>  (m_jetLocation)
00331         +  momentumSum<ClusterCollection> (m_clusterLocation)
00332         +  momentumSum<ITwoCptCellCollection> (m_cellLocation)
00333         +  momentumSum<ReconstructedParticleCollection> (m_nonIsolatedMuonLocation)
00334
00335         - assocMomentumSum<ReconstructedParticleCollection, Cluster>
00336         (m_electronLocation)
00337
00338         - assocMomentumSum<ReconstructedParticleCollection, Cluster>
00339         (m_photonLocation)
00340
00341         - assocMomentumSum<ReconstructedParticleCollection, Cluster>
00342         (m_nonIsolatedMuonLocation)
00343
00344         -  assocMomentumSum<JetCollection, Cluster>
00345         (m_jetLocation)
00346
00347         -  assocMomentumSum<JetCollection, ReconstructedParticle>
00348         (m_jetLocation)
00349
00350         - assocMomentumSum<ClusterCollection, Cell>
00351         (m_clusterLocation);
00352
00353
00354       assert( (temp-temp2).rho() <0.001);
00355     }
00356
00357     // calculate missing momentum from the reconstructed sum of momenta:
00358     //
00359     temp.setPx( -temp.px() );
00360     temp.setPy( -temp.py() );
00361     temp.setPz( -temp.pz() );
00362     temp.setE(  2.0*m_beamEnergy - temp.e() );
00363
00364     return temp;
00365   }

HepLorentzVector Atlfast::EventHeaderMaker::escapedMomentum ( MsgStream & ) [private]

calculated the momentum of escaping particles from MC truth

Definition at line 372 of file EventHeaderMaker.cxx.

References m_tesIO, and m_visibleToAtlas.

Referenced by execute().

00372                                                                    {
00373
00374     HepLorentzVector temp(0.0,0.0,0.0,0.0);
00375
00376     MCparticleCollection  mcParticles;
00377     TesIoStat stat = m_tesIO->getMC( mcParticles, m_visibleToAtlas ) ;
00378     std::string mess =
00379       stat? "MC particles retrieved":"MC particles retrieve failed";
00380     log<<MSG::DEBUG<<mess<<endreq;
00381
00382
00383     MCparticleCollection::const_iterator part = mcParticles.begin();
00384     for (;part != mcParticles.end(); ++part) {
00385       temp += (*part)->momentum();
00386     }
00387
00388     return temp;
00389   }

template<class Collection>
HepLorentzVector Atlfast::EventHeaderMaker::momentumSum	(	std::string	tesAddress	)	`[inline, private]`

returns the summed momentum of a list of IKinematic objects in the TES

Definition at line 201 of file EventHeaderMaker.h.

References m_tesIO.

00201                                                       {
00202     //
00203     //    Collection aList;
00204     //
00205     //    if(!m_tesIO->copy
00206     //       <Collection,
00207     //       Collection>
00208     //   (aList, tesAddress) ){throw "Error in momentumSum";
00209     //    }
00210     //
00211     //    HepLorentzVector temp(0.0,0.0,0.0,0.0);
00212     //    typename Collection::const_iterator iter = aList.begin();
00213     //
00214     //    for (; iter != aList.end(); ++iter) temp += (*iter)->momentum();
00215     HepLorentzVector temp(0.0,0.0,0.0,0.0);
00216
00217     DataHandle<Collection> dh;
00218     if( !m_tesIO->getDH(dh, tesAddress) ) throw "Error in numberInList";
00219
00220     typename Collection::const_iterator iter = dh->begin();
00221     typename Collection::const_iterator end  = dh->end();
00222
00223     for (; iter != end; ++iter) temp += (*iter)->momentum();
00224
00225     return temp;
00226   }

template<class Type>
HepLorentzVector Atlfast::EventHeaderMaker::smearAndSum	(	std::string	tesAddress,
		Type	dummy
	)	`[private]`

returns the summed momentum of a list of IKinematic objects in the TES

template<class Collection, class AssType>
HepLorentzVector Atlfast::EventHeaderMaker::assocMomentumSum	(	std::string	tesAddress	)	`[inline, private]`

returns the summed momentum of a list of associated IKinematic objects in the TES

Definition at line 232 of file EventHeaderMaker.h.

References m_tesIO.

00232                                                            {
00233
00234     HepLorentzVector temp(0.0,0.0,0.0,0.0);
00235
00236     DataHandle<Collection> dh;
00237     if( !m_tesIO->getDH(dh, tesAddress) ) throw "Error in assocMomentumSum";
00238
00239     typename Collection::const_iterator iter = dh->begin();
00240     typename Collection::const_iterator end  = dh->end();
00241
00242     for (; iter != end; ++iter){
00243       IAssociationManager* ia  = *iter;
00244       AssType assType;
00245       std::vector<const AssType*> aList  = ia->associations(assType);
00246       typename std::vector<const AssType*>::const_iterator aIter = aList.begin();
00247       for(; aIter<aList.end(); ++aIter) temp+=(*aIter)->momentum();
00248     }
00249     return temp;
00250   }

HepLorentzVector Atlfast::EventHeaderMaker::unusedClusterSum ( ) [private]

summed momentum of unused clusters

HepLorentzVector Atlfast::EventHeaderMaker::unusedMuonSum ( ) [private]

summed momentum of unused non-isolated muons

HepLorentzVector Atlfast::EventHeaderMaker::unusedCellSum ( ) [private]

smeared + summed p of unused cells above cut

Member Data Documentation

std::string Atlfast::EventHeaderMaker::m_electronLocation [private]

Definition at line 136 of file EventHeaderMaker.h.

Referenced by initialize().

std::string Atlfast::EventHeaderMaker::m_photonLocation [private]

Definition at line 137 of file EventHeaderMaker.h.

Referenced by initialize().

std::string Atlfast::EventHeaderMaker::m_isolatedMuonLocation [private]

Definition at line 138 of file EventHeaderMaker.h.

Referenced by initialize().

std::string Atlfast::EventHeaderMaker::m_nonIsolatedMuonLocation [private]

Definition at line 139 of file EventHeaderMaker.h.

Referenced by initialize().

std::string Atlfast::EventHeaderMaker::m_jetLocation [private]

Definition at line 140 of file EventHeaderMaker.h.

Referenced by execute(), and initialize().

std::string Atlfast::EventHeaderMaker::m_cellLocation [private]

Definition at line 141 of file EventHeaderMaker.h.

Referenced by initialize().

std::string Atlfast::EventHeaderMaker::m_clusterLocation [private]

Definition at line 142 of file EventHeaderMaker.h.

Referenced by initialize().

std::string Atlfast::EventHeaderMaker::m_mcTruthLocation [private]

Definition at line 143 of file EventHeaderMaker.h.

Referenced by initialize().

std::string Atlfast::EventHeaderMaker::m_outputLocation [private]

Definition at line 144 of file EventHeaderMaker.h.

Referenced by execute(), and initialize().

std::string Atlfast::EventHeaderMaker::m_missingMomentumLocation [private]

Definition at line 145 of file EventHeaderMaker.h.

Referenced by initialize(), and missingMomentum().

bool Atlfast::EventHeaderMaker::m_testMode [private]

Definition at line 148 of file EventHeaderMaker.h.

Referenced by initialize().

double Atlfast::EventHeaderMaker::m_beamEnergy [private]

Definition at line 149 of file EventHeaderMaker.h.

Referenced by initialize(), and missingMomentum().

std::vector<int> Atlfast::EventHeaderMaker::m_escapingParticles [private]

Definition at line 150 of file EventHeaderMaker.h.

Referenced by initialize().

int Atlfast::EventHeaderMaker::m_lumi [private]

Definition at line 153 of file EventHeaderMaker.h.

Referenced by initialize().

double Atlfast::EventHeaderMaker::m_barrelForwardEta [private]

Definition at line 158 of file EventHeaderMaker.h.

Referenced by initialize().

TesIO* Atlfast::EventHeaderMaker::m_tesIO [private]

Definition at line 160 of file EventHeaderMaker.h.

Referenced by assocMomentumSum(), escapedMomentum(), execute(), initialize(), missingMomentum(), momentumSum(), numberInList(), numberJetFlavor(), and ~EventHeaderMaker().

HepMC_helper::IMCselector* Atlfast::EventHeaderMaker::m_visibleToAtlas [private]

Definition at line 161 of file EventHeaderMaker.h.

Referenced by escapedMomentum(), and initialize().

The documentation for this class was generated from the following files:

Generated on Tue Mar 18 11:18:55 2003 for AtlfastAlgs by

1.3-rc1

Atlfast::EventHeaderMaker Class Reference

Public Methods

Private Methods

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
