Atlfast::LeptonMatrixManager Class Reference

Used by tracksmearer to provide smear matrices corresponding to given track trajectories. More...

#include <LeptonMatrixManager.h>

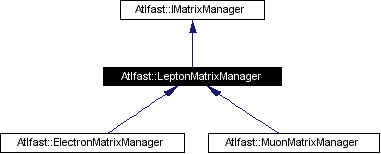

Inheritance diagram for Atlfast::LeptonMatrixManager:

Inheritance graph
[legend]

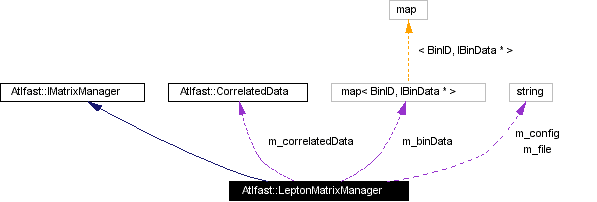

Collaboration diagram for Atlfast::LeptonMatrixManager:

Collaboration graph
[legend]
List of all members.

Public Methods

 LeptonMatrixManager (string config, int randSeed, MsgStream &log)
virtual ~LeptonMatrixManager ()
 Default Destructor.

virtual vector< double > getVariables (const TrackTrajectory &track, HepMatrix &) const
 returns smear variables and correlation matrix corresponding to given track trajectory


Private Methods

void initialise ()
 methods

IBinData * getBinData (const TrackTrajectory &track) const
void scale (HepMatrix &) const
void scale (vector< double > &) const

Private Attributes

string m_file
 variables

string m_config
 name of flat file containing smear matrix data.

CorrelatedData * m_correlatedData
std::map< BinID, IBinData * > m_binData
double m_pTMin
double m_etaMin
double m_etaMax
int m_nBins
MsgStream & m_log

Detailed Description

Used by tracksmearer to provide smear matrices corresponding to given track trajectories.

It reads a flat file containing smear matrix data and creates a BinData object for every eta/phi/pt bin.

Definition at line 45 of file LeptonMatrixManager.h.

Constructor & Destructor Documentation

Atlfast::LeptonMatrixManager::LeptonMatrixManager (  string    config,
int    randSeed,
MsgStream &    log
)


Definition at line 15 of file LeptonMatrixManager.cxx.

References initialise(), m_config, m_correlatedData, m_file, and m_log.

00016                                                       :
00017     m_config(config), m_log(log){
00018     m_file = "Atlfast_id_resol_mu_";
00019     m_file.append(config);
00020     m_file.append(".dat");
00021     m_correlatedData = new CorrelatedData(randSeed);
00022     this->initialise();
00023     m_log << MSG::INFO << "Constructed LeptonMatrixManager with configuration "
00024            << m_config <<endreq;
00025   }

Atlfast::LeptonMatrixManager::~LeptonMatrixManager (    )  [virtual]


Default Destructor.

Definition at line 32 of file LeptonMatrixManager.cxx.

References m_binData.

00032                                            {
00033     map<BinID, IBinData*>::iterator iter = m_binData.begin();
00034     map<BinID, IBinData*>::iterator end = m_binData.end();
00035       for (; iter!=end;++iter)
00036       {
00037       delete (iter->second);  // Is this right(m_binData=vector<*>)????
00038       }
00039
00040   }

Member Function Documentation

vector< double > Atlfast::LeptonMatrixManager::getVariables (  const TrackTrajectory &    track,
HepMatrix &
)  const [virtual]


returns smear variables and correlation matrix corresponding to given track trajectory

Implements Atlfast::IMatrixManager.

Reimplemented in Atlfast::ElectronMatrixManager.

Definition at line 159 of file LeptonMatrixManager.cxx.

References Atlfast::CorrelatedData::generate(), getBinData(), Atlfast::IBinData::getMatrix(), m_correlatedData, Atlfast::CorrelatedData::root(), and scale().

00160                                                                               {
00161     vector<double> variables;
00162     HepMatrix sigma;
00163     IBinData* binData = getBinData(track);
00164     sigma = binData->getMatrix(track);
00165     // do Dcorset and Dcorgen to get smear parameters
00166
00167     variables = m_correlatedData->generate(m_correlatedData->root(sigma));
00168     scale(sigma);
00169     returnSigma = sigma;
00170     scale(variables);
00171     return variables;
00172   }

void Atlfast::LeptonMatrixManager::initialise (    )  [private]


methods

Definition at line 46 of file LeptonMatrixManager.cxx.

References m_binData, m_config, m_file, and m_log.

Referenced by LeptonMatrixManager().

00046                                       {
00047     // open file
00048     ifstream input;
00049     input.open( m_file.c_str() );
00050     if (input) {
00051       m_log << MSG::INFO
00052              << "LeptonMatrixManager: file "
00053              << m_file
00054              << " open."
00055              << endreq;
00056
00057       double data;
00058       int nEtaVals;
00059       int nPTVals;
00060
00061       // prepare containers
00062       vector<double> etaBins;
00063       vector<double> pTBins;
00064
00065       // the are four correlations between the 5 variables
00066       vector< pair<double,double> > correlOrder;
00067       correlOrder.push_back(pair<double,double>(3,5)); // phi / pt
00068       correlOrder.push_back(pair<double,double>(1,5)); // d0 / pt
00069       correlOrder.push_back(pair<double,double>(1,3)); // d0 / phi
00070       correlOrder.push_back(pair<double,double>(2,4)); // z0 / cotTheta
00071
00072
00073       // read eta and phi values and store them
00074       input >> nEtaVals;
00075       for (int i=0; i < nEtaVals; i++) {
00076         input >> data;
00077         etaBins.push_back(data);
00078       }
00079
00080       input >> nPTVals;
00081       for (int i=0; i < nPTVals; i++) {
00082         input >> data;
00083         pTBins.push_back(data);
00084       }
00085
00086       //========================================
00087       // make 9 resolution parameters for matrix
00088       HepMatrix etaPMatrix(nEtaVals, nPTVals,0);
00089       //stores nine parameters for each eta/pt bin:
00090       vector<HepMatrix> resParameters(9, etaPMatrix);
00091
00092       // read sigmas and correlations
00093       for (int iEta=0; iEta < nEtaVals; iEta++) {
00094         for (int iPT=0; iPT < nPTVals; iPT++) {
00095           //sigmas (diagonals)
00096           for (int i = 0; i < 5; i++) {
00097             input >> data;
00098             resParameters[i][iEta][iPT] = data*data;
00099           }
00100           // correlations
00101           vector< pair<double,double> >::iterator iOrder = correlOrder.begin();
00102           for (int i = 5; i < 9; i++) {
00103             input >> data;
00104             resParameters[i][iEta][iPT] =
00105               data * sqrt(resParameters[(iOrder->first)-1][iEta][iPT]) *
00106               sqrt(resParameters[(iOrder->second)-1][iEta][iPT]);
00107             iOrder++;
00108           }
00109         }
00110       }// end of make ===========================
00111
00112
00113       // make bins
00114       HepMatrix twoSquare(2,2,0);
00115       vector<HepMatrix> interpol(9, twoSquare);
00116       double iBin = 0;
00117
00118       for (int iEta = 0; iEta < (nEtaVals-1); iEta++) {
00119         for (int iPT = 0; iPT < (nPTVals-1); iPT++) {
00120
00121           for (int i=0; i<9; i++) {
00122             interpol[i] = resParameters[i].sub(iEta+1,iEta+2,iPT+1, iPT+2);
00123           }
00124
00125           BinID id(iBin, etaBins[iEta], etaBins[iEta+1],
00126                    pTBins[iPT], pTBins[iPT+1]);
00127           // make bin
00128           IBinData* binData = new LeptonBinData(id, interpol);
00129           // enter bin data into map
00130           m_binData[id] = binData;
00131           iBin++;
00132         }
00133       }
00134       HeaderPrinter hp("Atlfast LeptonTrack Smearer:", m_log);
00135       hp.add("Data file                ", m_file);
00136       hp.add("configuration            ", m_config);
00137       hp.add("Number of Eta Bins       ", nEtaVals-1);
00138       hp.add("Eta Min                  ", etaBins.front());
00139       hp.add("Eta Max                  ", etaBins.back());
00140       hp.add("Number of Pt  Bins       ", nPTVals-1);
00141       hp.add("pT Min                   ", pTBins.front());
00142       hp.add("pT Max                   ", pTBins.back());
00143       hp.print();
00144
00145     }else{
00146       m_log << MSG::WARNING
00147              << "LeptonMatrixManager: no data file ( "
00148              <<m_file<<" )!!!!"
00149              << endreq;
00150     }
00151
00152   }

IBinData * Atlfast::LeptonMatrixManager::getBinData (  const TrackTrajectory &    track )  const [private]


Definition at line 202 of file LeptonMatrixManager.cxx.

References m_binData.

Referenced by getVariables().

00202                                                                              {
00203
00204     TrackParameters traj = track.parameters();
00205     vector<double> etaPT;
00206     double eta = abs( traj.eta() ) ;
00207     double pT= abs( traj.pT() );
00208
00209     // validity check
00210     double etaLow = ( (m_binData.begin())->first ).low(0);
00211     double etaHigh = ( (m_binData.rbegin())->first ).high(0);
00212     double pTLow = ( (m_binData.begin())->first ).low(1);
00213     double pTHigh = ( (m_binData.rbegin())->first ).high(1);
00214     if ( eta < etaLow ) eta = etaLow;
00215     if ( eta > etaHigh) eta = etaHigh;
00216     if ( pT < pTLow ) pT = pTLow;
00217     if ( pT > pTHigh) pT = pTHigh;
00218
00219     // find BinID
00220     etaPT.push_back( eta );
00221     etaPT.push_back( pT );
00222
00223     map<BinID, IBinData*>::const_iterator binIter = m_binData.begin();
00224     map<BinID, IBinData*>::const_iterator binEnd = m_binData.end();
00225
00226     for (; binIter != binEnd; ++binIter){
00227       if (binIter->first.isInBin(etaPT)) return binIter->second;
00228     }
00229     // OOPS! couldn't fin bin
00230     cout << "WARNING: LeptonMatrixManager - No bin; eta "<< eta <<", pT "<<pT<<endl;
00231     return (m_binData.begin())->second;
00232   }

void Atlfast::LeptonMatrixManager::scale (  HepMatrix &    )  const [private]


Definition at line 177 of file LeptonMatrixManager.cxx.

Referenced by getVariables().

00177                                                        {
00178     sigma(1,1) /= 1e8;
00179     sigma(2,2) /= 1e8;
00180     sigma(3,3) /= 1e6;
00181     sigma(4,4) /= 1e6;
00182     sigma(5,5) /= 1e6;
00183     sigma(1,3) = sigma(3,1) /= 1e7;
00184     sigma(1,5) = sigma(5,1) /= 1e7;
00185     sigma(2,4) = sigma(4,2) /= 1e7;
00186     sigma(3,5) = sigma(5,3) /= 1e6;
00187   }

void Atlfast::LeptonMatrixManager::scale (  vector< double > &    )  const [private]


Definition at line 189 of file LeptonMatrixManager.cxx.

00189                                                                 {
00190     variables[0] /= 1e4;
00191     variables[1] /= 1e4;
00192     variables[2] /= 1e3;
00193     variables[3] /= 1e3;
00194     variables[4] /= 1e3;
00195   }

Member Data Documentation

string Atlfast::LeptonMatrixManager::m_file [private]


variables

Definition at line 65 of file LeptonMatrixManager.h.

Referenced by initialise(), and LeptonMatrixManager().

string Atlfast::LeptonMatrixManager::m_config [private]


name of flat file containing smear matrix data.

Definition at line 66 of file LeptonMatrixManager.h.

Referenced by initialise(), and LeptonMatrixManager().

CorrelatedData* Atlfast::LeptonMatrixManager::m_correlatedData [private]


Definition at line 68 of file LeptonMatrixManager.h.

Referenced by getVariables(), and LeptonMatrixManager().

std::map<BinID, IBinData*> Atlfast::LeptonMatrixManager::m_binData [private]


Definition at line 69 of file LeptonMatrixManager.h.

Referenced by getBinData(), initialise(), and ~LeptonMatrixManager().

double Atlfast::LeptonMatrixManager::m_pTMin [private]


Definition at line 71 of file LeptonMatrixManager.h.

double Atlfast::LeptonMatrixManager::m_etaMin [private]


Definition at line 72 of file LeptonMatrixManager.h.

double Atlfast::LeptonMatrixManager::m_etaMax [private]


Definition at line 73 of file LeptonMatrixManager.h.

int Atlfast::LeptonMatrixManager::m_nBins [private]


Definition at line 74 of file LeptonMatrixManager.h.

MsgStream& Atlfast::LeptonMatrixManager::m_log [private]


Reimplemented in Atlfast::ElectronMatrixManager.

Definition at line 75 of file LeptonMatrixManager.h.

Referenced by initialise(), and LeptonMatrixManager().

The documentation for this class was generated from the following files:
Generated on Tue Mar 18 11:18:57 2003 for AtlfastAlgs by doxygen1.3-rc1
