#include <ReconstructedParticleHistogramMaker.h>

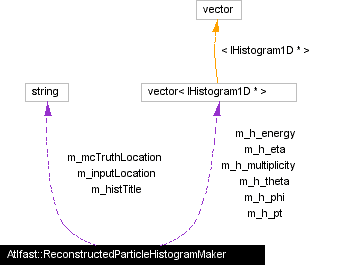

Collaboration diagram for Atlfast::ReconstructedParticleHistogramMaker:
Public Methods | |
| ReconstructedParticleHistogramMaker (const std::string &name, ISvcLocator *pSvcLocator) | |
| ~ReconstructedParticleHistogramMaker () | |
| StatusCode | initialize () |
| StatusCode | execute () |
| StatusCode | finalize () |
Private Methods | |
| void | book (std::vector< IHistogram1D * > &start, const std::string title, const int nbins, const double xmin, const double xmax, const double xminDiff, const double xmaxDiff) |
| void | fill (std::vector< IHistogram1D * > &start, const double rec, const double tru) |
Private Attributes | |
| TesIO * | m_tesIO |
| std::string | m_inputLocation |
| std::string | m_mcTruthLocation |
| std::vector< IHistogram1D * > | m_h_multiplicity |
| std::vector< IHistogram1D * > | m_h_energy |
| std::vector< IHistogram1D * > | m_h_pt |
| std::vector< IHistogram1D * > | m_h_eta |
| std::vector< IHistogram1D * > | m_h_phi |
| std::vector< IHistogram1D * > | m_h_theta |
| int | m_histStart |
| int | m_nHist |
| int | m_particleType |
| std::string | m_histTitle |
| HepMC_helper::IMCselector * | m_ncutter |
Definition at line 55 of file ReconstructedParticleHistogramMaker.h.
|
||||||||||||
|
Definition at line 48 of file ReconstructedParticleHistogramMaker.cxx.
00049 : Algorithm( name, pSvcLocator ){
00050
00051
00052
00053
00054 // Default paths for entities in the TES
00055 m_inputLocation = "/Event/Electrons";
00056 m_mcTruthLocation = "/Event/McEventCollection";
00057
00058
00059 m_histStart = 0; // ID of first histogram
00060 m_particleType = 11; // Default particle type to examine
00061 m_histTitle = "Electron "; // Default prefixfor histogram titles
00062
00063 declareProperty( "InputLocation", m_inputLocation ) ;
00064 declareProperty( "McTruthLocation", m_mcTruthLocation );
00065 declareProperty( "HistogramStart", m_histStart );
00066 declareProperty( "ParticleType", m_particleType );
00067 declareProperty( "HistogramTitle", m_histTitle );
00068
00069 }
|
|
|
Definition at line 72 of file ReconstructedParticleHistogramMaker.cxx.
00072 {
00073 MsgStream log(messageService(), name());
00074 log << MSG::INFO << "destructor" << endreq;
00075
00076 }
|
|
|
Definition at line 83 of file ReconstructedParticleHistogramMaker.cxx. References book(), m_h_energy, m_h_eta, m_h_multiplicity, m_h_phi, m_h_pt, m_h_theta, m_histStart, m_ncutter, m_nHist, m_particleType, and m_tesIO.
00084 {
00085 // .. put any initialisation in here...
00086 MsgStream log(messageService(), name());
00087 log << MSG::DEBUG << "in initialize()" << endreq;
00088
00089 m_nHist = m_histStart;
00090
00091 book(m_h_multiplicity, string("Multiplicity"),20,0.0,20.0,-5.0, 5.0);
00092 log << MSG::DEBUG << "Made multiplicity histos" << endreq;
00093
00094 book(m_h_energy, string("Energy"),100,0.0,500.0,-10.0, 10.0);
00095 log << MSG::DEBUG << "Made energy histos" << endreq;
00096
00097 book(m_h_pt, string("Pt"), 100,0.0,500.0,-10.0,10.0);
00098 log << MSG::DEBUG << "Made pt histos" << endreq;
00099
00100 book(m_h_eta, string("Eta"), 100,-3.0,3.0,-0.2,0.2);
00101 log << MSG::DEBUG << "Made eta histos" << endreq;
00102
00103 book(m_h_phi, string("Phi"),20,-M_PI,M_PI,-0.1,0.1);
00104 log << MSG::DEBUG << "Made phi histos" << endreq;
00105
00106 book(m_h_theta, string("Theta"),20,0.0,M_PI,-0.1,0.1);
00107 log << MSG::DEBUG << "Made thetahistos" << endreq;
00108
00109
00110 log << MSG::DEBUG << "Booked histograms OK" << endreq;
00111 // m_tesIO = new TesIO(eventDataService());
00112 m_tesIO = new TesIO();
00113
00114 // Set up NCutter to select the required HepMC::GenParticles
00115 typedef HepMC_helper::IMCselector Selector;
00116
00117 Selector* typeSelector = new HepMC_helper::SelectType( m_particleType);
00118 Selector* kineSelector = new HepMC_helper::MCCuts(m_mcPtMin, m_mcEtaMax);
00119 Selector* fstaSelector = new HepMC_helper::IsFinalState();
00120
00121 vector<HepMC_helper::IMCselector*> selectors;
00122 selectors.push_back(fstaSelector);
00123 selectors.push_back(typeSelector);
00124 selectors.push_back(kineSelector);
00125
00126 m_ncutter = new HepMC_helper::NCutter(selectors);
00127
00128 delete typeSelector;
00129 delete fstaSelector;
00130 delete kineSelector;
00131 //=======================================================
00132
00133 return StatusCode::SUCCESS ;
00134 }
|
|
|
Definition at line 158 of file ReconstructedParticleHistogramMaker.cxx. References fill(), m_h_energy, m_h_eta, m_h_multiplicity, m_h_phi, m_h_pt, m_h_theta, m_inputLocation, m_ncutter, and m_tesIO.
00159 {
00160
00161 //................................
00162 // make a message logging stream
00163
00164 MsgStream log( messageService(), name() ) ;
00165 log << MSG::DEBUG << "Executing " << endreq;
00166
00167 // Access the reconstructed particles in the TES
00168 std::vector<ReconstructedParticle*> myParticles;
00169 // Access the collection of "McEvent" records in the TES
00170 std::vector<McEvent*> mcEvents;
00171
00172
00173 //Get the MC truth list
00174 MCparticleCollection myMC_particles ;
00175 MCparticleCollectionCIter src ;
00176
00177 TesIoStat stat = m_tesIO->getMC( myMC_particles, m_ncutter ) ;
00178 mess = stat? "Retrieved MC from TES ":"Failed MC retrieve from TES";
00179 log << MSG::DEBUG << mess << endreq;
00180
00181
00182 //check to see whether any reconstructed particles are found at the requested location
00183 if(!m_tesIO->copy(myParticles, m_inputLocation)){
00184 log << MSG::DEBUG << "no particles found in the TES. This is probably normal" << endreq;
00185 // fill any histograms that have meaning in the absence of rec particles
00186 fill(m_h_multiplicity,0.0,float(myMC_particles.size()) );
00187 //log << MSG::DEBUG
00188 //<< "filled multiplicity 0.0 and "
00189 //<< float(myMC_particles.size())
00190 //<< endreq;
00191 } else {
00192 // fill all histograms
00193 //log << MSG::DEBUG << "Fill multiplicity" << endreq;
00194 fill(m_h_multiplicity,
00195 double(myParticles.size()),
00196 double(myMC_particles.size()) );
00197
00198 //iterate over the electrons
00199
00200 std::vector<ReconstructedParticle*>::const_iterator iter = myParticles.begin();
00201 for (; iter != myParticles.end(); ++iter) {
00202 const HepMC::GenParticle* truth = (*iter)->truth();
00203 HepLorentzVector momentum = (*iter)->momentum();
00204 HepLorentzVector trueMomentum = truth->momentum();
00205
00206 //log << MSG::DEBUG << "Fill per-electron histos" << endreq;
00207 fill(m_h_pt, (*iter)->pT(), trueMomentum.perp());
00208 fill(m_h_eta, (*iter)->eta(), trueMomentum.pseudoRapidity());
00209 fill(m_h_energy,((*iter)->momentum()).e(), trueMomentum.e());
00210 fill(m_h_phi, (*iter)->phi(), trueMomentum.phi());
00211 fill(m_h_theta, ((*iter)->momentum()).theta(),trueMomentum.theta());
00212 }
00213 }
00214 log << MSG::DEBUG << "Done the filling OK" << endreq;
00215 return StatusCode::SUCCESS ;
00216 }
|
|
|
Definition at line 142 of file ReconstructedParticleHistogramMaker.cxx.
00143 {
00144 // .. put any finalisation in here...
00145 MsgStream log(messageService(), name());
00146 log << MSG::INFO << "finalizing" << endreq;
00147
00148 return StatusCode::SUCCESS ;
00149 }
|
|
||||||||||||||||||||||||||||||||
|
Definition at line 223 of file ReconstructedParticleHistogramMaker.cxx. Referenced by initialize().
00232 {
00233
00234 // book the histograms in turn, incrementing the counter before using it
00235 start.push_back(histoSvc()->book(
00236 "/stat/simple1d/",
00237 ++m_nHist,
00238 m_histTitle+" Rec "+title,
00239 nbins,
00240 xmin,
00241 xmax
00242 )
00243 );
00244
00245 start.push_back(histoSvc()->book(
00246 "/stat/simple1d/",
00247 ++m_nHist,
00248 m_histTitle+" Tru "+title,
00249 nbins,
00250 xmin,
00251 xmax
00252 )
00253 );
00254
00255 start.push_back(histoSvc()->book(
00256 "/stat/simple1d/",
00257 ++m_nHist,
00258 m_histTitle+" Dif "+title,
00259 nbins*2,
00260 xminDiff,
00261 xmaxDiff
00262 )
00263 );
00264 start.push_back(histoSvc()->book(
00265 "/stat/simple1d/",
00266 ++m_nHist,
00267 m_histTitle+" Res "+title,
00268 nbins*2,
00269 -2.0,
00270 2.0
00271 )
00272 );
00273
00274 return;
00275 }
|
|
||||||||||||||||
|
Definition at line 280 of file ReconstructedParticleHistogramMaker.cxx. Referenced by execute().
00280 {
00281
00282 MsgStream log( messageService(), name() ) ;
00283
00284 if (!start[0] || !start[1] || !start[2] || !start[3]) {
00285 log << MSG::WARNING << "trying to fill to a null histogram pointer" << endreq;
00286 return;
00287 }
00288 start[0]->fill(rec,1.0);
00289 start[1]->fill(tru,1.0);
00290 start[2]->fill(tru-rec,1.0);
00291 if (tru != 0.0) {
00292 start[3]->fill((tru-rec)/tru,1.0);
00293 }
00294 return;
00295 }
|
|
|
Definition at line 81 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
|
|
Definition at line 106 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(). |
|
|
Definition at line 107 of file ReconstructedParticleHistogramMaker.h. |
|
|
Definition at line 123 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
|
|
Definition at line 125 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
|
|
Definition at line 127 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
|
|
Definition at line 129 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
|
|
Definition at line 131 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
|
|
Definition at line 133 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
|
|
Definition at line 138 of file ReconstructedParticleHistogramMaker.h. Referenced by initialize(). |
|
|
Definition at line 140 of file ReconstructedParticleHistogramMaker.h. Referenced by initialize(). |
|
|
Definition at line 143 of file ReconstructedParticleHistogramMaker.h. Referenced by initialize(). |
|
|
Definition at line 146 of file ReconstructedParticleHistogramMaker.h. |
|
|
Definition at line 152 of file ReconstructedParticleHistogramMaker.h. Referenced by execute(), and initialize(). |
