Atlfast::TrackMaker Class Reference

#include <TrackMaker.h>

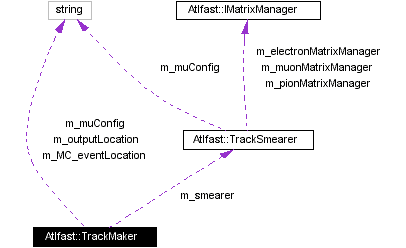

Collaboration diagram for Atlfast::TrackMaker:


Public Methods
	TrackMaker (const std::string &name, ISvcLocator *pSvcLocator)
virtual	~TrackMaker ()
virtual StatusCode	initialize ()
virtual StatusCode	execute ()
virtual StatusCode	finalize ()
Private Methods
virtual Track *	create (const HepMC::GenParticle *)
virtual bool	isAcceptable (Track *)
TrackTrajectory	extractTrajectory (const HepMC::GenParticle *)
Private Attributes
double	m_vlMax
double	m_vtMax
double	m_mcPtMin
double	m_mcEtaMax
bool	m_doSmearing
double	m_bField
string	m_muConfig
TesIO *	m_tesIO
HepMC_helper::IMCselector *	m_ncutter
TrackSmearer *	m_smearer
HepMC::ParticleDataTable	m_particleTable
std::string	m_MC_eventLocation
std::string	m_outputLocation

Constructor & Destructor Documentation

Atlfast::TrackMaker::TrackMaker	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Definition at line 40 of file TrackMaker.cxx.

References m_bField, m_doSmearing, m_MC_eventLocation, m_mcEtaMax, m_mcPtMin, m_muConfig, m_outputLocation, m_vlMax, and m_vtMax.

00041     : Algorithm( name, pSvcLocator ), m_smearer(NULL){
00042
00043     // Setting the parameter defaults - these can be changed by user via
00044     // jobOptions
00045     m_mcPtMin      = 0.5;
00046     m_mcEtaMax     = 2.5;
00047     m_vlMax        = 40.0;
00048     m_vtMax        = 3.0;
00049     m_doSmearing   = true;
00050     m_bField       = 2.0;
00051     m_muConfig     = "000";
00052
00053     // Default paths for entities in the TES
00054     m_MC_eventLocation  = "/Event/McEventCollection";
00055     m_outputLocation    = "/Event/AtlfastTracks";
00056
00057     // Declare the paramemters to Athena so that
00058     // they can be over-written via the job options file
00059     declareProperty( "McPtMinimum",       m_mcPtMin ) ;
00060     declareProperty( "McEtaMaximum",      m_mcEtaMax ) ;
00061     declareProperty( "vlMaximum",         m_vlMax ) ;
00062     declareProperty( "vtMaximum",         m_vtMax ) ;
00063     declareProperty( "DoSmearing",        m_doSmearing );
00064     declareProperty( "Bfield",            m_bField );
00065     declareProperty( "MC_eventLocation",  m_MC_eventLocation ) ;
00066     declareProperty( "OutputLocation",    m_outputLocation ) ;
00067     declareProperty( "MuonConfiguration", m_muConfig );
00068   }

Atlfast::TrackMaker::~TrackMaker ( ) [virtual]

Definition at line 73 of file TrackMaker.cxx.

References m_ncutter, and m_tesIO.

00073                           {
00074     // These ought to be here, but appear to cause the job
00075     // to hang at termination time.
00076     // if( m_smearer    ) delete m_smearer ;
00077     // if( m_mcSelector ) delete m_mcSelector ;
00078     delete m_ncutter;
00079     delete m_tesIO;
00080   }

Member Function Documentation

StatusCode Atlfast::TrackMaker::initialize ( ) [virtual]

Definition at line 87 of file TrackMaker.cxx.

References Atlfast::GlobalEventData::lumi(), m_bField, m_doSmearing, m_MC_eventLocation, m_mcEtaMax, m_mcPtMin, m_muConfig, m_ncutter, m_outputLocation, m_particleTable, m_smearer, m_tesIO, m_vlMax, m_vtMax, and Atlfast::GlobalEventData::randSeed().

00087                                    {
00088     MsgStream log( messageService(), name() ) ;
00089
00090     // Make a particle properties table. This will become a Gaudi service.
00091     HepMC::IO_PDG_ParticleDataTable pdg_io("PDGTABLE");
00092     m_particleTable = *pdg_io.read_particle_data_table();
00093     m_particleTable.make_antiparticles_from_particles();
00094
00095     //=======================================================
00096     // Set up NCutter to select the required HepMC::GenParticles
00097     HepMC_helper::IMCselector* charged = new
00098       HepMC_helper::IsCharged() ;
00099     HepMC_helper::IMCselector* cuts = new
00100       HepMC_helper::MCCuts( m_mcPtMin, m_mcEtaMax ) ;
00101     HepMC_helper::IMCselector* finalState = new
00102       HepMC_helper::IsFinalState();
00103     vector<HepMC_helper::IMCselector*> selectors;
00104     selectors.push_back(finalState);
00105     selectors.push_back(charged);
00106     selectors.push_back(cuts);
00107
00108     m_ncutter = new  HepMC_helper::NCutter(selectors);
00109
00110     delete cuts;
00111     delete charged;
00112     delete finalState;
00113     //=======================================================
00114
00115     m_tesIO = new TesIO();
00116
00117     //get the Global Event Data from singleton pattern
00118     GlobalEventData* ged = GlobalEventData::Instance();
00119     int lumi             = ged->lumi();
00120     int randSeed         = ged->randSeed() ;
00121     m_smearer            = new TrackSmearer(m_muConfig, randSeed, log);
00122     log << MSG::DEBUG << "got lumi " << endreq;
00123     HeaderPrinter hp("Atlfast Track Maker:", log);
00124     hp.add("Luminosity              ", lumi);
00125     hp.add("Minimum four-vector Pt  ", m_mcPtMin);
00126     hp.add("Maximum four-vector Eta ", m_mcEtaMax);
00127     hp.add("Maximum Transverse Vertex ", m_vtMax);
00128     hp.add("Maximum Longitudinal Vertex ", m_vlMax);
00129     hp.add("Do Smearing             ", m_doSmearing);
00130     hp.add("B Field                 ", m_bField);
00131     hp.add("Muon Configuration      ", m_muConfig);
00132     hp.add("Random Number Seed      ", randSeed);
00133     hp.add("MC location             ", m_MC_eventLocation);
00134     hp.add("Output Location         ", m_outputLocation);
00135     hp.print();
00136     log << MSG::INFO << "Initialised successfully " << endreq ;
00137     return StatusCode::SUCCESS ;
00138   }

StatusCode Atlfast::TrackMaker::execute ( ) [virtual]

Definition at line 169 of file TrackMaker.cxx.

References create(), isAcceptable(), m_ncutter, m_outputLocation, and m_tesIO.

00169                                  {
00170
00171     //................................
00172     // make a message logging stream
00173
00174     MsgStream log( messageService(), name() ) ;
00175     log << MSG::DEBUG << "Execute() " << endreq;
00176
00177
00178     //.........................................................
00179     // We now need to access the HepMC event record(s) in the event store
00180     // and iterate over them to extract HepMC::GenParticles.
00181     // This method will only select the particles which are required
00182     // and add them to a local store (mcParticles)
00183
00184     MCparticleCollection  mcParticles ;
00185     TesIoStat stat;
00186     std::string message;
00187
00188     stat = m_tesIO->getMC( mcParticles, m_ncutter );
00189     message = stat?  "Found MCparitcles in TES":"No MC particles found in TES";
00190     log<<MSG::DEBUG << message <<" "<<mcParticles.size()<<endreq;
00191     // ......................
00192     // Make a container object which will store pointers to all isolated
00193     // Tracks which are successfully created.  Since it is going to go
00194     // into the event store, it has to be a special Athena container.
00195     // This is typedefined in an include file
00196
00197     TrackCollection* tracks = new TrackCollection ;
00198
00199
00200     //.........................................................
00201     // From each mc Track create a reconstructed Track.
00202     // If all requirements are satisfied add to the collection
00203
00204     Track* candidate ;
00205     MCparticleCollectionCIter src ;
00206
00207     for( src = mcParticles.begin() ; src != mcParticles.end() ; ++src ) {
00208
00209       log << MSG::DEBUG << *src << endreq;
00210       candidate = this->create( *src );
00211       log << MSG::DEBUG << "Created: " << candidate << endreq;
00212
00213       if( this->isAcceptable( candidate ) ) {
00214       log << MSG::DEBUG << "Passed cuts" << endreq;
00215       tracks->push_back( candidate ) ;
00216       log << MSG::DEBUG << "pushed back track" <<endreq;
00217       }
00218       else {
00219         log << MSG::DEBUG << "Failed cuts" << endreq;
00220       delete candidate ;
00221       }
00222     }
00223
00224     //......................................
00225     // Register any Tracks which have been successfilly created in the
00226     // transient event store. If there are none then we delete the empty list.
00227
00228     stat = m_tesIO->store(tracks, m_outputLocation);
00229     message = stat?  "Stored tracks in TES":"Error storing tracks in TES";
00230     log<<MSG::DEBUG << message <<" "<<tracks->size()<<endreq;
00231
00232     return stat;
00233
00234   }

StatusCode Atlfast::TrackMaker::finalize ( ) [virtual]

Definition at line 144 of file TrackMaker.cxx.

00144                                  {
00145
00146     MsgStream log( messageService(), name() ) ;
00147
00148     log << MSG::INFO << "Finalised successfully " << endreq ;
00149
00150     return StatusCode::SUCCESS ;
00151   }

Track * Atlfast::TrackMaker::create ( const HepMC::GenParticle * ) [private, virtual]

Definition at line 250 of file TrackMaker.cxx.

References extractTrajectory(), m_smearer, and Atlfast::TrackSmearer::smear().

Referenced by execute().

00250                                                          {
00251
00252     MsgStream log( messageService(), name() ) ;
00253     // Construct the Trajectory parameters corresponding to the source particle
00254     TrackTrajectory originalTrajectory = this->extractTrajectory( src ) ;
00255
00256     if (m_doSmearing) {
00257
00258       // Ask our Smearer make a smeared set of Trajectory parameters
00259       // If this needs to be different for different particles then
00260       // it can be done here. Best  method of dispatching to be decided later
00261       Track myTrack(originalTrajectory, src);
00262       Track smearedTrack = m_smearer->smear(myTrack);
00263
00264       // Return a new track
00265       Track* newTrack =  new Track( smearedTrack );
00266       return newTrack;
00267     }
00268     else
00269       {
00270         // Just return the track with unsmeared four-momentum
00271         return new Track( originalTrajectory, src ) ;
00272       }
00273   }

bool Atlfast::TrackMaker::isAcceptable ( Track * ) [private, virtual]

Definition at line 287 of file TrackMaker.cxx.

References m_vlMax, and m_vtMax.

Referenced by execute().

00287                                                   {
00288     HepPoint3D vertex = candidate->trajectory().startPoint();
00289     int pdg = abs(candidate->pdg_id() );
00290     if ( vertex.z() > m_vlMax ) return false;
00291
00292     // test track for vl and vt
00293     if ( pdg == 11 || pdg == 13) {
00294       if ( vertex.perp() > m_vtMax ) return false;
00295     }
00296     return true ;
00297   }

TrackTrajectory Atlfast::TrackMaker::extractTrajectory ( const HepMC::GenParticle * ) [private]

Definition at line 302 of file TrackMaker.cxx.

References m_bField, and m_particleTable.

Referenced by create().

00302                                                                   {
00303     // look up vertex
00304     Hep3Vector vertex = (particle->production_vertex())->position().getV();
00305     // Get 4-momentum and explicitly convert to 3-momentum
00306     Hep3Vector threeMomentum = particle->momentum().getV() ;
00307     // Obtain charge of particle
00308     HepMC::ParticleData* data = m_particleTable[particle->pdg_id()] ;
00309     double charge = data->charge() ;
00310
00311     return TrackTrajectory( threeMomentum, vertex, charge, m_bField ) ;
00312
00313   }
