FastShower::CoreDepositor Class Reference

#include <CoreDepositor.h>

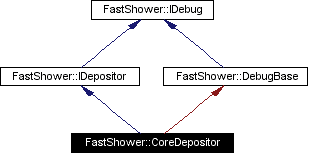

Inheritance diagram for FastShower::CoreDepositor:

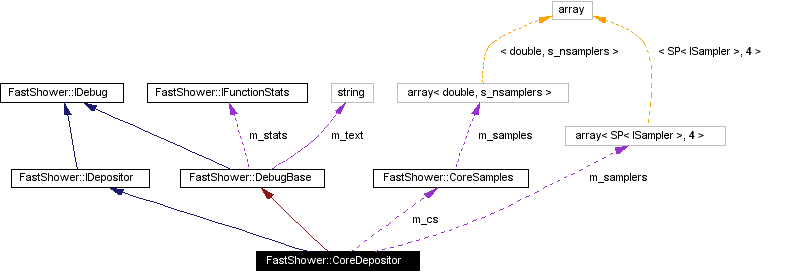

[legend]Collaboration diagram for FastShower::CoreDepositor:


Public Types
typedef boost::array< double, 6 >	ProximityDeposits
typedef ProximityDeposits::iterator	ProxDepIter
enum	{ sf, sc, sn, af, ac, an }
	integer indices for the proximity scheme labels the proximity scheme labels a cell according to how close it is to the struck quadrant in the struck cell. More...
Public Methods
	CoreDepositor (ISampler , ISampler , ISampler , ISampler )
	constructor allows the CoreSampler to be programmed for ecal or hcal
virtual void	deposit (const ParticleParameters &, const Normalisations &, IDeposits &)
virtual IDepositor *	clone () const
	make a copy of the class when used as an IDepositor
virtual void	components (IDebug::Cpts &) const
Private Methods
void	fillProximityDeps ()
	function used to go from the four samples (which are independent) to the energies (each succesive cell energy calculation depends on the previous energies)
Private Attributes
ProximityDeposits	m_proximityDeps
	store for the deposits
boost::array< SP< ISampler >, 4 >	m_samplers
	the four cell samplers: slice0, cell0, same Near, adjacent near cells
CoreSamples	m_cs
	store for the samples
array< array< pair< int, int >, 6 >, 4 >	m_mappers
	provide the eta-phi mapping between the proximity and geometry schemes there is a mapper for each quadrant (4).

Member Typedef Documentation

typedef boost::array<double, 6> FastShower::CoreDepositor::ProximityDeposits

Definition at line 84 of file CoreDepositor.h.

typedef ProximityDeposits::iterator FastShower::CoreDepositor::ProxDepIter

Definition at line 85 of file CoreDepositor.h.

Member Enumeration Documentation

anonymous enum

integer indices for the proximity scheme labels the proximity scheme labels a cell according to how close it is to the struck quadrant in the struck cell.

in the geometical scheme, a cell is labelled according to its position in space. A cell has only one label in the geometrical scheme, but one of four labels in the proximity scheme, depending on the point of impact of the incomming particle.

Enumeration values:

sf
sc
sn
af
ac
an

Definition at line 66 of file CoreDepositor.h.

00066 {sf, sc, sn, af, ac, an};

Constructor & Destructor Documentation

FastShower::CoreDepositor::CoreDepositor	(	ISampler *	,
		ISampler *	,
		ISampler *	,
		ISampler *
	)

constructor allows the CoreSampler to be programmed for ecal or hcal

Definition at line 63 of file CoreDepositor.cxx.

References ac, af, an, m_mappers, m_proximityDeps, m_samplers, sc, sf, and sn.

Referenced by clone().

00064                                                            :
00065     IDepositor(), DebugBase("CoreDepositor"){
00066     unsigned int it = 0;
00067     unsigned int end = m_samplers.size();
00068
00069     m_samplers[it++]=s0;
00070     m_samplers[it++]=c0;
00071     m_samplers[it++]=csn;
00072     m_samplers[it++]=can;
00073     assert(it=end);
00074
00075     m_proximityDeps.assign(0.); //eta and phi offsets wrt to cell 0 center
00076     array<pair<int, int>, 6> q0, q1, q2, q3;
00077     //
00078     q0[sf]=pair<int, int>(  0, -1);
00079     q0[sc]=pair<int, int>(  0,  0);
00080     q0[sn]=pair<int, int>(  0,  1);
00081     q0[af]=pair<int, int>(  1, -1);
00082     q0[ac]=pair<int, int>(  1,  0);
00083     q0[an]=pair<int, int>(  1,  1);
00084     m_mappers[0]=q0;
00085     //
00086     q1[sf]=pair<int, int>(  0, -1);
00087     q1[sc]=pair<int, int>(  0,  0 );
00088     q1[sn]=pair<int, int>(  0,  1);
00089     q1[af]=pair<int, int>( -1, -1);
00090     q1[ac]=pair<int, int>( -1,  0 );
00091     q1[an]=pair<int, int>( -1,  1);
00092     m_mappers[1]=q1;
00093     //
00094     q2[sf]=pair<int, int>(  0,  1);
00095     q2[sc]=pair<int, int>(  0,  0 );
00096     q2[sn]=pair<int, int>(  0, -1);
00097     q2[af]=pair<int, int>( -1,  1);
00098     q2[ac]=pair<int, int>( -1,  0);
00099     q2[an]=pair<int, int>( -1, -1);
00100     m_mappers[2]=q2;
00101     //
00102     q3[sf]=pair<int, int>(  0,  1);
00103     q3[sc]=pair<int, int>(  0,  0);
00104     q3[sn]=pair<int, int>(  0, -1);
00105     q3[af]=pair<int, int>(  1,  1);
00106     q3[ac]=pair<int, int>(  1,  0);
00107     q3[an]=pair<int, int>(  1, -1);
00108     m_mappers[3]=q3;
00109
00110   }

Member Function Documentation

void FastShower::CoreDepositor::deposit	(	const ParticleParameters &	,
		const Normalisations &	,
		IDeposits &
	)	`[virtual]`

Implements FastShower::IDepositor.

Definition at line 113 of file CoreDepositor.cxx.

References FastShower::Normalisations::core(), fillProximityDeps(), m_cs, m_mappers, m_proximityDeps, m_samplers, and FastShower::ParticleParameters::quadrant().

00115                                                       {
00116     unsigned int ind = 0;
00117     unsigned int end = m_samplers.size();
00118     PolyArgs pa(pp, m_cs);
00119
00120     // fill core samples
00121     for(; ind!=end; ++ind){
00122       m_samplers[ind]->sample(pa, m_cs);
00123     }
00124
00125     // fill proximity map
00126     this->fillProximityDeps();
00127
00128     //normalise core deposits
00129     std::for_each(m_proximityDeps.begin(),
00130           m_proximityDeps.end(),
00131           ApplyNorm(ns.core())
00132           );
00133
00134     // proximity to geometry map
00135     std::for_each(
00136                   m_mappers[pp.quadrant()].begin(),
00137                   m_mappers[pp.quadrant()].end(),
00138                   ProxToGeom( m_proximityDeps.begin(), geomDeposits )
00139                   );
00140
00141   }

IDepositor * FastShower::CoreDepositor::clone ( ) const [virtual]

make a copy of the class when used as an IDepositor

Implements FastShower::IDepositor.

Definition at line 170 of file CoreDepositor.cxx.

References CoreDepositor().

00170                                          {
00171     IDepositor* d = new CoreDepositor(*this);
00172     return d;
00173   }

virtual void FastShower::CoreDepositor::components ( IDebug::Cpts & ) const [virtual]

Reimplemented from FastShower::DebugBase.

void FastShower::CoreDepositor::fillProximityDeps ( ) [private]

function used to go from the four samples (which are independent) to the energies (each succesive cell energy calculation depends on the previous energies)

Definition at line 144 of file CoreDepositor.cxx.

References ac, af, an, FastShower::CoreSamples::cell0(), FastShower::CoreSamples::cellAN(), FastShower::CoreSamples::cellSN(), m_cs, m_proximityDeps, sc, sf, FastShower::CoreSamples::slice0(), and sn.

Referenced by deposit().

00144                                        {
00145     double sfF, acF, afF;
00146     sfF = 1.0 - m_cs.cell0() - m_cs.cellSN();
00147     assert(sfF>=0.0 && sfF<=1.0);
00148     if (sfF<=0.0) {
00149       afF = 0.0;
00150     } else {
00151       afF = (1.0 - m_cs.cellAN())/(1.0 + m_cs.cell0()/sfF);
00152     }
00153     assert(afF>=0.0 && afF<=1.0);
00154     if (m_cs.cell0()<=0.0) {
00155       acF = 0.0;
00156     } else {
00157       acF = (1.0 - m_cs.cellAN())/(1.0 + sfF/m_cs.cell0());
00158     }
00159     assert(acF>=0.0 && acF<=1.0);
00160
00161     m_proximityDeps[sc] = m_cs.cell0()*m_cs.slice0();
00162     m_proximityDeps[sn] = m_cs.cellSN()*m_cs.slice0();
00163     m_proximityDeps[sf] = sfF*m_cs.slice0();
00164     m_proximityDeps[an] = m_cs.cellAN()*(1.0-m_cs.slice0());
00165     m_proximityDeps[af] = afF*(1.0-m_cs.slice0());
00166     m_proximityDeps[ac] = acF*(1.0-m_cs.slice0());
00167   }
