#include <HadEcalEtaResponseBar.h>

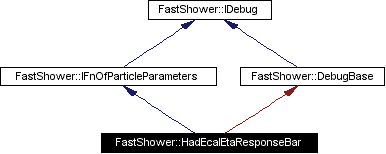

Inheritance diagram for FastShower::HadEcalEtaResponseBar:
Private Methods | |
| virtual double | value (const ParticleParameters &) const |
| virtual IFnOfParticleParameters * | clone () const |
UML: IDistributionClass.unm
Definition at line 25 of file HadEcalEtaResponseBar.h.
|
|
Implements FastShower::IFnOfParticleParameters. Definition at line 11 of file HadEcalEtaResponseBar.cxx. References FastShower::ParticleParameters::eta().
00011 {
00012
00013 // response symmetric about eta=0.0
00014 double aEta = fabs(pp.eta());
00015
00016 // spline knots
00017 double x[14]={0.05, 0.15, 0.35, 0.55, 0.75, 0.95, 1.25,
00018 1.45, 1.75, 2.05, 2.25, 2.65, 2.95, 3.15 };
00019
00020 double a[2][14] = {{.000, .839, .837, .860, .847, .846, .793,
00021 .853, .815, .839, .839, .857, .823, .775},
00022 {.000, .341, .337, .390, .442, .444, .515,
00023 .543, .440, .489, .431, .433, .368, .412}};
00024 double b[2][14] = {{.000,-.0508, .0520, .0288,-.0113,-.184,-.0645,
00025 .00211,-.140, .0839, .0523, .0354,-.0434,-.545},
00026 {.000,-.0950, .0604, .359, .0759, .151, .413,
00027 -.413,-.258, .0672,-.105,-.0408, .0417,-.0468}};
00028 double c[2][14] = {{.000, .000, 1.03,-1.14, .944,-1.81, 2.40,
00029 -2.18, 1.47,-.722, .616,-.700, .503,-2.18},
00030 {.000, .000, 1.55,-.0633,-1.35, 1.73, -.420,
00031 -2.33, 3.11,-2.03, 1.45,-1.13, 1.34,-1.63}};
00032 double d[2][14] = {{.000, 3.43,-3.62, 3.48,-4.59, 7.02,-5.09,
00033 6.08,-2.43, 1.49,-2.19, 1.00,-2.98, 3.63},
00034 {.000, 5.18,-2.70,-2.15, 5.13,-3.58,-2.13,
00035 9.07,-5.71, 3.87,-4.31, 2.06,-3.30, 2.72}};
00036
00037
00038 // iEta according to the abscissa of the spline function
00039 int iEta = (int)(aEta*10) + 1;
00040 double xval = (double)(iEta)*0.1 - 0.05;
00041
00042 // default indices
00043 int i = 12;
00044 int j = 13;
00045
00046 if (iEta>30) {
00047 // e.m. response saturates at |eta|=3.0
00048 aEta=3.0;
00049 }else {
00050 // everything ends-up here if not saturated
00051 i=-1;
00052 do {i+=1;}
00053 while (i<13 && xval>x[i+1]);
00054 }
00055
00056 // e.m. response at |eta|
00057 double result = a[1][j] + b[1][j] * (aEta-x[i])
00058 + c[1][j] * std::pow(aEta-x[i],2)
00059 + d[1][j] * std::pow(aEta-x[i],3);
00060
00061 // e.m. normalisation at |eta|=0.2
00062 double emNorm = a[1][j] + b[1][j] * (0.2-x[1])
00063 + c[1][j] * std::pow(0.2-x[1],2)
00064 + d[1][j] * std::pow(0.2-x[1],3);
00065
00066
00067 // relative response factor wrt e.m. response at |eta|=0.2
00068 return result/emNorm;
00069 }
|
|
|
Implements FastShower::IFnOfParticleParameters. Definition at line 71 of file HadEcalEtaResponseBar.cxx.
00071 {
00072 return new HadEcalEtaResponseBar(*this);
00073 }
|
