FastShower::HadEcalHcalSharesBar Class Reference

#include <HadEcalHcalSharesBar.h>

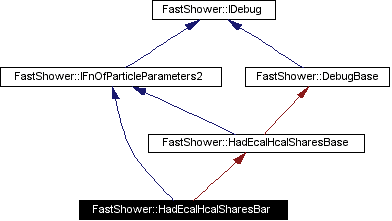

Inheritance diagram for FastShower::HadEcalHcalSharesBar:

Inheritance graph
[legend]

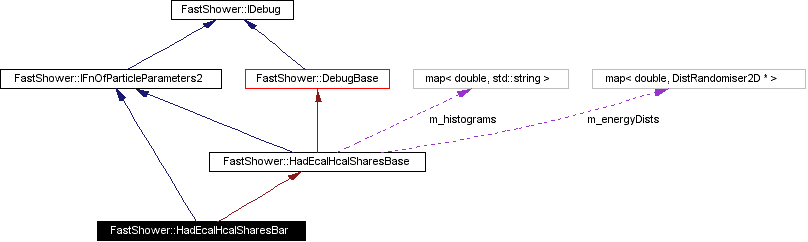

Collaboration diagram for FastShower::HadEcalHcalSharesBar:

Collaboration graph
[legend]
List of all members.

Public Methods

 HadEcalHcalSharesBar (const ITripleShowererSelectorConfig *, const std::string &)
 ~HadEcalHcalSharesBar ()
virtual double mean (const double) const
virtual double sigma (const double) const
virtual IFnOfParticleParameters2 * clone () const

Constructor & Destructor Documentation

FastShower::HadEcalHcalSharesBar::HadEcalHcalSharesBar (  const ITripleShowererSelectorConfig *   ,
const std::string &
)


Definition at line 12 of file HadEcalHcalSharesBar.cxx.

Referenced by clone().

00013                                                                 :
00014     IFnOfParticleParameters2(),HadEcalHcalSharesBase(c,s){}
  //

FastShower::HadEcalHcalSharesBar::~HadEcalHcalSharesBar (    )  [inline]


Definition at line 26 of file HadEcalHcalSharesBar.h.

00026 {}

Member Function Documentation

double FastShower::HadEcalHcalSharesBar::mean (  const    double )  const [virtual]


Implements FastShower::HadEcalHcalSharesBase.

Definition at line 17 of file HadEcalHcalSharesBar.cxx.

00017                                                {
00018     double a[2]={1.0, 0.820};
00019     double b[2]={-16.779, 0.420};
00020     double c[2]={-8.374, 0.048};
00021
00022     return  (energy > 1.0)? a[0]+b[0]/std::pow((energy-c[0]),2) :
00023                             a[1]*(1.-(1./(1.+std::exp((energy-b[1])/c[1])))) ;
00024   }

double FastShower::HadEcalHcalSharesBar::sigma (  const    double )  const [virtual]


Implements FastShower::HadEcalHcalSharesBase.

Definition at line 27 of file HadEcalHcalSharesBar.cxx.

00027                                                 {
00028     double alpha=0.46;
00029     double beta=0.08;
00030
00031     return  std::sqrt( std::pow(alpha,2)/energy + std::pow(beta,2) );
00032   }

IFnOfParticleParameters2 * FastShower::HadEcalHcalSharesBar::clone (    )  const [virtual]


Implements FastShower::IFnOfParticleParameters2.

Definition at line 34 of file HadEcalHcalSharesBar.cxx.

References HadEcalHcalSharesBar().

00034                                                               {
00035     return new HadEcalHcalSharesBar(*this);
00036   }
The documentation for this class was generated from the following files:
Generated on Tue Mar 18 11:56:37 2003 for FastShowerUtils by doxygen1.3-rc1
