#include <HadHcalEtaResponseEc.h>

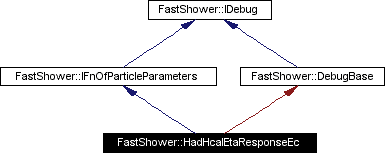

Inheritance diagram for FastShower::HadHcalEtaResponseEc:
Private Methods | |
| virtual double | value (const ParticleParameters &) const |
| virtual IFnOfParticleParameters * | clone () const |
UML: IDistributionClass.unm
Definition at line 25 of file HadHcalEtaResponseEc.h.
|
|
Implements FastShower::IFnOfParticleParameters. Definition at line 11 of file HadHcalEtaResponseEc.cxx. References FastShower::ParticleParameters::eta().
00011 {
00012
00013 // response symmetric about eta=0.0
00014 double aEta = fabs(pp.eta());
00015
00016 // spline knots
00017 double x[14]={0.05, 0.15, 0.35, 0.55, 0.75, 0.95, 1.25,
00018 1.45, 1.75, 2.05, 2.25, 2.65, 2.95, 3.15 };
00019
00020 // 2nd index is flag: (0)->e.m.+had. & (1)->e.m.
00021 double a[2][14] = {{.000, .839, .837, .860, .847, .846, .793,
00022 .853, .815, .839, .839, .857, .823, .775},
00023 {.000, .341, .337, .390, .442, .444, .515,
00024 .543, .440, .489, .431, .433, .368, .412}};
00025 double b[2][14] = {{.000,-.0508, .0520, .0288,-.0113,-.184,-.0645,
00026 .00211,-.140, .0839, .0523, .0354,-.0434,-.545},
00027 {.000,-.0950, .0604, .359, .0759, .151, .413,
00028 -.413,-.258, .0672,-.105,-.0408, .0417,-.0468}};
00029 double c[2][14] = {{.000, .000, 1.03,-1.14, .944,-1.81, 2.40,
00030 -2.18, 1.47,-.722, .616,-.700, .503,-2.18},
00031 {.000, .000, 1.55,-.0633,-1.35, 1.73, -.420,
00032 -2.33, 3.11,-2.03, 1.45,-1.13, 1.34,-1.63}};
00033 double d[2][14] = {{.000, 3.43,-3.62, 3.48,-4.59, 7.02,-5.09,
00034 6.08,-2.43, 1.49,-2.19, 1.00,-2.98, 3.63},
00035 {.000, 5.18,-2.70,-2.15, 5.13,-3.58,-2.13,
00036 9.07,-5.71, 3.87,-4.31, 2.06,-3.30, 2.72}};
00037
00038
00039 // iEta according to the abscissa of the spline function
00040 int iEta = (int)(aEta*10) + 1;
00041 double xval = (double)(iEta)*0.1 - 0.05;
00042
00043 // default indices
00044 int i = 10;
00045 int j = 11;
00046
00047 if (iEta>25) {
00048 // e.m.+had. response saturates at |eta|=2.5
00049 aEta=2.5;
00050 } else {
00051 // everything ends-up here if not saturated
00052 i=-1;
00053 do {i+=1;}
00054 while (i<13 && xval>x[i+1]);
00055 }
00056
00057 // response at |eta|
00058 // e.m.+had. response at |eta|
00059 double emPLUShad = a[0][j] + b[0][j] * (aEta-x[i])
00060 + c[0][j] * std::pow(aEta-x[i],2)
00061 + d[0][j] * std::pow(aEta-x[i],3);
00062 // e.m. response at |eta|
00063 double em = a[1][j] + b[1][j] * (aEta-x[i])
00064 + c[1][j] * std::pow(aEta-x[i],2)
00065 + d[1][j] * std::pow(aEta-x[i],3);
00066 // had. response at |eta|
00067 double result = emPLUShad - em;
00068
00069 // normalisation
00070 // e.m. normalisation at |eta|=2.0
00071 double emNorm = a[1][13] + b[1][13] * (2.0-x[8])
00072 + c[1][13] * std::pow(2.0-x[8],2)
00073 + d[1][13] * std::pow(2.0-x[8],3);
00074
00075 // e.m.+had. normalisation at |eta|=2.0
00076 double emhadNorm = a[0][j] + b[0][j] * (2.0-x[8])
00077 + c[0][j] * std::pow(2.0-x[8],2)
00078 + d[0][j] * std::pow(2.0-x[8],3);
00079 // had. normalisation at |eta|=2.0
00080 double hadNorm = emhadNorm - emNorm;
00081
00082
00083 // relative response factors wrt had. response at |eta|=2.0
00084 return result/hadNorm;
00085 }
|
|
|
Implements FastShower::IFnOfParticleParameters. Definition at line 87 of file HadHcalEtaResponseEc.cxx.
00087 {
00088 return new HadHcalEtaResponseEc(*this);
00089 }
|
