FastShower::UpdatingGaussian Class Reference

#include <UpdatingGaussian.h>

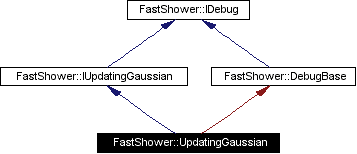

Inheritance diagram for FastShower::UpdatingGaussian:

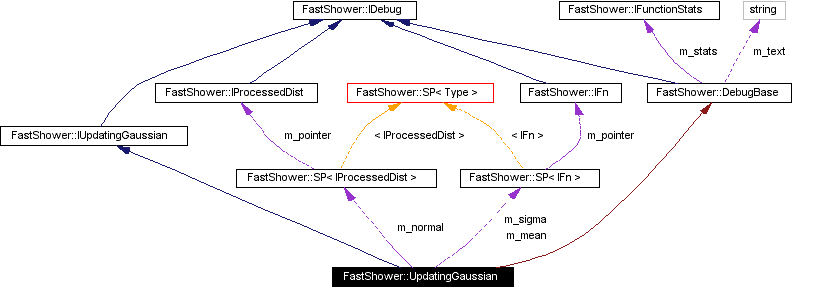

[legend]Collaboration diagram for FastShower::UpdatingGaussian:


Public Methods
	UpdatingGaussian (IFn meanFunction, IFn sigmaFunction, IProcessedDist *norm)
	UpdatingGaussian (const std::string &samplerName, const IConfigurer &)
	~UpdatingGaussian ()
virtual IUpdatingGaussian *	clone () const
virtual double	sample (double phyiscalLow, double nSigmaLow, double physicalUp, double nSigmaUp, const PolyArgs &) const
	sample a processed normal dist.
virtual std::pair< double, double >	parameters (const PolyArgs &) const
	Tail distributions (eg) need to get peak mean, sigma (eg) to establish their own range.
virtual void	components (std::vector< const IDebug * > &) const
Private Attributes
SP< IFn >	m_mean
	Two functions to supply the DistProcessors with parameters.
SP< IFn >	m_sigma
SP< IProcessedDist >	m_normal

Constructor & Destructor Documentation

FastShower::UpdatingGaussian::UpdatingGaussian	(	IFn *	meanFunction,
		IFn *	sigmaFunction,
		IProcessedDist *	norm
	)

Definition at line 5 of file UpdatingGaussian.cxx.

Referenced by clone().

00007                                                           :
00008     m_mean(mean),m_sigma(sigma), m_normal(norm){}
  //

FastShower::UpdatingGaussian::UpdatingGaussian	(	const std::string &	samplerName,
		const IConfigurer &
	)

Definition at line 10 of file UpdatingGaussian.cxx.

References FastShower::IConfigurer::findFn(), m_mean, m_normal, m_sigma, and FastShower::IConfigurer::makeProcessedNormal().

00011                                                           {
00012     m_mean   = c.findFn(sampler+"PeakMean");
00013     m_sigma  = c.findFn(sampler+"PeakSigma");
00014     m_normal = c.makeProcessedNormal(sampler);
00015   }

FastShower::UpdatingGaussian::~UpdatingGaussian ( ) [inline]

Definition at line 54 of file UpdatingGaussian.h.

00054 {};

Member Function Documentation

IUpdatingGaussian * FastShower::UpdatingGaussian::clone ( ) const [virtual]

Implements FastShower::IUpdatingGaussian.

Definition at line 50 of file UpdatingGaussian.cxx.

References UpdatingGaussian().

00050                                                   {
00051     IUpdatingGaussian* nug= new UpdatingGaussian(*this);
00052     return nug;
00053   }

double FastShower::UpdatingGaussian::sample	(	double	phyiscalLow,
		double	nSigmaLow,
		double	physicalUp,
		double	nSigmaUp,
		const PolyArgs &
	)	const `[virtual]`

sample a processed normal dist.

The procesed norm will be truncated at -nSigmaLow +nSigmaUp, unless physical limits are exceeded.

Implements FastShower::IUpdatingGaussian.

Definition at line 16 of file UpdatingGaussian.cxx.

References m_mean, m_normal, and m_sigma.

00021                                          {
00022
00023     double mean  = m_mean->value(pa);
00024     double sigma = m_sigma->value(pa);
00025
00026     double lowLim = mean-(nSigmaLow*sigma);
00027     if(lowLim<physicalLow){ lowLim=physicalLow;}
00028
00029     double upLim = mean+(nSigmaUp*sigma);
00030     if(upLim>physicalUp){ upLim=physicalUp;}
00031
00032     LinearProcessor lp(sigma, mean);
00033     cout<<"UG limits: "<<lowLim<<" "<<upLim<<endl;
00034     return m_normal->sample(lowLim, upLim, &lp);
00035   }

std::pair< double, double > FastShower::UpdatingGaussian::parameters ( const PolyArgs & ) const [virtual]

Tail distributions (eg) need to get peak mean, sigma (eg) to establish their own range.

Implements FastShower::IUpdatingGaussian.

Definition at line 38 of file UpdatingGaussian.cxx.

References m_mean, and m_sigma.

Referenced by FastShower::UpdatingGaussianTester::test().

00038                                                         {
00039     std::pair<double, double> params(m_mean->value(pa), m_sigma->value(pa));
00040     return params;
00041   }

void FastShower::UpdatingGaussian::components ( std::vector< const IDebug * > & ) const [virtual]

Definition at line 44 of file UpdatingGaussian.cxx.

References m_mean, m_normal, and m_sigma.

00044                                                                {
00045     v.clear();
00046     v.push_back(m_mean);
00047     v.push_back(m_sigma);
00048     v.push_back(m_normal);
00049     }
