Atlfast::Calorimeter Class Reference

#include <Calorimeter.h>

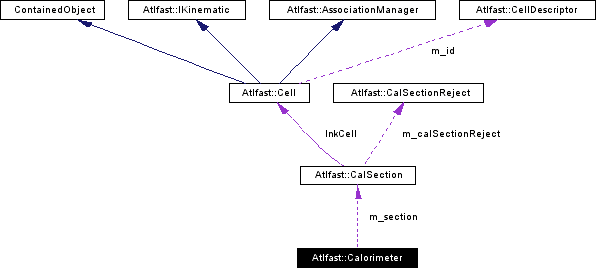

Collaboration diagram for Atlfast::Calorimeter:

[legend]List of all members.

Public Methods
	Calorimeter (MsgStream log, const double etaCoverage, const double barrelForwardEta, const double granBarrelEta, const double granBarrelPhi, const double granForwardEta, const double granForwardPhi)
	~Calorimeter ()
	Calorimeter (const Calorimeter &)
void	deposit (TransportedParticleCollectionIter &first, TransportedParticleCollectionIter &last) const
void	reset ()
void	giveHitCells (const ICellSelector *, CellCollection *)

---

Detailed Description

This class represents the detector's Calorimeter used in Cell making.
At present, state construction is not available through jobOptions directly and therefore all parameters are temporarily passed in the Calorimeter constructor (i.e. parameters are properties of CellMaker which then constructs Calorimeter). The calorimeter consists of three CalSections in which energies of HepMC particles are deposited.

---

Constructor & Destructor Documentation

Atlfast::Calorimeter::Calorimeter (  MsgStream    log, const double    etaCoverage, const double    barrelForwardEta, const double    granBarrelEta, const double    granBarrelPhi, const double    granForwardEta, const double    granForwardPhi )

Constructor providing coverage and granularity parameters, set in CellMaker jobOptions.

Atlfast::Calorimeter::~Calorimeter (    )

Default destructor

Atlfast::Calorimeter::Calorimeter (  const Calorimeter &    )

Copy constructor

---

Member Function Documentation

void Atlfast::Calorimeter::deposit (  TransportedParticleCollectionIter &    first, TransportedParticleCollectionIter &    last )  const

Deposits HepMc::Particle. The double is the phi position of the particle* at the calorimeter. the "last" iterator will be modified...

void Atlfast::Calorimeter::giveHitCells (  const ICellSelector *   , CellCollection *    )

Gives selected cells.

void Atlfast::Calorimeter::reset (    )

Resets the calorimeter sections.

---

The documentation for this class was generated from the following file:

• Calorimeter.h

---
