Algorithm Class Reference

#include <GaudiKernel/Algorithm.h>

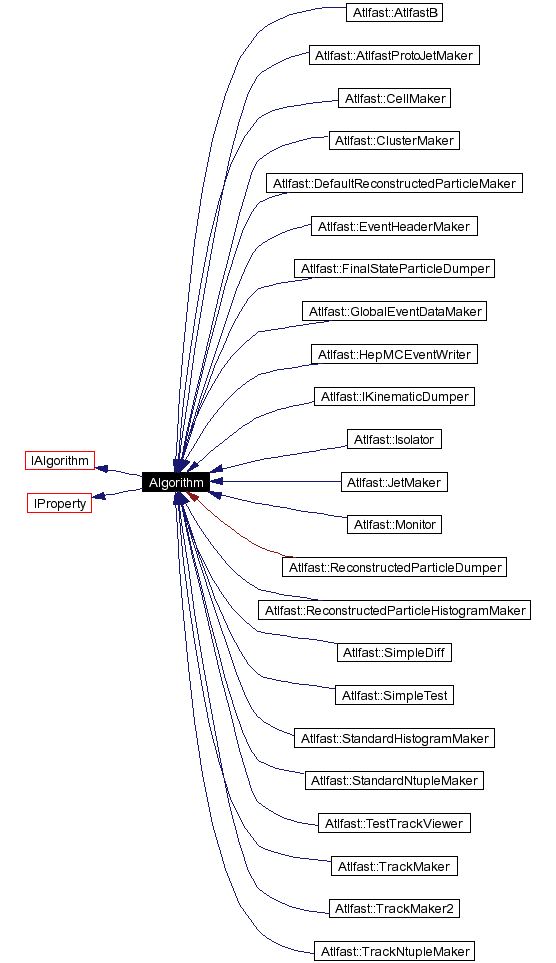

Inheritance diagram for Algorithm:

[legend]Collaboration diagram for Algorithm:

Public Methods
	Algorithm (const std::string &name, ISvcLocator *svcloc)
virtual	~Algorithm ()
	Destructor. More...
virtual StatusCode	sysInitialize ()
virtual StatusCode	sysExecute ()
virtual StatusCode	sysFinalize ()
virtual const std::string &	name () const
virtual bool	isExecuted () const
	Has this algorithm been executed since the last reset? More...
virtual StatusCode	setExecuted (bool state)
	Set the executed flag to the specified state. More...
virtual StatusCode	resetExecuted ()
	Reset the executed state of the Algorithm for the duration of the current event. More...
virtual StatusCode	beginRun ()
	Algorithm begin run. This method is called at the beginning of the event loop. More...
virtual StatusCode	endRun ()
	Algorithm end run. This method is called at the end of the event loop. More...
virtual bool	isEnabled () const
	Is this algorithm enabled or disabled? More...
virtual bool	filterPassed () const
	Did this algorithm pass or fail its filter criterion for the last event? More...
virtual StatusCode	setFilterPassed (bool state)
	Set the filter passed flag to the specified state. More...
template<class T> StatusCode	service (const std::string &name, T *&svc, bool createIf=false) const
void	setOutputLevel (int level)
	Set the outputlevel for current algorithm. More...
IAuditorSvc *	auditorSvc () const
IChronoStatSvc *	chronoSvc () const
	The standard Chrono & Stat service, Return a pointer to the service if present. More...
IChronoStatSvc *	chronoStatService () const
	Obsoleted name, kept due to the backwards compatibility. More...
IDataProviderSvc *	detSvc () const
IDataProviderSvc *	detDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...
IConversionSvc *	detCnvSvc () const
IConversionSvc *	detDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility. More...
IDataProviderSvc *	eventSvc () const
IDataProviderSvc *	eventDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...
IConversionSvc *	eventCnvSvc () const
IConversionSvc *	eventDataCnvService () const
	Obsoleted name, kept due to the backwards compatibility. More...
IHistogramSvc *	histoSvc () const
IHistogramSvc *	histogramDataService () const
	Obsoleted name, kept due to the backwards compatibility. More...
IMessageSvc *	msgSvc () const
IMessageSvc *	messageService () const
	Obsoleted name, kept due to the backwards compatibility. More...
INTupleSvc *	ntupleSvc () const
INTupleSvc *	ntupleService () const
	Obsoleted name, kept due to the backwards compatibility. More...
IRndmGenSvc *	randSvc () const
	The standard RandomGen service, Return a pointer to the service if present. More...
ISvcLocator *	serviceLocator () const
StatusCode	createSubAlgorithm (const std::string &type, const std::string &name, Algorithm *&pSubAlg)
std::vector< Algorithm >	subAlgorithms () const
	List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms. More...
virtual StatusCode	setProperty (const Property &p)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	setProperty (std::istream &s)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	setProperty (const std::string &n, const std::string &v)
	Implementation of IProperty::setProperty. More...
virtual StatusCode	getProperty (Property *p) const
	Implementation of IProperty::getProperty. More...
virtual const Property &	getProperty (const std::string &name) const
	Implementation of IProperty::getProperty. More...
virtual StatusCode	getProperty (const std::string &n, std::string &v) const
	Implementation of IProperty::getProperty. More...
virtual const std::vector< Property *> &	getProperties () const
	Implementation of IProperty::getProperties. More...
StatusCode	setProperties ()
template<class T> StatusCode	declareProperty (const std::string &name, T &property) const
	Declare named properties. More...
StatusCode	declareRemoteProperty (const std::string &name, IProperty *rsvc, const std::string &rname="") const
	Declare remote named properties. More...
unsigned long	addRef ()
	Methods for IInterface::addRef(). More...
unsigned long	release ()
	Methods for IInterface::release(). More...
StatusCode	queryInterface (const IID &riid, void **)
	Methods for IInterface::queryInterface(). More...
Protected Methods
bool	isInitialized () const
	Has the Algorithm already been initialized? More...
void	setInitialized ()
	Set the Algorithm initialized state. More...
bool	isFinalized () const
	Has the Algorithm already been finalized? More...
void	setFinalized ()
	Set the Algorithm finalized state. More...

Detailed Description

Base class from which all concrete algorithm classes should be derived. In order for a concrete algorithm class to do anything useful the methods initialize(), execute() and finalize() should be overridden. The base class provides utility methods for accessing standard services (event data service etc.); for declaring properties which may be configured by the job options service; and for creating sub algorithms. The only base class functionality which may be used in the constructor of a concrete algorithm is the declaration of member variables as properties. All other functionality, i.e. the use of services and the creation of sub-algorithms, may be used only in initialise() and afterwards (see the Gaudi user guide).

Author:: Paul Maley , Pere Mato , David Quarrie

Date:: 1998

Constructor & Destructor Documentation

Algorithm::Algorithm	(	const std::string &	name,
		ISvcLocator *	svcloc
	)

Constructor

Parameters:

name	The algorithm object's name
svcloc	A pointer to a service location service

virtual Algorithm::~Algorithm ( ) [virtual]

Destructor.

Member Function Documentation

unsigned long Algorithm::addRef ( ) [virtual]

Methods for IInterface::addRef().

Reimplemented from IInterface.

IAuditorSvc* Algorithm::auditorSvc

(

)

const

The standard auditor service.May not be invoked before sysInitialize() has been invoked.

virtual StatusCode Algorithm::beginRun ( ) [virtual]

Algorithm begin run. This method is called at the beginning of the event loop.

Reimplemented from IAlgorithm.

IChronoStatSvc* Algorithm::chronoStatService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

IChronoStatSvc* Algorithm::chronoSvc

(

)

const

The standard Chrono & Stat service, Return a pointer to the service if present.

StatusCode Algorithm::createSubAlgorithm	(	const std::string &	type,
		const std::string &	name,
		Algorithm *&	pSubAlg
	)

Create a sub algorithm. A call to this method creates a child algorithm object. Note that the returned pointer is to Algorithm (as opposed to IAlgorithm), and thus the methods of IProperty are also available for the direct setting of the sub-algorithm's properties. Using this mechanism instead of creating daughter algorithms directly via the new operator is prefered since then the framework may take care of all of the necessary book-keeping.

Parameters:

type	The concrete algorithm class of the sub algorithm
name	The name to be given to the sub algorithm
pSubAlg	Set to point to the newly created algorithm object

template<class T>
StatusCode Algorithm::declareProperty	(	const std::string &	name,
		T &	property
	)	const `[inline]`

Declare named properties.

StatusCode Algorithm::declareRemoteProperty	(	const std::string &	name,
		IProperty *	rsvc,
		const std::string &	rname = ""
	)	const `[inline]`

Declare remote named properties.

IConversionSvc* Algorithm::detCnvSvc

(

)

const

The standard detector data persistency conversion service.May not be invoked before sysInitialize() has been invoked.

IConversionSvc* Algorithm::detDataCnvService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

IDataProviderSvc* Algorithm::detDataService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

IDataProviderSvc* Algorithm::detSvc

(

)

const

The standard detector data service. May not be invoked before sysInitialize() has been invoked.

virtual StatusCode Algorithm::endRun ( ) [virtual]

Algorithm end run. This method is called at the end of the event loop.

Reimplemented from IAlgorithm.

IConversionSvc* Algorithm::eventCnvSvc

(

)

const

The standard event data persistency conversion service.May not be invoked before sysInitialize() has been invoked.

IConversionSvc* Algorithm::eventDataCnvService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

IDataProviderSvc* Algorithm::eventDataService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

IDataProviderSvc* Algorithm::eventSvc

(

)

const

The standard event data service. May not be invoked before sysInitialize() has been invoked.

virtual bool Algorithm::filterPassed ( ) const [virtual]

Did this algorithm pass or fail its filter criterion for the last event?

virtual const std::vector<Property*>& Algorithm::getProperties ( ) const [virtual]

Implementation of IProperty::getProperties.

Reimplemented from IProperty.

virtual StatusCode Algorithm::getProperty	(	const std::string &	n,
		std::string &	v
	)	const `[virtual]`

Implementation of IProperty::getProperty.

Reimplemented from IProperty.

virtual const Property& Algorithm::getProperty ( const std::string & name ) const [virtual]

Implementation of IProperty::getProperty.

Reimplemented from IProperty.

virtual StatusCode Algorithm::getProperty ( Property * p ) const [virtual]

Implementation of IProperty::getProperty.

Reimplemented from IProperty.

IHistogramSvc* Algorithm::histogramDataService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

IHistogramSvc* Algorithm::histoSvc

(

)

const

The standard histogram service. May not be invoked before sysInitialize() has been invoked.

virtual bool Algorithm::isEnabled ( ) const [virtual]

Is this algorithm enabled or disabled?

virtual bool Algorithm::isExecuted ( ) const [virtual]

Has this algorithm been executed since the last reset?

bool Algorithm::isFinalized ( ) const [protected]

Has the Algorithm already been finalized?

bool Algorithm::isInitialized ( ) const [protected]

Has the Algorithm already been initialized?

IMessageSvc* Algorithm::messageService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

IMessageSvc* Algorithm::msgSvc

(

)

const

The standard message service. Returns a pointer to the standard message service. May not be invoked before sysInitialize() has been invoked.

virtual const std::string& Algorithm::name ( ) const [virtual]

The identifying name of the algorithm object. This is the name of a particular instantiation of an algorithm object as opposed to the name of the algorithm itself, e.g. "LinearTrackFit" may be the name of a concrete algorithm class, whereas "ApproxTrackFit" and "BestTrackFit" may be two instantiations of the class configured to find tracks with different fit criteria.

Reimplemented from IAlgorithm.

INTupleSvc* Algorithm::ntupleService

(

)

const

Obsoleted name, kept due to the backwards compatibility.

INTupleSvc* Algorithm::ntupleSvc

(

)

const

The standard N tuple service. Returns a pointer to the N tuple service if present.

StatusCode Algorithm::queryInterface	(	const IID &	riid,
		void **
	)

Methods for IInterface::queryInterface().

IRndmGenSvc* Algorithm::randSvc

(

)

const

The standard RandomGen service, Return a pointer to the service if present.

unsigned long Algorithm::release ( ) [virtual]

Methods for IInterface::release().

Reimplemented from IInterface.

virtual StatusCode Algorithm::resetExecuted ( ) [virtual]

Reset the executed state of the Algorithm for the duration of the current event.

Reimplemented from IAlgorithm.

template<class T>
StatusCode Algorithm::service	(	const std::string &	name,
		T *&	svc,
		bool	createIf = false
	)	const `[inline]`

Access a service by name, creating it if it doesn't already exist.

ISvcLocator* Algorithm::serviceLocator

(

)

const

The standard service locator. Returns a pointer to the service locator service. This service may be used by an algorithm to request any services it requires in addition to those provided by default.

virtual StatusCode Algorithm::setExecuted ( bool state ) [virtual]

Set the executed flag to the specified state.

virtual StatusCode Algorithm::setFilterPassed ( bool state ) [virtual]

Set the filter passed flag to the specified state.

void Algorithm::setFinalized ( ) [protected]

Set the Algorithm finalized state.

void Algorithm::setInitialized ( ) [protected]

Set the Algorithm initialized state.

void Algorithm::setOutputLevel

(

int

level

)

Set the outputlevel for current algorithm.

StatusCode Algorithm::setProperties

(

)

Set the algorithm's properties. This method requests the job options service to set the values of any declared properties. The method is invoked from within sysInitialize() by the framework and does not need to be explicitly called by a concrete algorithm.

virtual StatusCode Algorithm::setProperty	(	const std::string &	n,
		const std::string &	v
	)	`[virtual]`

Implementation of IProperty::setProperty.

Reimplemented from IProperty.

virtual StatusCode Algorithm::setProperty ( std::istream & s ) [virtual]

Implementation of IProperty::setProperty.

Reimplemented from IProperty.

virtual StatusCode Algorithm::setProperty ( const Property & p ) [virtual]

Implementation of IProperty::setProperty.

Reimplemented from IProperty.

std::vector<Algorithm*>* Algorithm::subAlgorithms

(

)

const

List of sub-algorithms. Returns a pointer to a vector of (sub) Algorithms.

virtual StatusCode Algorithm::sysExecute ( ) [virtual]

The actions to be performed by the algorithm on an event. This method is invoked once per event for top level algorithms by the application manager. This method invokes execute() method. For sub-algorithms either the sysExecute() method or execute() method must be EXPLICITLY invoked by the parent algorithm.

Reimplemented from IAlgorithm.

virtual StatusCode Algorithm::sysFinalize ( ) [virtual]

System finalization. This method invokes the finalize() method of a concrete algorithm and the finalize() methods of all of that algorithm's sub algorithms.

Reimplemented from IAlgorithm.

virtual StatusCode Algorithm::sysInitialize ( ) [virtual]

Initialization method invoked by the framework. This method is responsible for any bookkeeping of initialization required by the framework itself. It will in turn invoke the initialize() method of the derived algorithm, and of any sub-algorithms which it creates.

Reimplemented from IAlgorithm.

The documentation for this class was generated from the following file:

Algorithm.h

Generated on Wed May 1 14:12:33 2002 for AtlfastAlgs by

Algorithm Class Reference

Public Methods

Protected Methods

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
