RawAraGenericHeader Class Reference

Part of AraEvent library. The base class that stores the stationId and AraRoot version used to produce a Raw / Useful event. More...

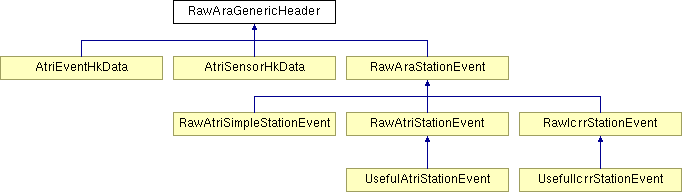

Inheritance diagram for RawAraGenericHeader:


Public Member Functions
	ClassDef (RawAraGenericHeader, 2)
UShort_t	getFilterFlag ()
	returns the filterFlag. See class member documentation for details.
Int_t	getFilterVersion ()
AraStationId_t	getStationId ()
Int_t	hasBitSetInFilterFlag (Int_t bit)
Int_t	hasFilterFlag ()
	RawAraGenericHeader (UInt_t thisStationId)
	Assignment constructor using the stationID -- this is implemented for ICRR type stations.
	RawAraGenericHeader (AtriGenericHeader_t *gHdr)
	Assignment constructor.
	RawAraGenericHeader ()
	Default constructor.
	~RawAraGenericHeader ()
	Destructor.
Public Attributes
UShort_t	checksum
UInt_t	numBytes
UShort_t	reserved
	Now used as the filterFlag -- see getFilterFlag().
UChar_t	softVerMajor
UChar_t	softVerMinor
AraStationId_t	stationId
UChar_t	subVerId
AraDataStructureType_t	typeId
UChar_t	verId

Detailed Description

Part of AraEvent library. The base class that stores the stationId and AraRoot version used to produce a Raw / Useful event.

This class is a base class that contains header information common to all Raw and Useful event types.

Definition at line 26 of file RawAraGenericHeader.h.

RawAraGenericHeader::RawAraGenericHeader ( AtriGenericHeader_t * gHdr )

Assignment constructor.

Parameters:

gHdr

Assignment constructor

Definition at line 28 of file RawAraGenericHeader.cxx.

RawAraGenericHeader::RawAraGenericHeader ( UInt_t thisStationId )

Assignment constructor using the stationID -- this is implemented for ICRR type stations.

Parameters:

thisStationId

Assignment constructor for ICRR type

Definition at line 39 of file RawAraGenericHeader.cxx.

Int_t RawAraGenericHeader::getFilterVersion ( )

filterFlag useses reserved as 16 bits to store filter information. From LSB to MSB

bit 0 - filter on?

bit 1-5 - filterVersion

bit 6-15 filter flags - one bit per filter

filterFlags

bit 0 - Random Filter

bit 1 - Min-Bias

bit 2 - Time Sequence Filter

bit 3 - Track Engine filter

bit 4 - 9 - Reserved for future filters

Definition at line 64 of file RawAraGenericHeader.cxx.

The documentation for this class was generated from the following files:
