Atlfast::AtlfastB Class Reference

Applies jet tagging efficiencies and momentum correction factors. More...

#include <AtlfastB.h>

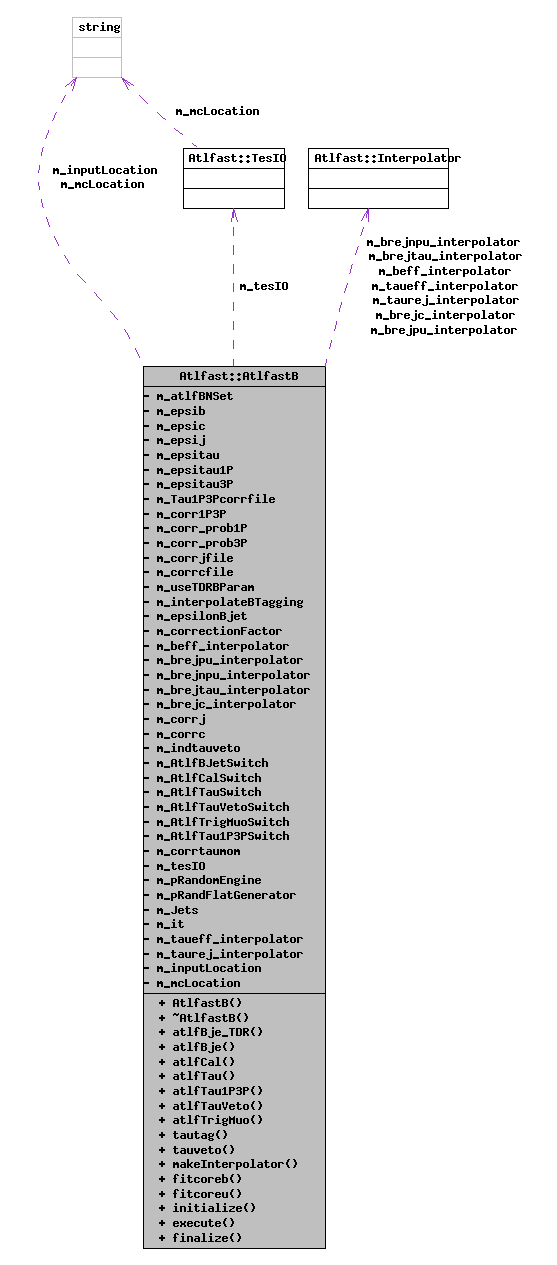

Collaboration diagram for Atlfast::AtlfastB:

[legend]List of all members.

Public Member Functions
	AtlfastB (const std::string &name, ISvcLocator *pSvcLocator)
virtual	~AtlfastB ()
StatusCode	atlfBje_TDR ()
	Runs TDR-style b-tagging.
StatusCode	atlfBje ()
	Runs b-tagging.
StatusCode	atlfCal ()
	recalibrates jet energies
StatusCode	atlfTau (double epsitau)
	Runs TauRec-style tau-tagging.
StatusCode	atlfTau1P3P ()
	Runs tau1p3p-style tau-tagging.
StatusCode	atlfTauVeto (int ind)
	Applies tau veto.
StatusCode	atlfTrigMuo ()
	Applies muon trigger efficiencies.
StatusCode	tautag (double pt, double eta, double efftau, double &rjet, int &iflag)
	Computes the corresponding jet rejection.
StatusCode	tauveto (double pt, int ind, double &efftau, double &effjet)
	Computes jet-efficiency or tau-background.
void	makeInterpolator (Interpolator *&intptr, string intname, bool contbounds)
double	fitcoreb (double pt)
	Computes b-jet hypothesis momentum correction factor.
double	fitcoreu (double pt)
	Computes light-jet hypothesis momentum correction factor.
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
Private Attributes
int	m_atlfBNSet
	Sets the b-tagging regime to be used.
double	m_epsib
	Overall b-tagging efficiency.
double	m_epsic
	c-jet rejection.
double	m_epsij
	light-jet rejection.
double	m_epsitau
	tau-jet rejection.
double	m_epsitau1P
	tau1p3p 1-prong tagging efficiency
double	m_epsitau3P
	tau1p3p 3-prong tagging efficiency
string	m_Tau1P3Pcorrfile
	tau1P3P input file
double	m_corr1P3P [20]
	tau1P3P jet correction factor bins
double	m_corr_prob1P [6][20]
	tau1P3P 1-prong jet correction factor probabilities
double	m_corr_prob3P [6][20]
	tau1P3P 3-pring jet correction factor probabilities
string	m_corrjfile
	input file for light jet correction factors
string	m_corrcfile
	input file for c-jet correction factors
bool	m_useTDRBParam
	switch whether or not to use TDR parameterisation
bool	m_interpolateBTagging
	switch whether or not to interpolate for the b-tagging
double	m_epsilonBjet
	overall b-tagging efficiency
double	m_correctionFactor
	Light jet correction factor.
Interpolator *	m_beff_interpolator
	Interpolator for b-tagging efficiencies.
Interpolator *	m_brejpu_interpolator
	Interpolator for light-jet rejections (pileup).
Interpolator *	m_brejnpu_interpolator
	Interpolator for light-jet rejections (no pileup).
Interpolator *	m_brejtau_interpolator
	Interpolator for tau-jet rejections.
Interpolator *	m_brejc_interpolator
	Interpolator for c-jet rejections.
double	m_corrj [5][15]
	light-jet correction factors
double	m_corrc [5][15]
	c-jet correction factors
int	m_indtauveto
	Flag to configure tauveto.
bool	m_AtlfBJetSwitch
	switch whether or not to run b-tagging
bool	m_AtlfCalSwitch
	switch whether or not to recalibrate jet energies
bool	m_AtlfTauSwitch
	switch whether or not to run TauRec-style tau-tagging
bool	m_AtlfTauVetoSwitch
	switch whether or not to veto taus
bool	m_AtlfTrigMuoSwitch
	switch whether or not to trigger muons
bool	m_AtlfTau1P3PSwitch
	switch whether or not to run tau1p3p-style tau-tagging
bool	m_corrtaumom
	switch whether or not correct tau momentum
TesIO *	m_tesIO
	To access StoreGate.
HepRandomEngine *	m_pRandomEngine
	Engine for random number generators.
RandFlat *	m_pRandFlatGenerator
	Uniform random number generator.
const JetCollection *	m_Jets
	Data handle for jet collection.
JetCollection::const_iterator	m_it
	Iterator for jet collection.
Interpolator *	m_taueff_interpolator
	Interpolator for tau-tagging efficiencies.
Interpolator *	m_taurej_interpolator
	Interpolator for tau-tagging rejections.
std::string	m_inputLocation
	StoreGate key for input jet collection.
std::string	m_mcLocation
	holds the Storegate MC location

---

Detailed Description

Applies jet tagging efficiencies and momentum correction factors.

The original jet flavour labels from JetMaker are rearranged here to simulate the overall efficiencies measured in full simulation. Correction factors are also computed to match different tagging hypotheses.

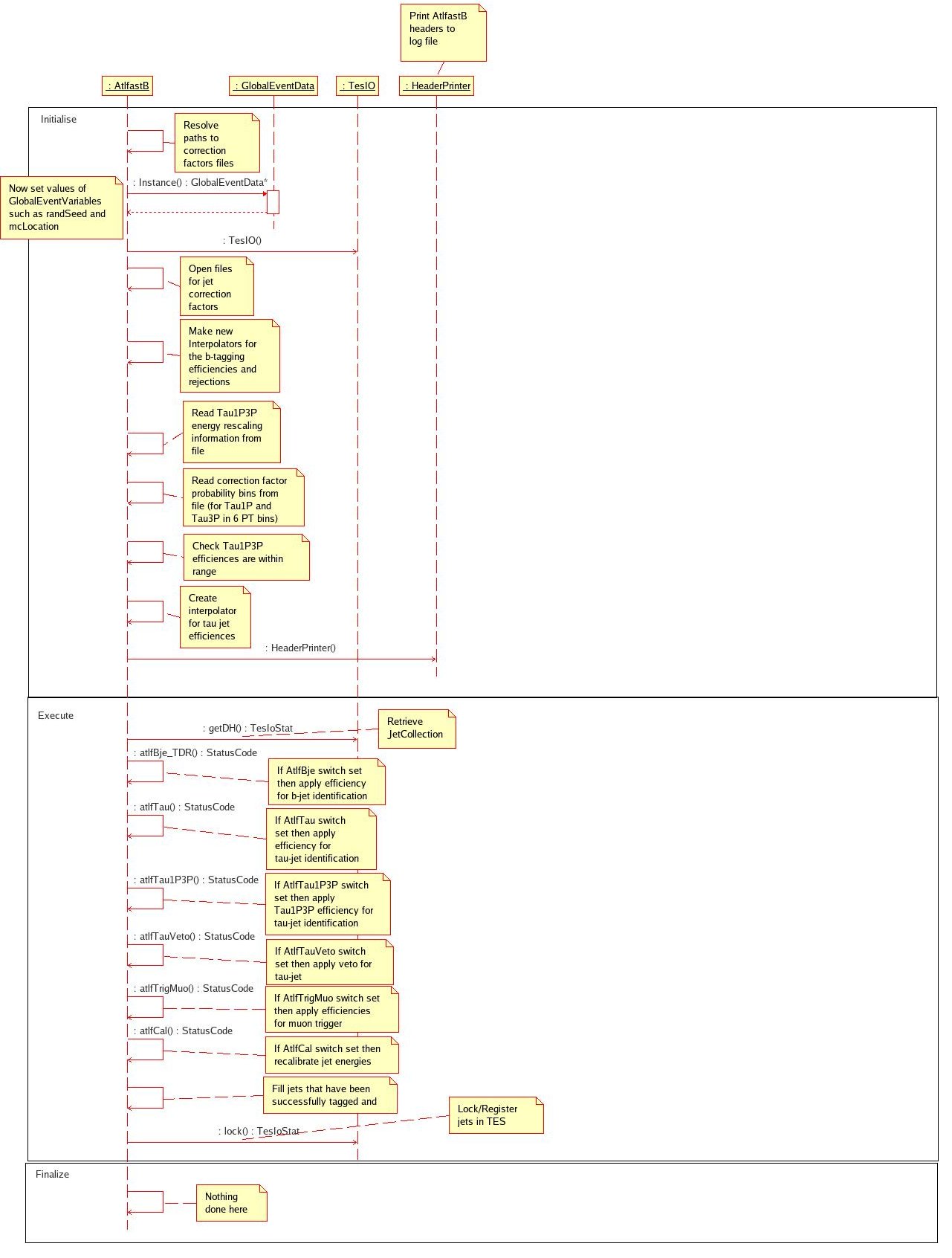

AtlfastB sequence

Definition at line 70 of file AtlfastB.h.

---

Constructor & Destructor Documentation

Atlfast::AtlfastB::AtlfastB	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard Athena-Algorithm constructor

Definition at line 47 of file AtlfastB.cxx.

    : Algorithm( name, pSvcLocator ),
      m_epsilonBjet(0),
      m_beff_interpolator(0),
      m_brejpu_interpolator(0),
      m_brejnpu_interpolator(0),
      m_brejtau_interpolator(0),
      m_brejc_interpolator(0),
      m_tesIO(0),
      m_pRandomEngine(0),
      m_pRandFlatGenerator(0),
      m_Jets(0),
      m_taueff_interpolator(0),
      m_taurej_interpolator(0)
  {

    MsgStream log( messageService(), name ) ;
    log << MSG::DEBUG << "Constructor" << endreq;

    //Default private parameters

    m_AtlfBJetSwitch      =  true;
    m_AtlfCalSwitch       =  true;
    m_AtlfTauSwitch       =  true;
    m_AtlfTauVetoSwitch   =  false;
    m_AtlfTrigMuoSwitch   =  false;
    m_atlfBNSet           =  10;
    m_epsitau             =  0.5;
    m_indtauveto          =  1;
    m_corrjfile           =  "atlfastDatafiles/AtlfastBjet.dat";
    m_corrcfile           =  "atlfastDatafiles/AtlfastBcjet.dat";
    m_corrtaumom          =  false;
    m_useTDRBParam        =  false;
    m_interpolateBTagging =  false;
    m_correctionFactor    =  1.;

    m_AtlfTau1P3PSwitch   =  false;
    m_epsitau1P           =  0.35;
    m_epsitau3P           =  0.08;
    m_Tau1P3Pcorrfile    =  "atlfastDatafiles/Tau1P3Pcorrfile.txt";

    // Default paths for entities in the TES
    m_inputLocation     = "/Event/AtlfastJets";

    // This is how you declare the paramemters to Gaudi so that
    // they can be over-written via the job options file




    declareProperty( "InputLocation",        m_inputLocation ) ;

    declareProperty( "AtlfBjetSwitch",       m_AtlfBJetSwitch ) ;
    declareProperty( "AtlfCalSwitch",        m_AtlfCalSwitch ) ;
    declareProperty( "AtlfTauSwitch",        m_AtlfTauSwitch );
    declareProperty( "AtlfTauVetoSwitch",    m_AtlfTauVetoSwitch );
    declareProperty( "AtlfTrigMuoSwitch",    m_AtlfTrigMuoSwitch );
    declareProperty( "AtlfTau1P3PSwitch",    m_AtlfTau1P3PSwitch );


    declareProperty( "AtlfBNSet",            m_atlfBNSet ) ;
    declareProperty( "TauEff",               m_epsitau ) ;
    declareProperty( "TauVetoOption",        m_indtauveto ) ;
    declareProperty( "Tau1PEff",             m_epsitau1P ) ;
    declareProperty( "Tau3PEff",             m_epsitau3P ) ;

    declareProperty( "JetCorrFile",          m_corrjfile ) ;
    declareProperty( "CJetCorrFile",         m_corrcfile ) ;
    declareProperty( "Tau1P3PCorrFile",      m_Tau1P3Pcorrfile ) ;

    declareProperty( "UseTDRBParam",         m_useTDRBParam );
    declareProperty( "InterpolateBTagging",  m_interpolateBTagging );
    declareProperty( "BCorrectionFactor",    m_correctionFactor);
    // m_correctionFactor less than 1 : degradation of peformances

    declareProperty( "CalibrateTauMomentum", m_corrtaumom );

    log << MSG::DEBUG << "End of constructor" << endreq;

  }

Atlfast::AtlfastB::~AtlfastB

(

)

[virtual]

Definition at line 128 of file AtlfastB.cxx.

                      {

    MsgStream log( messageService(), name() ) ;
    log << MSG::DEBUG << "Destructor" << endreq;
    if ( m_tesIO )                delete m_tesIO;
    if ( m_pRandomEngine )        delete m_pRandomEngine;
    if ( m_pRandFlatGenerator )   delete m_pRandFlatGenerator;
    if ( m_taueff_interpolator )  delete m_taueff_interpolator;
    if ( m_taurej_interpolator )  delete m_taurej_interpolator;
    if ( m_beff_interpolator )    delete m_beff_interpolator;
    if ( m_brejpu_interpolator )  delete m_brejpu_interpolator;
    if ( m_brejnpu_interpolator ) delete m_brejnpu_interpolator;
    if ( m_brejtau_interpolator ) delete m_brejtau_interpolator;
    if ( m_brejc_interpolator )   delete m_brejc_interpolator;
  }

---

Member Function Documentation

StatusCode Atlfast::AtlfastB::atlfBje_TDR

(

)

Runs TDR-style b-tagging.

Definition at line 594 of file AtlfastB.cxx.

                                  {

    MsgStream log( messageService(), name() ) ;


    switch(m_atlfBNSet){

    case 1:
      m_epsib=0.5;
      m_epsic=1./10.9;
      m_epsij=1./231.;
      break;

    case 2:
      m_epsib=0.60;
      m_epsic=1./6.7;
      m_epsij=1./93.;
      break;

    case 3:
      m_epsib=0.70;
      m_epsic=1./4.3;
      m_epsij=1./34.1;
      break;

    case 5:
      m_epsib=0.60;
      m_epsic=1./10.;
      m_epsij=1./100.;
      break;

    case 11:
      m_epsib=0.33;
      m_epsic=1./22.9;
      m_epsij=1./1381.;
      break;

    case 12:
      m_epsib=0.43;
      m_epsic=1./10.8;
      m_epsij=1./219.;
      break;

    case 13:
      m_epsib=0.53;
      m_epsic=1./6.7;
      m_epsij=1./91.;
      break;

    case 14:
      m_epsib=0.624;
      m_epsic=1./6.7;
      m_epsij=1./91.;
      break;

    default:
      log << MSG::ERROR<<"No b jet tagging efficiencies applied"<<endreq;
      return StatusCode::FAILURE;
      break;
    }


    //Apply randomized B tagging

    log<<MSG::DEBUG<<"Applying randomized B tagging...."<<endreq;

    for(m_it=m_Jets->begin();m_it<m_Jets->end();++m_it){

      double randnum;
      double corpt;
      double corr;

      double ptjet=(*m_it)->pT();
      double etajet=(*m_it)->eta();
      int pdgid=(*m_it)->pdg_id();

      //apply b tagging as for recalibrated jets


      corr=fitcoreb(ptjet);

      ptjet=corr*ptjet;

      randnum=m_pRandFlatGenerator->shoot(m_pRandomEngine);

      corpt=0.;

      if(abs(pdgid)==5){

        if((abs(etajet)<=2.5)&&(randnum<m_epsib)){
          (*m_it)->setBTagged("TDR");
        }

      }else if(abs(pdgid)==4){

        if(ptjet<=30.*GeV) corpt=m_corrc[0][m_atlfBNSet];
        if((ptjet>30.*GeV)&&(ptjet<= 45.*GeV)) corpt=m_corrc[1][m_atlfBNSet];
        if((ptjet>45.*GeV)&&(ptjet<= 60.*GeV)) corpt=m_corrc[2][m_atlfBNSet];
        if((ptjet>60.*GeV)&&(ptjet<=100.*GeV)) corpt=m_corrc[3][m_atlfBNSet];
        if(ptjet>100.*GeV) corpt=m_corrc[4][m_atlfBNSet];

        if((abs(etajet)<=2.5)&&(randnum<(m_epsic/corpt))) {
          (*m_it)->setBTagged("TDR");
        }

      }else if(((abs(pdgid)!=4)&&(abs(pdgid)!=5))||abs(pdgid)==15){

        if(ptjet<=30.*GeV) corpt=m_corrj[0][m_atlfBNSet];
        if((ptjet>30.*GeV)&&(ptjet<=45.*GeV)) corpt=m_corrj[1][m_atlfBNSet];
        if((ptjet>45.*GeV)&&(ptjet<=60.*GeV)) corpt=m_corrj[2][m_atlfBNSet];
        if((ptjet>60.*GeV)&&(ptjet<=100.*GeV)) corpt=m_corrj[3][m_atlfBNSet];
        if(ptjet>100.*GeV) corpt=m_corrj[4][m_atlfBNSet];

        if((abs(etajet)<=2.5)&&(randnum<(m_epsij/corpt))) {
          (*m_it)->setBTagged("TDR");
        }

      }
    }

    return StatusCode::SUCCESS;

  }

StatusCode Atlfast::AtlfastB::atlfBje

(

)

Runs b-tagging.

Definition at line 718 of file AtlfastB.cxx.

                               {

    MsgStream mlog(messageService(), name());
    //
    mlog << MSG::DEBUG << "Applying randomized B tagging, new parametrization" <<endreq;

    int debug = 0;
    if (mlog.level() < MSG::DEBUG) debug = 1;

    for(m_it=m_Jets->begin(); m_it<m_Jets->end(); ++m_it){

      double randnum = m_pRandFlatGenerator->shoot(m_pRandomEngine);
      double ptjet   = (*m_it)->pT();
      double etajet  = (*m_it)->eta();
      int pdgid      = (*m_it)->pdg_id();

      // Input to interpolators
      deque<double> input_values;
      input_values.push_back(ptjet/1.e3);
      input_values.push_back(fabs(etajet));

      if ( fabs(etajet) <= 2.5 ) {
        if (abs(pdgid) == 5) {
          // useless for NSET <= 14 (flat fixed efficiency) and 100 (canonical)
          // useful for NSET > 14 (!=100) (fixed cut)
          double epsilonBjet = m_interpolateBTagging ?
            m_beff_interpolator->interpolate(input_values) :
            m_beff_interpolator->getNearestValue(input_values);
          mlog << MSG::DEBUG << " epsb( "<<ptjet/1.e3<<" , "<<etajet<<" ) = "<< epsilonBjet << endreq;
          if ( randnum < epsilonBjet )
            (*m_it)->setBTagged("SV1+IP3D");
        } else if (abs(pdgid) == 4) {
          double RejC = m_interpolateBTagging ?
            m_brejc_interpolator->interpolate(input_values) :
            m_brejc_interpolator->getNearestValue(input_values);
          mlog << MSG::DEBUG << " Rc( "<<ptjet/1.e3<<" , "<<etajet<<" ) = "<< RejC << endreq;
          if ( randnum < 1./RejC )
            (*m_it)->setBTagged("SV1+IP3D");
        } else if (abs(pdgid) == 15) {
          double RejTau = m_interpolateBTagging ?
            m_brejtau_interpolator->interpolate(input_values) :
            m_brejtau_interpolator->getNearestValue(input_values);
          mlog << MSG::DEBUG << " Rtau( "<<ptjet/1.e3<<" , "<<etajet<<" ) = "<< RejTau << endreq;
          if ( randnum < 1./RejTau )
            (*m_it)->setBTagged("SV1+IP3D");
        } else {
          double RejLight = m_interpolateBTagging ?
            m_brejpu_interpolator->interpolate(input_values) :
            m_brejpu_interpolator->getNearestValue(input_values);
          double dRb   = (*m_it)->getdRbquark();
          double dRc   = (*m_it)->getdRcquark();
          double dRtau = (*m_it)->getdRhadtau();
          if (dRb < 0.8 || dRc < 0.8 || dRtau < 0.8) {
            RejLight = m_interpolateBTagging ?
            m_brejnpu_interpolator->interpolate(input_values) :
            m_brejnpu_interpolator->getNearestValue(input_values);
          }
          mlog << MSG::DEBUG << " RLight( "<<ptjet/1.e3<<" , "<<etajet<<" ) = "<< RejLight << endreq;
          // correction factor only for light jet at zero order
          // since the quality of reconstruction matters here
          // (contrary to c jets, where physics dominates)
          if ( randnum < 1./(RejLight*m_correctionFactor) )
            (*m_it)->setBTagged("SV1+IP3D");
        }
      } //else{
        //(*m_it)->setLightTag();
      //}
    }
    return StatusCode::SUCCESS;
  }

StatusCode Atlfast::AtlfastB::atlfCal

(

)

recalibrates jet energies

Definition at line 789 of file AtlfastB.cxx.

                              {

    //It recalibrates the energy of all jets using parameterisation
    //obtained with 'Z+jet' equivalent method

    MsgStream log( messageService(), name() ) ;

    for(m_it=m_Jets->begin();m_it<m_Jets->end();++m_it){

      double ptjet=(*m_it)->pT();

      // Correction factor for b-jet momentum
      (*m_it)->setBTagCorrFactor("SV1+IP3D",fitcoreb(ptjet));

      // Correction factor for tau jets
      (*m_it)->setTauTagCorrFactor("Tau",1.);

      // Correction factor for b-jet momentum
      (*m_it)->setLightTagCorrFactor("Standard",fitcoreu(ptjet));

    }

    return StatusCode::SUCCESS;

  }

StatusCode Atlfast::AtlfastB::atlfTau

(

double

epsitau

)

Runs TauRec-style tau-tagging.

Definition at line 816 of file AtlfastB.cxx.

                                            {

    MsgStream log( messageService(), name() ) ;
    //StatusCode sc;

    for(m_it=m_Jets->begin();m_it<m_Jets->end();++m_it){

      double randnum;

      double etajet=(*m_it)->eta();
      double ptjet=(*m_it)->pT();
      int pdgid=(*m_it)->pdg_id();

      randnum=m_pRandFlatGenerator->shoot(m_pRandomEngine);

      deque<double> input_values;
      // Efficiencies are percentages in the input file
      input_values.push_back(epsitau*100.);
      // Efficiencies considered symmetric in eta
      input_values.push_back(fabs(etajet));
      // pT in GeV in input file
      input_values.push_back(ptjet/GeV);


      if(abs(pdgid)==15){

        // If the jet falls outside Interpolator limits, taueff = 0
        double taueff = m_taueff_interpolator->interpolate(input_values);

        if(randnum<taueff){

          (*m_it)->setTauTagged("Standard");
          log << MSG::DEBUG << "setTauTagged(\"Standard\"), pT = " << (*m_it)->pT() << endreq;

        }

      }else if(abs(etajet)<=2.5){

        double taurej = m_taurej_interpolator->interpolate(input_values);
        // taurej = 0 if values fall outside the Interpolator limits
        // Assume dummy rejection of 1e9
        if (!taurej) taurej = 1e9;

        if(randnum<(1./taurej)){
          (*m_it)->setTauTagged("Standard");
          log << MSG::DEBUG << "setTauTagged(\"Standard\"), pT = " << (*m_it)->pT() << endreq;
        }

      }

    }

    return StatusCode::SUCCESS;

  }

StatusCode Atlfast::AtlfastB::atlfTau1P3P

(

)

Runs tau1p3p-style tau-tagging.

Definition at line 947 of file AtlfastB.cxx.

                                  {

    MsgStream log( messageService(), name() ) ;
    //StatusCode sc;

    const double MaxPTinGeV = 150.0;

    for(m_it=m_Jets->begin();m_it<m_Jets->end();++m_it){
      double randnum;

      double etajet=(*m_it)->eta();
      double ptjet=(*m_it)->pT();
      int pdgid=(*m_it)->pdg_id();

      randnum=m_pRandFlatGenerator->shoot(m_pRandomEngine);

      if(abs(pdgid)==15){

        if(ptjet/GeV > MaxPTinGeV){
        log << MSG::DEBUG<<"Jet with pT="<<ptjet/GeV<<" GeV; Outside range of Tau1P3P - Not Considered for tagging"<<endreq;
        }else{

          double tau1Peff = m_epsitau1P;
          double tau3Peff = m_epsitau3P;

          // Adjust tau3P efficiency due to lower efficiency at low PT
          if     ( ptjet/GeV >= 10.0 && ptjet/GeV < 20.0){ tau3Peff = 0.0; }
          else if( ptjet/GeV >= 20.0 && ptjet/GeV < 45.0){ tau3Peff = (0.0232*ptjet/GeV-0.044) * m_epsitau3P;}
          else if( ptjet/GeV >= 45.0 ){tau3Peff = m_epsitau3P;}

          if(randnum<tau1Peff){
            // tag as tau1P
            (*m_it)->setTauTagged("Tau1P3P:1prong");
            (*m_it)->setTauTagCorrFactor("Tau1P3P", 1. );
            log << MSG::DEBUG << "setTauTagged(\"Tau1P3P:1prong\"), pT = " << (*m_it)->pT() << endreq;
          }else if(randnum>=tau1Peff && randnum<(tau1Peff+tau3Peff) ){
            // tag as tau3P
            (*m_it)->setTauTagged("Tau1P3P:3prong");
            (*m_it)->setTauTagCorrFactor("Tau1P3P", 1. );
            log << MSG::DEBUG << "setTauTagged(\"Tau1P3P:3prong\"), pT = " << (*m_it)->pT() << endreq;
          }
        }
      }else if(abs(etajet)<=2.5){

        if(ptjet/GeV > MaxPTinGeV){
        log << MSG::DEBUG<<"Jet with pT="<<ptjet/GeV<<" GeV; Outside range of Tau1P3P - Not Considered for tagging"<<endreq;
        }else{

          // Calculate probability of tagging jet as tau1P or tau3P
          double tau1Pprob = 0.0;
          double tau3Pprob = 0.0;

          if( m_epsitau1P != 0.0 ){
            double tau1Prej = -1.0;
            // Assign PT dependent rejection for Tau1P PT > 10 GeV
            if(ptjet/GeV >= 10. && ptjet/GeV < 20.){
              tau1Prej = exp(7.585-6.565*m_epsitau1P);}
            else if(ptjet/GeV >= 20. && ptjet/GeV < 30.){
              tau1Prej = exp(6.863-6.786*m_epsitau1P);}
            else if(ptjet/GeV >= 30. && ptjet/GeV < 40.){
              tau1Prej = exp(6.995-7.194*m_epsitau1P);}
            else if(ptjet/GeV >= 40. && ptjet/GeV < 50.){
              tau1Prej = exp(7.199-7.242*m_epsitau1P);}
            else if(ptjet/GeV >= 50. && ptjet/GeV < 60.){
              tau1Prej = exp(6.857-5.511*m_epsitau1P);}
            else if(ptjet/GeV >= 60.){
              tau1Prej = exp(7.344-6.331*m_epsitau1P);}

            if( tau1Prej != -1.0 ){ tau1Pprob = 1/tau1Prej; }
          }

          if( m_epsitau3P != 0.0 ){
            double tau3Prej = -1.0;
            // Assign PT dependent rejection for Tau3P PT > 20GeV
            if(ptjet/GeV >= 20. && ptjet/GeV < 30.){
              tau3Prej = exp(8.351-26.997*m_epsitau3P);}
            else if(ptjet/GeV >= 30. && ptjet/GeV < 40.){
              tau3Prej = exp(7.076-25.647*m_epsitau3P);}
            else if(ptjet/GeV >= 40. && ptjet/GeV < 50.){
              tau3Prej = exp(6.394-21.407*m_epsitau3P);}
            else if(ptjet/GeV >= 50. && ptjet/GeV < 60.){
              tau3Prej = exp(6.318-20.522*m_epsitau3P);}
            else if(ptjet/GeV >= 60.){
              tau3Prej = exp(6.477-19.238*m_epsitau3P);}

            if( tau3Prej != -1.0 ){ tau3Pprob = 1/tau3Prej; }
          }

          if( randnum<tau1Pprob ){
            // Rescale Energy of fake Tau1P
            double corr = 0.0;
            double rand1P;
            // Do not let corr be small enough such that jet falls
            // below 10 GeV jet reconstruction threshold.
            while( (corr * (*m_it)->pT())/GeV < 10.){
              // Get Random Number
              rand1P=m_pRandFlatGenerator->shoot(m_pRandomEngine);
              // Get PT bin of jet
              int ptbin = 0;
              if(ptjet/GeV >= 10. && ptjet/GeV < 20.){      ptbin = 0; }
              else if(ptjet/GeV >= 20. && ptjet/GeV < 30.){ ptbin = 1; }
              else if(ptjet/GeV >= 30. && ptjet/GeV < 40.){ ptbin = 2; }
              else if(ptjet/GeV >= 40. && ptjet/GeV < 50.){ ptbin = 3; }
              else if(ptjet/GeV >= 50. && ptjet/GeV < 60.){ ptbin = 4; }
              else if(ptjet/GeV >= 60.){                    ptbin = 5; }
              // Get Scale Factor
              for(int ibin = 0; ibin<20; ibin++){
                if(m_corr_prob1P[ptbin][ibin] >= rand1P){
                  log << MSG::DEBUG << "pT = " << (*m_it)->pT() << " ptbin = " << ptbin << " rand1P = " << rand1P << " corr = " << m_corr1P3P[ibin] << endreq;
                  corr = m_corr1P3P[ibin];
                  break;
                }
              }
            }
            // Tag as Tau1P and rescale momentum.
            log << MSG::DEBUG<<"Jet tagged as Tau1P. Initial Jet PT = "<<ptjet<<"; After rescaling PT = "<<corr*(*m_it)->pT()/GeV <<endreq;
            (*m_it)->setTauTagged("Tau1P3P:1prong");
            (*m_it)->setTauTagCorrFactor("Tau1P3P",corr);

          }else if( randnum>=tau1Pprob && randnum<(tau1Pprob+tau3Pprob) ){

            // Rescale Energy of fake Tau3P
            double corr = 0.0;
            double rand3P;
            // Do not let corr be small enough such that jet falls
            // below 10 GeV jet reconstruction threshold.
            while( (corr * (*m_it)->pT())/GeV < 10.){
              // Get Random Number
              rand3P=m_pRandFlatGenerator->shoot(m_pRandomEngine);
              // Get PT bin of jet
              int ptbin = 0;
              if(ptjet/GeV >= 10. && ptjet/GeV < 20.){      ptbin = 0; }
              else if(ptjet/GeV >= 20. && ptjet/GeV < 30.){ ptbin = 1; }
              else if(ptjet/GeV >= 30. && ptjet/GeV < 40.){ ptbin = 2; }
              else if(ptjet/GeV >= 40. && ptjet/GeV < 50.){ ptbin = 3; }
              else if(ptjet/GeV >= 50. && ptjet/GeV < 60.){ ptbin = 4; }
              else if(ptjet/GeV >= 60.){                    ptbin = 5; }
              // Get Scale Factor
              for(int ibin = 0; ibin<20; ibin++){
                if(m_corr_prob3P[ptbin][ibin] >= rand3P){
                  log << MSG::DEBUG << "pT = " << (*m_it)->pT() << " ptbin = " << ptbin << " rand3P = " << rand3P << " corr = " << m_corr1P3P[ibin] << endreq;
                  corr = m_corr1P3P[ibin];
                  break;
                }
              }
            }
            if( corr * (*m_it)->pT()/GeV >= 20.0 ){
              // If rescaled ET >= 20 GeV, tag as Tau3P and rescale momentum.
              // If rescaled ET <  20 GeV, do not tag (tau3P low limit is 20GeV)
              log << MSG::DEBUG<<"Jet tagged as Tau3P. Initial Jet PT = "<<ptjet<<"; After rescaling PT = "<<corr*(*m_it)->pT()/GeV <<endreq;
              (*m_it)->setTauTagged("Tau1P3P:3prong");
              (*m_it)->setTauTagCorrFactor("Tau1P3P",corr);
            }
          }
        }
      }
    }
    return StatusCode::SUCCESS;
  }

StatusCode Atlfast::AtlfastB::atlfTauVeto

(

int

ind

)

Applies tau veto.

Definition at line 1108 of file AtlfastB.cxx.

                                          {

    MsgStream log( messageService(), name() ) ;


    StatusCode sc;

    for(m_it=m_Jets->begin();m_it<m_Jets->end();++m_it){

      double randnum;
      double efftau;
      double effjet;

      double ptjet=(*m_it)->pT();
      int pdgid=(*m_it)->pdg_id();

      sc=tauveto(ptjet,ind,efftau,effjet);
      if(sc.isFailure()){
        log << MSG::ERROR<<"Cannot compute tau jet rejection"<<endreq;
        return StatusCode::FAILURE;
      }

      randnum=m_pRandFlatGenerator->shoot(m_pRandomEngine);


      if(abs(pdgid)==15) {
        if(randnum<efftau/100.){
          // Need to unset the tau tag here
          //(*m_it)->setLightTag();
        }
      }else{
        if(randnum>effjet/100.){
          (*m_it)->setTauTagged("Veto");
        }
      }
    }

    return StatusCode::SUCCESS;
  }

StatusCode Atlfast::AtlfastB::atlfTrigMuo

(

)

Applies muon trigger efficiencies.

Definition at line 1189 of file AtlfastB.cxx.

                                  {
    MsgStream log( messageService(), name() ) ;

    log << MSG::INFO<<"atlfTrigMuo is not yet implemented!!!!!!"<<endreq;


    return StatusCode::SUCCESS;
  }

StatusCode Atlfast::AtlfastB::tautag	(	double	pt,
		double	eta,
		double	efftau,
		double &	rjet,
		int &	iflag
	)

Computes the corresponding jet rejection.

Inputs: pt and eta of cluster, efftau-> eff(in %) for tau identification

Definition at line 873 of file AtlfastB.cxx.

                                                       {

    //It computes the corresponding jet rejection rjet
    //inputs: pt and eta of cluster, efftau-> eff(in %)  for tau identification

    MsgStream log( messageService(), name() ) ;

    iflag=0;


    double ptInGeV = pt/GeV;

    if((ptInGeV<15.)||(ptInGeV>150.)){


      log << MSG::DEBUG<<"Tau pt value out of range (15<pt<150 GeV): pt= "<<ptInGeV
          <<" GeV No tau tagging efficiencies will be applied"<<endreq;

      iflag=1;

    }
    if(abs(eta)>2.5){

      log << MSG::DEBUG<<"Tau eta value out of range (eta<2.5): eta= "<<eta<<" No tau tagging efficiencies will be applied"<<endreq;


      iflag=1;

    }


    //eta dependence
    double eff=efftau;
    double coefe1;
    double coefe3;
    double coef1;
    double coef2;

    if(abs(eta)<0.7){
      coefe1=1.35-0.0035*efftau;
      eff=efftau/coefe1;
    }
    if(abs(eta)>1.5){
      coefe3=0.70+0.0030*efftau;
      eff=efftau/coefe3;
    }
    if(eff>100){


      log << MSG::WARNING<<"Tau efficiency value > 100 ! eff= "<<eff<<endreq;
      iflag=1;
    }


    coef1=0.027+0.00024*ptInGeV;
    coef2=2.28+0.027*ptInGeV;

    coef1=0.027+0.00024*ptInGeV;
    coef2=2.28+0.027*ptInGeV;
    rjet=pow(10,(-coef1*eff+coef2));



    //     log << MSG::DEBUG<<"Tau rejection value computed in tautag= "<<rjet<<endreq;


    return StatusCode::SUCCESS;

  }

StatusCode Atlfast::AtlfastB::tauveto	(	double	pt,
		int	ind,
		double &	efftau,
		double &	effjet
	)

Computes jet-efficiency or tau-background.

Apply veto for tau-jet
(m_indtauveto=1): tau-background fixed to 5%, atlfTauVeto gives the corresponding jet-efficiency
(m_indtauveto=2): jet-efficiency fixed at 90%, atlfTauVeto gives the corresponding tau-background

Definition at line 1150 of file AtlfastB.cxx.

                                                                                {
    MsgStream log( messageService(), name() ) ;



    //input: pt of cluster
    //ind=1->fix efftau to 5% and gives effjet
    //ind=2->fix effjet to 90% and gives efftau
    //output: efftau tau efficiency in % or effjet jets efficiency in %


    //using calo criteria + tracks


    double ptInGeV = pt/GeV;

    if(ind==1){

      efftau=5.;
      effjet=36.+1.5*ptInGeV-0.01*pow(ptInGeV,2);
      if(ptInGeV>60.) effjet=90.;
    }
    else if(ind==2){
      effjet=90.;
      efftau=27.-0.35*ptInGeV;
      if(ptInGeV>60.) efftau=5.;

    }else{

      log << MSG::ERROR<<"Wrong ind values for tauveto method. ind= "<<ind<<"ind=1 or ind=2"<<endreq;

      return StatusCode::FAILURE;
    }



    return StatusCode::SUCCESS;
  }

void Atlfast::AtlfastB::makeInterpolator	(	Interpolator *&	intptr,
		string	intname,
		bool	contbounds
	)

General method for making an interpolator from a given input filename

Definition at line 1299 of file AtlfastB.cxx.

                                                                                       {
    MsgStream log( messageService(), name() ) ;
    std::string fn = PathResolver::find_file(intname, "DATAPATH");
    intptr = new Interpolator(fn);
    log << MSG::DEBUG << "Made Interpolator from input file " << fn << endreq;
    if (contbounds) intptr->setContinuousBoundaries();
    return;
  }

double Atlfast::AtlfastB::fitcoreb

(

double

pt

)

Computes b-jet hypothesis momentum correction factor.

Definition at line 1197 of file AtlfastB.cxx.

                                    {


    MsgStream log( messageService(), name() ) ;

    double core;
    double a0,a1,a2,a3,a4,a5;
    double xc;


    double ptInGeV = pt/GeV;

    if(ptInGeV<10.){

      core=0.;
    }else if(ptInGeV<55.){

      a0=1.26694; // Changed from 1.2715 to fix discontinuity
      a1=0.12241;
      a2=-0.10480e-01;
      a3=0.33310e-03;
      a4=-0.47454e-05;
      a5=0.25436e-07;
      core=a0+a1*ptInGeV+a2*pow(ptInGeV,2)+
        a3*pow(ptInGeV,3)+a4*pow(ptInGeV,4)+
        a5*pow(ptInGeV,5);
      core=core*1.006;
    }else if(ptInGeV<200.){

      a0=1.18;
      a1=-0.16672e-02;
      a2=0.44414e-05;
      core=a0+a1*ptInGeV+a2*pow(ptInGeV,2);

    }else{

      xc=200.;
      a0=1.18;
      a1=-0.16672e-02;
      a2=0.44414e-05;
      core=a0+a1*xc+a2*pow(xc,2);
    }

    // core corrects pt**1

    return core;

  }

double Atlfast::AtlfastB::fitcoreu

(

double

pt

)

Computes light-jet hypothesis momentum correction factor.

Definition at line 1246 of file AtlfastB.cxx.

                                    {

    MsgStream log( messageService(), name() ) ;

    double core;
    double a0,a1,a2,a3,a4,a5;
    double xc;

    double ptInGeV = pt/GeV;

    if(ptInGeV<10.){

      core=0.;





    }else if((ptInGeV<45.)&&(ptInGeV>10.)){

      a0=1.5065; // Changed from 1.5085 to fix discontinuity
      a1=0.31468e-01;
      a2=-0.36973e-02;
      a3=0.11220e-03;
      a4=-0.13921e-05;
      a5=0.61538e-08;
      core=a0+a1*ptInGeV+a2*pow(ptInGeV,2)+
        a3*pow(ptInGeV,3)+a4*pow(ptInGeV,4)+
        a5*pow(ptInGeV,5);

    }else if(ptInGeV<200.){

      a0=1.18;
      a1=-0.16672e-02;
      a2=0.44414e-05;
      core=a0+a1*ptInGeV+a2*pow(ptInGeV,2);
      core=core/1.025;
    }else{

      xc=200.;
      a0=1.18;
      a1=-0.16672e-02;
      a2=0.44414e-05;
      core=a0+a1*xc+a2*pow(xc,2);
      core=core/1.025;
    }


    // core corrects pt**1
    return core;

  }

StatusCode Atlfast::AtlfastB::initialize

(

)

Standard Athena-Algorithm initialize

Definition at line 150 of file AtlfastB.cxx.

                                 {
    MsgStream log( messageService(), name() ) ;
    log << MSG::DEBUG << "instantiating an AtlfastB" << endreq;


    m_corrjfile         =  PathResolver::find_file (m_corrjfile, "DATAPATH");
    m_corrcfile         =  PathResolver::find_file (m_corrcfile, "DATAPATH");
    m_Tau1P3Pcorrfile   =  PathResolver::find_file (m_Tau1P3Pcorrfile, "DATAPATH");

    log << MSG::DEBUG << " m_corrjfile after PathResolver: " << m_corrjfile <<endreq;
    log << MSG::DEBUG << " m_corrcfile after PathResolver: " << m_corrcfile <<endreq;
    log << MSG::DEBUG << " m_Tau1P3Pcorrfile after PathResolver: " << m_Tau1P3Pcorrfile <<endreq;

    //Had to move this section above the TesIO call
    //Flat random number generator
    //get the Global Event Data using singleton pattern

    GlobalEventData* ged = GlobalEventData::Instance();
    int randSeed = ged->randSeed() ;
    // load the location of the MC in StoreGate
    m_mcLocation       = ged -> mcLocation();

    m_tesIO= new TesIO(m_mcLocation, ged->justHardScatter());

    std::string fn; // For filenames

    if (m_useTDRBParam) {
      //open files for jet correction factors

      std::ifstream inputjetfile;
      inputjetfile.open(m_corrjfile.c_str());

      if(inputjetfile){

        log << MSG::INFO
            << "Pt jet correction factors file "
            << m_corrjfile
            <<" open."
            <<endreq;
        int nrow;
        int ncolumn;
        inputjetfile>>nrow;
        inputjetfile>>ncolumn;
        if(nrow != 5||ncolumn != 8) {
          log << MSG::ERROR
              <<"no. of input rows,columns: "
              <<nrow<<" "
              <<ncolumn<<" "
              <<"expected 5, 8 "
              <<endreq;
          return StatusCode::FAILURE ;
        }

        for(int i=0; i<nrow;i++){
          for(int j=0; j<ncolumn; j++){

            int nset = -1;
            switch (j){

            case 0:
              nset=1;
              break;
            case 1:
              nset=2;
              break;
            case 2:
              nset=3;
              break;
            case 3:
              nset=5;
              break;
            case 4:
              nset=11;
              break;
            case 5:
              nset=12;
              break;
            case 6:
              nset=13;
              break;
            case 7:
              nset=14;
              break;
            default:
              log << MSG::ERROR<<"j="<<j<<" Nset= "<<nset
                  <<"  value not correct. Nset must b one of those: 1,2,3,5,11,12,13,14 "<<endreq;
              return StatusCode::FAILURE;
              break;


            }
            inputjetfile>>m_corrj[i][nset];

          }
        }

      }else{
        log << MSG::ERROR << "Pt jet correction factors file not found" <<endreq;
        return StatusCode::FAILURE ;
      }
      inputjetfile.close();

      std::ifstream inputcjetfile;
      inputcjetfile.open(m_corrcfile.c_str());

      if(inputcjetfile){

        log << MSG::INFO
            << "Pt c jet correction factors file "
            << m_corrcfile
            <<" open."
            <<endreq;
        int nrow;
        int ncolumn;
        inputcjetfile>>nrow;
        inputcjetfile>>ncolumn;
        if(nrow != 5||ncolumn != 8) {
          log << MSG::ERROR
              <<"no. of input rows,columns: "
              <<nrow<<" "
              <<ncolumn<<" "
              <<"expected 5, 8 "
              <<endreq;
          return StatusCode::FAILURE ;
        }
        for(int i=0; i<nrow;i++){
          for(int j=0; j<ncolumn; j++){

            int nset;
            switch (j){

            case 0:
              nset=1;
              break;
            case 1:
              nset=2;
              break;
            case 2:
              nset=3;
              break;
            case 3:
              nset=5;
              break;
            case 4:
              nset=11;
              break;
            case 5:
              nset=12;
              break;
            case 6:
              nset=13;
              break;
            case 7:
              nset=14;
              break;
            default:
              log << MSG::ERROR<<"Nset value not correct. Nset must be one of these: 1,2,3,5,11,12,13,14 "<<endreq;
              return StatusCode::FAILURE;
              break;
            }
            inputcjetfile>>m_corrc[i][nset];
          }
        }

      }else{
        log << MSG::ERROR
            << "Pt c jet correction factors file not found"
            <<endreq;
        return StatusCode::FAILURE ;
      }
      inputcjetfile.close();
    } else {
      int ialgo = m_atlfBNSet;
      if (ialgo < 1 || (ialgo > 14 && ialgo != 100) ) {
        log << MSG::FATAL << "NSET not correct. Should be between 1 and 14, or 100 for canonical b-tagging" << endreq;
        return StatusCode::FAILURE;
      }

      // Make new Interpolators for the b-tagging efficiencies and rejections
      std::string path = "atlfastDatafiles/RejectionFactor";
      std::ostringstream o;
      o << m_atlfBNSet;

      makeInterpolator(m_beff_interpolator,"atlfastDatafiles/BEfficiency"+o.str()+".txt",true);
      makeInterpolator(m_brejpu_interpolator,path+"PU"+o.str()+".txt",true);
      makeInterpolator(m_brejnpu_interpolator,path+"NPU"+o.str()+".txt",true);
      makeInterpolator(m_brejtau_interpolator,path+"Tau"+o.str()+".txt",true);
      makeInterpolator(m_brejc_interpolator,path+"C"+o.str()+".txt",true);


      // The efficiency is defined by m_atlfBNSet (for m_atlfBNSet <= 14)
      std::string algName = "IP2D";
      if (ialgo == 100) {
        algName = "Canonical";
        m_epsilonBjet = 0.6;
      } else {
        if (ialgo > 7){
          algName = "SV1+IP3D";
          ialgo -= 7;
        }
        m_epsilonBjet = 0.5 + (ialgo - 1)*0.05;
      }

      log << MSG::INFO << "Running with " << algName << " at eps_b = " << m_epsilonBjet << endreq;

    }

    // Read Tau1P3P energy rescaling information from file
    std::ifstream inputfileTau1P3P;
    inputfileTau1P3P.open(m_Tau1P3Pcorrfile.c_str());

    if(inputfileTau1P3P){

      int nrow;
      int ncolumn;
      inputfileTau1P3P>>nrow;
      inputfileTau1P3P>>ncolumn;

      // Read corr factor bins from file
      for(int i=0; i<ncolumn; i++){inputfileTau1P3P>>m_corr1P3P[i];}

      // Read corr factor probabilities for Tau1P in 6 PT bins
      for(int j=0; j<nrow; j++){
        for(int k=0; k<ncolumn; k++){
          inputfileTau1P3P>>m_corr_prob1P[j][k];
        }
      }
      // Read corr factor probabilities for Tau3P in 6 PT bins
      for(int l=0; l<nrow; l++){
        for(int m=0; m<ncolumn; m++){
          inputfileTau1P3P>>m_corr_prob3P[l][m];
        }
      }
    }else{
      log << MSG::ERROR
          << "Tau1P3P corr factor file not found"
          <<endreq;
      return StatusCode::FAILURE ;
    }

    // Check Tau1P3P efficiencies are within range
    if( m_epsitau1P < 0.20){m_epsitau1P = 0.00;
    log << MSG::INFO<< "Tau1PEff below allowed range (<0.10). Set Tau1PEff = 0.0 "<<endreq;}
    if( m_epsitau1P > 0.40){m_epsitau1P = 0.40;
    log << MSG::INFO<< "Tau1PEff above allowed range (>0.40). Set Tau1PEff = 0.40"<<endreq;}
    if( m_epsitau3P < 0.05){m_epsitau3P = 0.00;
    log << MSG::INFO<< "Tau3PEff below allowed range (<0.05). Set Tau3PEff = 0.0 "<<endreq;}
    if( m_epsitau3P > 0.10){m_epsitau3P = 0.10;
    log << MSG::INFO<< "Tau3PEff above allowed range (>0.10). Set Tau3PEff = 0.10"<<endreq;}


    m_pRandomEngine = new Ranlux64Engine(randSeed);
    m_pRandFlatGenerator=new RandFlat(*m_pRandomEngine);

    // Create interpolator for tau jet efficiencies

    makeInterpolator(m_taueff_interpolator,"atlfastDatafiles/TauEfficiencies.txt",false);
    makeInterpolator(m_taurej_interpolator,"atlfastDatafiles/TauRejections.txt",false);

    HeaderPrinter hp("AtlfastB:", log);

    hp.add("TES Locations:              ");
    hp.add(" Jets from                     ", m_inputLocation);
    hp.add("AtlfBje switch:                ", m_AtlfBJetSwitch);
    hp.add("AtlfBje NSet:                  ", m_atlfBNSet);
    hp.add("AtlfCal switch:                ", m_AtlfCalSwitch);
    hp.add("AtlfTau switch:                ", m_AtlfTauSwitch);
    hp.add("AtlfTauVeto switch:            ", m_AtlfTauVetoSwitch);
    hp.add("AtlfTrigMuo switch:            ", m_AtlfTrigMuoSwitch);
    hp.add("AtlfTau1P3P switch:            ", m_AtlfTau1P3PSwitch);
    hp.add("correction file 1:             ", m_corrjfile);
    hp.add("correction file 2:             ", m_corrcfile);
    hp.print();

    return StatusCode::SUCCESS ;
  }

StatusCode Atlfast::AtlfastB::execute

(

)

Standard Athena-Algorithm execute

Definition at line 443 of file AtlfastB.cxx.

                              {

    StatusCode sc;
    MsgStream log( messageService(), name() ) ;

    log << MSG::DEBUG<<"In execute"<<endreq;

    if(!m_tesIO->getDH(m_Jets, m_inputLocation)){
      log << MSG::ERROR
          << "Couldn't retrieve JetCollection" << m_inputLocation
          << endreq ;
      return StatusCode::FAILURE;
    }

    if(m_AtlfBJetSwitch){
      //Apply efficiency for b-jet identification



      sc = m_useTDRBParam ? atlfBje_TDR() : atlfBje();

      if(sc.isFailure()){
        log << MSG::ERROR<<"Error in atlfBje"<<endreq;
        return StatusCode::FAILURE;
      }

    }

    if(m_AtlfTauSwitch){

      //Apply efficiency for tau-jet identification

      sc=atlfTau(m_epsitau);

      if(sc.isFailure()){
        log << MSG::ERROR<<"Error in atlfTau"<<endreq;
        return StatusCode::FAILURE;
      }

    }

    if(m_AtlfTau1P3PSwitch){

      //Apply Tau1P3P efficiency for tau-jet identification

      sc=atlfTau1P3P();

      if(sc.isFailure()){
        log << MSG::ERROR<<"Error in atlfTau1P3P"<<endreq;
        return StatusCode::FAILURE;
      }

    }

    if(m_AtlfTauVetoSwitch){

      //Apply veto for tau-jet

      sc=atlfTauVeto(m_indtauveto);

      if(sc.isFailure()){
        log << MSG::ERROR<<"Error in atlfTauVeto"<<endreq;
        return StatusCode::FAILURE;
      }

    }


    if(m_AtlfTrigMuoSwitch){

      //Apply efficiency for muon trigger. Not implemented yet!

      sc=atlfTrigMuo();

      if(sc.isFailure()){
        log << MSG::ERROR<<"Error in atlfTrigMuo"<<endreq;
        return StatusCode::FAILURE;
      }

    }


    if(m_AtlfCalSwitch){

      //Recalibrate jet energies

      sc=atlfCal();

      if(sc.isFailure()){
        log << MSG::ERROR<<"Error in atlfCal"<<endreq;
        return StatusCode::FAILURE;
      }

    }


    //......................................
    // Fill jets that have been successfully tagged and calibrated in JetCollection
    //and register them in the transient event store.


    /*
    JetCollection* myCalJets=new JetCollection;

    for(m_it=m_Jets.begin();m_it<m_Jets.end();++m_it){
      myCalJets->push_back(*m_it);
    }

    */

    //JetCollection::const_iterator jetcolit = m_Jets->begin();
    m_it = m_Jets->begin();


    for( ; m_it != m_Jets->end(); ++m_it ){

      log << MSG::DEBUG
          <<"original jets: PDGID= "<<(*m_it)->pdg_id()
          <<" B tag= "   <<(*m_it)->isBTagged()
          <<" B tag corr factor = " << (*m_it)->bTagCorrFactor()
          <<" Tau tag= " <<(*m_it)->isTauTagged()
          <<" Tau tag corr factor = " << (*m_it)->tauTagCorrFactor()
          <<" pT = "     << (*m_it)->pT() << endreq;
      /*
      log << MSG::DEBUG
          <<"Jets After AtlfastB: PDGID= "<<(*jetcolit)->pdg_id()
          <<" B tag= "    <<(*jetcolit)->isBTagged()
          <<" B tag corr factor = " << (*m_it)->bTagCorrFactor()
          <<" Tau tag= "  <<(*jetcolit)->isTauTagged()
          <<" Tau tag corr factor = " << (*m_it)->tauTagCorrFactor()
          <<" pT = " << (*jetcolit)->pT() << endreq;
      */
      //++m_it;
    }



    TesIoStat stat = m_tesIO->lock( m_Jets ) ;
    if(!stat){
      log<<MSG::ERROR<<"Could not lock jet collection"<<endreq;
      return stat;
    }


    return StatusCode::SUCCESS;
  }

StatusCode Atlfast::AtlfastB::finalize

(

)

Standard Athena-Algorithm finalize

Definition at line 431 of file AtlfastB.cxx.

                               {

    MsgStream log( messageService(), name() ) ;
    log << MSG::INFO << "finalizing" << endreq;
    return StatusCode::SUCCESS ;
  }

---

Member Data Documentation

int Atlfast::AtlfastB::m_atlfBNSet [private]

Sets the b-tagging regime to be used.

When using TDR parameterisation:

Parameters for the different atlfastB methods
Parametrization prepared by E. Ros, updated November'99, low luminosity
apply randomized b-tagging with efficiencies specified by one of given sets, pT dependent correction factors included
m_atlfBNSet=1 --> m_epsib=0.5
m_atlfBNSet=2 --> m_epsib=0.6
m_atlfBNSet=3 --> m_epsib=0.7

canonical for low luminosity performance, no pT dependence
m_atlfBNSet=5 --> m_epsib=0.60 epsi_c=0.10, R=100

Inner Detector TDR, April'97, low luminosity, pT dependent correction factors included, parametrization prepared by E. Ros
m_atlfBNSet=11 --> m_epsib=0.33
m_atlfBNSet=12 --> m_epsib=0.43
m_atlfBNSet=13 --> m_epsib=0.53
m_atlfBNSet=14 --> m_epsib=0.624

When running with up-to-date parameterisation:

m_atlfBNSet = 1 - 7 --> IP2D tagging, overall efficiency = 0.5+(m_atlfBNSet-1)*0.05;
m_atlfBNSet = 8 - 14 --> SV1+IP3D tagging, overall efficiency = 0.5+(m_atlfBNSet-1)*0.05;
m_atlfBNSet = 100 --> Canonical tagging, overall efficiency = 0.6

Definition at line 103 of file AtlfastB.h.

double Atlfast::AtlfastB::m_epsib [private]

Overall b-tagging efficiency.

See also:

m_atlfBNSet

Definition at line 105 of file AtlfastB.h.

double Atlfast::AtlfastB::m_epsic [private]

c-jet rejection.

See also:

m_atlfBNSet

Definition at line 106 of file AtlfastB.h.

double Atlfast::AtlfastB::m_epsij [private]

light-jet rejection.

See also:

m_atlfBNSet

Definition at line 107 of file AtlfastB.h.

double Atlfast::AtlfastB::m_epsitau [private]

tau-jet rejection.

See also:

m_atlfBNSet

Definition at line 108 of file AtlfastB.h.

double Atlfast::AtlfastB::m_epsitau1P [private]

tau1p3p 1-prong tagging efficiency

Definition at line 110 of file AtlfastB.h.

double Atlfast::AtlfastB::m_epsitau3P [private]

tau1p3p 3-prong tagging efficiency

Definition at line 111 of file AtlfastB.h.

string Atlfast::AtlfastB::m_Tau1P3Pcorrfile [private]

tau1P3P input file

Definition at line 113 of file AtlfastB.h.

double Atlfast::AtlfastB::m_corr1P3P[20] [private]

tau1P3P jet correction factor bins

Definition at line 115 of file AtlfastB.h.

double Atlfast::AtlfastB::m_corr_prob1P[6][20] [private]

tau1P3P 1-prong jet correction factor probabilities

Definition at line 116 of file AtlfastB.h.

double Atlfast::AtlfastB::m_corr_prob3P[6][20] [private]

tau1P3P 3-pring jet correction factor probabilities

Definition at line 117 of file AtlfastB.h.

string Atlfast::AtlfastB::m_corrjfile [private]

input file for light jet correction factors

Definition at line 121 of file AtlfastB.h.

string Atlfast::AtlfastB::m_corrcfile [private]

input file for c-jet correction factors

Definition at line 122 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_useTDRBParam [private]

switch whether or not to use TDR parameterisation

Definition at line 124 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_interpolateBTagging [private]

switch whether or not to interpolate for the b-tagging

Definition at line 125 of file AtlfastB.h.

double Atlfast::AtlfastB::m_epsilonBjet [private]

overall b-tagging efficiency

Definition at line 127 of file AtlfastB.h.

double Atlfast::AtlfastB::m_correctionFactor [private]

Light jet correction factor.

Correction factor only for light jet at zero order since the quality of reconstruction matters here (contrary to c jets, where physics dominates)

Definition at line 134 of file AtlfastB.h.

Interpolator* Atlfast::AtlfastB::m_beff_interpolator [private]

Interpolator for b-tagging efficiencies.

Definition at line 136 of file AtlfastB.h.

Interpolator* Atlfast::AtlfastB::m_brejpu_interpolator [private]

Interpolator for light-jet rejections (pileup).

Definition at line 137 of file AtlfastB.h.

Interpolator* Atlfast::AtlfastB::m_brejnpu_interpolator [private]

Interpolator for light-jet rejections (no pileup).

Definition at line 138 of file AtlfastB.h.

Interpolator* Atlfast::AtlfastB::m_brejtau_interpolator [private]

Interpolator for tau-jet rejections.

Definition at line 139 of file AtlfastB.h.

Interpolator* Atlfast::AtlfastB::m_brejc_interpolator [private]

Interpolator for c-jet rejections.

Definition at line 140 of file AtlfastB.h.

double Atlfast::AtlfastB::m_corrj[5][15] [private]

light-jet correction factors

Definition at line 143 of file AtlfastB.h.

double Atlfast::AtlfastB::m_corrc[5][15] [private]

c-jet correction factors

Definition at line 144 of file AtlfastB.h.

int Atlfast::AtlfastB::m_indtauveto [private]

Flag to configure tauveto.

See also:

tauveto(double pt, int ind, double &efftau, double &effjet)

Definition at line 146 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_AtlfBJetSwitch [private]

switch whether or not to run b-tagging

Definition at line 151 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_AtlfCalSwitch [private]

switch whether or not to recalibrate jet energies

Definition at line 152 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_AtlfTauSwitch [private]

switch whether or not to run TauRec-style tau-tagging

Definition at line 153 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_AtlfTauVetoSwitch [private]

switch whether or not to veto taus

Definition at line 154 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_AtlfTrigMuoSwitch [private]

switch whether or not to trigger muons

Definition at line 155 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_AtlfTau1P3PSwitch [private]

switch whether or not to run tau1p3p-style tau-tagging

Definition at line 156 of file AtlfastB.h.

bool Atlfast::AtlfastB::m_corrtaumom [private]

switch whether or not correct tau momentum

Definition at line 158 of file AtlfastB.h.

TesIO* Atlfast::AtlfastB::m_tesIO [private]

To access StoreGate.

Definition at line 161 of file AtlfastB.h.

HepRandomEngine* Atlfast::AtlfastB::m_pRandomEngine [private]

Engine for random number generators.

Definition at line 163 of file AtlfastB.h.

RandFlat* Atlfast::AtlfastB::m_pRandFlatGenerator [private]

Uniform random number generator.

Definition at line 164 of file AtlfastB.h.

const JetCollection* Atlfast::AtlfastB::m_Jets [private]

Data handle for jet collection.

Definition at line 166 of file AtlfastB.h.

JetCollection::const_iterator Atlfast::AtlfastB::m_it [private]

Iterator for jet collection.

Definition at line 167 of file AtlfastB.h.

Interpolator* Atlfast::AtlfastB::m_taueff_interpolator [private]

Interpolator for tau-tagging efficiencies.

Definition at line 169 of file AtlfastB.h.

Interpolator* Atlfast::AtlfastB::m_taurej_interpolator [private]

Interpolator for tau-tagging rejections.

Definition at line 170 of file AtlfastB.h.

std::string Atlfast::AtlfastB::m_inputLocation [private]

StoreGate key for input jet collection.

Definition at line 173 of file AtlfastB.h.

std::string Atlfast::AtlfastB::m_mcLocation [private]

holds the Storegate MC location

Definition at line 175 of file AtlfastB.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/AtlfastAlgs/AtlfastB.h
• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/src/AtlfastB.cxx

---
