Atlfast::AtlfastProtoJetMaker Class Reference

This Algorithm constructs AtlfastProtoJets and stores them in the TES. More...

#include <AtlfastProtoJetMaker.h>

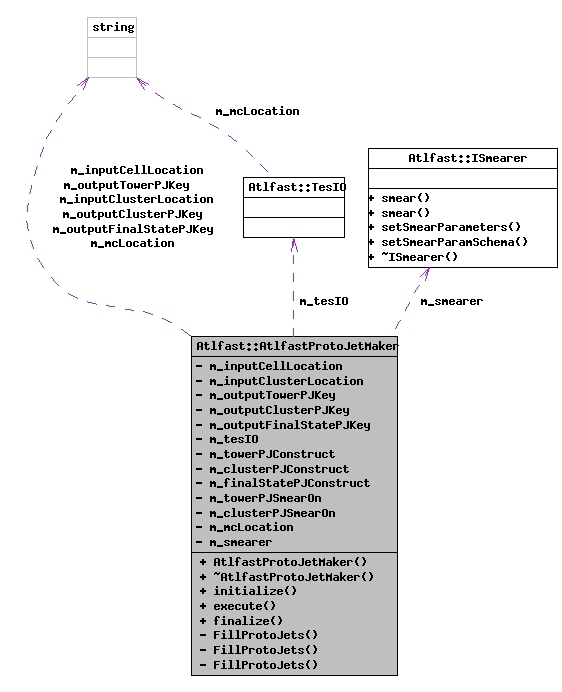

Collaboration diagram for Atlfast::AtlfastProtoJetMaker:


Public Member Functions
	AtlfastProtoJetMaker (const std::string &name, ISvcLocator *pSvcLocator)
	~AtlfastProtoJetMaker ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
Private Member Functions
template<class T1, class T2>
StatusCode	FillProtoJets (const std::vector< T1 * > &, T2 *, const std::string &)
template<class T1, class T2>
StatusCode	FillProtoJets (const std::vector< T1 * > &, T2 *, const std::string &, bool)
template<class T1, class T2>
StatusCode	FillProtoJets (const std::vector< T1 * > &, T2 *)
Private Attributes
std::string	m_inputCellLocation
std::string	m_inputClusterLocation
std::string	m_outputTowerPJKey
std::string	m_outputClusterPJKey
std::string	m_outputFinalStatePJKey
TesIO *	m_tesIO
bool	m_towerPJConstruct
bool	m_clusterPJConstruct
bool	m_finalStatePJConstruct
bool	m_towerPJSmearOn
bool	m_clusterPJSmearOn
std::string	m_mcLocation
ISmearer *	m_smearer

Detailed Description

This Algorithm constructs AtlfastProtoJets and stores them in the TES.

This Algorithm constructs AtlfastProtoJets from Cells, Clusters and final state particles. It stores them in the TES via StoreGate.

Author:: Jon Couchman

Definition at line 38 of file AtlfastProtoJetMaker.h.

Constructor & Destructor Documentation

Atlfast::AtlfastProtoJetMaker::AtlfastProtoJetMaker	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard Athena-Algorithm Constructor

Definition at line 40 of file AtlfastProtoJetMaker.cxx.

00040                                                                                             :
00041     Algorithm(name,pSvcLocator){
00042
00043     //default paths for entities in the TES
00044     m_inputCellLocation     = "/Event/AtlfastCells";
00045     m_inputClusterLocation  = "/Event/AtlfastClusters";
00046
00047     m_outputTowerPJKey      = "/Event/AtlfastTowerProtoJets";
00048     m_outputClusterPJKey    = "/Event/AtlfastClusterProtoJets";
00049     m_outputFinalStatePJKey = "/Event/AtlfastFinalStateProtoJets";
00050
00051
00052     m_towerPJConstruct      = true;
00053     m_clusterPJConstruct    = true;
00054     m_finalStatePJConstruct = true;
00055
00056     m_towerPJSmearOn = false;
00057     m_clusterPJSmearOn = false;
00058
00059     declareProperty("InputCellLocation",      m_inputCellLocation);
00060     declareProperty("InputClusterLocation",   m_inputClusterLocation);
00061
00062     declareProperty("OutputTowerPJKey",       m_outputTowerPJKey);
00063     declareProperty("OutputClusterPJKey",     m_outputClusterPJKey);
00064     declareProperty("OutputFinalStatePJKey",  m_outputFinalStatePJKey);
00065
00066     declareProperty("TowerPJConstruct",       m_towerPJConstruct);
00067     declareProperty("ClusterPJConstruct",     m_clusterPJConstruct);
00068     declareProperty("FinalStatePJConstruct",  m_finalStatePJConstruct);
00069
00070     declareProperty("TowerPJSmearOn",         m_towerPJSmearOn);
00071     declareProperty("ClusterPJSmearOn",       m_clusterPJSmearOn);
00072   }

Atlfast::AtlfastProtoJetMaker::~AtlfastProtoJetMaker ( )

Default Destructor

Definition at line 75 of file AtlfastProtoJetMaker.cxx.

00076   {
00077     MsgStream log( messageService(), name() ) ;
00078     log << MSG::INFO << "AtlfastProtoJetMaker destructor called" << endreq;
00079   }

Member Function Documentation

StatusCode Atlfast::AtlfastProtoJetMaker::initialize ( )

standard Athena-Algorithm method

Definition at line 81 of file AtlfastProtoJetMaker.cxx.

00082   {
00083
00084     MsgStream log( messageService(), name() );
00085     log << MSG::DEBUG <<"AtlfastProtoJetllMaker initialize()" << endreq;
00086     //get the Global Event Data using singleton pattern
00087     GlobalEventData* ged = GlobalEventData::Instance();
00088
00089     int lumi                  = ged->lumi();
00090     int randSeed              = ged->randSeed() ;
00091     double barrelForwardEta   = ged->barrelForwardEta();
00092     m_mcLocation              = ged->mcLocation();
00093     m_tesIO = new TesIO(m_mcLocation, ged->justHardScatter());
00094
00095     m_smearer = new JetSmearer(randSeed,
00096                                lumi,
00097                                0.,
00098                                0.,
00099                                barrelForwardEta);
00100
00101     HeaderPrinter hp("Atlfast-ProtoJet Maker:", log);
00102     hp.add("Input Cell Key                  ", m_inputCellLocation);
00103     hp.add("Input Cluster Key               ", m_inputClusterLocation);
00104     hp.add("Output  Tower PJ Key            ", m_outputTowerPJKey);
00105     hp.add("Output Cluster PJ Key           ", m_outputClusterPJKey);
00106     hp.add("Output FinalState PJ Key        ", m_outputFinalStatePJKey);
00107     hp.add("Construct Tower ProtoJets       ", m_towerPJConstruct);
00108     hp.add("Construct Cluster ProtoJets     ", m_clusterPJConstruct);
00109     hp.add("Construct Final State ProtoJets ", m_finalStatePJConstruct);
00110     hp.add("Smear Tower  ProtoJets          ", m_towerPJSmearOn);
00111     hp.add("Smear Cluster ProtoJets         ", m_clusterPJSmearOn);
00112     hp.print();
00113
00114
00115     return StatusCode::SUCCESS;
00116   }

StatusCode Atlfast::AtlfastProtoJetMaker::execute ( )

standard Athena-Algorithm method

get'em back std::vector<ProtoJet*> afpj; TesIoStat stat = m_tesIO->copy(afpj,m_outputTowerPJKey); message = stat? "Found Tower PJs in TES":"No Tower PJs in TES"; log<<MSG::DEBUG << message <<endreq; if(stat){ std::vector<ProtoJet*>::const_iterator itr = afpj.begin(); for (; itr != afpj.end(); ++itr) { log<<MSG::DEBUG << "the PJ ex" << (*itr)->ex() << endreq; log<<MSG::DEBUG << "the PJ ey" << (*itr)->ey() << endreq; log<<MSG::DEBUG << "the PJ ez" << (*itr)->ez() << endreq;; } }

Definition at line 126 of file AtlfastProtoJetMaker.cxx.

00127   {
00128     //.............................................
00129
00130     MsgStream log( messageService(), name() );
00131     std::string message;
00132     log << MSG::DEBUG << "AtlfastProtoJetMaker execute()" << endreq;
00133
00134     AtlfastProtoJet* proJ;
00135      //do protojet filling from now on---------------------
00136     if(m_towerPJConstruct){
00137     //Get the cells from storeGate
00138       std::vector<const ICell*> cells;
00139       TesIoStat stat =
00140         m_tesIO->copy<ITwoCptCellCollection>(cells,m_inputCellLocation);
00141       message = stat?  "Found Cells in TES":"No Cells in TES";
00142       log<<MSG::DEBUG << message <<endreq;
00143       if(stat){
00144         if(!this->FillProtoJets(cells,proJ,m_outputTowerPJKey,m_towerPJSmearOn)){
00145           return StatusCode::FAILURE;
00146         }
00147       }
00148     }
00149
00150     if(m_clusterPJConstruct){
00151     //Get the clusters from storeGate
00152       std::vector<ICluster*> clusters;
00153       TesIoStat stat =
00154         m_tesIO->copy<IClusterCollection>(clusters,m_inputClusterLocation);
00155       message = stat?  "Found Clusters in TES":"No Clusters in TES";
00156       log<<MSG::DEBUG << message <<endreq;
00157       if(stat){
00158         if(!this->FillProtoJets(clusters,proJ,m_outputClusterPJKey,m_clusterPJSmearOn)){
00159           return StatusCode::FAILURE;
00160         }
00161       }
00162     }
00163     if(m_finalStatePJConstruct){
00164     //Get the FinalStateParticles from storeGate
00165       HepMC_helper::IsFinalState ifs;
00166       MCparticleCollection particles;
00167       TesIoStat stat = m_tesIO->getMC(particles, &ifs);
00168       message = stat?  "Found FS Particles in TES":"No FS Particles in TES";
00169       log<<MSG::DEBUG << message <<endreq;
00170       if(stat){
00171         if(!this->FillProtoJets(particles,proJ,m_outputFinalStatePJKey)){
00172           return StatusCode::FAILURE;
00173         }
00174       }
00175     }
00191   return StatusCode::SUCCESS;
00192   }

StatusCode Atlfast::AtlfastProtoJetMaker::finalize ( )

standard Athena-Algorithm method

Definition at line 118 of file AtlfastProtoJetMaker.cxx.

00119   {
00120     MsgStream log( messageService(), name() );
00121     log << MSG::DEBUG <<"AtlfastProtoJetllMaker finalize()" << endreq;
00122     return StatusCode::SUCCESS;
00123   }

template<class T1, class T2>

StatusCode Atlfast::AtlfastProtoJetMaker::FillProtoJets	(	const std::vector< T1 * > &	,
		T2 *	,
		const std::string &
	)			`[inline, private]`

Definition at line 99 of file AtlfastProtoJetMaker.h.

00101                                                                           {
00102     bool smear = false;
00103     return this->FillProtoJets(vec,
00104                                proJ,
00105                                PJoutputLocation,
00106                                smear);
00107   }//----------------------------------------------------------------------

template<class T1, class T2>

StatusCode Atlfast::AtlfastProtoJetMaker::FillProtoJets	(	const std::vector< T1 * > &	,
		T2 *	,
		const std::string &	,
		bool
	)			`[inline, private]`

Definition at line 111 of file AtlfastProtoJetMaker.h.

00114                                                    {
00115     MsgStream log( messageService(), name() ) ;
00116     ProtoJetCollection<ProtoJet>* pjs = new ProtoJetCollection<ProtoJet>;
00117     typename std::vector<T1*>::const_iterator itr = vec.begin();
00118     HepLorentzVector hepvec;
00119       for (; itr != vec.end(); ++itr) {
00120       hepvec = (*itr)->momentum();
00121       if(smear){
00122         hepvec = m_smearer->smear(hepvec);
00123       }
00124       proJ = new T2(hepvec);
00125       pjs->push_back(proJ);
00126       }
00127     log << MSG::DEBUG << "Size of vector"<<pjs->size() << endreq;
00128     //store protojets
00129     TesIoStat stat = m_tesIO -> store(pjs, PJoutputLocation);
00130     std::string message;
00131     message = stat ? "AtlfastProtoJet stored by key":
00132       "Failed to store AtlfastProtoJet by key";
00133     log<<MSG::DEBUG<<message<<endreq;
00134     if (!stat) {return StatusCode::FAILURE;}
00135     return (stat)? StatusCode::SUCCESS:StatusCode::FAILURE;
00136   }//-------------------------------------------------------------------------

template<class T1, class T2>

StatusCode Atlfast::AtlfastProtoJetMaker::FillProtoJets	(	const std::vector< T1 * > &	,
		T2 *
	)			`[inline, private]`

Definition at line 140 of file AtlfastProtoJetMaker.h.

00140                                                                           {
00141     MsgStream log( messageService(), name() ) ;
00142     ObjectVector<ProtoJet>* pjs = new ObjectVector<ProtoJet>;
00143     typename std::vector<T1*>::const_iterator itr = vec.begin();
00144     for (; itr != vec.end(); ++itr) {
00145       proJ = new T2((*itr)->momentum());
00146       pjs->push_back(proJ);
00147     }
00148     log << MSG::DEBUG << "Size of vector"<<pjs->size() << endreq;
00149     //store protojets
00150     TesIoStat stat = m_tesIO -> store(pjs);
00151     message = stat ? "AtlfastProtoJet stored by type":
00152       "Failed to store AtlfastProtoJet type";
00153     log<<MSG::DEBUG<<message<<endreq;
00154     return (stat)? StatusCode::SUCCESS:StatusCode::FAILURE;
00155   }

Member Data Documentation

std::string Atlfast::AtlfastProtoJetMaker::m_inputCellLocation [private]

StoreGate Keys for input objects (Cells,CLusters)

Definition at line 59 of file AtlfastProtoJetMaker.h.

std::string Atlfast::AtlfastProtoJetMaker::m_inputClusterLocation [private]

Definition at line 60 of file AtlfastProtoJetMaker.h.

std::string Atlfast::AtlfastProtoJetMaker::m_outputTowerPJKey [private]

StoreGate Keys for output objects (ProtoJets)

Definition at line 62 of file AtlfastProtoJetMaker.h.

std::string Atlfast::AtlfastProtoJetMaker::m_outputClusterPJKey [private]

Definition at line 63 of file AtlfastProtoJetMaker.h.

std::string Atlfast::AtlfastProtoJetMaker::m_outputFinalStatePJKey [private]

Definition at line 64 of file AtlfastProtoJetMaker.h.

TesIO* Atlfast::AtlfastProtoJetMaker::m_tesIO [private]

member variables

Definition at line 66 of file AtlfastProtoJetMaker.h.

bool Atlfast::AtlfastProtoJetMaker::m_towerPJConstruct [private]

Definition at line 67 of file AtlfastProtoJetMaker.h.

bool Atlfast::AtlfastProtoJetMaker::m_clusterPJConstruct [private]

Definition at line 68 of file AtlfastProtoJetMaker.h.

bool Atlfast::AtlfastProtoJetMaker::m_finalStatePJConstruct [private]

Definition at line 69 of file AtlfastProtoJetMaker.h.

bool Atlfast::AtlfastProtoJetMaker::m_towerPJSmearOn [private]

Definition at line 70 of file AtlfastProtoJetMaker.h.

bool Atlfast::AtlfastProtoJetMaker::m_clusterPJSmearOn [private]

Definition at line 71 of file AtlfastProtoJetMaker.h.

std::string Atlfast::AtlfastProtoJetMaker::m_mcLocation [private]

Definition at line 74 of file AtlfastProtoJetMaker.h.

ISmearer* Atlfast::AtlfastProtoJetMaker::m_smearer [private]

Definition at line 82 of file AtlfastProtoJetMaker.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/AtlfastAlgs/AtlfastProtoJetMaker.h
/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/src/AtlfastProtoJetMaker.cxx

Generated on Mon Sep 24 14:19:34 2007 for AtlfastAlgs by

1.5.1

Atlfast::AtlfastProtoJetMaker Class Reference

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
