Atlfast::ClusterMaker

Atlfast::ClusterMaker Class Reference

Creates Atlfast::Clusters from Atlfast::IKinematic inputs. More...

#include <ClusterMaker.h>

Collaboration diagram for Atlfast::ClusterMaker:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ClusterMaker (const std::string &name, ISvcLocator *pSvcLocator)
virtual ~ClusterMaker ()
StatusCode initialize ()
StatusCode execute ()
StatusCode finalize ()

Private Member Functions

double rCone ()

Private Attributes

double m_rConeBarrel
double m_rConeForward
double m_minInitiatorET
double m_minClusterET
bool m_masslessJets
std::string m_strategy
IClusterStrategy * m_clusterStrategy
bool m_processTracks
bool m_processCells
std::string m_inputCellLocation
std::string m_inputTrackLocation
std::string m_outputLocation
std::string m_unusedCellLocation
std::string m_unusedTrackLocation
double m_ktRParameter
std::string m_ktAngle
std::string m_ktRecomScheme
int m_ktYCut
KinematicHelper m_kinehelp
TesIO * m_tesIO
std::string m_mcLocation

Detailed Description

Creates Atlfast::Clusters from Atlfast::IKinematic inputs.

ClusterMaking is currently defined as a process which uses Cells from the TES and forms Clusters from them. The strategy employed is to sum all Cells in a given R-cone around an initiator.
[Note: This might be more correctly called pre-jet formation as the R-cones are of jet size and therefore this algorithm does not really correspond to the normal notion of forming clusters from,say, adjacent energy deposits.]

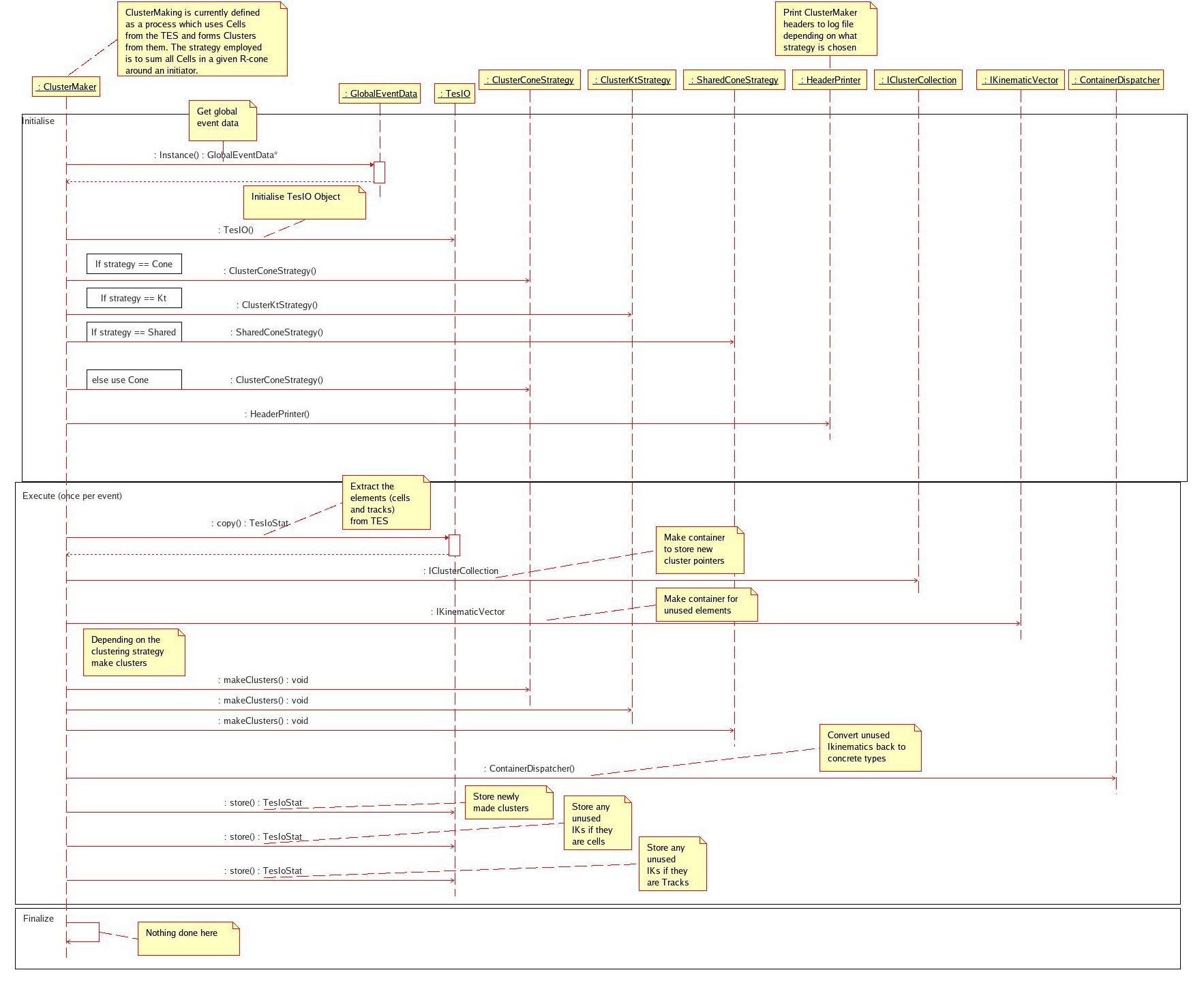

ClusterMaker sequence

Definition at line 117 of file ClusterMaker.h.

Constructor & Destructor Documentation

Atlfast::ClusterMaker::ClusterMaker ( const std::string &  name,
ISvcLocator *  pSvcLocator
)

Standard Athena-Atlfast Constructor

Definition at line 47 of file ClusterMaker.cxx.

00048     : Algorithm( name, pSvcLocator ),
00049       m_clusterStrategy(0),
00050       m_tesIO(0)
00051   {
00052
00053     // Setting the parameter defaults.
00054     m_rConeBarrel         = 0.401; //+.001 avoids grid problem
00055     m_rConeForward        = 0.401;
00056     m_minInitiatorET      = 1.5*GeV;
00057     m_minClusterET        = 5.0*GeV;
00058     m_processCells        = true;
00059     m_processTracks       = false;
00060     m_inputCellLocation   = "/Event/AtlfastCells" ;
00061     m_inputTrackLocation  = "/Event/AtlfastTracks" ;
00062     m_outputLocation      = "/Event/AtlfastClusters";
00063     m_unusedCellLocation  = "/Event/AtlfastUnusedCells";
00064     m_unusedTrackLocation = "/Event/AtlfastUnusedTracks";
00065     m_masslessJets        = true;
00066     m_strategy            = "Cone";
00067     //=====================
00068     m_ktRParameter         = 1.0;
00069     m_ktAngle             = "deltaR";
00070     m_ktRecomScheme        = "E";
00071     m_ktYCut              = 0;
00072     // Declare the paramemters to Gaudi so that
00073     // they can be over-written via the job options file
00074
00075     declareProperty( "RConeBarrel",         m_rConeBarrel ) ;
00076     declareProperty( "RConeForward",        m_rConeForward ) ;
00077     declareProperty( "minInitiatorET",      m_minInitiatorET ) ;
00078     declareProperty( "minClusterET",        m_minClusterET ) ;
00079     declareProperty( "Strategy",            m_strategy ) ;
00080     declareProperty( "ProcessCells",        m_processCells ) ;
00081     declareProperty( "ProcessTracks",       m_processTracks ) ;
00082     declareProperty( "InputCellLocation",   m_inputCellLocation ) ;
00083     declareProperty( "InputTrackLocation",  m_inputTrackLocation ) ;
00084     declareProperty( "OutputLocation",      m_outputLocation ) ;
00085     declareProperty( "UnusedCellLocation",  m_unusedCellLocation ) ;
00086     declareProperty( "UnusedTrackLocation", m_unusedTrackLocation ) ;
00087     declareProperty( "MasslessJets",        m_masslessJets ) ;
00088     //==============================================
00089     declareProperty( "KtRParameter",         m_ktRParameter ) ;
00090     declareProperty( "KtAngle",            m_ktAngle ) ;
00091     declareProperty( "KtRecomScheme",      m_ktRecomScheme ) ;
00092     declareProperty( "KtYCut",             m_ktYCut ) ;
00093
00094   }

Atlfast::ClusterMaker::~ClusterMaker (  )  [virtual]

Default Destructor

Definition at line 97 of file ClusterMaker.cxx.

00097                               {
00098     if(m_tesIO){
00099       delete m_tesIO;
00100     }
00101     if(m_clusterStrategy){
00102       delete m_clusterStrategy;
00103     }
00104   }

Member Function Documentation

StatusCode Atlfast::ClusterMaker::initialize (  )

Standard Athena-Algorithm method

Definition at line 111 of file ClusterMaker.cxx.

00111                                      {
00112
00113    MsgStream log( messageService(), name() ) ;
00114    log << MSG::DEBUG<< "Cluster Maker initialising " << endreq;
00115
00116    //moved this before TesIO
00117    GlobalEventData* ged = GlobalEventData::Instance();
00118    m_mcLocation  = ged -> mcLocation();
00119
00120    //    m_tesIO = new TesIO( eventDataService() );
00121    m_tesIO = new TesIO(m_mcLocation, ged->justHardScatter());
00122
00123     if(m_strategy == "Cone"){
00124       m_clusterStrategy = new ClusterConeStrategy(
00125                                                   m_rConeBarrel,
00126                                                   m_rConeForward,
00127                                                   m_minInitiatorET,
00128                                                   m_minClusterET,
00129                                                   m_masslessJets);
00130
00131     } else if(m_strategy == "Kt"){
00132       m_clusterStrategy = new ClusterKtStrategy(m_minClusterET,m_ktRParameter,m_ktAngle,m_ktRecomScheme,m_ktYCut);
00133     } else if(m_strategy == "Shared"){
00134       double barrelForwardEta = ged -> barrelForwardEta();
00135       m_clusterStrategy = new SharedConeStrategy(m_rConeBarrel,
00136                                                  m_rConeForward,
00137                                                  m_minInitiatorET,
00138                                                  m_minClusterET,
00139                                                  barrelForwardEta);
00140     }else{
00141       m_clusterStrategy = new ClusterConeStrategy(
00142                                                   m_rConeBarrel,
00143                                                   m_rConeForward,
00144                                                   m_minInitiatorET,
00145                                                   m_minClusterET,
00146                                                   m_masslessJets);
00147
00148       m_strategy = "Cone";
00149     }
00150
00151     HeaderPrinter hp("Atlfast Cluster Maker:", log);
00152     hp.add("Cluster Strategy            ", m_strategy);
00153     if(m_strategy == "Kt"){
00154       hp.add( "Kt R-Parameter              ", m_ktRParameter ) ;
00155       hp.add( "Kt Angle                    ", m_ktAngle ) ;
00156       hp.add( "Kt Recombination Scheme     ", m_ktRecomScheme ) ;
00157       hp.add( "Kt Y-Merge value            ", m_ktYCut ) ;
00158     }else{
00159       hp.add("Endcap Cone Size             ", m_rConeForward);
00160       hp.add("Barrel Cone Size             ", m_rConeBarrel);
00161       hp.add("Min ET for Cell initiator    ", m_minInitiatorET);
00162     }
00163     hp.add("Min ET for cluster          ", m_minClusterET);
00164     hp.add("Process Cells               ", m_processCells);
00165     hp.add("Process Tracks              ", m_processTracks);
00166     if(m_processCells){
00167       hp.add("Input CellLocation          ", m_inputCellLocation);
00168     }
00169     if(m_processTracks) {
00170       hp.add("Input TrackLocation         ", m_inputTrackLocation);
00171     }
00172     hp.add("Output Location             ", m_outputLocation);
00173     hp.add("Unused Cell Location        ", m_unusedCellLocation);
00174     hp.add("Unused Track Location       ", m_unusedTrackLocation);
00175     hp.add("Massless Jets               ", m_masslessJets);
00176     hp.print();
00177
00178     return StatusCode::SUCCESS ;
00179   }

StatusCode Atlfast::ClusterMaker::execute (  )

Standard Athena-Algorithm method

Definition at line 202 of file ClusterMaker.cxx.

00202                                    {
00203     MsgStream log( messageService(), name() ) ;
00204     std::string message;
00205     //.........................................................
00206     // Extract the elements (cells, tracks..) from the TES
00207     //
00208     //copy to vector -cannot use DataVector fo r type change!
00209     std::vector<IKinematic*> elements;
00210
00211     TesIoStat stat;
00212     if(m_processCells){
00213       stat = m_tesIO->copy<ITwoCptCellCollection>(elements,
00214                                                   m_inputCellLocation);
00215       message = stat?  "Found Cells in TES":"No Cells found in TES";
00216       log<<MSG::DEBUG << message <<" "<<elements.size()<<endreq;
00217     }
00218     if(m_processTracks){
00219       stat = m_tesIO->copy<TrackCollection>(elements, m_inputTrackLocation);
00220       message = stat?  "Found Tracks in TES":"No Tracks found in TES";
00221       log<<MSG::DEBUG << message <<" "<<elements.size()<<endreq;
00222     }
00223     // ......................
00224     // Make a containers to store the new Cluster pointers,
00225     // and unused elements
00226
00227     IClusterCollection* clusters = new IClusterCollection ;
00228     IKinematicVector unusedLocalElements;
00229
00230     log << MSG::DEBUG << "Starting Clustering Strategy"  << endreq ;
00231
00232     m_clusterStrategy->makeClusters(
00233                                     log,
00234                                     elements,
00235                                     unusedLocalElements,
00236                                     clusters
00237                                     ) ;
00238
00239     //......................................
00240     // Set up for conversions of unused IKinematics back to concrete types
00241     //
00242     log<<MSG::DEBUG
00243        <<"Number Of Unused Local Elements "
00244        << unusedLocalElements.size()<<endreq;
00245     //    TypeRecoverer atr(unusedLocalElements);
00246     TypeVisitor types = ContainerDispatcher(
00247                                           unusedLocalElements.begin(),
00248                                           unusedLocalElements.end(),
00249                                           TypeVisitor()
00250                                           );
00251     //log<<MSG::DEBUG <<"Recovered Types "<<endreq;
00252
00253
00254     //Register the newly made clusters
00255     stat = m_tesIO -> store(clusters, m_outputLocation);
00256     message = stat ?  "Clusters stored":"Failed to store Clusters ";
00257     log<<MSG::DEBUG<<message<<endreq;
00258     //  Register the any unused IKs if they are Cells
00259     stat = m_tesIO -> store(new TwoCptCellVector(types.typeVector(TwoCptCell())),
00260                             m_unusedCellLocation);
00261     message =stat? "unused cells stored":"unused cells store failed";
00262     log<<MSG::DEBUG<<message<<endreq;
00263     //log<<MSG::DEBUG<<"Number Of Unused Cells "<< atr.cells()->size()<<endreq;
00264     //  Register the any unused IKs if they are Tracks
00265     stat = m_tesIO -> store(new TrackVector(types.typeVector(Track())),
00266                             m_unusedTrackLocation);
00267     message =stat? "unused tracks stored":"unused cells store failed";
00268     log<<MSG::DEBUG<<message<<endreq;
00269     //log<<MSG::DEBUG<<"Number Of Unused Tracks "<< atr.tracks()->size()<<endreq;
00270     return stat ;
00271
00272   }

StatusCode Atlfast::ClusterMaker::finalize (  )

Standard Athena-Algorithm method

Definition at line 185 of file ClusterMaker.cxx.

00185                                    {
00186     return StatusCode::SUCCESS ;
00187   }

double Atlfast::ClusterMaker::rCone (  )  [private]

Looks up R-cone size according to position of initiator.

Member Data Documentation

double Atlfast::ClusterMaker::m_rConeBarrel [private]

R-cone size for summation of Cells within barrel region

Definition at line 159 of file ClusterMaker.h.

double Atlfast::ClusterMaker::m_rConeForward [private]

R-cone size for summation of Cells within forward regions

Definition at line 161 of file ClusterMaker.h.

double Atlfast::ClusterMaker::m_minInitiatorET [private]

Minimun eT needed for a Cell to initiate a new Cluster

Definition at line 164 of file ClusterMaker.h.

double Atlfast::ClusterMaker::m_minClusterET [private]

Minimum eT which a candidate cluster must have to be retained

Definition at line 167 of file ClusterMaker.h.

bool Atlfast::ClusterMaker::m_masslessJets [private]

Whether to construct Clusters (jets) as massless or not

Definition at line 170 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_strategy [private]

Cluster Strategy

Definition at line 173 of file ClusterMaker.h.

IClusterStrategy* Atlfast::ClusterMaker::m_clusterStrategy [private]

Definition at line 174 of file ClusterMaker.h.

bool Atlfast::ClusterMaker::m_processTracks [private]

What to process

Definition at line 176 of file ClusterMaker.h.

bool Atlfast::ClusterMaker::m_processCells [private]

Definition at line 177 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_inputCellLocation [private]

TES input locations

Definition at line 179 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_inputTrackLocation [private]

Definition at line 180 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_outputLocation [private]

TES output Cluster location

Definition at line 182 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_unusedCellLocation [private]

TES output unused tracks and clusters location

Definition at line 184 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_unusedTrackLocation [private]

Definition at line 185 of file ClusterMaker.h.

double Atlfast::ClusterMaker::m_ktRParameter [private]

Kt Cluster Parameters

Definition at line 188 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_ktAngle [private]

Definition at line 189 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_ktRecomScheme [private]

Definition at line 190 of file ClusterMaker.h.

int Atlfast::ClusterMaker::m_ktYCut [private]

Calculates y-cut value for jet merging, if set to zero no sub-jet analysis performed

Definition at line 192 of file ClusterMaker.h.

KinematicHelper Atlfast::ClusterMaker::m_kinehelp [private]

Help with common kinematic operations

Definition at line 199 of file ClusterMaker.h.

TesIO* Atlfast::ClusterMaker::m_tesIO [private]

helper class to deal with TES I/O 1

Definition at line 221 of file ClusterMaker.h.

std::string Atlfast::ClusterMaker::m_mcLocation [private]

Definition at line 224 of file ClusterMaker.h.

The documentation for this class was generated from the following files:
Generated on Mon Sep 24 14:19:37 2007 for AtlfastAlgs by  doxygen 1.5.1
