Atlfast::DefaultReconstructedParticleMaker

Atlfast::DefaultReconstructedParticleMaker Class Reference

Fast simulates a specified particle type from the MC truth. More...

#include <DefaultReconstructedParticleMaker.h>

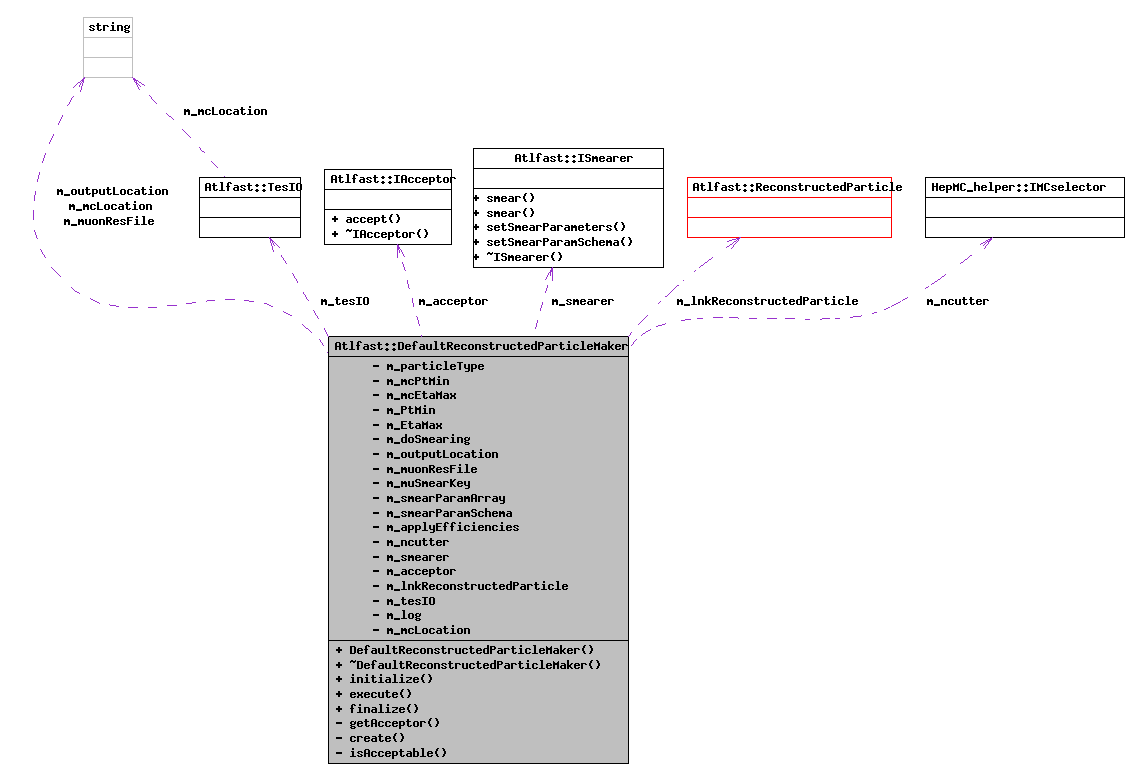

Collaboration diagram for Atlfast::DefaultReconstructedParticleMaker:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 DefaultReconstructedParticleMaker (const std::string &name, ISvcLocator *pSvcLocator)
virtual ~DefaultReconstructedParticleMaker ()
virtual StatusCode initialize ()
virtual StatusCode execute ()
virtual StatusCode finalize ()

Private Types

typedef std::vector< HepMC::GenParticle * > t_MC_particleCollection
typedef std::vector< HepMC::GenParticle
* >::iterator 		t_MC_particleIterator

Private Member Functions

void getAcceptor ()
virtual ReconstructedParticle * create (const HepMC::GenParticle *)
virtual bool isAcceptable (const ReconstructedParticle *)

Private Attributes

int m_particleType
double m_mcPtMin
double m_mcEtaMax
double m_PtMin
double m_EtaMax
bool m_doSmearing
std::string m_outputLocation
std::string m_muonResFile
int m_muSmearKey
std::vector< double > m_smearParamArray
int m_smearParamSchema
bool m_applyEfficiencies
HepMC_helper::IMCselector * m_ncutter
ISmearer * m_smearer
IAcceptor * m_acceptor
ReconstructedParticle * m_lnkReconstructedParticle
TesIO * m_tesIO
MsgStream m_log
std::string m_mcLocation

Detailed Description

Fast simulates a specified particle type from the MC truth.

Reads Monte Carlo particle truth information from the TES and selects a specific particle species (set via a parameter).
For each such MC truth particle it creates a ReconstructedParticle instance. The ReconstructedParticle is created with a smeared energy which can be different for different species.
The ReconstructedParticles are written to the TES

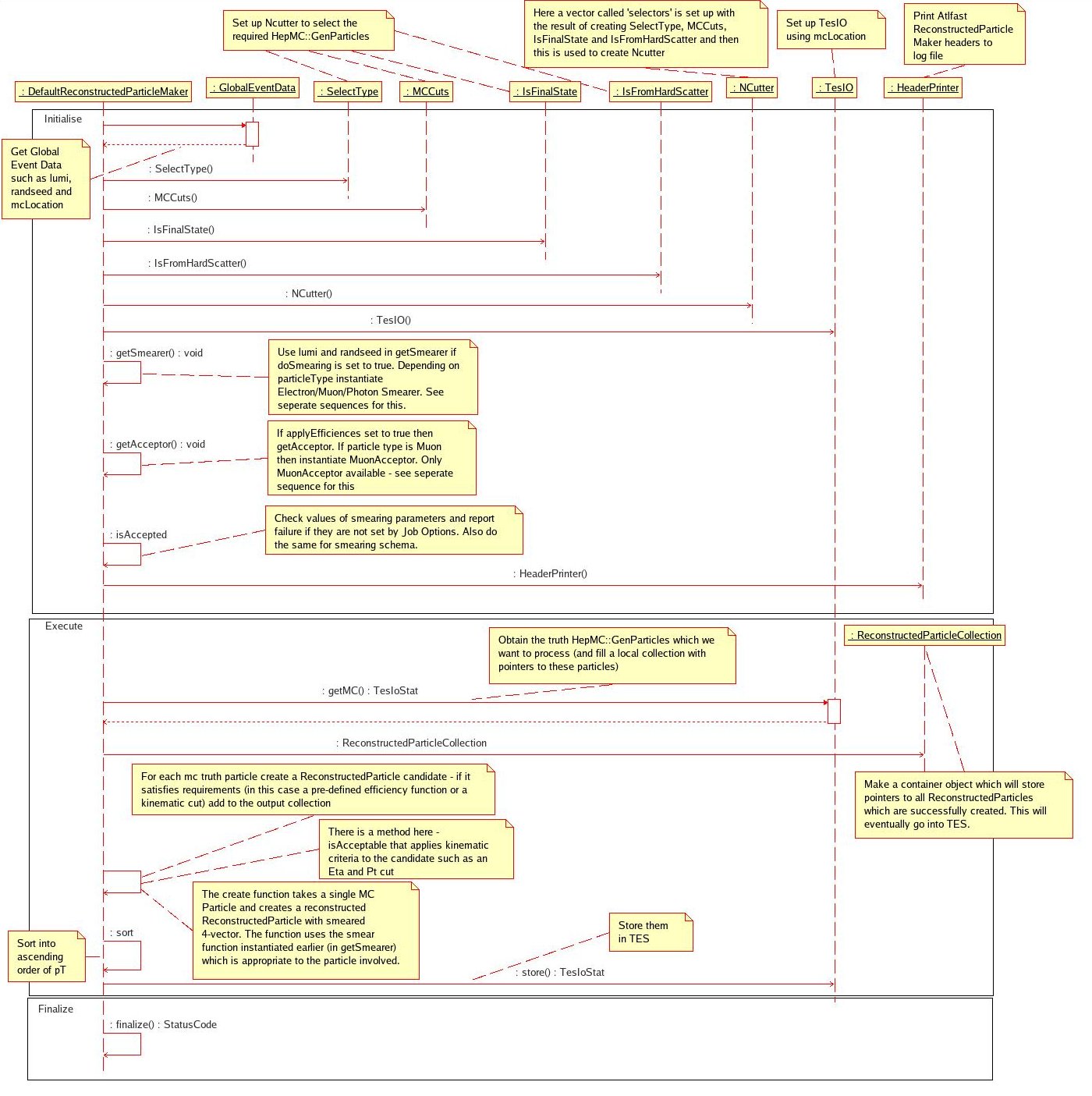

DefaultReconstructedParticleMaker sequence

Definition at line 89 of file DefaultReconstructedParticleMaker.h.

Member Typedef Documentation

typedef std::vector<HepMC::GenParticle*> Atlfast::DefaultReconstructedParticleMaker::t_MC_particleCollection [private]

Definition at line 122 of file DefaultReconstructedParticleMaker.h.

typedef std::vector<HepMC::GenParticle*>::iterator Atlfast::DefaultReconstructedParticleMaker::t_MC_particleIterator [private]

Definition at line 123 of file DefaultReconstructedParticleMaker.h.

Constructor & Destructor Documentation

Atlfast::DefaultReconstructedParticleMaker::DefaultReconstructedParticleMaker ( const std::string &  name,
ISvcLocator *  pSvcLocator
)

Standard Athena-Algorithm Constructor

Definition at line 51 of file DefaultReconstructedParticleMaker.cxx.

00052     : Algorithm( name, pSvcLocator ),
00053       m_ncutter(0),
00054       m_smearer(0),
00055       m_acceptor(0),
00056       m_lnkReconstructedParticle(0),
00057       m_tesIO(0),
00058       m_log( messageService(), name )
00059   {
00060
00061     // Set the parameter defaults.
00062     m_particleType      = 11;
00063     m_mcPtMin           = 0.0*GeV;
00064     m_mcEtaMax          = 100.0;
00065     m_PtMin             = 5.0*GeV;
00066     m_EtaMax            = 2.5;
00067     m_doSmearing        = true;
00068     m_muSmearKey        = 1;
00069     m_outputLocation    = "/Event/AtlfastReconstructedParticle" ;
00070     m_muonResFile       = "atlfastDatafiles/MuonResolutionTable.xml" ;
00071     m_smearParamSchema  = 1;
00072     m_applyEfficiencies = false;
00073
00074     // Declare the parameters to Gaudi so that
00075     // they can be over-written via the job options file
00076     declareProperty( "ParticleType",     m_particleType ) ;
00077     declareProperty( "mcMinimumPt",      m_mcPtMin ) ;
00078     declareProperty( "mcMaximumEta",     m_mcEtaMax ) ;
00079     declareProperty( "MinimumPt",        m_PtMin ) ;
00080     declareProperty( "MaximumEta",       m_EtaMax ) ;
00081     declareProperty( "DoSmearing",       m_doSmearing );
00082     declareProperty( "OutputLocation",   m_outputLocation ) ;
00083     declareProperty( "MuonResFile",      m_muonResFile ) ;
00084     declareProperty( "MuonSmearKey",     m_muSmearKey );
00085
00086     //cct: declare the smearing parameters and schema.
00087     // It is possible these JOs will not be found
00088     // (say, if someone uses AtlfastKStandardOptions.py).
00089     // In this case, the smearer would overwrite its constructor
00090     // defaults with -9999 and an STL vector of size 0, which will mess up
00091     // the smearing. Therefore if nothing is found, we stop athena running.
00092     //
00093     // I had originally thought it would be enough to just omit calling
00094     // the setSmearParamArray and/or setSmearParamSchema methods if no JOs
00095     // are found, but I decided it is not enough. This is because if, in the future,
00096     // the defaults change (in AtlfastStandardOptions, for example) then someone
00097     // runs using AtlfastKStandardOptions, the code picks up the defaults from the
00098     // constructor in the smearer. Unless someone has maintained the default values
00099     // in the smearer .h file, the defaults used will be the old, wrong ones.
00100     // in short, it is hard to maintain!
00101     //
00102     // The only assumption we make by having smearParamArray and smearParamSchema
00103     // in the jobOptions and failing if they are not fould is that if the defaults change,
00104     // they should be changed in ALL jobOptions.
00105     // Currently, this is:
00106     //  share/Atlfast_CBNT.py
00107     //  share/AtlfastIKinematicDumperStandardOptions.py
00108     //  share/AtlfastKStandardOptions.py
00109     //  share/AtlfastStandardOptions.py
00110     //
00111     //NB: the reason for all this is that the smearer is NOT an algorithm,
00112     //so can not have Gaudi Properties.
00113     //DefaultReconstructedParticleMaker is an algorithm so can have properties.
00114     //Defaults must be set before properties are declared.
00115     //Different particle smearers have different defaults, so we can not set these
00116     //to any sensible values before the properties are loaded. We can only set defaults
00117     //inside the smearer and these are then overridden by the 'set' method to potentially
00118     //give junk physics...
00119     declareProperty( "SmearParamArray", m_smearParamArray );
00120     declareProperty( "SmearParamSchema",m_smearParamSchema );
00121
00122     // Option to apply efficiencies at particle creation stage
00123     declareProperty( "ApplyEfficiencies", m_applyEfficiencies );
00124
00125   }

Atlfast::DefaultReconstructedParticleMaker::~DefaultReconstructedParticleMaker (  )  [virtual]

Default Destructor

Definition at line 131 of file DefaultReconstructedParticleMaker.cxx.

00131                                                                         {
00132
00133     m_log << MSG::INFO << "Destructor Called" << endreq;
00134
00135     if (m_smearer) {
00136       m_log << MSG::INFO << "Deleting smearer" << endreq;
00137       delete m_smearer;
00138     }
00139     if (m_acceptor) {
00140       m_log << MSG::INFO << "Deleting acceptor" << endreq;
00141       delete m_acceptor;
00142     }
00143     if (m_tesIO) {
00144       m_log << MSG::INFO << "Deleting smearer" << endreq;
00145       delete m_tesIO;
00146     }
00147     if (m_ncutter) {
00148       m_log << MSG::INFO << "Deleting smearer" << endreq;
00149       delete m_ncutter;
00150     }
00151
00152     if (m_lnkReconstructedParticle) delete m_lnkReconstructedParticle;
00153
00154   }

Member Function Documentation

StatusCode Atlfast::DefaultReconstructedParticleMaker::initialize (  )  [virtual]

Standard Athena-Algorithm method

Definition at line 161 of file DefaultReconstructedParticleMaker.cxx.

00162   {
00163
00164     // This method is called by Athena once only, after all
00165     // properties have been set.
00166
00167     // Set up NCutter to select the required HepMC::GenParticles
00168     typedef HepMC_helper::IMCselector Selector;
00169
00170     Selector* typeSelector = new HepMC_helper::SelectType( m_particleType);
00171     Selector* kineSelector = new HepMC_helper::MCCuts(m_mcPtMin, m_mcEtaMax);
00172     Selector* fstaSelector = new HepMC_helper::IsFinalState();
00173     Selector* fhscSelector = new HepMC_helper::IsFromHardScatter();
00174
00175     vector<HepMC_helper::IMCselector*> selectors;
00176     selectors.push_back(fhscSelector);
00177     selectors.push_back(fstaSelector);
00178     selectors.push_back(typeSelector);
00179     selectors.push_back(kineSelector);
00180
00181     m_ncutter = new HepMC_helper::NCutter(selectors);
00182
00183     delete typeSelector;
00184     delete kineSelector;
00185     delete fstaSelector;
00186     delete fhscSelector;
00187     //=======================================================
00188
00189
00190
00191
00192     //get the Global Event Data using singleton pattern
00193     GlobalEventData* ged = GlobalEventData::Instance();
00194     int lumi =       ged->lumi();
00195     int randSeed =   ged->randSeed();
00196
00197     m_tesIO = new TesIO(ged->mcLocation(), ged->justHardScatter());
00198
00199     //=====================
00200     if (m_doSmearing){
00201       m_smearer = ISmearerFactory::create( m_particleType,
00202                                            randSeed,
00203                                            lumi,
00204                                            m_muSmearKey,
00205                                            m_muonResFile,
00206                                            m_log,
00207                                            m_smearParamArray,
00208                                            m_smearParamSchema );
00209     } else {
00210       m_smearer = NULL;
00211     }
00212
00213     //=====================
00214     if (m_applyEfficiencies) this->getAcceptor();
00215     else m_acceptor = NULL;
00216
00217     HeaderPrinter hp("Atlfast ReconstructedParticle Maker:", m_log);
00218     hp.add("Particle Type           ", m_particleType);
00219     hp.add("Luminosity              ", lumi);
00220     hp.add("Minimum four-vector Pt  ", m_mcPtMin);
00221     hp.add("Maximum four-vector Eta ", m_mcEtaMax);
00222     hp.add("Minimum particle    Pt  ", m_PtMin);
00223     hp.add("Maximum particle    Eta ", m_EtaMax);
00224     hp.add("Do Smearing             ", m_doSmearing);
00225     hp.add("Muon  Smearing Flag     ", m_muSmearKey);
00226     hp.add("Random Number Seed      ", randSeed);
00227     hp.add("MC location             ", ged->mcLocation());
00228     hp.add("Output Location         ", m_outputLocation);
00229     hp.add("Muon Resolution File    ", m_muonResFile);
00230     hp.print();
00231
00232     //stop execution if no smearparamschema or smearParamArray are found.
00233     if(m_smearParamArray.size() == 0){
00234       m_log << MSG::WARNING <<"No smearing parameters found in ATLFAST jobOptions..."<< endreq;
00235     }else{
00236       m_log << MSG::INFO  << "Smearing Array m_smearParamArray set to: "<< m_smearParamArray << endreq;
00237     }
00238     if(m_smearParamSchema == -9999){
00239       m_log << MSG::FATAL <<"No smearing schema found in ATLFAST jobOptions..."<< endreq;
00240       return StatusCode::FAILURE;
00241     }else{
00242       m_log << MSG::INFO  << "Smearing Schema m_smearParamSchema set to: "<< m_smearParamSchema << endreq;
00243     }
00244
00245     return StatusCode::SUCCESS;
00246   }

StatusCode Atlfast::DefaultReconstructedParticleMaker::execute (  )  [virtual]

Standard Athena-Algorithm method

Definition at line 281 of file DefaultReconstructedParticleMaker.cxx.

00282   {
00283
00284     std::string mess;
00285     m_log << MSG::DEBUG << "Execute() " << endreq;
00286
00287
00288     //.............................
00289     // Obtain the truth HepMC::GenParticles which we want to process.
00290     // We fill a local collection with pointers to these Particles.
00291     // The private method which is used applies selection criteria
00292     // to the HepMC::GenParticles before placing them in the collection
00293
00294     MCparticleCollection  my_MC_particles ;
00295     MCparticleCollectionCIter src ;
00296
00297     TesIoStat stat = m_tesIO->getMC( my_MC_particles, m_ncutter ) ;
00298     mess = stat? "Retrieved MC from TES ":"Failed MC retrieve from TES";
00299     m_log << MSG::DEBUG << mess << endreq;
00300
00301     // ......................
00302     // Make a container object which will store pointers to all
00303     // ReconstructedParticles which are successfully created.
00304     // Since it is going into the TES, it has to be a special Athena type
00305     // of container. This is defined in an include file.
00306
00307     ReconstructedParticleCollection* myReconstructedParticles
00308       = new ReconstructedParticleCollection ;
00309
00310
00311     //.........................................................
00312     // From each mc truth Particle, create a ReconstructedParticle candidate.
00313     // If it satisfies requirements add to the output collection
00314
00315     ReconstructedParticle* candidate ;
00316
00317     // Booleans for overall accept decision and kinematic and
00318     // pre-defined efficiency accept decisions separately
00319     bool accept = true, accept_kinematic = true, accept_efficiency = true;
00320
00321     for(src = my_MC_particles.begin() ; src != my_MC_particles.end() ; ++src){
00322
00323       candidate = this->create( *src );
00324
00325       // Accept decision based on pre-defined efficiency function
00326       if (m_applyEfficiencies){
00327         bool instance_check = m_acceptor ? true : false;
00328         m_log << MSG::DEBUG << "Does m_acceptor point to anything sensible?: " << instance_check << endreq;
00329         accept_efficiency = ( m_acceptor && m_acceptor->accept( *candidate, m_log ) ) ? true : false;
00330         m_log << MSG::DEBUG << "m_acceptor && m_acceptor->accept( *candidate ) = "
00331             << accept_efficiency << endreq;
00332       }
00333       // Accept decision based on kinematic cuts
00334       accept_kinematic = this->isAcceptable( candidate );
00335
00336       accept = m_applyEfficiencies ?
00337         accept_efficiency && accept_kinematic :
00338         accept_kinematic;
00339
00340       if ( accept ) {
00341         m_log << MSG::DEBUG << "Accepted" << endreq;
00342         myReconstructedParticles->push_back( candidate );
00343       }else{
00344         m_log << MSG::DEBUG << "Rejected" << endreq;
00345         delete candidate;
00346       }
00347
00348     }
00349
00350
00351     //.....................................
00352     // Sort into ascending order of pT
00353
00354     if( myReconstructedParticles->size() > 0 ){
00355       sort( myReconstructedParticles->begin(),
00356             myReconstructedParticles->end(),
00357             SortAttribute::DescendingPT()
00358             ) ;
00359     }
00360
00361
00362     //......................................
00363     // Deal with resulting ReconstructedParticles (if any)
00364
00365     stat =m_tesIO->store( myReconstructedParticles, m_outputLocation );
00366     mess = stat? "Store to TES success":"Store to TES failure";
00367     m_log << MSG::DEBUG << mess << endreq;
00368
00369     m_log << MSG::DEBUG << "Ending<-------- " << endreq;
00370
00371     StatusCode sc=StatusCode::SUCCESS;
00372     return sc ;
00373
00374   }

StatusCode Atlfast::DefaultReconstructedParticleMaker::finalize (  )  [virtual]

Standard Athena-Algorithm method

Definition at line 252 of file DefaultReconstructedParticleMaker.cxx.

00253   {
00254
00255     m_log << MSG::INFO << "Finalizing" << endreq;
00256     return StatusCode::SUCCESS ;
00257   }

void Atlfast::DefaultReconstructedParticleMaker::getAcceptor (  )  [private]

Gets appropriate smearer for this particle type

Definition at line 470 of file DefaultReconstructedParticleMaker.cxx.

00470                                                      {
00471
00472     m_log << MSG::DEBUG << "Getting an acceptor" << endreq;
00473
00474     if (m_particleType == 13){
00475       m_acceptor = new MuonAcceptor(m_muSmearKey,m_log);
00476     }else{
00477       m_log << MSG::ERROR << "No Acceptor exists for this particle type!" << endreq;
00478       m_acceptor = NULL;
00479     }
00480
00481   }

ReconstructedParticle * Atlfast::DefaultReconstructedParticleMaker::create ( const HepMC::GenParticle *   )  [private, virtual]

Creates ReconstructedParticle from MC particles

Definition at line 391 of file DefaultReconstructedParticleMaker.cxx.

00391                                                                          {
00392
00393     HepLorentzVector evec;
00394
00395     if (m_doSmearing) {
00396
00397       // Ask our Smearer make a smeared 4-vector
00398       evec = m_smearer->smear( *src );
00399
00400       m_log << MSG::DEBUG
00401           << "\n\t"
00402           << "Unsmeared four-vector: "
00403           << src->momentum()
00404           << "\n\t"
00405           << "Smeared four-vector  : "
00406           << evec
00407           << endreq;
00408
00409     }else{
00410
00411       evec = src->momentum();
00412
00413     }
00414
00415     ReconstructedParticle* candidate =
00416       new ReconstructedParticle( src->pdg_id(), evec, src );
00417
00418     m_log << MSG::DEBUG
00419           << "Created ReconstructedParticle: \n\t "
00420           << candidate
00421           << endreq;
00422
00423     return candidate ;
00424
00425   }

bool Atlfast::DefaultReconstructedParticleMaker::isAcceptable ( const ReconstructedParticle *   )  [private, virtual]

Applies acceptance cuts

Definition at line 436 of file DefaultReconstructedParticleMaker.cxx.

00436                                            {
00437
00438     // Apply kinematic criteria to the candidate DefaultReconstructedParticle
00439
00440     if( candidate->pT() < m_PtMin ) {
00441       m_log << MSG::DEBUG
00442           << "Candidate failed pt cut: pt was "
00443           << candidate->pT()
00444           << " cut was "
00445           << m_PtMin
00446           << endreq;
00447       return false ;
00448     }
00449
00450     if( abs(candidate->eta()) > m_EtaMax ) {
00451       m_log << MSG::DEBUG
00452           << "Candidate failed max eta cut: eta was "
00453           << candidate->eta()
00454           << " cut was "
00455           << m_EtaMax
00456           << endreq;
00457       return false ;
00458     }
00459
00460     m_log << MSG::DEBUG
00461         << "Candidate passed selection cuts "
00462         << endreq ;
00463
00464     return true ;
00465   }

Member Data Documentation

int Atlfast::DefaultReconstructedParticleMaker::m_particleType [private]

Species to process

Definition at line 132 of file DefaultReconstructedParticleMaker.h.

double Atlfast::DefaultReconstructedParticleMaker::m_mcPtMin [private]

Minimum transverse momentum required

Definition at line 134 of file DefaultReconstructedParticleMaker.h.

double Atlfast::DefaultReconstructedParticleMaker::m_mcEtaMax [private]

Maximum required eta

Definition at line 136 of file DefaultReconstructedParticleMaker.h.

double Atlfast::DefaultReconstructedParticleMaker::m_PtMin [private]

minimum transverse momentum post construction

Definition at line 140 of file DefaultReconstructedParticleMaker.h.

double Atlfast::DefaultReconstructedParticleMaker::m_EtaMax [private]

Maximum eta

Definition at line 142 of file DefaultReconstructedParticleMaker.h.

bool Atlfast::DefaultReconstructedParticleMaker::m_doSmearing [private]

Flag to switch off smearing for debugging purposes

Definition at line 145 of file DefaultReconstructedParticleMaker.h.

std::string Atlfast::DefaultReconstructedParticleMaker::m_outputLocation [private]

TES output location

Definition at line 149 of file DefaultReconstructedParticleMaker.h.

std::string Atlfast::DefaultReconstructedParticleMaker::m_muonResFile [private]

Name of muon resolution input file

Definition at line 151 of file DefaultReconstructedParticleMaker.h.

int Atlfast::DefaultReconstructedParticleMaker::m_muSmearKey [private]

Muon smearing key

Definition at line 154 of file DefaultReconstructedParticleMaker.h.

std::vector<double> Atlfast::DefaultReconstructedParticleMaker::m_smearParamArray [private]

Definition at line 157 of file DefaultReconstructedParticleMaker.h.

int Atlfast::DefaultReconstructedParticleMaker::m_smearParamSchema [private]

Definition at line 159 of file DefaultReconstructedParticleMaker.h.

bool Atlfast::DefaultReconstructedParticleMaker::m_applyEfficiencies [private]

Definition at line 162 of file DefaultReconstructedParticleMaker.h.

HepMC_helper::IMCselector* Atlfast::DefaultReconstructedParticleMaker::m_ncutter [private]

Used to select HepMC::GenParticles by type

Definition at line 168 of file DefaultReconstructedParticleMaker.h.

ISmearer* Atlfast::DefaultReconstructedParticleMaker::m_smearer [private]

Smearer object which specialises the algorithm for a specific particle species 1

Definition at line 179 of file DefaultReconstructedParticleMaker.h.

IAcceptor* Atlfast::DefaultReconstructedParticleMaker::m_acceptor [private]

Definition at line 185 of file DefaultReconstructedParticleMaker.h.

ReconstructedParticle* Atlfast::DefaultReconstructedParticleMaker::m_lnkReconstructedParticle [private]

0..*

Definition at line 190 of file DefaultReconstructedParticleMaker.h.

TesIO* Atlfast::DefaultReconstructedParticleMaker::m_tesIO [private]

For accessing StoreGate

Definition at line 196 of file DefaultReconstructedParticleMaker.h.

MsgStream Atlfast::DefaultReconstructedParticleMaker::m_log [private]

For Athena messages

Definition at line 199 of file DefaultReconstructedParticleMaker.h.

std::string Atlfast::DefaultReconstructedParticleMaker::m_mcLocation [private]

holds the Storegate MC location

Definition at line 211 of file DefaultReconstructedParticleMaker.h.

The documentation for this class was generated from the following files:
Generated on Mon Sep 24 14:19:37 2007 for AtlfastAlgs by  doxygen 1.5.1
