Atlfast::ElectronSmearer

Atlfast::ElectronSmearer Class Reference

Electron implementation of the ISmearer interface. More...

#include <ElectronSmearer.h>

Inheritance diagram for Atlfast::ElectronSmearer:

Inheritance graph
[legend]

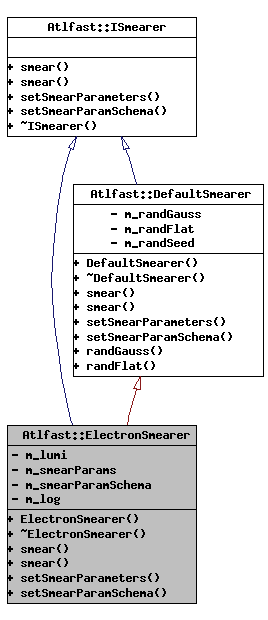

Collaboration diagram for Atlfast::ElectronSmearer:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ElectronSmearer (const int aseed, const int lumi, MsgStream &log)
virtual ~ElectronSmearer ()
virtual HepLorentzVector smear (const HepMC::GenParticle &)
virtual HepLorentzVector smear (const HepLorentzVector &avec)
virtual int setSmearParameters (const std::vector< double > &smearValues)
virtual int setSmearParamSchema (const int smearSchema)

Private Member Functions

RandGauss * randGauss ()
RandFlat * randFlat ()

Private Attributes

int m_lumi
std::vector< double > m_smearParams
int m_smearParamSchema
MsgStream & m_log

Detailed Description

Electron implementation of the ISmearer interface.

Privately inherits from the DefaultSmearer class to use its implementation of random number services etc. ElectronSmearer can run with TDR parameterisation (m_smearParamSchema==1) or with CSC parameterisation (m_smearParamSchema==2)

Definition at line 40 of file ElectronSmearer.h.

Constructor & Destructor Documentation

Atlfast::ElectronSmearer::ElectronSmearer ( const int  aseed,
const int  lumi,
MsgStream &  log
) [inline]

Constructor taking a random number seed and luminosity

Definition at line 48 of file ElectronSmearer.h.

00048                                                                        :
00049         ISmearer(), DefaultSmearer(aseed), m_lumi(lumi), m_log(log){}

virtual Atlfast::ElectronSmearer::~ElectronSmearer (  )  [inline, virtual]

Default Destructor

Definition at line 52 of file ElectronSmearer.h.

00052 { }

Member Function Documentation

HepLorentzVector Atlfast::ElectronSmearer::smear ( const HepMC::GenParticle &   )  [virtual]

Smear method for HepMC::GenParticle

Reimplemented from Atlfast::DefaultSmearer.

Definition at line 25 of file ElectronSmearer.cxx.

00025                                                                          {
00026     return smear(particle.momentum());
00027   }

HepLorentzVector Atlfast::ElectronSmearer::smear ( const HepLorentzVector &  avec  )  [virtual]

Smear method for HepLorentzVector

Reimplemented from Atlfast::DefaultSmearer.

Definition at line 29 of file ElectronSmearer.cxx.

00029                                                                        {
00030
00031     double rpilup = 0.0;
00032     double aa, bb, sigph1, sigph, sigpu;
00033     //Make sure momentum, aenergy units are Gev
00034     double ene     = avec.e()/GeV ;
00035     double sqrtene = sqrt(ene);
00036     double pt      = avec.perp()/GeV ;
00037     double vEta    = fabs(avec.pseudoRapidity());
00038     HepLorentzVector bvec(0,0,0,0);
00039
00040     if(m_smearParamSchema==1){ // TDR-style smearing
00041
00042       // do the smearing, copied verbatim (except for ROOT dependencies)
00043       // from electronmaker codein Atlfast++
00044       //
00045       // This code has not otherwise been altered which is why it is all very
00046       // procedural
00047       //
00048       // Parametrisation was by L.Poggioli
00049
00050       while (1) {
00051         aa=randGauss()->fire();
00052         //bb=randGauss()->fire();
00053         sigph1 = aa*m_smearParams[0]/sqrtene;
00054         if (1.0 + sigph1 <= 0.0) continue;
00055         sigph = sigph1;
00056         if (vEta < 1.4) {
00057           while (1) {
00058             aa=randGauss()->fire();
00059             bb=randGauss()->fire();
00060             sigph1 = aa*m_smearParams[1]/pt + bb*m_smearParams[2];
00061             if (1.0+sigph1 > 0) break;
00062           }
00063         } else {
00064           while (1) {
00065             aa=randGauss()->fire();
00066             bb=randGauss()->fire();
00067             sigph1 = aa*m_smearParams[3]*((m_smearParams[4]-vEta)+m_smearParams[5])/ene + bb*m_smearParams[6];
00068             //    sigph1 = aa*0.306*((2.4-vEta)+0.228)/ene + bb*0.007;
00069             if (1.0+sigph1 > 0) break;
00070           }
00071         }
00072         sigph += sigph1;
00073         if (m_lumi == 2) {
00074           if (vEta < 0.6) rpilup = 0.32;
00075           if (vEta > 0.6 && vEta < 1.4) rpilup = 0.295;
00076           if (vEta > 1.4) rpilup = 0.27;
00077           while (1) {
00078             aa=randGauss()->fire();
00079             //bb=randGauss()->fire();
00080             sigpu = aa*rpilup/pt;
00081             if (1.0+sigpu > 0) break;
00082           }
00083           sigph += sigpu;
00084         }
00085         if (1.0 + sigph > 0) break;
00086       }
00087
00088       //now sigph is the electron "sigma" and we do the following a la Atlfast++ electron maker:
00089       bvec.set(avec.px()*(1.0+sigph), avec.py()*(1.0+sigph), avec.pz()*(1.0+sigph), avec.e() *(1.0+sigph));
00090
00091     } else if (m_smearParamSchema==2){ // Smearing based on CSC sample tuning
00092
00093       double vE = avec.e();
00094
00095       double vLimEta=EtaElectron[NbEtaElectron-1]+(EtaElectron[NbEtaElectron-1]-EtaElectron[NbEtaElectron-2])*0.5;
00096
00097       if( vEta>vLimEta )
00098         {
00099           m_log<<MSG::DEBUG<<"No calibration : "<<vEta<<endreq;
00100           return avec;
00101         }
00102
00103       int iEnergy=0;
00104       m_log<<MSG::DEBUG<<vE<<" > "<<vEnergiesElectron[iEnergy]<<" ";
00105       while(iEnergy<NbEnergiesElectron&&vE>vEnergiesElectron[iEnergy]*1000)
00106         {
00107           m_log<<MSG::DEBUG<<vEnergiesElectron[iEnergy]<<" ";
00108           iEnergy++;
00109         }
00110       m_log<<MSG::DEBUG<<endreq;
00111       if(iEnergy==0)iEnergy++;
00112       double ratioEnergy=(vE*0.001-vEnergiesElectron[iEnergy-1])/(vEnergiesElectron[iEnergy]-vEnergiesElectron[iEnergy-1]);
00113
00114       int iEta=0;
00115       m_log<<MSG::DEBUG<<vEta<<" > "<<EtaElectron[iEta]<<" ";
00116       while(iEta<NbEtaElectron&&vEta>EtaElectron[iEta])
00117         {
00118           m_log<<MSG::DEBUG<<EtaElectron[iEta]<<" ";
00119           iEta++;
00120         }
00121       m_log<<MSG::DEBUG<<endreq;
00122
00123       if(iEta==0)iEta++;
00124       double ratioEta=(vEta-EtaElectron[iEta-1])/(EtaElectron[iEta]-EtaElectron[iEta-1]);
00125
00126       int iPos;
00127       double sigma,sigma1,sigma2;
00128
00129       iPos=iEnergy-1;
00130       sigma1=CorrFactorElectronSigma[iPos][iEta-1]+ratioEta*(CorrFactorElectronSigma[iPos][iEta]-CorrFactorElectronSigma[iPos][iEta-1]);
00131       iPos=iEnergy;
00132       sigma2=CorrFactorElectronSigma[iPos][iEta-1]+ratioEta*(CorrFactorElectronSigma[iPos][iEta]-CorrFactorElectronSigma[iPos][iEta-1]);
00133
00134       sigma=sigma1+ratioEnergy*(sigma2-sigma1);
00135
00136       m_log<<MSG::DEBUG<<" -> interpolation sigma "<<sigma1<<" "<<sigma2<<" "<<sigma<<endreq;
00137
00138       double alpha=1.0;
00139       double vrandom=alpha;
00140
00141       int iCmpt=int(randFlat()->fire()*20);
00142       for(int i=0; i<iCmpt; i++)
00143         vrandom=randGauss()->fire(1.0,sigma);
00144
00145       m_log<<MSG::DEBUG<<" -> Energie : "<<vEnergiesElectron[iEnergy]<<"   Eta : "<<vEnergiesElectron[iEnergy-1]<<" < "<<vE<<" < "<<vEnergiesElectron[iEnergy]<<endreq;
00146       m_log<<MSG::DEBUG<<" -> Energie : "<<vEnergiesElectron[iEnergy]<<"   Eta : "<<EtaElectron[iEta-1]<<" < "<<vEta<<" < "<<EtaElectron[iEta]<<endreq;
00147       m_log<<MSG::DEBUG<<"       calib mean-sigma  "<<alpha<<" "<<sigma<<" -> "<<vrandom<<endreq;
00148
00149       bvec.set(avec.px()*vrandom, avec.py()*vrandom, avec.pz()*vrandom, vE*vrandom);
00150
00151       m_log<<MSG::DEBUG<<"-> HepLorentzVector calibration "<<vEta<<" "<<avec<<"  ->  "<<bvec<<endreq;
00152
00153     }
00154
00155     return bvec;
00156   } //end of smear method

int Atlfast::ElectronSmearer::setSmearParameters ( const std::vector< double > &  smearValues  )  [virtual]

Sets the smearing parameters

Reimplemented from Atlfast::DefaultSmearer.

Definition at line 159 of file ElectronSmearer.cxx.

00159                                                                               {
00160     m_smearParams=smearValues;
00161     return 0;
00162   }

int Atlfast::ElectronSmearer::setSmearParamSchema ( const int  smearSchema  )  [virtual]

Sets the smearing schema

Reimplemented from Atlfast::DefaultSmearer.

Definition at line 165 of file ElectronSmearer.cxx.

00165                                                                  {
00166     m_smearParamSchema=smearSchema;
00167     return 0;
00168   }

RandGauss* Atlfast::DefaultSmearer::randGauss (  )  [inline, inherited]

Hook for subclasses etc. to get their hands on a randGauss object

Definition at line 65 of file DefaultSmearer.h.

00065 { return m_randGauss;}

RandFlat* Atlfast::DefaultSmearer::randFlat (  )  [inline, inherited]

Hook for subclasses etc. to get their hands on a randFlat object

Definition at line 71 of file DefaultSmearer.h.

00071 { return m_randFlat;}

Member Data Documentation

int Atlfast::ElectronSmearer::m_lumi [private]

luminosity option

Definition at line 73 of file ElectronSmearer.h.

std::vector<double> Atlfast::ElectronSmearer::m_smearParams [private]

Definition at line 75 of file ElectronSmearer.h.

int Atlfast::ElectronSmearer::m_smearParamSchema [private]

Definition at line 76 of file ElectronSmearer.h.

MsgStream& Atlfast::ElectronSmearer::m_log [private]

Definition at line 77 of file ElectronSmearer.h.

The documentation for this class was generated from the following files:
