#include <FinalStateParticleHistogramMaker.h>

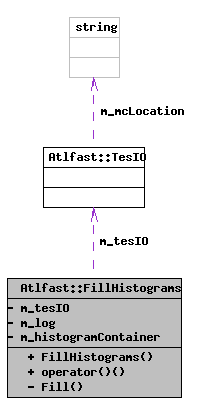

Collaboration diagram for Atlfast::FillHistograms:
Public Member Functions | |
| FillHistograms (TesIO *tesIOPtr, MsgStream &log, map< string, vector< IHistogram1D * > > &histContainer) | |
| void | operator() (pair< string, HepMC_helper::MCselectorWrapper * > &pairPtr) |
Private Member Functions | |
| void | Fill (MCparticleCollection &, string &) |
Private Attributes | |
| TesIO * | m_tesIO |
| MsgStream & | m_log |
| map< string, vector< IHistogram1D * > > & | m_histogramContainer |
This is a unary function class
Definition at line 73 of file FinalStateParticleHistogramMaker.h.
| Atlfast::FillHistograms::FillHistograms | ( | TesIO * | tesIOPtr, | |
| MsgStream & | log, | |||
| map< string, vector< IHistogram1D * > > & | histContainer | |||
| ) | [inline] |
Definition at line 76 of file FinalStateParticleHistogramMaker.h.
00078 : 00079 m_tesIO(tesIOPtr), 00080 m_log(log), 00081 m_histogramContainer(histContainer){} void operator()(pair< string, HepMC_helper::MCselectorWrapper*> &pairPtr);
| void Atlfast::FillHistograms::operator() | ( | pair< string, HepMC_helper::MCselectorWrapper * > & | pairPtr | ) |
Definition at line 37 of file FinalStateParticleHistogramMaker.cxx.
00037 { 00038 00039 // Called once per MCselectorWrapper, to make plots corresponding 00040 // to one particular set of selectors 00041 00042 string identifier = pairPtr.first; 00043 HepMC_helper::MCselectorWrapper* wrapperPtr = pairPtr.second; 00044 00045 MCparticleCollection mcParticles; 00046 const HepMC_helper::IMCselector* imcSelector = 00047 wrapperPtr->asIMCselector(); 00048 TesIoStat stat = m_tesIO->getMC( mcParticles, imcSelector) ; 00049 if (!stat){ 00050 // Problem getting the GenParticles 00051 m_log << MSG::DEBUG << "Problem in getMC using " << identifier << " selectors" << endreq; 00052 } 00053 00054 m_log << MSG::DEBUG << mcParticles.size() << " GenParticles selected with " 00055 << identifier << " selectors" << endreq; 00056 00057 Fill(mcParticles,identifier); 00058 00059 }
| void Atlfast::FillHistograms::Fill | ( | MCparticleCollection & | , | |
| string & | ||||
| ) | [private] |
Definition at line 61 of file FinalStateParticleHistogramMaker.cxx.
00061 { 00062 00063 // Fill histograms 00064 00065 // Histograms have a prescribed order from 00066 // FinalStateParticleHistogramMaker::BookHistograms 00067 00068 // Histogram 0 - Multiplicity 00069 m_histogramContainer[identifier].at(0)->fill(float(mcParticles.size()),1.0); 00070 00071 float sumE = 0., sumPx = 0., sumPy = 0., sumPz = 0.; 00072 00073 MCparticleCollection::const_iterator genItr = mcParticles.begin(); 00074 for (;genItr!=mcParticles.end();++genItr){ 00075 00076 // Histograms 1-4 - GenParticle energy, px, py and pz 00077 m_histogramContainer[identifier].at(1)->fill((*genItr)->momentum().e(),1.0); 00078 m_histogramContainer[identifier].at(2)->fill((*genItr)->momentum().px(),1.0); 00079 m_histogramContainer[identifier].at(3)->fill((*genItr)->momentum().py(),1.0); 00080 m_histogramContainer[identifier].at(4)->fill((*genItr)->momentum().pz(),1.0); 00081 00082 // Add to sums 00083 sumE += (*genItr)->momentum().e(); 00084 sumPx += (*genItr)->momentum().px(); 00085 sumPy += (*genItr)->momentum().py(); 00086 sumPz += (*genItr)->momentum().pz(); 00087 00088 } 00089 00090 // Histograms 5-8 - E, px, py and pz sums of all selected GenParticles 00091 m_histogramContainer[identifier].at(5)->fill(sumE,1.0); 00092 m_histogramContainer[identifier].at(6)->fill(sumPx,1.0); 00093 m_histogramContainer[identifier].at(7)->fill(sumPy,1.0); 00094 m_histogramContainer[identifier].at(8)->fill(sumPz,1.0); 00095 00096 return; 00097 00098 }
TesIO* Atlfast::FillHistograms::m_tesIO [private] |
Definition at line 88 of file FinalStateParticleHistogramMaker.h.
MsgStream& Atlfast::FillHistograms::m_log [private] |
Definition at line 89 of file FinalStateParticleHistogramMaker.h.
map< string, vector<IHistogram1D*> >& Atlfast::FillHistograms::m_histogramContainer [private] |
Definition at line 90 of file FinalStateParticleHistogramMaker.h.
