Atlfast::Isolator Class Reference

Associates ReconstructedParticles to Clusters and evaluates isolation. More...

#include <Isolator.h>

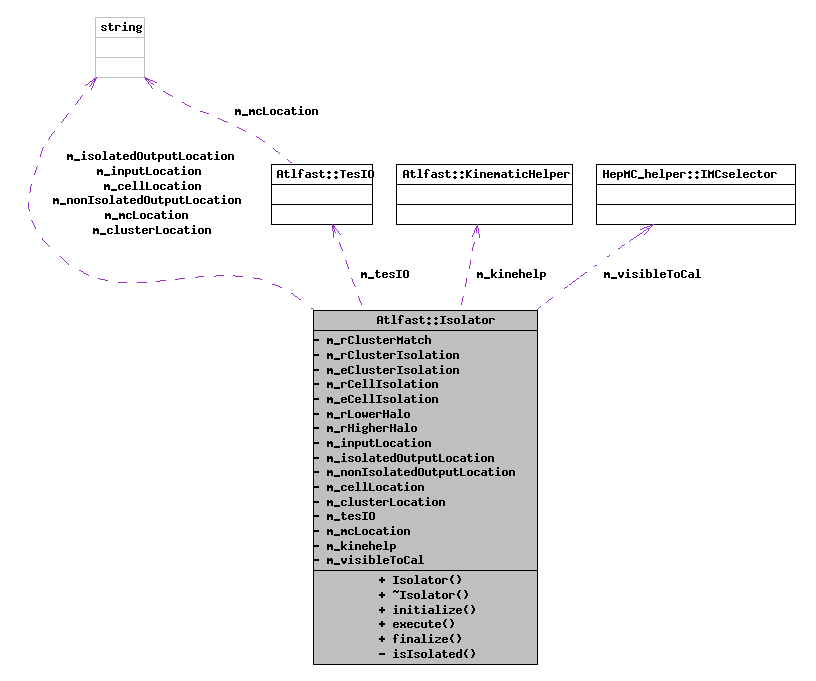

Collaboration diagram for Atlfast::Isolator:

[legend]List of all members.

Public Member Functions
	Isolator (const std::string &name, ISvcLocator *pSvcLocator)
virtual	~Isolator ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
Private Member Functions
bool	isIsolated (MsgStream &, ReconstructedParticleCollection::const_iterator, std::vector< ITwoCptCell * > &, std::vector< ICluster * > &)
Private Attributes
double	m_rClusterMatch
double	m_rClusterIsolation
double	m_eClusterIsolation
double	m_rCellIsolation
double	m_eCellIsolation
double	m_rLowerHalo
double	m_rHigherHalo
std::string	m_inputLocation
std::string	m_isolatedOutputLocation
std::string	m_nonIsolatedOutputLocation
std::string	m_cellLocation
std::string	m_clusterLocation
TesIO *	m_tesIO
std::string	m_mcLocation
KinematicHelper	m_kinehelp
HepMC_helper::IMCselector *	m_visibleToCal

---

Detailed Description

Associates ReconstructedParticles to Clusters and evaluates isolation.

The associations are established by searching in a user-defined cone around the RP position for unassociated Clusters.
The isolation is calculated by searching in user-defined cones around the RP position for Clusters and unused (unclustered) Cells. The corresponding energies are then compared to user-defined limits.

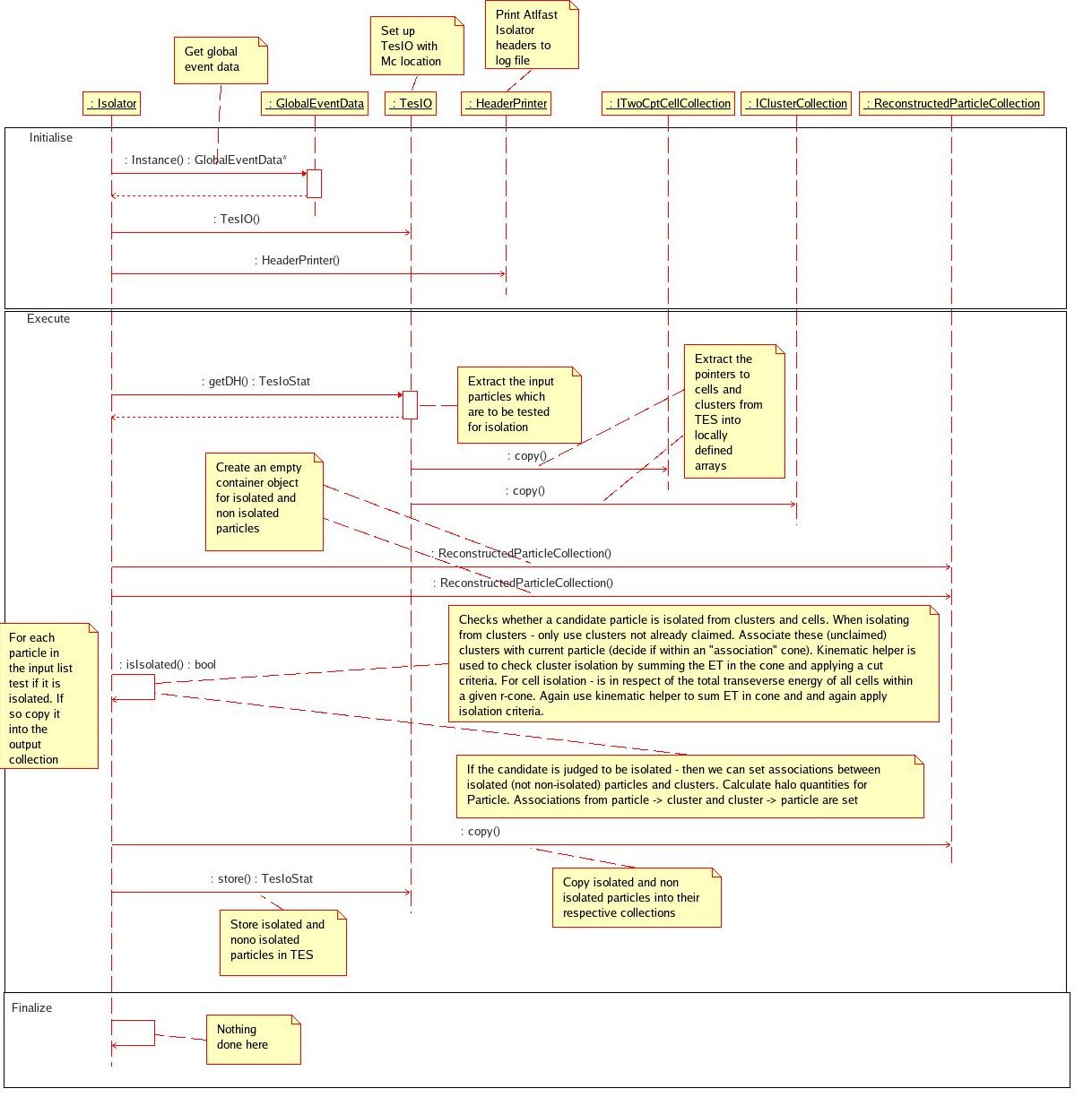

Isolator sequence

Definition at line 77 of file Isolator.h.

---

Constructor & Destructor Documentation

Atlfast::Isolator::Isolator	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Standard Athena-Algorithm Constructor

Definition at line 42 of file Isolator.cxx.

    : Algorithm( name, pSvcLocator )
    , m_tesIO( 0 ) {

    // Setting the parameter defaults.
    m_rClusterMatch      = 0.150;
    m_rClusterIsolation  = 0.400;
    m_eClusterIsolation  = 0.0*GeV;
    m_rCellIsolation     = 0.200;
    m_eCellIsolation     = 10.0*GeV;

    m_rLowerHalo         = 0.2;
    m_rHigherHalo        = 0.4;

    // Default paths for entities in the TES
    m_inputLocation                 = "/Event/AtlfastElectrons";
    m_cellLocation                  = "/Event/AtlfastCells";
    m_clusterLocation               = "/Event/AtlfastClusters";
    m_isolatedOutputLocation        = "/Event/AtlfastIsolatedElectrons";
    m_nonIsolatedOutputLocation     = "/Event/AtlfastNonIsolatedElectrons";

    // This is how you declare the paramemters to Gaudi so that
    // they can be over-written via the job options file

    declareProperty( "RClusterMatch",             m_rClusterMatch ) ;
    declareProperty( "RClusterIsolation",         m_rClusterIsolation ) ;
    declareProperty( "EClusterIsolation",         m_eClusterIsolation ) ;
    declareProperty( "RCellIsolation",            m_rCellIsolation ) ;
    declareProperty( "ECellIsolation",            m_eCellIsolation ) ;

    declareProperty( "InputLocation",             m_inputLocation ) ;
    declareProperty( "CellLocation",              m_cellLocation ) ;
    declareProperty( "ClusterLocation",           m_clusterLocation ) ;
    declareProperty( "IsolatedOutputLocation",    m_isolatedOutputLocation ) ;
    declareProperty( "NonIsolatedOutputLocation", m_nonIsolatedOutputLocation ) ;

    declareProperty( "RLowerHalo",                m_rLowerHalo ) ;
    declareProperty( "RHigherHalo",               m_rHigherHalo ) ;

  }

Atlfast::Isolator::~Isolator

(

)

[virtual]

Default Destructor

Definition at line 84 of file Isolator.cxx.

                      {
    MsgStream log( messageService(), name() ) ;
    log << MSG::INFO << "destructor" << endreq;
    delete m_tesIO;
  }

---

Member Function Documentation

StatusCode Atlfast::Isolator::initialize

(

)

Standard Athena-Algorithm method

Definition at line 95 of file Isolator.cxx.

                                 {
    MsgStream log( messageService(), name() ) ;
    log << MSG::DEBUG << "Initialising" << endreq;


    //get the Global Event Data using singleton pattern
    GlobalEventData* ged = GlobalEventData::Instance();
    m_visibleToCal   = ged -> visibleToCal();
    m_mcLocation     = ged -> mcLocation();

    //    m_tesIO = new TesIO(eventDataService());
    m_tesIO = new TesIO(m_mcLocation, ged->justHardScatter());


    HeaderPrinter hp("Atlfast Isolator:", log);

    hp.add("TES Locations:             ");
    hp.add(" Particles from            ", m_inputLocation);
    hp.add(" Cells from                ", m_cellLocation);
    hp.add(" Clusters from             ", m_clusterLocation);
    hp.add(" Isolated Particles to     ", m_isolatedOutputLocation);
    hp.add(" Non-Isolated Particles to ", m_nonIsolatedOutputLocation);
    hp.add("Cluster match DeltaR       ", m_rClusterMatch);
    hp.add("Cluster isolation DeltaR   ", m_rClusterIsolation);
    hp.add("Cluster isolation E thresh ", m_eClusterIsolation);
    hp.add("Cell isolation DeltaR      ", m_rCellIsolation);
    hp.add("Cell isolation E thresh    ", m_eCellIsolation);
    hp.print();


    return StatusCode::SUCCESS ;
  }

StatusCode Atlfast::Isolator::execute

(

)

Standard Athena-Algorithm method

Definition at line 153 of file Isolator.cxx.

                               {

    //................................
    // make a message logging stream

    MsgStream log( messageService(), name() ) ;
    std::string mess;
    //...............................
    // Extract the input particles which are to be tested for isolation.

    //std::vector<ReconstructedParticle*> particles;
    const ReconstructedParticleCollection* particles(0);
    if(!m_tesIO->getDH(particles, m_inputLocation)){
      log << MSG::DEBUG
          << "No reconstructed particles in TES to treat"
          << endreq ;
      return StatusCode::SUCCESS ;
    }

    log << MSG::DEBUG
        << "Found "
        << particles->size()
        << " particles in TES "
        << endreq ;


    //.........................................................
    // Extract the (pointers to) cells and clusters from the TES into
    // locally defined arrays.


    std::vector<ITwoCptCell*> cells;
    if(!m_tesIO->copy<ITwoCptCellCollection> (cells, m_cellLocation)){

      log << MSG::DEBUG
          << "No Cells found in TES at "
          << m_cellLocation
          << endreq ;
    }


    std::vector<ICluster*> clusters;
    if(!m_tesIO->copy<IClusterCollection>(clusters, m_clusterLocation)){
      log << MSG::DEBUG
          << "No Clusters found in TES at "
          << m_clusterLocation
          << endreq ;
    }


    // ......................
    // Make an empty container object which will store (pointers to) all
    // sucessfully isolated and non isolated electrons.

    ReconstructedParticleCollection* isolatedParticles =
      new ReconstructedParticleCollection ;

    ReconstructedParticleCollection* nonIsolatedParticles =
      new ReconstructedParticleCollection ;


    //.........................................................
    // For each particle in the input list test if it is isolated.
    // If so copy it into the output collection.

    ReconstructedParticleCollection::const_iterator particle ;

    for( particle = particles->begin();
         particle != particles->end();
         ++particle)
      {
        if( this->isIsolated( log, particle, cells, clusters ) )
          isolatedParticles->push_back
            ( new ReconstructedParticle( *particle ) );
        else
          nonIsolatedParticles->push_back
            ( new ReconstructedParticle( *particle ) );
      }


    //......................................
    // Register particles in the transient event store.

    TesIoStat tis;
    tis = m_tesIO->store(isolatedParticles, m_isolatedOutputLocation );
    if( tis.isNotValid() ) {
      log << MSG::ERROR << "Failed to register output in TES at "
          << m_isolatedOutputLocation <<  endreq ;
      return tis;
    } else{
      log << MSG::DEBUG << "Written " << isolatedParticles->size()
          << " isolated particles to TES " << endreq;
    }

    tis = m_tesIO->store(nonIsolatedParticles, m_nonIsolatedOutputLocation );
    if( tis.isNotValid() ) {
      log << MSG::ERROR << "Failed to register output in TES at "
          << m_nonIsolatedOutputLocation <<  endreq ;
    } else {
      log << MSG::DEBUG << "Written " << nonIsolatedParticles->size()
          << " NON-isolated particles to TES " << endreq;
    }

    return tis ;

  }

StatusCode Atlfast::Isolator::finalize

(

)

Standard Athena-Algorithm method

Definition at line 132 of file Isolator.cxx.

                               {
    MsgStream log( messageService(), name() ) ;
    log << MSG::INFO << "finalizing" << endreq;
    return StatusCode::SUCCESS ;
  }

bool Atlfast::Isolator::isIsolated	(	MsgStream &	,
		ReconstructedParticleCollection::const_iterator	,
		std::vector< ITwoCptCell * > &	,
		std::vector< ICluster * > &
	)			[private]

This is the heart of this algorithm: the bit that does the isolation

Definition at line 269 of file Isolator.cxx.

     {

    log << MSG::DEBUG << "\n\t Treating particle: " << *particle ;

    // Things we need to remember until the end of the method
    // If, during processing of Clusters, we identify an "associated cluster"
    // we remember it for use if the particle is finally judged to be isolated
    bool associated = false ;
    ICluster* associatedCluster = NULL ;



    //....................................
    // Cluster isolation

    if( !storedClusters.empty() ) {

      // Make a local copy as we want to mutate the list of pointers
      std::vector<ICluster*>  clusters(
                                      storedClusters.begin(),
                                      storedClusters.end()
                                      );

      //Only use clusters not already claimed by ReconstructedParticles
      std::vector<ICluster*>::iterator firstNonAssociatedCluster ;
      firstNonAssociatedCluster =
        std::partition(
                       clusters.begin(),
                       clusters.end(),
                       IsAssociated<ReconstructedParticle>
                       );
      if(firstNonAssociatedCluster != clusters.begin()){
        log<<MSG::DEBUG<<"First "
           <<firstNonAssociatedCluster-clusters.begin()
           <<" clusters are associated to ReconstructedParticles "
           <<clusters.end()-firstNonAssociatedCluster
           <<" cluster(s) remain"
           <<endreq;
      }else{
        log<<MSG::DEBUG
           <<"No clusters are associated to ReconstructedParticles"
           <<endreq;
      }
      if(clusters.end()!=firstNonAssociatedCluster){
        // .....................
        // Associate unclaimed clusters with current particle.
        // This looks at the nearest cluster only, and decides whether
        // it is within an "association" cone

        partial_sort(
                     firstNonAssociatedCluster,
                     firstNonAssociatedCluster+1,
                     clusters.end(),
                     SortAttribute::DeltaR( *particle )
                     );

        log<<MSG::DEBUG<<"Sorted clusters "<<endreq;

        associated =
          (m_kinehelp.deltaR(*particle, *firstNonAssociatedCluster) <
           m_rClusterMatch);

        if( associated )
          {
            log << "\n\t -->Found associated cluster: "
                << *clusters.begin() ;

            // Remember the relevant cluster until the end of this method
            associatedCluster = *firstNonAssociatedCluster ;

            // Set the first nonassociated cluster
            ++firstNonAssociatedCluster;

          }


        //............................................
        // Now we can check Cluster Isolation
        // (if there is at least one more cluster to check)

        // Use kinematic helper to do all work
        double eClusterSum = m_kinehelp.sumETInCone(
                                                    firstNonAssociatedCluster,
                                                    clusters.end(),
                                                    *particle,
                                                    m_rClusterIsolation
                                                    );

        // Apply the cut criteria

        if( eClusterSum  > m_eClusterIsolation )
          log  << "\n\t -->Excess Cluster energy in cone = " << eClusterSum
               << "   => NOT-ISOLATED " << endreq;
        else
          log  << "\n\t -->Excess Cluster energy in cone = " << eClusterSum
               << "   => ISOLATED "  ;

        if( eClusterSum  > m_eClusterIsolation )  return false ;

      }

    }


    //............................................
    // Cell Isolation:

    if( !storedCells.empty() ) {

      // Test on isolation in respect of the total transverese energy of all
      // Cells within a given r-cone

      // Use kinematic helper to do all work
      double eCellSum = m_kinehelp.sumETInCone(
                                               storedCells.begin(),
                                               storedCells.end(),
                                               *particle,
                                               m_rCellIsolation
                                               );


      // Subtract the energy associated with particle under test
      // as the cells summed will have included its deposit
      //    CalSelect depositsInCal;
      //    if(depositsInCal( *particle) ) eCellSum -= (*particle)->eT() ;
      bool itDeposits = m_visibleToCal->operator()( (*particle)->truth() );

      if(itDeposits) eCellSum -= (*particle)->eT() ;


      // Apply isolation criteria

      if( eCellSum  > m_eCellIsolation )
        log
          << "\n\t -->Excess Cell energy in cone = " << eCellSum
          << "   => NOT-ISOLATED " << endreq ;
      else
        log
          << "\n\t -->Excess Cell energy in cone = " << eCellSum
          << "   => ISOLATED " << endreq ;

      if( eCellSum  > m_eCellIsolation ) return false ;

    }

    //..........................................
    // If we get here then the candidate was judged to be isolated

    // It is only now that we wish to set associations between isolated
    // particles and clusters. I.e we dont want to flag associations for
    // non-isolated particles

    if( associated ) {

      // Calculate halo quantities for Particle
      // Scalar sum
      (*particle)->set_halo(m_kinehelp.sumETInHalo(storedCells.begin(),
                                                   storedCells.end(),
                                                   *particle,
                                                   m_rLowerHalo,
                                                   m_rHigherHalo
                                                   ));
      // Vector sum
      (*particle)->set_halovector(m_kinehelp.sumMomentumInHalo(storedCells.begin(),
                                                               storedCells.end(),
                                                               *particle,
                                                               m_rLowerHalo,
                                                               m_rHigherHalo
                                                               ));

      // Set the association from Particle -> Cluster
      IAOO* iamp = *particle;
      iamp->associate( associatedCluster ) ;

      log  << MSG::DEBUG
           << "Particle of type "<< (*particle)->pdg_id()
           <<" associated to Cluster"
           << endreq;
      //assert(IsAssociated<Cluster>( *particle ));

      // Set the association from Cluster -> Particle
      IAOO* iamc = associatedCluster;
      iamc->associate( *particle ) ;

      log  << MSG::DEBUG
           << "Cluster associated to Particle of type "
           << (*particle)->pdg_id()
           << endreq;

      //assert(IsAssociated<ReconstructedParticle>( associatedCluster ));
    }

    log << endreq ;

    return true ;
  }

---

Member Data Documentation

double Atlfast::Isolator::m_rClusterMatch [private]

R-cone for associating a Cluster to a particle

Definition at line 104 of file Isolator.h.

double Atlfast::Isolator::m_rClusterIsolation [private]

R-cone in which to sum unassociated Cluster eT

Definition at line 107 of file Isolator.h.

double Atlfast::Isolator::m_eClusterIsolation [private]

eT threshold to apply to summed Cluster eT

Definition at line 110 of file Isolator.h.

double Atlfast::Isolator::m_rCellIsolation [private]

R-cone in which to sum Cell eT

Definition at line 113 of file Isolator.h.

double Atlfast::Isolator::m_eCellIsolation [private]

eT threshold to apply to excess summed Cluster eT

Definition at line 116 of file Isolator.h.

double Atlfast::Isolator::m_rLowerHalo [private]

Upper and lower bounds of halo interval in dR

Definition at line 119 of file Isolator.h.

double Atlfast::Isolator::m_rHigherHalo [private]

Definition at line 120 of file Isolator.h.

std::string Atlfast::Isolator::m_inputLocation [private]

Location in TES to obtain input particles to be isolated

Definition at line 123 of file Isolator.h.

std::string Atlfast::Isolator::m_isolatedOutputLocation [private]

Location in TES to write out isolated list.

Definition at line 126 of file Isolator.h.

std::string Atlfast::Isolator::m_nonIsolatedOutputLocation [private]

Location in TES to write out isolated list.

Definition at line 128 of file Isolator.h.

std::string Atlfast::Isolator::m_cellLocation [private]

Location of Cells in TES

Definition at line 131 of file Isolator.h.

std::string Atlfast::Isolator::m_clusterLocation [private]

Location of Clusters in TES

Definition at line 133 of file Isolator.h.

TesIO* Atlfast::Isolator::m_tesIO [private]

For accessing StoreGate

Definition at line 137 of file Isolator.h.

std::string Atlfast::Isolator::m_mcLocation [private]

holds the Storegate MC location

Definition at line 140 of file Isolator.h.

KinematicHelper Atlfast::Isolator::m_kinehelp [private]

Definition at line 148 of file Isolator.h.

HepMC_helper::IMCselector* Atlfast::Isolator::m_visibleToCal [private]

Definition at line 149 of file Isolator.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/AtlfastAlgs/Isolator.h
• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/src/Isolator.cxx

---
