Atlfast::MuonMatrixManager

Atlfast::MuonMatrixManager Class Reference

#include <MuonMatrixManager.h>

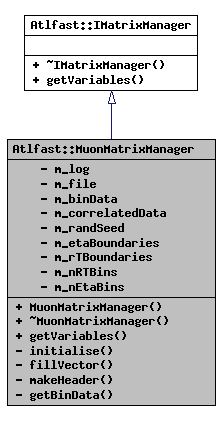

Inheritance diagram for Atlfast::MuonMatrixManager:

Inheritance graph
[legend]

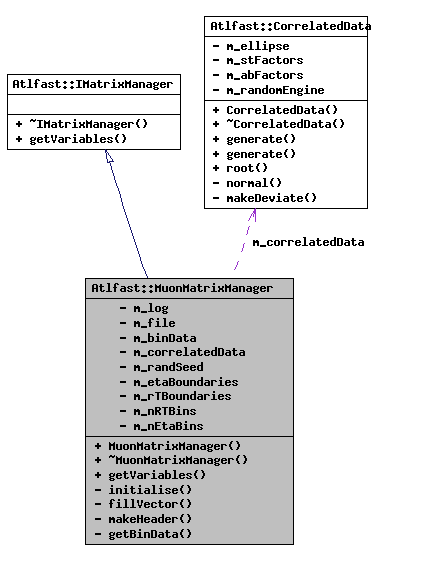

Collaboration diagram for Atlfast::MuonMatrixManager:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 MuonMatrixManager (string, int, MsgStream)
virtual ~MuonMatrixManager ()
vector< double > getVariables (const TrackTrajectory &track, HepSymMatrix &usedSigma) const

Private Member Functions

void initialise ()
void fillVector (ifstream &, vector< vector< double > > &, int)
void makeHeader ()
IBinData * getBinData (const TrackTrajectory &track) const

Private Attributes

MsgStream * m_log
string m_file
map< BinID, IBinData * > m_binData
CorrelatedData * m_correlatedData
int m_randSeed
vector< double > m_etaBoundaries
vector< double > m_rTBoundaries
int m_nRTBins
int m_nEtaBins

Detailed Description

Used by tracksmearer to provide smear matrices corresponding to given track trajectories. It reads a flat file containing smear matrix data and creates a BinData object for every eta/rT bin.

Definition at line 39 of file MuonMatrixManager.h.

Constructor & Destructor Documentation

Atlfast::MuonMatrixManager::MuonMatrixManager ( string  ,
int  ,
MsgStream
)

Default Constructor

Definition at line 13 of file MuonMatrixManager.cxx.

00013                                                                                       :
00014        m_file( paramFile ),
00015        m_randSeed( randSeed )
00016   {
00017     m_log = &log;
00018     *m_log << MSG::INFO
00019            << "Constructing MuonMatrixManager with parameter file "
00020            << paramFile
00021            << endreq;
00022     m_file = PathResolver::find_file( m_file, "DATAPATH" );
00023     m_correlatedData = new CorrelatedData(randSeed);
00024     this->initialise();
00025     *m_log << MSG::INFO << "Constructed MuonMatrixManager" << endreq;
00026   }

Atlfast::MuonMatrixManager::~MuonMatrixManager (  )  [virtual]

Default Destructor

Definition at line 32 of file MuonMatrixManager.cxx.

00033   {
00034     delete m_correlatedData;
00035
00036     map< BinID, IBinData* >::iterator iter = m_binData.begin();
00037     map< BinID, IBinData* >::iterator end  = m_binData.end();
00038     for ( ; iter != end; ++iter )  delete ( iter->second );
00039   }

Member Function Documentation

vector< double > Atlfast::MuonMatrixManager::getVariables ( const TrackTrajectory &  track,
HepSymMatrix &  usedSigma
) const [virtual]

returns correlation matrix corresponding to given track trajectory

Implements Atlfast::IMatrixManager.

Definition at line 219 of file MuonMatrixManager.cxx.

00221   {
00222     HepSymMatrix Sigma;
00223     vector<double> variables;
00224
00225     IBinData* binData = getBinData(track);
00226     Sigma = binData->getMatrix(track);
00227
00228     // do Dcorset and Dcorgen to get smear parameters
00229     variables = m_correlatedData->generate( m_correlatedData->root(Sigma) );
00230
00231     returnSigma = Sigma;
00232     return variables;
00233   }

void Atlfast::MuonMatrixManager::initialise (  )  [private]

reads file, creates BinData objects and asks them to calculate their matrices

Definition at line 44 of file MuonMatrixManager.cxx.

00045   {
00046     // open file
00047     ifstream input;
00048     input.open( m_file.c_str() );
00049
00050     if (input)
00051     {
00052       *m_log << MSG::INFO << "MuonMatrixManager: File " << m_file << " open." << endreq;
00053
00054       double pTMin, etaMin, etaMax, rTBoundary;
00055
00056       // read some parameters
00057       input >> pTMin;
00058       input >> etaMin;
00059       input >> etaMax;
00060       input >> m_nEtaBins;
00061       input >> m_nRTBins;
00062
00063       // construct vector<binboundaries>
00064       double etaStep = ( etaMax - etaMin )/ double( m_nEtaBins );
00065       for ( int i = 0; i < m_nEtaBins; i++ )
00066       {
00067         m_etaBoundaries.push_back( etaMin + etaStep/2. + double(i)*etaStep );
00068       }
00069       for ( int i = 0; i < m_nRTBins + 1; i++ )
00070       {
00071         input >> rTBoundary;
00072         m_rTBoundaries.push_back( rTBoundary );
00073       }
00074
00075       // parameters are stored in rT bin blocks----
00076       // with parameters in format:
00077       // Gaussian sigmas:
00078       //              C0(d0, z0, phi0, cot(theta0), q/pT),
00079       //              C1(d0, z0, phi0, cot(theta0), q/pT), etc.
00080       // correlation coefficients rho:
00081       //              C0(rho(d0,phi0), rho(d0,q/pT), rho(phi0,q/pT), rho(z0,cot(theta0))),
00082       //              C1(rho(d0,phi0), rho(d0,q/pT), rho(phi0,q/pT), rho(z0,cot(theta0))), etc.
00083       //
00084       // coefficients C0,C1,C2,C3,C4 define pT-dependence of the respective quantities
00085       // according to f(pT) = C0 + C1/sqrt(pT) + C2/pT + C3/pT/sqrt(pT) + C4/pT^2
00086
00087       // start bin id ints at zero
00088       int iBin = 0;
00089
00090       for ( int rt = 0; rt < m_nRTBins; rt++ )
00091       {
00092         // make vectors to hold all resolution parameters for this rt bin
00093         vector<double> empty;
00094         vector< vector<double> >  sigmaC0( m_nEtaBins, empty );
00095         vector< vector<double> >  sigmaC1( m_nEtaBins, empty );
00096         vector< vector<double> >  sigmaC2( m_nEtaBins, empty );
00097         vector< vector<double> >  sigmaC3( m_nEtaBins, empty );
00098         vector< vector<double> >  sigmaC4( m_nEtaBins, empty );
00099         vector< vector<double> >  correlationsC0( m_nEtaBins, empty );
00100         vector< vector<double> >  correlationsC1( m_nEtaBins, empty );
00101         vector< vector<double> >  correlationsC2( m_nEtaBins, empty );
00102         vector< vector<double> >  correlationsC3( m_nEtaBins, empty );
00103         vector< vector<double> >  correlationsC4( m_nEtaBins, empty );
00104
00105         // read eta bin number of values for each C and parameter
00106         // read Gaussian sigmas
00107         fillVector( input, sigmaC0, 5 );
00108         fillVector( input, sigmaC1, 5 );
00109         fillVector( input, sigmaC2, 5 );
00110         fillVector( input, sigmaC3, 5 );
00111         fillVector( input, sigmaC4, 5 );
00112         // read correlations data
00113         fillVector( input, correlationsC0, 4 );
00114         fillVector( input, correlationsC1, 4 );
00115         fillVector( input, correlationsC2, 4 );
00116         fillVector( input, correlationsC3, 4 );
00117         fillVector( input, correlationsC4, 4 );
00118
00119         // DATA READING FINISHED FOR THIS RT BIN
00120         // got all values, now make rT/eta bins and resolution objects
00121         for ( int i = 0; i < m_nEtaBins - 1; ++i )
00122         {
00123           double etaLow  = m_etaBoundaries[i];
00124           double etaHigh = m_etaBoundaries[i+1];
00125
00126           // make bin id with rT and eta boundaries
00127           BinID rTEtaBin( iBin, m_rTBoundaries[rt], m_rTBoundaries[rt+1], etaLow, etaHigh );
00128
00129           //make parameter resolutions for each parameter
00130           vector<ParameterResolutions*> sigmas;
00131           vector<ParameterResolutions*> correlations;
00132           for ( int param = 0; param < 5; param++ )
00133           {
00134              vector<BinID> sigmaCoeffBins;
00135              sigmaCoeffBins.push_back( BinID( 0, sigmaC0[i][param], sigmaC0[i+1][param] ) );
00136              sigmaCoeffBins.push_back( BinID( 0, sigmaC1[i][param], sigmaC1[i+1][param] ) );
00137              sigmaCoeffBins.push_back( BinID( 0, sigmaC2[i][param], sigmaC2[i+1][param] ) );
00138              sigmaCoeffBins.push_back( BinID( 0, sigmaC3[i][param], sigmaC3[i+1][param] ) );
00139              sigmaCoeffBins.push_back( BinID( 0, sigmaC4[i][param], sigmaC4[i+1][param] ) );
00140              sigmas.push_back( new ParameterResolutions( sigmaCoeffBins, etaLow, etaHigh ) );
00141           }
00142           for ( int param = 0; param < 4; param++ )
00143           {
00144             vector<BinID> correlationsCoeffBins;
00145             correlationsCoeffBins.push_back( BinID( 0, correlationsC0[i][param], correlationsC0[i+1][param]) );
00146             correlationsCoeffBins.push_back( BinID( 0, correlationsC1[i][param], correlationsC1[i+1][param]) );
00147             correlationsCoeffBins.push_back( BinID( 0, correlationsC2[i][param], correlationsC2[i+1][param]) );
00148             correlationsCoeffBins.push_back( BinID( 0, correlationsC3[i][param], correlationsC3[i+1][param]) );
00149             correlationsCoeffBins.push_back( BinID( 0, correlationsC4[i][param], correlationsC4[i+1][param]) );
00150             correlations.push_back( new ParameterResolutions( correlationsCoeffBins, etaLow, etaHigh ) );
00151           }
00152
00153           // Now make a bin data with edges rT and eta, containing the
00154           // correlation data
00155           MuonBinData* binData = new MuonBinData( rTEtaBin, sigmas, correlations );
00156
00157           // enter bin data into map
00158           m_binData[rTEtaBin] = binData;
00159
00160           // increment bin ID
00161           iBin++;
00162
00163         } // end of eta bin loop
00164       } // end of rT bin loop
00165
00166       // close file
00167       input.close();
00168
00169     }
00170     else  // no input file
00171     {
00172       *m_log << MSG::INFO
00173              << "MuonMatrixManager: no data file ( " << m_file << " )!!!!"
00174              << endreq;
00175     }
00176
00177     makeHeader();
00178
00179   }

void Atlfast::MuonMatrixManager::fillVector ( ifstream &  ,
vector< vector< double > > &  ,
int
) [private]

Definition at line 198 of file MuonMatrixManager.cxx.

00201   {
00202     double res;
00203     for ( int param = 0; param < M; param++ )
00204     {
00205       vector< vector<double> >::iterator binIter = myVector.begin();
00206       for ( ; binIter != myVector.end(); binIter++ )
00207       {
00208         input >> res;
00209         binIter->push_back(res);
00210       }
00211     }
00212   }

void Atlfast::MuonMatrixManager::makeHeader (  )  [private]

Definition at line 181 of file MuonMatrixManager.cxx.

00182   {
00183     HeaderPrinter hp( "Atlfast MuonTrack Smearer:", *m_log );
00184     hp.add( "Total number of Bins     ", m_nRTBins * m_nEtaBins );
00185     hp.add( "rT Bin Min               ", m_rTBoundaries.front() );
00186     hp.add( "rT Bin Max               ", m_rTBoundaries.back() );
00187     hp.add( "Number of rT Bins        ", m_nRTBins );
00188     hp.add( "Eta Bin Min              ", m_etaBoundaries.front() );
00189     hp.add( "Eta Bin Max              ", m_etaBoundaries.back() );
00190     hp.add( "Number of Eta Bins       ", m_nEtaBins );
00191     hp.print();
00192   }

IBinData * Atlfast::MuonMatrixManager::getBinData ( const TrackTrajectory &  track  )  const [private]

returns BinData object corresponding to track trajectory

Definition at line 240 of file MuonMatrixManager.cxx.

00241   {
00242     TrackParameters track = traj.parameters();
00243
00244     vector<double> rTEta;
00245     double rT  = abs( traj.radius() );
00246     double eta = abs( track.eta() );
00247
00248     // validity check
00249     double rTLow   = ( (m_binData.begin())->first ).low(0);
00250     double rTHigh  = ( (m_binData.rbegin())->first ).high(0);
00251     double etaLow  = ( (m_binData.begin())->first ).low(1);
00252     double etaHigh = ( (m_binData.rbegin())->first ).high(1);
00253
00254     if ( rT < rTLow ) rT = rTLow;
00255     if ( rT > rTHigh) rT = rTHigh;
00256     if ( eta < etaLow ) eta = etaLow;
00257     if ( eta > etaHigh) eta = etaHigh;
00258
00259     // find BinID
00260     rTEta.push_back(rT);
00261     rTEta.push_back(eta);
00262
00263     map<BinID, IBinData*>::const_iterator binIter = m_binData.begin();
00264     map<BinID, IBinData*>::const_iterator binEnd  = m_binData.end();
00265
00266     for ( ; binIter != binEnd; ++binIter )
00267     {
00268       if ( binIter->first.isInBin(rTEta) )
00269       {
00270         return binIter->second;
00271       }
00272     }
00273
00274     // OOPS! couldn't fin bin
00275     *m_log << MSG::WARNING
00276            << "WARNING: MuonMatrixManager - No bin; rT " << rT << ", eta " << eta
00277            << endreq;
00278
00279     return ( m_binData.begin() )->second;
00280   }

Member Data Documentation

MsgStream* Atlfast::MuonMatrixManager::m_log [private]

Definition at line 57 of file MuonMatrixManager.h.

string Atlfast::MuonMatrixManager::m_file [private]

name of flat file containing smear matrix data.

Definition at line 68 of file MuonMatrixManager.h.

map<BinID, IBinData*> Atlfast::MuonMatrixManager::m_binData [private]

BinData objects, paired to a BinID

Definition at line 71 of file MuonMatrixManager.h.

CorrelatedData* Atlfast::MuonMatrixManager::m_correlatedData [private]

object which performs dcorset/dcorgen

Definition at line 74 of file MuonMatrixManager.h.

int Atlfast::MuonMatrixManager::m_randSeed [private]

Definition at line 76 of file MuonMatrixManager.h.

vector<double> Atlfast::MuonMatrixManager::m_etaBoundaries [private]

Definition at line 77 of file MuonMatrixManager.h.

vector<double> Atlfast::MuonMatrixManager::m_rTBoundaries [private]

Definition at line 78 of file MuonMatrixManager.h.

int Atlfast::MuonMatrixManager::m_nRTBins [private]

Definition at line 79 of file MuonMatrixManager.h.

int Atlfast::MuonMatrixManager::m_nEtaBins [private]

Definition at line 80 of file MuonMatrixManager.h.

The documentation for this class was generated from the following files:
Generated on Mon Sep 24 14:19:41 2007 for AtlfastAlgs by  doxygen 1.5.1
