#include <PionMatrixManager.h>

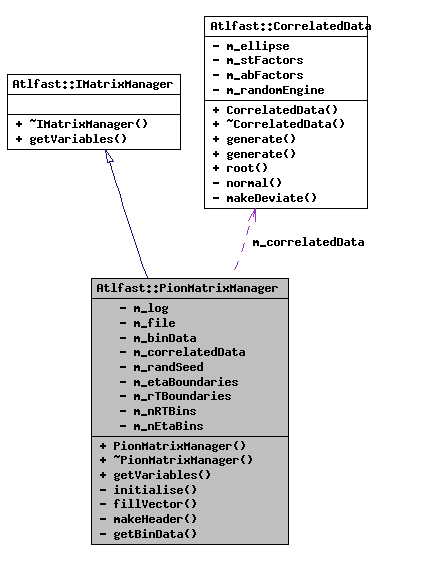

Inheritance diagram for Atlfast::PionMatrixManager:
Public Member Functions | |
| PionMatrixManager (string, int, MsgStream) | |
| virtual | ~PionMatrixManager () |
| vector< double > | getVariables (const TrackTrajectory &track, HepSymMatrix &usedSigma) const |
Private Member Functions | |
| void | initialise () |
| void | fillVector (ifstream &, vector< vector< double > > &, int) |
| void | makeHeader () |
| IBinData * | getBinData (const TrackTrajectory &track) const |
Private Attributes | |
| MsgStream * | m_log |
| string | m_file |
| map< BinID, IBinData * > | m_binData |
| CorrelatedData * | m_correlatedData |
| int | m_randSeed |
| vector< double > | m_etaBoundaries |
| vector< double > | m_rTBoundaries |
| int | m_nRTBins |
| int | m_nEtaBins |
Definition at line 44 of file PionMatrixManager.h.
| Atlfast::PionMatrixManager::PionMatrixManager | ( | string | , | |
| int | , | |||
| MsgStream | ||||
| ) |
Default Constructor
Definition at line 13 of file PionMatrixManager.cxx.
00013 : 00014 m_file( paramFile ), 00015 m_randSeed( randSeed ) 00016 { 00017 m_log = &log; 00018 *m_log << MSG::INFO 00019 << "Constructing PionMatrixManager with parameter file " 00020 << m_file 00021 << endreq; 00022 m_file = PathResolver::find_file( m_file, "DATAPATH" ); 00023 m_correlatedData = new CorrelatedData(randSeed); 00024 this->initialise(); 00025 *m_log << MSG::INFO << "Constructed PionMatrixManager" << endreq; 00026 }
| Atlfast::PionMatrixManager::~PionMatrixManager | ( | ) | [virtual] |
Default Destructor
Definition at line 32 of file PionMatrixManager.cxx.
00033 { 00034 delete m_correlatedData; 00035 map<BinID, IBinData*>::iterator iter = m_binData.begin(); 00036 map<BinID, IBinData*>::iterator end = m_binData.end(); 00037 for ( ; iter != end; ++iter ) 00038 { 00039 delete ( iter->second ); 00040 } 00041 }
| vector< double > Atlfast::PionMatrixManager::getVariables | ( | const TrackTrajectory & | track, | |
| HepSymMatrix & | usedSigma | |||
| ) | const [virtual] |
returns correlation matrix corresponding to given track trajectory
Implements Atlfast::IMatrixManager.
Definition at line 278 of file PionMatrixManager.cxx.
00280 { 00281 HepSymMatrix sigma; 00282 vector<double> variables; 00283 00284 IBinData* binData = getBinData(track); 00285 00286 sigma = binData->getMatrix(track); 00287 00288 // do Dcorset and Dcorgen to get smear parameters 00289 variables = m_correlatedData->generate( m_correlatedData->root(sigma) ); 00290 returnSigma = sigma; 00291 return variables; 00292 }
| void Atlfast::PionMatrixManager::initialise | ( | ) | [private] |
reads file, creates BinData objects and asks them to calculate their matrices
Definition at line 46 of file PionMatrixManager.cxx.
00047 { 00048 // open file 00049 ifstream input; 00050 input.open( m_file.c_str() ); 00051 00052 if (input) 00053 { 00054 *m_log << MSG::INFO << "PionMatrixManager: File " << m_file << " open." << endreq; 00055 00056 double pTMin, etaMin, etaMax, rtBoundary; 00057 00058 // read some parameters 00059 input >> pTMin; 00060 input >> etaMin; 00061 input >> etaMax; 00062 input >> m_nEtaBins; 00063 input >> m_nRTBins; 00064 00065 // construct vector<binboundaries> 00066 double etaStep = (etaMax - etaMin) / double(m_nEtaBins); 00067 for ( int i = 0; i < m_nEtaBins; i++ ) 00068 { 00069 m_etaBoundaries.push_back( etaMin + etaStep/2. + double(i)*etaStep ); 00070 } 00071 00072 for ( int i = 0; i < m_nRTBins + 1; i++ ) 00073 { 00074 input >> rtBoundary; 00075 m_rTBoundaries.push_back(rtBoundary); 00076 } 00077 00078 // parameters are stored in rT bin blocks---- 00079 // with parameters in format: 00080 // core resolutions: 00081 // C0(d0, z0, phi0, cot(theta0), q/pT), 00082 // C1(d0, z0, phi0, cot(theta0), q/pT), etc. 00083 // tails resolutions: 00084 // C0(d0, z0, phi0, cot(theta0), q/pT), 00085 // C1(d0, z0, phi0, cot(theta0), q/pT), etc. 00086 // core fractions: 00087 // C0(d0, z0, phi0, cot(theta0), q/pT), 00088 // C1(d0, z0, phi0, cot(theta0), q/pT), etc. 00089 // correlation coefficients rho: 00090 // C0(rho(d0,phi0), rho(d0,q/pT), rho(phi0,q/pT), rho(z0,cot(theta0))), 00091 // C1(rho(d0,phi0), rho(d0,q/pT), rho(phi0,q/pT), rho(z0,cot(theta0))), etc. 00092 // 00093 // coefficients C0,C1,C2,C3,C4 define pT-dependence of the respective quantities 00094 // according to f(pT) = C0 + C1/sqrt(pT) + C2/pT + C3/pT/sqrt(pT) + C4/pT^2 00095 00096 //start bin id ints at zero 00097 int iBin = 0; 00098 00099 for ( int rt = 0; rt < m_nRTBins; rt++ ) 00100 { 00101 // make vectors to hold all resolution parameters for this rT bin 00102 vector<double> empty; 00103 00104 vector< vector<double> > coreC0( m_nEtaBins, empty ); 00105 vector< vector<double> > coreC1( m_nEtaBins, empty ); 00106 vector< vector<double> > coreC2( m_nEtaBins, empty ); 00107 vector< vector<double> > coreC3( m_nEtaBins, empty ); 00108 vector< vector<double> > coreC4( m_nEtaBins, empty ); 00109 00110 vector< vector<double> > tailsC0( m_nEtaBins, empty ); 00111 vector< vector<double> > tailsC1( m_nEtaBins, empty ); 00112 vector< vector<double> > tailsC2( m_nEtaBins, empty ); 00113 vector< vector<double> > tailsC3( m_nEtaBins, empty ); 00114 vector< vector<double> > tailsC4( m_nEtaBins, empty ); 00115 00116 vector< vector<double> > fractionsC0( m_nEtaBins, empty ); 00117 vector< vector<double> > fractionsC1( m_nEtaBins, empty ); 00118 vector< vector<double> > fractionsC2( m_nEtaBins, empty ); 00119 vector< vector<double> > fractionsC3( m_nEtaBins, empty ); 00120 vector< vector<double> > fractionsC4( m_nEtaBins, empty ); 00121 00122 vector< vector<double> > correlationsC0( m_nEtaBins, empty ); 00123 vector< vector<double> > correlationsC1( m_nEtaBins, empty ); 00124 vector< vector<double> > correlationsC2( m_nEtaBins, empty ); 00125 vector< vector<double> > correlationsC3( m_nEtaBins, empty ); 00126 vector< vector<double> > correlationsC4( m_nEtaBins, empty ); 00127 00128 // read eta bin number of values for each Ci, i=0,1,2,3,4, and parameter 00129 // read core data 00130 fillVector( input, coreC0, 5 ); 00131 fillVector( input, coreC1, 5 ); 00132 fillVector( input, coreC2, 5 ); 00133 fillVector( input, coreC3, 5 ); 00134 fillVector( input, coreC4, 5 ); 00135 00136 // read tail data 00137 fillVector( input, tailsC0, 5 ); 00138 fillVector( input, tailsC1, 5 ); 00139 fillVector( input, tailsC2, 5 ); 00140 fillVector( input, tailsC3, 5 ); 00141 fillVector( input, tailsC4, 5 ); 00142 00143 // read fractions data 00144 fillVector( input, fractionsC0, 5 ); 00145 fillVector( input, fractionsC1, 5 ); 00146 fillVector( input, fractionsC2, 5 ); 00147 fillVector( input, fractionsC3, 5 ); 00148 fillVector( input, fractionsC4, 5 ); 00149 00150 // read correlations data 00151 fillVector( input, correlationsC0, 4 ); 00152 fillVector( input, correlationsC1, 4 ); 00153 fillVector( input, correlationsC2, 4 ); 00154 fillVector( input, correlationsC3, 4 ); 00155 fillVector( input, correlationsC4, 4 ); 00156 00157 // DATA READING FINISHED FOR THIS RT BIN 00158 00159 // got all values, now make rT/eta bins and resolution objects 00160 for ( int i = 0; i < m_nEtaBins - 1; ++i ) 00161 { 00162 double etaLow = m_etaBoundaries[i]; 00163 double etaHigh = m_etaBoundaries[i+1]; 00164 00165 // make bin id with rT and eta boundaries 00166 BinID rTEtaBin( iBin, m_rTBoundaries[rt], m_rTBoundaries[rt+1], etaLow, etaHigh ); 00167 00168 // make parameter resolutions for each parameter 00169 vector<ParameterResolutions*> core; 00170 vector<ParameterResolutions*> tails; 00171 vector<ParameterResolutions*> fractions; 00172 vector<ParameterResolutions*> correlations; 00173 for ( int param = 0; param < 5; param++ ) 00174 { 00175 vector<BinID> coreCoeffBins; 00176 coreCoeffBins.push_back( BinID( 0, coreC0[i][param], coreC0[i+1][param] ) ); 00177 coreCoeffBins.push_back( BinID( 0, coreC1[i][param], coreC1[i+1][param] ) ); 00178 coreCoeffBins.push_back( BinID( 0, coreC2[i][param], coreC2[i+1][param] ) ); 00179 coreCoeffBins.push_back( BinID( 0, coreC3[i][param], coreC3[i+1][param] ) ); 00180 coreCoeffBins.push_back( BinID( 0, coreC4[i][param], coreC4[i+1][param] ) ); 00181 core.push_back( new ParameterResolutions( coreCoeffBins, etaLow, etaHigh ) ); 00182 00183 vector<BinID> tailsCoeffBins; 00184 tailsCoeffBins.push_back( BinID( 0, tailsC0[i][param], tailsC0[i+1][param] ) ); 00185 tailsCoeffBins.push_back( BinID( 0, tailsC1[i][param], tailsC1[i+1][param] ) ); 00186 tailsCoeffBins.push_back( BinID( 0, tailsC2[i][param], tailsC2[i+1][param] ) ); 00187 tailsCoeffBins.push_back( BinID( 0, tailsC3[i][param], tailsC3[i+1][param] ) ); 00188 tailsCoeffBins.push_back( BinID( 0, tailsC4[i][param], tailsC4[i+1][param] ) ); 00189 tails.push_back( new ParameterResolutions( tailsCoeffBins, etaLow, etaHigh ) ); 00190 00191 vector<BinID> fractionsCoeffBins; 00192 fractionsCoeffBins.push_back( BinID( 0, fractionsC0[i][param], fractionsC0[i+1][param] ) ); 00193 fractionsCoeffBins.push_back( BinID( 0, fractionsC1[i][param], fractionsC1[i+1][param] ) ); 00194 fractionsCoeffBins.push_back( BinID( 0, fractionsC2[i][param], fractionsC2[i+1][param] ) ); 00195 fractionsCoeffBins.push_back( BinID( 0, fractionsC3[i][param], fractionsC3[i+1][param] ) ); 00196 fractionsCoeffBins.push_back( BinID( 0, fractionsC4[i][param], fractionsC4[i+1][param] ) ); 00197 fractions.push_back( new ParameterResolutions( fractionsCoeffBins, etaLow, etaHigh ) ); 00198 } 00199 00200 for ( int param = 0; param < 4; param++ ) 00201 { 00202 vector<BinID> correlationsCoeffBins; 00203 correlationsCoeffBins.push_back( BinID( 0, correlationsC0[i][param], correlationsC0[i+1][param] ) ); 00204 correlationsCoeffBins.push_back( BinID( 0, correlationsC1[i][param], correlationsC1[i+1][param] ) ); 00205 correlationsCoeffBins.push_back( BinID( 0, correlationsC2[i][param], correlationsC2[i+1][param] ) ); 00206 correlationsCoeffBins.push_back( BinID( 0, correlationsC3[i][param], correlationsC3[i+1][param] ) ); 00207 correlationsCoeffBins.push_back( BinID( 0, correlationsC4[i][param], correlationsC4[i+1][param] ) ); 00208 correlations.push_back( new ParameterResolutions( correlationsCoeffBins, etaLow, etaHigh ) ); 00209 } 00210 00211 // Now make a bin data with edges rT and eta, containing the 00212 // correlation data 00213 PionBinData* binData = new PionBinData( rTEtaBin, core, tails, fractions, correlations, m_randSeed ); 00214 00215 // enter bin data into map 00216 m_binData[rTEtaBin] = binData; 00217 00218 // increment bin ID 00219 iBin++; 00220 00221 } // end of eta bin loop 00222 } // end of rT bin loop 00223 00224 // close file 00225 input.close(); 00226 00227 } 00228 else // no input file 00229 { 00230 *m_log << MSG::INFO 00231 << "PionMatrixManager: no data file ( " << m_file << " )!!!!" 00232 << endreq; 00233 } 00234 00235 makeHeader(); 00236 00237 }
| void Atlfast::PionMatrixManager::fillVector | ( | ifstream & | , | |
| vector< vector< double > > & | , | |||
| int | ||||
| ) | [private] |
Definition at line 256 of file PionMatrixManager.cxx.
00259 { 00260 double res; 00261 for ( int param = 0; param < M; param++ ) 00262 { 00263 vector< vector<double> >::iterator binIter = myVector.begin(); 00264 for ( ; binIter != myVector.end(); binIter++ ) 00265 { 00266 input >> res; 00267 binIter->push_back(res); 00268 } 00269 00270 } 00271 }
| void Atlfast::PionMatrixManager::makeHeader | ( | ) | [private] |
Definition at line 239 of file PionMatrixManager.cxx.
00240 { 00241 HeaderPrinter hp( "Atlfast PionTrack Smearer:", *m_log ); 00242 hp.add( "Total number of Bins ", m_nRTBins * m_nEtaBins ); 00243 hp.add( "rT Bin Min ", m_rTBoundaries.front() ); 00244 hp.add( "rT Bin Max ", m_rTBoundaries.back() ); 00245 hp.add( "Number of rT Bins ", m_nRTBins ); 00246 hp.add( "Eta Bin Min ", m_etaBoundaries.front() ); 00247 hp.add( "Eta Bin Max ", m_etaBoundaries.back() ); 00248 hp.add( "Number of Eta Bins ", m_nEtaBins ); 00249 hp.print(); 00250 }
| IBinData * Atlfast::PionMatrixManager::getBinData | ( | const TrackTrajectory & | track | ) | const [private] |
returns BinData object corresponding to track trajectory
Definition at line 298 of file PionMatrixManager.cxx.
00299 { 00300 TrackParameters track = traj.parameters(); 00301 00302 vector<double> rTEta; 00303 double rT = abs( traj.radius() ); 00304 double eta = abs( track.eta() ); 00305 00306 // validity check 00307 double rTLow = ( (m_binData.begin())->first ).low(0); 00308 double rTHigh = ( (m_binData.rbegin())->first ).high(0); 00309 double etaLow = ( (m_binData.begin())->first ).low(1); 00310 double etaHigh = ( (m_binData.rbegin())->first ).high(1); 00311 00312 if ( rT < rTLow ) rT = rTLow; 00313 if ( rT > rTHigh ) rT = rTHigh; 00314 if ( eta < etaLow ) eta = etaLow; 00315 if ( eta > etaHigh ) eta = etaHigh; 00316 00317 // find BinID 00318 rTEta.push_back(rT); 00319 rTEta.push_back(eta); 00320 00321 map<BinID, IBinData*>::const_iterator binIter = m_binData.begin(); 00322 map<BinID, IBinData*>::const_iterator binEnd = m_binData.end(); 00323 00324 for ( ; binIter != binEnd; ++binIter ) 00325 { 00326 if ( binIter->first.isInBin(rTEta) ) 00327 { 00328 return binIter->second; 00329 } 00330 } 00331 // OOPS! couldn't fin bin 00332 *m_log << MSG::WARNING 00333 << "WARNING: PionMatrixManager - No bin; rT " << rT << ", eta " << eta 00334 << endreq; 00335 00336 return ( m_binData.begin() )->second; 00337 }
MsgStream* Atlfast::PionMatrixManager::m_log [private] |
Definition at line 62 of file PionMatrixManager.h.
string Atlfast::PionMatrixManager::m_file [private] |
name of flat file containing smear matrix data.
Definition at line 73 of file PionMatrixManager.h.
map<BinID, IBinData*> Atlfast::PionMatrixManager::m_binData [private] |
BinData objects, paired to a BinID
Definition at line 76 of file PionMatrixManager.h.
object which performs dcorset/dcorgen
Definition at line 79 of file PionMatrixManager.h.
int Atlfast::PionMatrixManager::m_randSeed [private] |
Definition at line 81 of file PionMatrixManager.h.
vector<double> Atlfast::PionMatrixManager::m_etaBoundaries [private] |
Definition at line 82 of file PionMatrixManager.h.
vector<double> Atlfast::PionMatrixManager::m_rTBoundaries [private] |
Definition at line 83 of file PionMatrixManager.h.
int Atlfast::PionMatrixManager::m_nRTBins [private] |
Definition at line 84 of file PionMatrixManager.h.
int Atlfast::PionMatrixManager::m_nEtaBins [private] |
Definition at line 85 of file PionMatrixManager.h.
