Atlfast::ReconstructedParticleHistogramMaker

Atlfast::ReconstructedParticleHistogramMaker Class Reference

#include <ReconstructedParticleHistogramMaker.h>

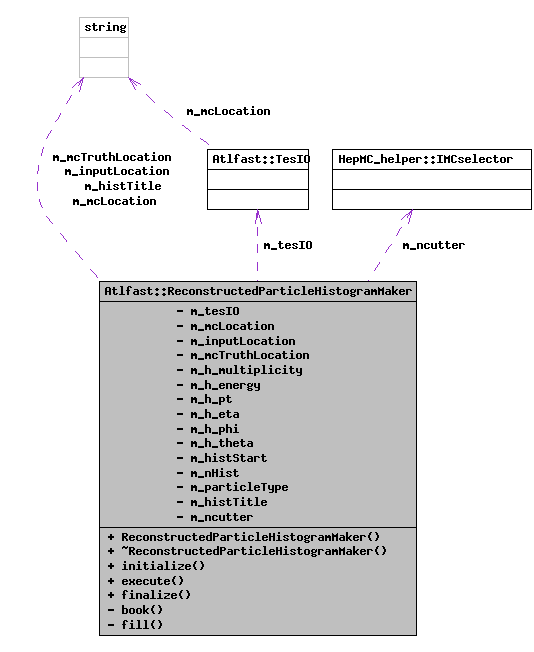

Collaboration diagram for Atlfast::ReconstructedParticleHistogramMaker:


Public Member Functions
	ReconstructedParticleHistogramMaker (const std::string &name, ISvcLocator *pSvcLocator)
	~ReconstructedParticleHistogramMaker ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
Private Member Functions
void	book (std::vector< IHistogram1D * > &start, const std::string title, const int nbins, const double xmin, const double xmax, const double xminDiff, const double xmaxDiff)
void	fill (std::vector< IHistogram1D * > &start, const double rec, const double tru)
Private Attributes
TesIO *	m_tesIO
std::string	m_mcLocation
std::string	m_inputLocation
std::string	m_mcTruthLocation
std::vector< IHistogram1D * >	m_h_multiplicity
std::vector< IHistogram1D * >	m_h_energy
std::vector< IHistogram1D * >	m_h_pt
std::vector< IHistogram1D * >	m_h_eta
std::vector< IHistogram1D * >	m_h_phi
std::vector< IHistogram1D * >	m_h_theta
int	m_histStart
int	m_nHist
int	m_particleType
std::string	m_histTitle
HepMC_helper::IMCselector *	m_ncutter

Detailed Description

Algorithm which makes debug histograms for ReconstructedParticles

Definition at line 55 of file ReconstructedParticleHistogramMaker.h.

Constructor & Destructor Documentation

Atlfast::ReconstructedParticleHistogramMaker::ReconstructedParticleHistogramMaker	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Definition at line 50 of file ReconstructedParticleHistogramMaker.cxx.

00051     : Algorithm( name, pSvcLocator ){
00052
00053
00054
00055
00056   // Default paths for entities in the TES
00057   m_inputLocation     = "/Event/Electrons";
00058   m_mcTruthLocation   = "/Event/McEventCollection";
00059
00060
00061   m_histStart         = 0;            // ID of first histogram
00062   m_particleType      = 11;           // Default particle type to examine
00063   m_histTitle         = "Electron ";  // Default prefixfor histogram titles
00064
00065   declareProperty( "InputLocation", m_inputLocation ) ;
00066   declareProperty( "McTruthLocation", m_mcTruthLocation );
00067   declareProperty( "HistogramStart", m_histStart );
00068   declareProperty( "ParticleType", m_particleType );
00069   declareProperty( "HistogramTitle", m_histTitle );
00070
00071 }

Atlfast::ReconstructedParticleHistogramMaker::~ReconstructedParticleHistogramMaker ( )

Definition at line 74 of file ReconstructedParticleHistogramMaker.cxx.

00074                                                                          {
00075   MsgStream log(messageService(), name());
00076   log << MSG::INFO << "destructor" << endreq;
00077
00078 }

Member Function Documentation

StatusCode Atlfast::ReconstructedParticleHistogramMaker::initialize ( )

Definition at line 85 of file ReconstructedParticleHistogramMaker.cxx.

00086 {
00087   // .. put any initialisation in here...
00088   MsgStream log(messageService(), name());
00089   log << MSG::DEBUG << "in initialize()" << endreq;
00090
00091   m_nHist = m_histStart;
00092
00093   book(m_h_multiplicity, string("Multiplicity"),20,0.0,20.0,-5.0, 5.0);
00094   log << MSG::DEBUG << "Made multiplicity histos" << endreq;
00095
00096   book(m_h_energy,       string("Energy"),100,0.0,500.0,-10.0, 10.0);
00097   log << MSG::DEBUG << "Made energy histos" << endreq;
00098
00099   book(m_h_pt,           string("Pt"), 100,0.0,500.0,-10.0,10.0);
00100   log << MSG::DEBUG << "Made pt histos" << endreq;
00101
00102   book(m_h_eta,          string("Eta"), 100,-3.0,3.0,-0.2,0.2);
00103   log << MSG::DEBUG << "Made eta histos" << endreq;
00104
00105   book(m_h_phi,          string("Phi"),20,-M_PI,M_PI,-0.1,0.1);
00106   log << MSG::DEBUG << "Made phi histos" << endreq;
00107
00108   book(m_h_theta,        string("Theta"),20,0.0,M_PI,-0.1,0.1);
00109   log << MSG::DEBUG << "Made thetahistos" << endreq;
00110
00111
00112   log << MSG::DEBUG << "Booked histograms OK" << endreq;
00113
00114   GlobalEventData* ged = GlobalEventData::Instance();
00115   // load the location of the MC in StoreGate
00116   m_mcLocation       = ged -> mcLocation();
00117
00118
00119   //  m_tesIO = new TesIO(eventDataService());
00120   m_tesIO = new TesIO(m_mcLocation, ged->justHardScatter());
00121
00122   // Set up NCutter to select the required HepMC::GenParticles
00123   typedef HepMC_helper::IMCselector Selector;
00124
00125   Selector* typeSelector = new HepMC_helper::SelectType( m_particleType);
00126   Selector* kineSelector = new HepMC_helper::MCCuts(m_mcPtMin, m_mcEtaMax);
00127   Selector* fstaSelector = new HepMC_helper::IsFinalState();
00128   Selector* fhscSelector = new HepMC_helper::IsFromHardScatter();
00129
00130   vector<HepMC_helper::IMCselector*> selectors;
00131   selectors.push_back(fhscSelector);
00132   selectors.push_back(fstaSelector);
00133   selectors.push_back(typeSelector);
00134   selectors.push_back(kineSelector);
00135
00136   m_ncutter = new  HepMC_helper::NCutter(selectors);
00137
00138   delete typeSelector;
00139   delete kineSelector;
00140   delete fstaSelector;
00141   delete fhscSelector;
00142   //=======================================================
00143
00144   return StatusCode::SUCCESS ;
00145 }

StatusCode Atlfast::ReconstructedParticleHistogramMaker::execute ( )

Definition at line 169 of file ReconstructedParticleHistogramMaker.cxx.

00170 {
00171
00172   //................................
00173   // make a message logging stream
00174
00175   MsgStream log( messageService(), name() ) ;
00176   log << MSG::DEBUG << "Executing " << endreq;
00177
00178   // Access the reconstructed particles in the TES
00179   std::vector<ReconstructedParticle*> myParticles;
00180   // Access the collection of "McEvent" records in the TES
00181   std::vector<McEvent*> mcEvents;
00182
00183
00184   //Get the MC truth list
00185     MCparticleCollection  myMC_particles ;
00186     MCparticleCollectionCIter src ;
00187
00188     TesIoStat stat = m_tesIO->getMC( myMC_particles, m_ncutter ) ;
00189     mess = stat? "Retrieved MC from TES ":"Failed MC retrieve from TES";
00190     log << MSG::DEBUG << mess << endreq;
00191
00192
00193    //check to see whether any reconstructed particles are found at the requested location
00194   if(!m_tesIO->copy(myParticles, m_inputLocation)){
00195     log << MSG::DEBUG << "no particles found in the TES. This is probably normal" << endreq;
00196     // fill any histograms that have meaning in the absence of rec particles
00197     fill(m_h_multiplicity,0.0,float(myMC_particles.size()) );
00198     //log << MSG::DEBUG
00199     //<< "filled multiplicity 0.0 and "
00200     //<< float(myMC_particles.size())
00201     //<< endreq;
00202   } else {
00203     // fill all histograms
00204     //log << MSG::DEBUG << "Fill multiplicity" << endreq;
00205     fill(m_h_multiplicity,
00206          double(myParticles.size()),
00207          double(myMC_particles.size()) );
00208
00209     //iterate over the electrons
00210
00211     std::vector<ReconstructedParticle*>::const_iterator iter = myParticles.begin();
00212     for (; iter != myParticles.end(); ++iter) {
00213       const HepMC::GenParticle* truth = (*iter)->truth();
00214       HepLorentzVector momentum = (*iter)->momentum();
00215       HepLorentzVector trueMomentum = truth->momentum();
00216
00217       //log << MSG::DEBUG << "Fill per-electron histos" << endreq;
00218       fill(m_h_pt,    (*iter)->pT(),                trueMomentum.perp());
00219       fill(m_h_eta,   (*iter)->eta(),           trueMomentum.pseudoRapidity());
00220       fill(m_h_energy,((*iter)->momentum()).e(),    trueMomentum.e());
00221       fill(m_h_phi,   (*iter)->phi(),               trueMomentum.phi());
00222       fill(m_h_theta, ((*iter)->momentum()).theta(),trueMomentum.theta());
00223     }
00224   }
00225   log << MSG::DEBUG << "Done the filling OK" << endreq;
00226   return StatusCode::SUCCESS ;
00227 }

StatusCode Atlfast::ReconstructedParticleHistogramMaker::finalize ( )

Definition at line 153 of file ReconstructedParticleHistogramMaker.cxx.

00154 {
00155   // .. put any finalisation in here...
00156   MsgStream log(messageService(), name());
00157   log << MSG::INFO << "finalizing" << endreq;
00158
00159   return StatusCode::SUCCESS ;
00160 }

void Atlfast::ReconstructedParticleHistogramMaker::book	(	std::vector< IHistogram1D * > &	start,
		const std::string	title,
		const int	nbins,
		const double	xmin,
		const double	xmax,
		const double	xminDiff,
		const double	xmaxDiff
	)			`[private]`

Definition at line 234 of file ReconstructedParticleHistogramMaker.cxx.

00243 {
00244
00245   // book the histograms in turn, incrementing the counter before using it
00246   start.push_back(histoSvc()->book(
00247                                    "/stat/simple1d/",
00248                                    ++m_nHist,
00249                                    m_histTitle+" Rec "+title,
00250                                    nbins,
00251                                    xmin,
00252                                    xmax
00253                                    )
00254                   );
00255
00256   start.push_back(histoSvc()->book(
00257                                    "/stat/simple1d/",
00258                                    ++m_nHist,
00259                                    m_histTitle+" Tru "+title,
00260                                    nbins,
00261                                    xmin,
00262                                    xmax
00263                                    )
00264                   );
00265
00266   start.push_back(histoSvc()->book(
00267                                    "/stat/simple1d/",
00268                                    ++m_nHist,
00269                                    m_histTitle+" Dif "+title,
00270                                    nbins*2,
00271                                    xminDiff,
00272                                    xmaxDiff
00273                                    )
00274                   );
00275   start.push_back(histoSvc()->book(
00276                                    "/stat/simple1d/",
00277                                    ++m_nHist,
00278                                    m_histTitle+" Res "+title,
00279                                    nbins*2,
00280                                    -2.0,
00281                                    2.0
00282                                    )
00283                   );
00284
00285   return;
00286 }

void Atlfast::ReconstructedParticleHistogramMaker::fill	(	std::vector< IHistogram1D * > &	start,
		const double	rec,
		const double	tru
	)			`[private]`

Definition at line 291 of file ReconstructedParticleHistogramMaker.cxx.

00291                                                                                                                   {
00292
00293   MsgStream log( messageService(), name() ) ;
00294
00295   if (!start[0] || !start[1] || !start[2] || !start[3]) {
00296     log << MSG::WARNING << "trying to fill to a null histogram pointer" << endreq;
00297     return;
00298    }
00299   start[0]->fill(rec,1.0);
00300   start[1]->fill(tru,1.0);
00301   start[2]->fill(tru-rec,1.0);
00302   if (tru != 0.0) {
00303     start[3]->fill((tru-rec)/tru,1.0);
00304   }
00305   return;
00306 }

Member Data Documentation

TesIO* Atlfast::ReconstructedParticleHistogramMaker::m_tesIO [private]

Definition at line 81 of file ReconstructedParticleHistogramMaker.h.

std::string Atlfast::ReconstructedParticleHistogramMaker::m_mcLocation [private]

Definition at line 83 of file ReconstructedParticleHistogramMaker.h.

std::string Atlfast::ReconstructedParticleHistogramMaker::m_inputLocation [private]

Definition at line 108 of file ReconstructedParticleHistogramMaker.h.

std::string Atlfast::ReconstructedParticleHistogramMaker::m_mcTruthLocation [private]

Definition at line 109 of file ReconstructedParticleHistogramMaker.h.

std::vector<IHistogram1D*> Atlfast::ReconstructedParticleHistogramMaker::m_h_multiplicity [private]

Definition at line 125 of file ReconstructedParticleHistogramMaker.h.

std::vector<IHistogram1D*> Atlfast::ReconstructedParticleHistogramMaker::m_h_energy [private]

Definition at line 127 of file ReconstructedParticleHistogramMaker.h.

std::vector<IHistogram1D*> Atlfast::ReconstructedParticleHistogramMaker::m_h_pt [private]

Definition at line 129 of file ReconstructedParticleHistogramMaker.h.

std::vector<IHistogram1D*> Atlfast::ReconstructedParticleHistogramMaker::m_h_eta [private]

Definition at line 131 of file ReconstructedParticleHistogramMaker.h.

std::vector<IHistogram1D*> Atlfast::ReconstructedParticleHistogramMaker::m_h_phi [private]

Definition at line 133 of file ReconstructedParticleHistogramMaker.h.

std::vector<IHistogram1D*> Atlfast::ReconstructedParticleHistogramMaker::m_h_theta [private]

Definition at line 135 of file ReconstructedParticleHistogramMaker.h.

int Atlfast::ReconstructedParticleHistogramMaker::m_histStart [private]

Definition at line 140 of file ReconstructedParticleHistogramMaker.h.

int Atlfast::ReconstructedParticleHistogramMaker::m_nHist [private]

Definition at line 142 of file ReconstructedParticleHistogramMaker.h.

int Atlfast::ReconstructedParticleHistogramMaker::m_particleType [private]

Definition at line 145 of file ReconstructedParticleHistogramMaker.h.

std::string Atlfast::ReconstructedParticleHistogramMaker::m_histTitle [private]

Definition at line 148 of file ReconstructedParticleHistogramMaker.h.

HepMC_helper::IMCselector* Atlfast::ReconstructedParticleHistogramMaker::m_ncutter [private]

Definition at line 154 of file ReconstructedParticleHistogramMaker.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/AtlfastAlgs/ReconstructedParticleHistogramMaker.h
/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/src/ReconstructedParticleHistogramMaker.cxx

Generated on Mon Sep 24 14:19:41 2007 for AtlfastAlgs by

1.5.1

Atlfast::ReconstructedParticleHistogramMaker Class Reference

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
