Atlfast::TauTagger Class Reference

#include <TauTagger.h>

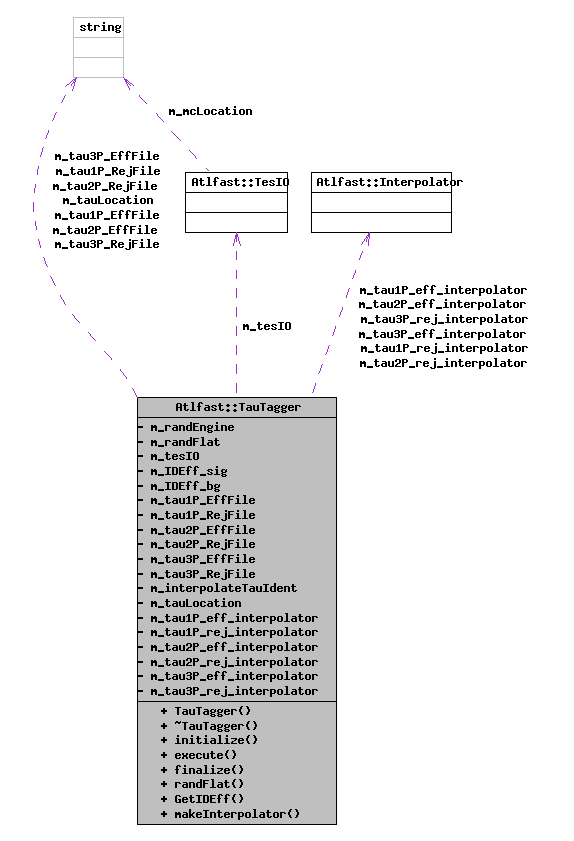

Collaboration diagram for Atlfast::TauTagger:


Public Member Functions
	TauTagger (const std::string &name, ISvcLocator *pSvcLocator)
	~TauTagger ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()
RandFlat *	randFlat ()
double	GetIDEff (TauContainer::const_iterator)
void	makeInterpolator (Interpolator *&intptr, std::string intname, bool contbounds)
Private Attributes
HepRandomEngine *	m_randEngine
RandFlat *	m_randFlat
TesIO *	m_tesIO
std::vector< std::vector< double > >	m_IDEff_sig
std::vector< std::vector< double > >	m_IDEff_bg
std::string	m_tau1P_EffFile
	Identification Efficiency Parametrisation - Input File.
std::string	m_tau1P_RejFile
std::string	m_tau2P_EffFile
std::string	m_tau2P_RejFile
std::string	m_tau3P_EffFile
std::string	m_tau3P_RejFile
bool	m_interpolateTauIdent
std::string	m_tauLocation
Interpolator *	m_tau1P_eff_interpolator
Interpolator *	m_tau1P_rej_interpolator
Interpolator *	m_tau2P_eff_interpolator
Interpolator *	m_tau2P_rej_interpolator
Interpolator *	m_tau3P_eff_interpolator
Interpolator *	m_tau3P_rej_interpolator

Detailed Description

Definition at line 20 of file TauTagger.h.

Constructor & Destructor Documentation

Atlfast::TauTagger::TauTagger	(	const std::string &	name,
		ISvcLocator *	pSvcLocator
	)

Constructor

Parameters:

	type	type of tool
	name	name of tool
	parent	pointer to the IInterface of the parent component

Definition at line 32 of file TauTagger.cxx.

00033     : Algorithm( name, pSvcLocator ),
00034       m_randEngine(0),
00035       m_randFlat(0),
00036       m_tesIO(0),
00037       m_tau1P_eff_interpolator(0),
00038       m_tau1P_rej_interpolator(0),
00039       m_tau2P_eff_interpolator(0),
00040       m_tau2P_rej_interpolator(0),
00041       m_tau3P_eff_interpolator(0),
00042       m_tau3P_rej_interpolator(0)
00043
00044   {
00045     //Default private parameters
00046
00047     m_interpolateTauIdent =  true;
00048     m_tauLocation         =  "/Event/AtlfastTaus";
00049     m_tau1P_EffFile       =  "atlfastDatafiles/tau1P_EffFile.txt";
00050     m_tau1P_RejFile       =  "atlfastDatafiles/tau1P_RejFile.txt";
00051     m_tau2P_EffFile       =  "atlfastDatafiles/tau2P_EffFile.txt";
00052     m_tau2P_RejFile       =  "atlfastDatafiles/tau2P_RejFile.txt";
00053     m_tau3P_EffFile       =  "atlfastDatafiles/tau3P_EffFile.txt";
00054     m_tau3P_RejFile       =  "atlfastDatafiles/tau3P_RejFile.txt";
00055
00056     //Declare joboption properties here...
00057     declareProperty( "interpolateTauIdent", m_interpolateTauIdent );
00058     declareProperty( "TauLocation",         m_tauLocation );
00059     declareProperty( "tau1P_EffFile",       m_tau1P_EffFile );
00060     declareProperty( "tau1P_RejFile",       m_tau1P_RejFile );
00061     declareProperty( "tau2P_EffFile",       m_tau2P_EffFile );
00062     declareProperty( "tau2P_RejFile",       m_tau2P_RejFile );
00063     declareProperty( "tau3P_EffFile",       m_tau3P_EffFile );
00064     declareProperty( "tau3P_RejFile",       m_tau3P_RejFile );
00065   }

Atlfast::TauTagger::~TauTagger ( )

Definition at line 67 of file TauTagger.cxx.

00067                         {
00068
00069     if (m_tesIO) {
00070       delete m_tesIO;
00071     }
00072
00073   }

Member Function Documentation

StatusCode Atlfast::TauTagger::initialize ( )

Tool initialization

Returns:: Status code

Definition at line 78 of file TauTagger.cxx.

00079   {
00080     MsgStream p_log( msgSvc(), name() );
00081
00082     p_log << MSG::DEBUG << "Initialising TauTagger" << endreq;
00083
00084     GlobalEventData* ged = GlobalEventData::Instance();
00085     int randSeed = ged->randSeed() ;
00086     m_tesIO      = new TesIO(ged->mcLocation(), ged->justHardScatter());
00087
00088     m_randEngine = new HepJamesRandom( randSeed );
00089     m_randFlat   = new RandFlat( m_randEngine);
00090
00091
00092     // Create interpolator for tau efficiencies
00093     makeInterpolator(m_tau1P_eff_interpolator, m_tau1P_EffFile , true);
00094     makeInterpolator(m_tau1P_rej_interpolator, m_tau1P_RejFile , true);
00095     makeInterpolator(m_tau2P_eff_interpolator, m_tau2P_EffFile , true);
00096     makeInterpolator(m_tau2P_rej_interpolator, m_tau2P_RejFile , true);
00097     makeInterpolator(m_tau3P_eff_interpolator, m_tau3P_EffFile , true);
00098     makeInterpolator(m_tau3P_rej_interpolator, m_tau3P_RejFile , true);
00099
00100     return StatusCode::SUCCESS;
00101   }

StatusCode Atlfast::TauTagger::execute ( )

Tool execution

Returns:: Status code

Definition at line 106 of file TauTagger.cxx.

00107   {
00108     MsgStream p_log( msgSvc(), name() );
00109
00110     p_log << MSG::DEBUG << "Executing TauTagger" << endreq;
00111
00112     const TauContainer* container(0);
00113     if(!m_tesIO->getDH(container, m_tauLocation)){
00114       p_log << MSG::ERROR
00115             << "Could not get DataHandle for " << m_tauLocation
00116             << endreq ;
00117       return StatusCode::SUCCESS ;
00118     }
00119
00120     TauContainer::const_iterator p_iterF = container->begin();
00121     for( ; p_iterF != container->end(); p_iterF++ )
00122       {
00123
00124         //-------------------------------------------------
00125         // Make Identification Decision
00126         //-------------------------------------------------
00127
00128         //long tr_NTrack = (*p_iterF)->nTrack();
00129         //int tr_IsTrueTau = (*p_iterF)->isTrueTau();
00130         int tr_Discriminant = 0;
00131
00132         double idEff=GetIDEff(p_iterF);
00133
00134         float rid = randFlat()->fire();
00135         if(rid<idEff) tr_Discriminant = 1;
00136         p_log << MSG::DEBUG << "Discriminant Tag = "
00137               << tr_Discriminant <<" ( rand seed = "<< rid
00138               << " id Eff. = "<< idEff << " )" << endreq;
00139         (*p_iterF)->setDiscriminant(tr_Discriminant);
00140       }
00141
00142     return StatusCode::SUCCESS;
00143   }

StatusCode Atlfast::TauTagger::finalize ( )

Tool finalization

Returns:: Status code

Definition at line 146 of file TauTagger.cxx.

00147   {
00148
00149     MsgStream p_log( msgSvc(), name() );
00150     p_log << MSG::DEBUG << "TauTagger Finalize "<< endreq;
00151
00152     //   Note from CLHEP/Random/RandFlat instructions:
00153     //   "If the engine is passed by pointer then the corresponding engine
00154     //   object will be deleted by the RandFlat destructor.If the engine is
00155     //   passed by reference then the corresponding engine object will not be
00156     //   deleted by the RandFlat destructor."
00157     //   So don't delete the random engine after m_randflat.
00158
00159     if (m_randFlat)      delete m_randFlat;
00160
00161     if (m_tau1P_eff_interpolator)      delete m_tau1P_eff_interpolator;
00162     if (m_tau1P_rej_interpolator)      delete m_tau1P_rej_interpolator;
00163     if (m_tau2P_eff_interpolator)      delete m_tau2P_eff_interpolator;
00164     if (m_tau2P_rej_interpolator)      delete m_tau2P_rej_interpolator;
00165     if (m_tau3P_eff_interpolator)      delete m_tau3P_eff_interpolator;
00166     if (m_tau3P_rej_interpolator)      delete m_tau3P_rej_interpolator;
00167
00168     return StatusCode::SUCCESS;
00169   }

RandFlat* Atlfast::TauTagger::randFlat ( ) [inline]

Definition at line 54 of file TauTagger.h.

00054 { return m_randFlat;}

double Atlfast::TauTagger::GetIDEff ( TauContainer::const_iterator )

Definition at line 173 of file TauTagger.cxx.

00173                                                               {
00174
00175     // Find Identification efficiency for tau candidate to pass
00176     // discriminant.
00177
00178     MsgStream p_log( msgSvc(), name() );
00179
00180     double IDEff = 0.0;
00181
00182     // Input to interpolators
00183     double pt_in_GeV = (*p_iterF)->pt()/GeV;
00184     double etatau = (*p_iterF)->eta();
00185     int nTrack = (int) (*p_iterF)->nTrack();
00186     deque<double> input_values;
00187     input_values.push_back( pt_in_GeV );
00188     input_values.push_back( fabs(etatau) );
00189
00190     if (nTrack==1){
00191       if( (*p_iterF)->isTrueTau()==1 ){
00192         IDEff = m_interpolateTauIdent ?
00193           m_tau1P_eff_interpolator->interpolate(input_values) :
00194           m_tau1P_eff_interpolator->getNearestValue(input_values);
00195       } else if ( (*p_iterF)->isTrueTau()==0 ){
00196         IDEff = m_interpolateTauIdent ?
00197           m_tau1P_rej_interpolator->interpolate(input_values) :
00198           m_tau1P_rej_interpolator->getNearestValue(input_values);
00199       }
00200     }
00201     if (nTrack==2){
00202       if( (*p_iterF)->isTrueTau()==1 ){
00203         IDEff = m_interpolateTauIdent ?
00204           m_tau2P_eff_interpolator->interpolate(input_values) :
00205           m_tau2P_eff_interpolator->getNearestValue(input_values);
00206       } else if ( (*p_iterF)->isTrueTau()==0 ){
00207         IDEff = m_interpolateTauIdent ?
00208           m_tau2P_rej_interpolator->interpolate(input_values) :
00209           m_tau2P_rej_interpolator->getNearestValue(input_values);
00210       }
00211     }
00212     if (nTrack>=3){
00213       if( (*p_iterF)->isTrueTau()==1 ){
00214         IDEff = m_interpolateTauIdent ?
00215           m_tau3P_eff_interpolator->interpolate(input_values) :
00216           m_tau3P_eff_interpolator->getNearestValue(input_values);
00217       } else if ( (*p_iterF)->isTrueTau()==0 ){
00218         IDEff = m_interpolateTauIdent ?
00219           m_tau3P_rej_interpolator->interpolate(input_values) :
00220           m_tau3P_rej_interpolator->getNearestValue(input_values);
00221       }
00222     }
00223
00224     p_log << MSG::DEBUG << "Tau"<<nTrack<<"P true="<<(*p_iterF)->isTrueTau()
00225           <<";  pT= "<<pt_in_GeV << " GeV; eta= "<<etatau
00226           <<";\tideff= "<<IDEff <<endreq;
00227
00228     return IDEff;
00229   }

void Atlfast::TauTagger::makeInterpolator	(	Interpolator *&	intptr,
		std::string	intname,
		bool	contbounds
	)

Definition at line 232 of file TauTagger.cxx.

00232                                                                                            {
00233     MsgStream p_log( msgSvc(), name() );
00234     std::string fn = PathResolver::find_file(intname, "DATAPATH");
00235     intptr = new Interpolator(fn);
00236     p_log << MSG::DEBUG << "Made Interpolator from input file " << fn << endreq;
00237     if (contbounds) intptr->setContinuousBoundaries();
00238     return;
00239   }

Member Data Documentation

HepRandomEngine* Atlfast::TauTagger::m_randEngine [private]

Definition at line 61 of file TauTagger.h.

RandFlat* Atlfast::TauTagger::m_randFlat [private]

Definition at line 62 of file TauTagger.h.

TesIO* Atlfast::TauTagger::m_tesIO [private]

Definition at line 64 of file TauTagger.h.

std::vector< std::vector<double> > Atlfast::TauTagger::m_IDEff_sig [private]

Definition at line 66 of file TauTagger.h.

std::vector< std::vector<double> > Atlfast::TauTagger::m_IDEff_bg [private]

Definition at line 67 of file TauTagger.h.

std::string Atlfast::TauTagger::m_tau1P_EffFile [private]

Identification Efficiency Parametrisation - Input File.

Definition at line 70 of file TauTagger.h.

std::string Atlfast::TauTagger::m_tau1P_RejFile [private]

Definition at line 71 of file TauTagger.h.

std::string Atlfast::TauTagger::m_tau2P_EffFile [private]

Definition at line 72 of file TauTagger.h.

std::string Atlfast::TauTagger::m_tau2P_RejFile [private]

Definition at line 73 of file TauTagger.h.

std::string Atlfast::TauTagger::m_tau3P_EffFile [private]

Definition at line 74 of file TauTagger.h.

std::string Atlfast::TauTagger::m_tau3P_RejFile [private]

Definition at line 75 of file TauTagger.h.

bool Atlfast::TauTagger::m_interpolateTauIdent [private]

Definition at line 78 of file TauTagger.h.

std::string Atlfast::TauTagger::m_tauLocation [private]

Definition at line 80 of file TauTagger.h.

Interpolator* Atlfast::TauTagger::m_tau1P_eff_interpolator [private]

Definition at line 83 of file TauTagger.h.

Interpolator* Atlfast::TauTagger::m_tau1P_rej_interpolator [private]

Definition at line 84 of file TauTagger.h.

Interpolator* Atlfast::TauTagger::m_tau2P_eff_interpolator [private]

Definition at line 85 of file TauTagger.h.

Interpolator* Atlfast::TauTagger::m_tau2P_rej_interpolator [private]

Definition at line 86 of file TauTagger.h.

Interpolator* Atlfast::TauTagger::m_tau3P_eff_interpolator [private]

Definition at line 87 of file TauTagger.h.

Interpolator* Atlfast::TauTagger::m_tau3P_rej_interpolator [private]

Definition at line 88 of file TauTagger.h.

The documentation for this class was generated from the following files:

/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/AtlfastAlgs/TauTagger.h
/afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastAlgs/src/TauTagger.cxx

Generated on Mon Sep 24 14:19:42 2007 for AtlfastAlgs by

1.5.1

Atlfast::TauTagger Class Reference

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
