Atlfast::TrackSmearer

Atlfast::TrackSmearer Class Reference

#include <TrackSmearer.h>

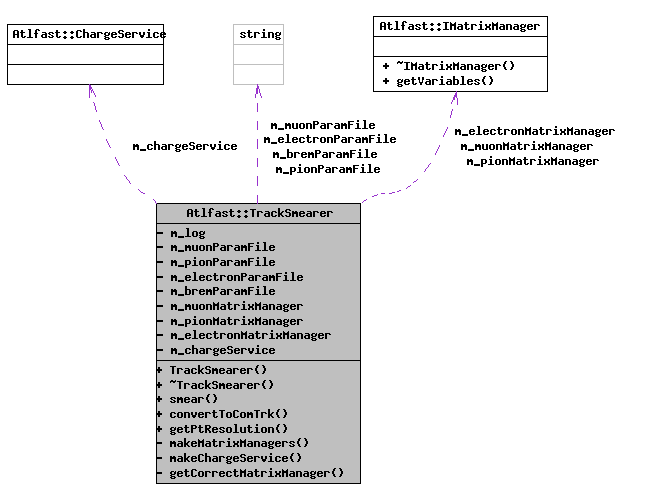

Collaboration diagram for Atlfast::TrackSmearer:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TrackSmearer (int randSeed, MsgStream &log, std::string muonParFile="atlfastDatafiles/Atlfast_MuonResParam_CSC.dat", std::string pionParFile="atlfastDatafiles/Atlfast_PionResParam_DC1_NewUnits.dat", std::string electronParFile="atlfastDatafiles/Atlfast_ElectronResParam_CSC.dat", std::string bremParFile="atlfastDatafiles/Atlfast_ElectronBremParam_CSC.dat")
 ~TrackSmearer ()
Track smear (const Track &track) const
HepSymMatrix convertToComTrk (const Track &track, const HepSymMatrix &sigma) const
double getPtResolution (const HepMC::GenParticle &particle)

Private Member Functions

void makeMatrixManagers (int randSeed)
void makeChargeService ()
IMatrixManager * getCorrectMatrixManager (int &pdg) const

Private Attributes

MsgStream & m_log
std::string m_muonParamFile
std::string m_pionParamFile
std::string m_electronParamFile
std::string m_bremParamFile
IMatrixManager * m_muonMatrixManager
IMatrixManager * m_pionMatrixManager
IMatrixManager * m_electronMatrixManager
ChargeService * m_chargeService

Detailed Description

Definition at line 75 of file TrackSmearer.h.

Constructor & Destructor Documentation

Atlfast::TrackSmearer::TrackSmearer ( int  randSeed,
MsgStream &  log,
std::string  muonParFile = "atlfastDatafiles/Atlfast_MuonResParam_CSC.dat",
std::string  pionParFile = "atlfastDatafiles/Atlfast_PionResParam_DC1_NewUnits.dat",
std::string  electronParFile = "atlfastDatafiles/Atlfast_ElectronResParam_CSC.dat",
std::string  bremParFile = "atlfastDatafiles/Atlfast_ElectronBremParam_CSC.dat"
)

Definition at line 23 of file TrackSmearer.cxx.

00028                                                         :
00029     m_log(log),
00030     m_muonParamFile(muonparamfile),
00031     m_pionParamFile(pionparamfile),
00032     m_electronParamFile(electronparamfile),
00033     m_bremParamFile(bremparamfile)
00034   {
00035
00036     makeMatrixManagers(randSeed);
00037     makeChargeService();
00038
00039   }

Atlfast::TrackSmearer::~TrackSmearer (  )

Definition at line 74 of file TrackSmearer.cxx.

00075   {
00076     if (m_muonMatrixManager)     delete m_muonMatrixManager;
00077     if (m_pionMatrixManager)     delete m_pionMatrixManager;
00078     if (m_electronMatrixManager) delete m_electronMatrixManager;
00079     delete m_chargeService;
00080   }

Member Function Documentation

void Atlfast::TrackSmearer::makeMatrixManagers ( int  randSeed  )  [private]

Definition at line 41 of file TrackSmearer.cxx.

00042   {
00043     m_muonMatrixManager     = new MuonMatrixManager( m_muonParamFile, randSeed, m_log );
00044     m_pionMatrixManager     = new PionMatrixManager( m_pionParamFile, randSeed, m_log );
00045     m_electronMatrixManager = new ElectronMatrixManager( m_bremParamFile, m_electronParamFile, randSeed, m_log );
00046
00047     m_log << MSG::INFO << "TrackSmearer constructed" << endreq;
00048
00049     return;
00050   }

void Atlfast::TrackSmearer::makeChargeService (  )  [private]

Definition at line 52 of file TrackSmearer.cxx.

00053   {
00054     try
00055     {
00056       m_chargeService = new ChargeService() ;
00057     }
00058     catch( std::string errMsg )
00059     {
00060       std::cout << "TrackSmearer: Error making ChargeService " << errMsg << std::endl;
00061     }
00062     catch( ... )
00063     {
00064       std::cout << "TrackSmearer: Unknown Error making ChargeService " << std::endl;
00065     }
00066
00067     return;
00068   }

IMatrixManager * Atlfast::TrackSmearer::getCorrectMatrixManager ( int &  pdg  )  const [private]

Definition at line 133 of file TrackSmearer.cxx.

00134   {
00135     IMatrixManager* correctManager = NULL;
00136
00137     if ( pdg == 11 )  correctManager = m_electronMatrixManager;
00138     if ( pdg == 13 )  correctManager = m_muonMatrixManager;
00139     if ( pdg == 211 ) correctManager = m_pionMatrixManager;
00140     if ( correctManager == NULL )  correctManager = m_pionMatrixManager;
00141
00142     return correctManager;
00143   }

Track Atlfast::TrackSmearer::smear ( const Track &  track  )  const

Definition at line 85 of file TrackSmearer.cxx.

00086   {
00087
00088     vector<double> smearVariables ;   // Vector of correlated gaussian variables
00089
00090     int pdg = abs( track.pdg_id() );
00091     IMatrixManager* correctManager = getCorrectMatrixManager(pdg);
00092
00093     TrackTrajectory originalTrajectory = track.trajectory();
00094     HepSymMatrix sigma; // smear matrix for track
00095     smearVariables = correctManager->getVariables( originalTrajectory, sigma );
00096
00097     // smear parameters with gaussian variables
00098     // NOTE: smear variables are delta(d0, z0, phi0, cot(theta0), q/pT)
00099     TrackParameters parameters = originalTrajectory.parameters();
00100
00101     double impactParameter = parameters.impactParameter() + smearVariables[0];
00102     double zPerigee        = parameters.zPerigee() + smearVariables[1];
00103     Phi phi                = parameters.phi() + smearVariables[2];
00104     double cotTheta        = parameters.cotTheta() + smearVariables[3];
00105     double invPtCharge     = parameters.invPtCharge() + smearVariables[4];
00106
00107     double curvature = originalTrajectory.curvature();
00108     double pT = abs( 1. / invPtCharge );
00109     Hep3Vector vec;
00110     vec.setX( pT * cos(phi) );
00111     vec.setY( pT * sin(phi) );
00112     vec.setZ( pT * cotTheta );
00113
00114     // Convert results to object
00115     TrackTrajectory smearedTrajectory( TrackParameters( vec.pseudoRapidity(),
00116                                                         phi, pT, impactParameter,
00117                                                         zPerigee, cotTheta,
00118                                                         invPtCharge ),
00119                                        originalTrajectory.startPoint(),
00120                                        curvature );
00121
00122     // sigma has to be converted into the representation used
00123     // by Common Tracking, i.e. (d0, z0, phi0, theta0, q/p),
00124     // when it is written to CBNTs or AODs.
00125     HepSymMatrix sigmaConverted = convertToComTrk( track, sigma );
00126
00127     Track newTrack( originalTrajectory, smearedTrajectory, track.truth(), sigmaConverted );
00128
00129     return newTrack ;
00130   }

HepSymMatrix Atlfast::TrackSmearer::convertToComTrk ( const Track &  track,
const HepSymMatrix &  sigma
) const

Definition at line 146 of file TrackSmearer.cxx.

00147   {
00148     // Method to convert covariance matrix into the representation used
00149     // by Common Tracking, i.e. (d0, z0, phi0, theta0, q/p), instead of
00150     // internally used (d0, z0, phi0, cot(theta0), q/pT). Needed when
00151     // matrix is written to CBNTs or AODs.
00152     // Uses track parameters of original (MC) track to determine the
00153     // Jacobian matrix.
00154
00155     TrackTrajectory originalTrajectory = track.trajectory();
00156     TrackParameters parameters = originalTrajectory.parameters();
00157
00158     double cotTheta    = parameters.cotTheta();
00159     double sinTheta    = sqrt( 1.0 / ( 1.0 + cotTheta * cotTheta ) );
00160     double invPtCharge = parameters.invPtCharge();
00161
00162     HepSymMatrix conv(5,0);
00163
00164     // USE the fact that from the sigma off-diagonals, the only non-zero
00165     // elements are sigma(1,3), sigma(1,5), sigma(3,5), sigma(2,4)
00166
00167     // cov(d0,d0)
00168     conv(1,1) = sigma(1,1);
00169     // cov(d0,phi0)
00170     conv(1,3) = conv(3,1) = sigma(1,3);
00171     // cov(d0,q/p)
00172     conv(1,5) = conv(5,1) = sigma(1,5) * sinTheta;
00173     // cov(phi0,phi0)
00174     conv(3,3) = sigma(3,3);
00175     // cov(phi0,q/p)
00176     conv(3,5) = conv(5,3) = sigma(3,5) * sinTheta;
00177
00178     // cov(z0,z0)
00179     conv(2,2) = sigma(2,2);
00180     // cov(z0,theta0)
00181     conv(2,4) = conv(4,2) = -sigma(2,4) * sinTheta * sinTheta;
00182     // cov(theta0,theta0)
00183     conv(4,4) = sigma(4,4) * pow( sinTheta, 4 );
00184
00185     // cov(z0,q/p)
00186     conv(2,5) = conv(5,2) = conv(2,4) * invPtCharge * sinTheta * cotTheta;
00187     // cov(theta0,q/p)
00188     conv(4,5) = conv(5,4) = conv(4,4) * invPtCharge * sinTheta * cotTheta;
00189
00190     // cov(q/p,q/p)
00191     conv(5,5)  = sigma(5,5) +
00192                  sigma(4,4) * pow( invPtCharge * sinTheta * sinTheta * cotTheta, 2 );
00193     conv(5,5) *= sinTheta * sinTheta;
00194
00195     return conv;
00196   }

double Atlfast::TrackSmearer::getPtResolution ( const HepMC::GenParticle &  particle  )

Definition at line 199 of file TrackSmearer.cxx.

00200   {
00201     int pdg = abs( particle.pdg_id() );
00202     IMatrixManager* correctManager = getCorrectMatrixManager(pdg);
00203
00204     // Look up vertex
00205     Hep3Vector vertex = (particle.production_vertex())->position().getV();
00206     // Get 4-momentum and explicitly convert to 3-momentum
00207     Hep3Vector threeMomentum = particle.momentum().getV() ;
00208     // Obtain charge of particle
00209     double charge = m_chargeService->operator()( &particle );
00210     // Magnetic field strength
00211     MagField *bfield = MagField::Instance();
00212
00213     TrackTrajectory trTraj( threeMomentum, vertex, charge, bfield->strength() );
00214
00215     // Get smearing matrix
00216     HepSymMatrix sigma; // smear matrix for track
00217     std::vector<double> smearVariables = correctManager->getVariables( trTraj, sigma );
00218
00219     // return pT element
00220     // At some stage, need to develop a system for returning
00221     // element independent of track parameterisation, eg.
00222     // AtlfastMatrix->getPtRes()?
00223
00224     double pt = ( particle.momentum() ).perp();
00225
00226     // sigma(5,5) is resolution^2 for q/pT,
00227     // sigma(pT) = pT^2 * sqrt( sigma(5,5) )
00228     // sigma(pT)/pT gives proportional resolution
00229
00230     double ptResProp = pt * sqrt( sigma(5,5) );
00231
00232     return ptResProp;
00233   }

Member Data Documentation

MsgStream& Atlfast::TrackSmearer::m_log [private]

Definition at line 83 of file TrackSmearer.h.

std::string Atlfast::TrackSmearer::m_muonParamFile [private]

Definition at line 84 of file TrackSmearer.h.

std::string Atlfast::TrackSmearer::m_pionParamFile [private]

Definition at line 85 of file TrackSmearer.h.

std::string Atlfast::TrackSmearer::m_electronParamFile [private]

Definition at line 86 of file TrackSmearer.h.

std::string Atlfast::TrackSmearer::m_bremParamFile [private]

Definition at line 87 of file TrackSmearer.h.

IMatrixManager* Atlfast::TrackSmearer::m_muonMatrixManager [private]

Definition at line 90 of file TrackSmearer.h.

IMatrixManager* Atlfast::TrackSmearer::m_pionMatrixManager [private]

Definition at line 91 of file TrackSmearer.h.

IMatrixManager* Atlfast::TrackSmearer::m_electronMatrixManager [private]

Definition at line 92 of file TrackSmearer.h.

ChargeService* Atlfast::TrackSmearer::m_chargeService [private]

Definition at line 95 of file TrackSmearer.h.

The documentation for this class was generated from the following files:
