#include <TransportedSMParticle.h>

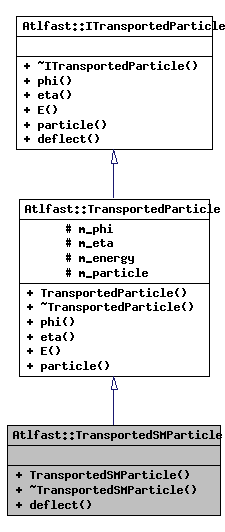

Inheritance diagram for Atlfast::TransportedSMParticle:
Public Member Functions | |
| TransportedSMParticle (const HepMC::GenParticle *const &p) | |
| ~TransportedSMParticle () | |
| void | deflect () |
| Phi | phi () const |
| double | eta () const |
| double | E () const |
| const HepMC::GenParticle * | particle () const |
Protected Attributes | |
| Phi | m_phi |
| double | m_eta |
| double | m_energy |
| const HepMC::GenParticle * | m_particle |
Definition at line 14 of file TransportedSMParticle.h.
| Atlfast::TransportedSMParticle::TransportedSMParticle | ( | const HepMC::GenParticle *const & | p | ) | [inline] |
Definition at line 16 of file TransportedSMParticle.h.
00016 : 00017 TransportedParticle(p){}; ~TransportedSMParticle(){};
| Atlfast::TransportedSMParticle::~TransportedSMParticle | ( | ) | [inline] |
| void Atlfast::TransportedSMParticle::deflect | ( | ) | [virtual] |
Implements Atlfast::ITransportedParticle.
Definition at line 16 of file TransportedSMParticle.cxx.
00016 { 00017 00018 // A Phi object is held as a member 00019 double phi=m_phi.val(); 00020 00021 // Use ChargeService to get particle's charge 00022 double charge; 00023 ChargeService cs; 00024 try{ 00025 charge=cs(m_particle); 00026 }catch(std::string errMsg){ 00027 throw errMsg; 00028 } 00029 00030 00031 MagField *bfield = MagField::Instance(); 00032 00033 if( bfield->is_on() && !(charge==0.) ) { 00034 00035 //cout << "deflect phi: " << phi << flush; 00036 00037 assert(std::abs(charge)>0.5); 00038 00039 double def=0.; 00040 double theta = m_particle->momentum().theta(); 00041 double eta = m_particle->momentum().eta(); 00042 double pt = m_particle->momentum().perp(); 00043 00044 00045 if (abs(eta) < 1.4) { 00046 00047 // Conversion factor of 3.0: 00048 // 3e8 (from c in MeV/c, for pT) / 00049 // 100 (calorimeter radius measured in cm) / 00050 // 1e6 (from MeV in MeV/c, for pT) 00051 // Don't understand the factor of 2.0 at end of expression 00052 00053 def = -150. * bfield->strength() * 3.0 / ( pt * 2.0 ); 00054 } else { 00055 def = -350.*abs(tan(theta)) * bfield->strength() * 3.0 / ( pt * 2.0 ); 00056 } 00057 00058 if(double turns =(def/(2*M_PI))>5.0) { 00059 cout<<"MagField: particle has spun "<<turns<<" pt= "<<pt<<endl; 00060 } 00061 00062 // Replace member Phi with deflected version 00063 m_phi = phi + def*charge; 00064 00065 //cout << " ==> " << m_phi.val() << endl; 00066 00067 } 00068 00069 return; 00070 00071 }
| Phi Atlfast::TransportedParticle::phi | ( | ) | const [virtual, inherited] |
Implements Atlfast::ITransportedParticle.
Definition at line 14 of file TransportedParticle.cxx.
00014 {return m_phi;}
| double Atlfast::TransportedParticle::eta | ( | ) | const [virtual, inherited] |
Implements Atlfast::ITransportedParticle.
Definition at line 15 of file TransportedParticle.cxx.
00015 {return m_eta;}
| double Atlfast::TransportedParticle::E | ( | ) | const [virtual, inherited] |
Implements Atlfast::ITransportedParticle.
Definition at line 16 of file TransportedParticle.cxx.
00016 {return m_energy;}
| const HepMC::GenParticle * Atlfast::TransportedParticle::particle | ( | ) | const [virtual, inherited] |
Implements Atlfast::ITransportedParticle.
Definition at line 18 of file TransportedParticle.cxx.
00018 { 00019 00020 return m_particle; 00021 00022 }
Phi Atlfast::TransportedParticle::m_phi [protected, inherited] |
Definition at line 24 of file TransportedParticle.h.
double Atlfast::TransportedParticle::m_eta [protected, inherited] |
Definition at line 25 of file TransportedParticle.h.
double Atlfast::TransportedParticle::m_energy [protected, inherited] |
Definition at line 26 of file TransportedParticle.h.
const HepMC::GenParticle* Atlfast::TransportedParticle::m_particle [protected, inherited] |
Definition at line 27 of file TransportedParticle.h.
