Atlfast::ClusEcalEtSumVisitor Class Reference

#include <ClusEcalEtSumVisitor.h>

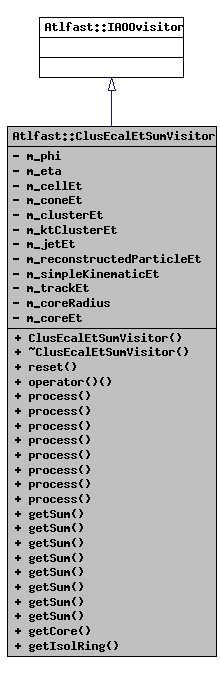

Inheritance diagram for Atlfast::ClusEcalEtSumVisitor:

[legend]Collaboration diagram for Atlfast::ClusEcalEtSumVisitor:

[legend]List of all members.

Public Member Functions
	ClusEcalEtSumVisitor (const Cluster *cluster, const double coreRadius=0.2)
	~ClusEcalEtSumVisitor ()
void	reset ()
void	operator() (const IAOO *ia)
virtual void	process (const Cell *)
	IAOOvisitor interface;.
virtual void	process (const Cluster *)
virtual void	process (const KtCluster *)
virtual void	process (const Jet *)
virtual void	process (const ReconstructedParticle *)
virtual void	process (const SimpleKinematic *)
virtual void	process (const Track *)
virtual void	process (const TwoCptCell *)
double	getSum (const Cell &) const
double	getSum (const TwoCptCell &) const
double	getSum (const Cluster &) const
double	getSum (const KtCluster &) const
double	getSum (const Jet &) const
double	getSum (const SimpleKinematic &) const
double	getSum (const Track &) const
double	getSum (const ReconstructedParticle &) const
double	getCore (const TwoCptCell &) const
double	getIsolRing (const TwoCptCell &) const
Private Attributes
double	m_phi
	Type vectors.
double	m_eta
double	m_cellEt
double	m_coneEt
double	m_clusterEt
double	m_ktClusterEt
double	m_jetEt
double	m_reconstructedParticleEt
double	m_simpleKinematicEt
double	m_trackEt
double	m_coreRadius
double	m_coreEt

---

Detailed Description

Definition at line 38 of file ClusEcalEtSumVisitor.h.

---

Constructor & Destructor Documentation

Atlfast::ClusEcalEtSumVisitor::ClusEcalEtSumVisitor	(	const Cluster *	cluster,
		const double	coreRadius = 0.2
	)			[inline]

Definition at line 40 of file ClusEcalEtSumVisitor.h.

                                                                             :
      m_phi(cluster->phi()),
      m_eta(cluster->eta()),
      m_cellEt(0),
      m_coneEt(0),
      m_clusterEt(0),
      m_ktClusterEt(0),
      m_reconstructedParticleEt(0),
      m_simpleKinematicEt(0),
      m_trackEt(0),
      m_coreRadius(coreRadius), m_coreEt(0){}

Atlfast::ClusEcalEtSumVisitor::~ClusEcalEtSumVisitor

(

)

[inline]

Definition at line 52 of file ClusEcalEtSumVisitor.h.

{}

---

Member Function Documentation

void Atlfast::ClusEcalEtSumVisitor::reset

(

)

void Atlfast::ClusEcalEtSumVisitor::operator()

(

const IAOO *

ia

)

Definition at line 16 of file ClusEcalEtSumVisitor.cxx.

{iaoo->accept(this);}

void Atlfast::ClusEcalEtSumVisitor::process

(

const Cell *

)

[virtual]

IAOOvisitor interface;.

Implements Atlfast::IAOOvisitor.

Definition at line 18 of file ClusEcalEtSumVisitor.cxx.

                                                 {
    const IKinematic* ik = t;
    m_cellEt += ik->eT();
  }

void Atlfast::ClusEcalEtSumVisitor::process

(

const Cluster *

)

[virtual]

Implements Atlfast::IAOOvisitor.

Definition at line 22 of file ClusEcalEtSumVisitor.cxx.

                                                    {
    const IKinematic* ik = t;
    m_clusterEt += ik->eT();
  }

void Atlfast::ClusEcalEtSumVisitor::process

(

const KtCluster *

)

[virtual]

Implements Atlfast::IAOOvisitor.

Definition at line 26 of file ClusEcalEtSumVisitor.cxx.

                                                      {
    const IKinematic* ik = t;
    m_ktClusterEt += ik->eT();
  }

void Atlfast::ClusEcalEtSumVisitor::process

(

const Jet *

)

[virtual]

Implements Atlfast::IAOOvisitor.

Definition at line 30 of file ClusEcalEtSumVisitor.cxx.

                                                {
    const IKinematic* ik = t;
    m_jetEt += ik->eT();
  }

void Atlfast::ClusEcalEtSumVisitor::process

(

const ReconstructedParticle *

)

[virtual]

Implements Atlfast::IAOOvisitor.

Definition at line 34 of file ClusEcalEtSumVisitor.cxx.

                                                                  {
    const IKinematic* ik = t;
    m_reconstructedParticleEt += ik->eT();
  }

void Atlfast::ClusEcalEtSumVisitor::process

(

const SimpleKinematic *

)

[virtual]

Implements Atlfast::IAOOvisitor.

Definition at line 38 of file ClusEcalEtSumVisitor.cxx.

                                                            {
    const IKinematic* ik = t;
    m_simpleKinematicEt += ik->eT();
  }

void Atlfast::ClusEcalEtSumVisitor::process

(

const Track *

)

[virtual]

Implements Atlfast::IAOOvisitor.

Definition at line 42 of file ClusEcalEtSumVisitor.cxx.

                                                  {
    const IKinematic* ik = t;
    m_trackEt += ik->eT();
  }

void Atlfast::ClusEcalEtSumVisitor::process

(

const TwoCptCell *

)

[virtual]

Implements Atlfast::IAOOvisitor.

Definition at line 46 of file ClusEcalEtSumVisitor.cxx.

                                                       {
    m_coneEt += t->ecalEt();
    const ICell* ic = t;
    double dR = std::sqrt(std::pow(ic->eta()-m_eta,2)+std::pow(ic->phi()-m_phi,2));
     if (dR < m_coreRadius) m_coreEt += t->ecalEt();
 }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const Cell &

)

const

Definition at line 53 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_cellEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const TwoCptCell &

)

const

Definition at line 56 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_coneEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const Cluster &

)

const

Definition at line 59 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_clusterEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const KtCluster &

)

const

Definition at line 62 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_ktClusterEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const Jet &

)

const

Definition at line 65 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_jetEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const SimpleKinematic &

)

const

Definition at line 68 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_simpleKinematicEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const Track &

)

const

Definition at line 71 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_trackEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getSum

(

const ReconstructedParticle &

)

const

Definition at line 74 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_reconstructedParticleEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getCore

(

const TwoCptCell &

)

const

Definition at line 79 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return m_coreEt;
  }

double Atlfast::ClusEcalEtSumVisitor::getIsolRing

(

const TwoCptCell &

)

const

Definition at line 82 of file ClusEcalEtSumVisitor.cxx.

                                                                           {
    return  m_coneEt - m_coreEt;
  }

---

Member Data Documentation

double Atlfast::ClusEcalEtSumVisitor::m_phi [private]

Type vectors.

Definition at line 88 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_eta [private]

Definition at line 89 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_cellEt [private]

Definition at line 90 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_coneEt [private]

Definition at line 91 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_clusterEt [private]

Definition at line 92 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_ktClusterEt [private]

Definition at line 93 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_jetEt [private]

Definition at line 94 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_reconstructedParticleEt [private]

Definition at line 95 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_simpleKinematicEt [private]

Definition at line 96 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_trackEt [private]

Definition at line 97 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_coreRadius [private]

Definition at line 98 of file ClusEcalEtSumVisitor.h.

double Atlfast::ClusEcalEtSumVisitor::m_coreEt [private]

Definition at line 99 of file ClusEcalEtSumVisitor.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastUtils/AtlfastUtils/ClusEcalEtSumVisitor.h
• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastUtils/src/ClusEcalEtSumVisitor.cxx

---
