PartitionCondition::BelowThresholdDeltaR Class Reference

#include <FunctionObjects.h>

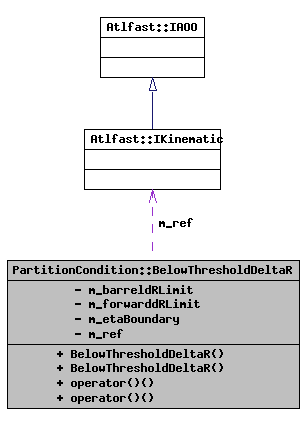

Collaboration diagram for PartitionCondition::BelowThresholdDeltaR:

[legend]List of all members.

Public Member Functions
	BelowThresholdDeltaR (const Atlfast::IKinematic *ref, double barreldRLimit, double forwarddRLimit=0, double etaBoundary=0)
	BelowThresholdDeltaR (const Atlfast::IKinematic &ref, double barreldRLimit, double forwarddRLimit=0, double etaBoundary=0)
bool	operator() (const Atlfast::IKinematic *a) const
bool	operator() (const Atlfast::IKinematic &a) const
Private Attributes
double	m_barreldRLimit
double	m_forwarddRLimit
double	m_etaBoundary
const Atlfast::IKinematic *	m_ref

---

Detailed Description

STL generic algorithm function object. Used to select IKinematic objects below a threshold delta R. Specialised (7/7/2006 SD) to allow different dR limits in barrel and forward regions, without changing previous behaviour. If only 'barreldRLimit' is supplied in constructor, this is used as the overall dR limit

Definition at line 423 of file FunctionObjects.h.

---

Constructor & Destructor Documentation

PartitionCondition::BelowThresholdDeltaR::BelowThresholdDeltaR	(	const Atlfast::IKinematic *	ref,
		double	barreldRLimit,
		double	forwarddRLimit = 0,
		double	etaBoundary = 0
	)			[inline]

constructor taking

Definition at line 427 of file FunctionObjects.h.

00428                                                                              :
00429       m_barreldRLimit(barreldRLimit), m_forwarddRLimit(forwarddRLimit),
00430       m_etaBoundary(etaBoundary), m_ref(ref) {}


PartitionCondition::BelowThresholdDeltaR::BelowThresholdDeltaR	(	const Atlfast::IKinematic &	ref,
		double	barreldRLimit,
		double	forwarddRLimit = 0,
		double	etaBoundary = 0
	)			[inline]

Definition at line 432 of file FunctionObjects.h.

00433                                                                              :
00434       m_barreldRLimit(barreldRLimit), m_forwarddRLimit(forwarddRLimit),
00435       m_etaBoundary(etaBoundary), m_ref(&ref) {}


---

Member Function Documentation

bool PartitionCondition::BelowThresholdDeltaR::operator()

(

const Atlfast::IKinematic *

a

)

const [inline]

Definition at line 437 of file FunctionObjects.h.

                                                         {
      Phi dphi( a->phi() - m_ref->phi() ) ;

      double dist =
        sqrt(
             (dphi*dphi) +
             (a->eta() - m_ref->eta())*(a->eta() - m_ref->eta())
             );

      if (!m_forwarddRLimit){
        // Use universal dR cut limit
        return (dist < m_barreldRLimit);
      }else{
        // Use eta-dependent dR cut limit
        return ( (a->eta()*a->eta() <= m_etaBoundary*m_etaBoundary &&
                  dist < m_barreldRLimit) ||
                 ( a->eta()*a->eta() > m_etaBoundary*m_etaBoundary &&
                   dist < m_forwarddRLimit ) );
      }
    }

bool PartitionCondition::BelowThresholdDeltaR::operator()

(

const Atlfast::IKinematic &

a

)

const [inline]

Definition at line 459 of file FunctionObjects.h.

      { return this->operator()( &a ) ; }

---

Member Data Documentation

double PartitionCondition::BelowThresholdDeltaR::m_barreldRLimit [private]

Definition at line 463 of file FunctionObjects.h.

double PartitionCondition::BelowThresholdDeltaR::m_forwarddRLimit [private]

Definition at line 464 of file FunctionObjects.h.

double PartitionCondition::BelowThresholdDeltaR::m_etaBoundary [private]

Definition at line 465 of file FunctionObjects.h.

const Atlfast::IKinematic* PartitionCondition::BelowThresholdDeltaR::m_ref [private]

Definition at line 466 of file FunctionObjects.h.

---

The documentation for this class was generated from the following file:

• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastUtils/AtlfastUtils/FunctionObjects.h

---
