Atlfast::Calorimeter Class Reference

#include <Calorimeter.h>

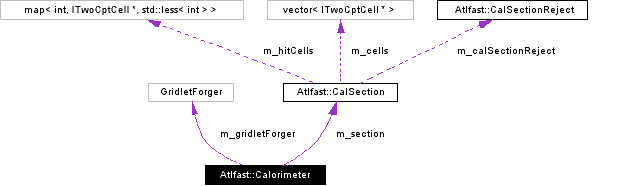

Collaboration diagram for Atlfast::Calorimeter:


Public Methods
	Calorimeter (MsgStream &log, bool fastShower, const double etaCoverage, const double barrelForwardEta, const double granBarrelEta, const double granBarrelPhi, const double granForwardEta, const double granForwardPhi)
	Constructor providing coverage and granularity parameters, set in CellMaker jobOptions.
	~Calorimeter ()
	Default destructor.
	Calorimeter (const Calorimeter &)
	Copy constructor.
void	deposit (TransportedParticleCollectionIter &first, TransportedParticleCollectionIter &last)
	Deposits HepMc::Particle.
void	deposit (std::vector< Atlfast::EPileupDeposit * >::iterator &first, std::vector< Atlfast::EPileupDeposit * >::iterator &last) const
	Deposits Energy Pileup Map into the Calorimeter.
const GridletForger *	gridletForger () const
	give the GridletForger
MsgStream &	msgStream () const
	make log available to those who want it
void	addEelements (ElementCollectionIter, ElementCollectionIter)
	Set the collection of Gridlet Elements (Ecal).
void	addHelements (ElementCollectionIter, ElementCollectionIter)
	Set the collection of Gridlet Elements (Ecal).
void	reset ()
	Resets the calorimeter sections and local collections.
void	giveHitCells (const ICellSelector , ITwoCptCellCollection )
	Gives selected cells.
void	smearCells (ISmearer *)
	Smear the cells resolution.
Private Attributes
CalSection *	m_section [3]
	Three calorimeter sections owned by the calorimeter.
MsgStream &	m_log
	Pointer to fastShowerer - 0 if no fast Showering.
GridletForger *	m_gridletForger
ElementCollection	m_eElements
ElementCollection	m_hElements

Constructor & Destructor Documentation

Atlfast::Calorimeter::Calorimeter	(	MsgStream &	log,
		bool	fastShower,
		const double	etaCoverage,
		const double	barrelForwardEta,
		const double	granBarrelEta,
		const double	granBarrelPhi,
		const double	granForwardEta,
		const double	granForwardPhi
	)

Constructor providing coverage and granularity parameters, set in CellMaker jobOptions.

Definition at line 30 of file Calorimeter.cxx.

References m_gridletForger, and m_section.

00039                             :m_log(log){
00040
00041     m_section[0] =  new CalSection(log,
00042                                    abs(barrelMaxEta),  abs(MaxEta),
00043                                    granForwardEta, granForwardPhi);
00044
00045     m_section[1] =  new CalSection(log,
00046                                    -abs(barrelMaxEta), abs(barrelMaxEta),
00047                                    granBarrelEta,  granBarrelPhi);
00048
00049     m_section[2] =  new CalSection(log,
00050                                    -abs(MaxEta),       -abs(barrelMaxEta),
00051                                    granForwardEta, granForwardPhi);
00052
00053     if(fastShower) {
00054       m_gridletForger   = new GridletForger;
00055     }else{
00056       m_gridletForger   = 0;
00057     }
00058
00059   }

Atlfast::Calorimeter::~Calorimeter

(

)

Default destructor.

Definition at line 60 of file Calorimeter.cxx.

References m_log, and m_section.

00060                            {
00061     m_log<<MSG::DEBUG<<"Calorimeter destructor starts "<<endreq;
00062     delete m_section[0];
00063     delete m_section[1];
00064     delete m_section[2];
00065     //    delete m_gridletForger;
00066     m_log<<MSG::DEBUG<<"Calorimeter destructor ends "<<endreq;
00067   }

Atlfast::Calorimeter::Calorimeter

(

const Calorimeter &

)

Copy constructor.

Definition at line 68 of file Calorimeter.cxx.

References m_gridletForger, and m_section.

00068                                               :m_log(c.m_log){
00069     //make m_sections point to different instances
00070     // of the CalSections, with the same value as those
00071     //owned by c.
00072     m_section[0]   = new CalSection(*(c.m_section[0]));
00073     m_section[1]   = new CalSection(*(c.m_section[1]));
00074     m_section[2]   = new CalSection(*(c.m_section[2]));
00075     m_gridletForger= new GridletForger(*(c.m_gridletForger));
00076   }

Member Function Documentation

void Atlfast::Calorimeter::deposit	(	TransportedParticleCollectionIter &	first,
		TransportedParticleCollectionIter &	last
	)

Deposits HepMc::Particle.

The double is the phi position of the particle* at the calorimeter. the "last" iterator will be modified...

Definition at line 78 of file Calorimeter.cxx.

References Atlfast::CalSection::deposit(), Atlfast::CalSection::depositEcal(), Atlfast::CalSection::depositHcal(), m_eElements, m_hElements, m_section, and Atlfast::TransportedParticleCollectionIter.

Referenced by Atlfast::CellMaker::execute().

00079                                                                  {
00080
00081     TransportedParticleCollectionIter divider =
00082       std::partition(f, l, TryToShower(this));
00083
00084     // send gridlet elements and unshowered aprticlesto calorimeter sections
00085     for(int ind =0 ;ind<=2; ++ind){
00086       m_section[ind]->depositEcal(m_eElements.begin(), m_eElements.end() );
00087       m_section[ind]->depositHcal(m_hElements.begin(), m_hElements.end() );
00088       m_section[ind]->deposit(divider, l);
00089     }
00090   }

void Atlfast::Calorimeter::deposit	(	std::vector< Atlfast::EPileupDeposit * >::iterator &	first,
		std::vector< Atlfast::EPileupDeposit * >::iterator &	last
	)	const

Deposits Energy Pileup Map into the Calorimeter.

Definition at line 93 of file Calorimeter.cxx.

00094                                                                               {
00095     //send energy pileup to calorimeter sections
00096     for(int ind =0 ;ind<=2; ++ind){
00097       m_section[ind]->deposit(f, l);
00098     }
00099
00100     }

const GridletForger * Atlfast::Calorimeter::gridletForger

(

)

const

give the GridletForger

Definition at line 102 of file Calorimeter.cxx.

References m_gridletForger.

Referenced by Atlfast::TryToShower::operator()().

00102                                                          {
00103     return m_gridletForger;
00104   }

MsgStream & Atlfast::Calorimeter::msgStream

(

)

const

make log available to those who want it

Definition at line 106 of file Calorimeter.cxx.

References m_log.

Referenced by Atlfast::TryToShower::operator()().

00106 {return m_log;}

void Atlfast::Calorimeter::addEelements	(	ElementCollectionIter	,
		ElementCollectionIter
	)

Set the collection of Gridlet Elements (Ecal).

Definition at line 108 of file Calorimeter.cxx.

References Atlfast::ElementCollectionIter, and m_eElements.

Referenced by Atlfast::TryToShower::operator()().

00109                                                           {
00110     for(ElementCollectionIter iter = f; iter != l; ++iter){
00111       m_eElements.push_back(*iter);}
00112   }

void Atlfast::Calorimeter::addHelements	(	ElementCollectionIter	,
		ElementCollectionIter
	)

Set the collection of Gridlet Elements (Ecal).

Definition at line 114 of file Calorimeter.cxx.

References Atlfast::ElementCollectionIter, and m_hElements.

Referenced by Atlfast::TryToShower::operator()().

00115                                                           {
00116     for(ElementCollectionIter iter = f; iter != l;++iter){
00117       m_hElements.push_back(*iter);}
00118   }

void Atlfast::Calorimeter::reset

(

)

Resets the calorimeter sections and local collections.

Definition at line 132 of file Calorimeter.cxx.

References m_eElements, m_hElements, m_section, and Atlfast::CalSection::reset().

Referenced by Atlfast::CellMaker::execute().

00133   {
00134     for(int ind=0; ind<=2; ++ind) {m_section[ind]->reset();}
00135
00136     ElementCollection::iterator iter;
00137
00138     iter = m_eElements.begin();
00139     for(; iter!=m_eElements.end(); ++iter){delete *iter;}
00140     m_eElements.clear();
00141
00142     iter = m_hElements.begin();
00143     for(; iter!=m_hElements.end(); ++iter){delete *iter;}
00144     m_hElements.clear();
00145   }

void Atlfast::Calorimeter::giveHitCells	(	const ICellSelector *	,
		ITwoCptCellCollection *
	)

Gives selected cells.

Definition at line 120 of file Calorimeter.cxx.

References Atlfast::CalSection::giveHits(), and m_section.

Referenced by Atlfast::CellMaker::execute().

00121                                                                 {
00122
00123     // return cells in calorimeter passed by cellSelector
00124     // could make type change from Calorimeter cells to TES cells here
00125
00126     for(int ind=0; ind<=2; ++ind) {
00127       m_section[ind]->giveHits(p_cellSelector, cells);
00128     }
00129   }

void Atlfast::Calorimeter::smearCells

(

ISmearer *

)

Smear the cells resolution.

Definition at line 147 of file Calorimeter.cxx.

References m_section, and Atlfast::CalSection::smearCells().

Referenced by Atlfast::CellMaker::execute().

00148   {
00149     for(int ind=0; ind<=2; ++ind) {
00150       m_section[ind]->smearCells(p_smearer);
00151     }
00152   }

Member Data Documentation

CalSection* Atlfast::Calorimeter::m_section[3] [private]

Three calorimeter sections owned by the calorimeter.

Definition at line 122 of file Calorimeter.h.

Referenced by Calorimeter(), deposit(), giveHitCells(), reset(), smearCells(), and ~Calorimeter().

MsgStream& Atlfast::Calorimeter::m_log [private]

Pointer to fastShowerer - 0 if no fast Showering.

Definition at line 127 of file Calorimeter.h.

Referenced by msgStream(), and ~Calorimeter().

GridletForger* Atlfast::Calorimeter::m_gridletForger [private]

Definition at line 128 of file Calorimeter.h.

Referenced by Calorimeter(), and gridletForger().

ElementCollection Atlfast::Calorimeter::m_eElements [private]

Definition at line 129 of file Calorimeter.h.

Referenced by addEelements(), deposit(), and reset().

ElementCollection Atlfast::Calorimeter::m_hElements [private]

Definition at line 130 of file Calorimeter.h.

Referenced by addHelements(), deposit(), and reset().

The documentation for this class was generated from the following files:

Generated on Tue Mar 18 11:18:52 2003 for AtlfastAlgs by

1.3-rc1
