Atlfast::CellMaker class Reference

00041                                                                       :
00042     Algorithm(name,pSvcLocator){
00043
00044     //default paths for entities in the TES
00045     m_inputLocation       = "/Event/McEventCollection";
00046     m_outputLocation      = "/Event/AtlfastCells" ;
00047
00048     // default parameters to build the calorimeter
00049     m_etaCoverage        = 5.0;
00050     m_minETCell          = 0.0;
00051     m_granBarrelEta      = 0.1;
00052     m_granBarrelPhi      = 0.1;
00053     m_granForwardEta     = 0.2;
00054     m_granForwardPhi     = 0.2;
00057     m_doSmearing         = false;
00058     m_fastShower         = false;
00059
00060     declareProperty("InputLocation",      m_inputLocation);
00061     declareProperty("OutputLocation",     m_outputLocation);
00062     declareProperty("EtaCoverage",        m_etaCoverage);
00063     declareProperty("MinETCell",          m_minETCell);
00064     declareProperty("GranBarrelEta",      m_granBarrelEta);
00065     declareProperty("GranBarrelPhi",      m_granBarrelPhi);
00066     declareProperty("GranForwardEta",     m_granForwardEta);
00067     declareProperty("GranForwardPhi",     m_granForwardPhi);
00069     declareProperty("DoSmearing",     m_doSmearing);
00070     declareProperty("FastShower",     m_fastShower);
00071
00072   }

00075                        {
00076
00077     MsgStream log( messageService(), name() );
00078     log<<MSG::DEBUG<<"CellMaker destructor starts "<<endreq;
00079
00080     if (m_calorimeter) {
00081       delete m_calorimeter;
00082     }
00083     if (m_tesIO) {
00084       delete m_tesIO;
00085     }
00086     if (m_cellSelector) {
00087       delete m_cellSelector;
00088     }
00089     if (m_magField) {
00090       delete m_magField;
00091     }
00092     log<<MSG::DEBUG<<"CellMaker destructor ends "<<endreq;
00093   }

00096   {
00097
00098     MsgStream log( messageService(), name() );
00099
00100     //set up objects used to determine particle charge,
00101     // and to select input MC 4-vectors.
00102     m_cellSelector  = new CellsAboveThreshold(m_minETCell);
00103
00104     //    m_tesIO = new TesIO(eventDataService());
00105     m_tesIO = new TesIO();
00106
00107     //get the Global Event Data using singleton pattern
00108     GlobalEventData* ged = GlobalEventData::Instance();
00109     m_fieldOn          = ged->fieldOn();
00110     m_mcSelector       = ged -> visibleToCal();
00111     m_barrelForwardEta = ged -> barrelForwardEta();
00112     m_magField      = new MagField(m_fieldOn);
00113     if (fabs(m_etaCoverage) < fabs(m_barrelForwardEta) ) {
00114       log << MSG::ERROR
00115           << "asked to makecalo with max extent "
00116           << m_etaCoverage
00117           << "but barrel-forward boundary at "
00118           << m_barrelForwardEta << endreq;
00119       return StatusCode::FAILURE;
00120     }
00121     m_calorimeter = new Calorimeter(
00122                                     log,
00123                                     m_fastShower,
00124                                     m_etaCoverage,
00125                                     m_barrelForwardEta,
00126                                     m_granBarrelEta,
00127                                     m_granBarrelPhi,
00128                                     m_granForwardEta,
00129                                     m_granForwardPhi
00130                                     );
00134     if(m_doSmearing == true){
00135       m_epileupMap = new EPileupMap(ged->lumi());
00136       m_smearer = new CellSmearer(ged->randSeed(),m_barrelForwardEta);
00137     }else{
00138       m_epileupMap = NULL;
00139       m_smearer = NULL;
00140     }
00141
00142     HeaderPrinter hp("Atlfast Cell Maker:", log);
00143
00144     hp.add("min Cell ET             ", m_minETCell);
00145     hp.add("Magnetic Field is on?   ", m_fieldOn);
00146     hp.add("Input Location          ", m_inputLocation);
00147     hp.add("Output Location         ", m_outputLocation);
00148     hp.add(" DoSmearing             ", m_doSmearing);
00149     hp.add(" Run FastShower         ", m_fastShower);
00150     hp.add("Calorimeter Geometry:   ");
00151     hp.add(" Total Eta Range        ", m_etaCoverage);
00152     hp.add(" Barrel Eta Range       ", m_barrelForwardEta);
00153     hp.add(" Barrel Eta Granularity ", m_granBarrelEta);
00154     hp.add(" Barrel Phi Granularity ", m_granBarrelPhi);
00155     hp.add(" Forward Eta Granularity", m_granForwardEta);
00156     hp.add(" Forward Phi Granularity", m_granForwardPhi);
00157     hp.print();
00158
00159
00160
00161     return StatusCode::SUCCESS;
00162   }

00174   {
00175     //.............................................
00176
00177     MsgStream log( messageService(), name() );
00178     log << MSG::DEBUG << "CellMaker execute()" << endreq;
00179
00180     std::string mess;
00181
00182
00183     // read MC particles from TES
00184     MCparticleCollection  mcParticles ;
00185     TesIoStat stat = m_tesIO->getMC( mcParticles, m_mcSelector ) ;
00186     mess = stat? "Retrieved MC from TES ":"Failed MC retrieve from TES";
00187     log << MSG::DEBUG << mess << endreq;
00188
00189     // calculate phi after the bending in the magnetic field,
00190     TransportedParticleCollection particlesAtCal;
00191     (*m_magField)(mcParticles, particlesAtCal);
00192     log << MSG::DEBUG << "bend" << endreq;
00193
00194     //    return stat;
00195     // give to calorimeter (iseq gives the interval [begin,end)
00196     TransportedParticleCollectionIter fpart = particlesAtCal.begin();
00197     TransportedParticleCollectionIter lpart = particlesAtCal.end();
00198     m_calorimeter->deposit(fpart, lpart);
00199
00200
00201     // Add in the energy pileup
00202     if(m_doSmearing){
00203       //Smear the cells resolution first
00204       m_calorimeter->smearCells(m_smearer);
00205       log << MSG::DEBUG << "Doing Smearing" << endreq;
00207       m_epileupMap->fillMap();
00208       log << MSG::DEBUG
00209           << "Size of EM EPileup vector: "
00210           << m_epileupMap->getEMMap()->size()
00211           << endreq;
00212       std::vector<Atlfast::EPileupDeposit*>::iterator fdep =
00213         m_epileupMap->getEMMap()->begin();
00214       std::vector<Atlfast::EPileupDeposit*>::iterator ldep =
00215         m_epileupMap->getEMMap()->end();
00217       m_calorimeter->deposit(fdep, ldep);
00218       log << MSG::DEBUG << "ECAL pileup deposited" << endreq;
00219       log << MSG::DEBUG << "Size of HAD EPileup vector: "
00220           << m_epileupMap->getHadMap()->size()
00221           << endreq;
00222       fdep = m_epileupMap->getHadMap()->begin();
00223       ldep = m_epileupMap->getHadMap()->end();
00225       m_calorimeter->deposit(fdep, ldep);
00226       log << MSG::DEBUG << "HCAL pileup deposited" << endreq;
00227     }
00228
00229     log << MSG::DEBUG << "deposit" << endreq;
00230
00231     // ask for Cells passing selection criteria of m_cellSelector (=Et).
00232     //************************
00233     //this worked 23/12 PS
00234     ITwoCptCellCollection* cells = new ITwoCptCellCollection;
00235     //************************
00238     m_calorimeter->giveHitCells(m_cellSelector, cells);
00239     log << MSG::DEBUG << "hit cells retrieved, " << cells->size()
00240         << " cells were hit this event " << endreq;
00241
00242     //    return stat;
00243
00244     // finished with the calorimeter
00245     m_calorimeter->reset();
00246     log << MSG::DEBUG << "calorimeter reset" << endreq;
00247     //    return stat;
00248     //    return stat;
00249
00250     // then store and return
00251     stat = m_tesIO->store(cells, m_outputLocation );
00252     mess = stat? " Stored cells to TES":" Failed store cells to TES";
00253     log << MSG::DEBUG << mess << endreq;
00254
00255     return stat;
00256   }

00165   {
00166
00167     MsgStream log( messageService(), name() );
00168     log<<MSG::INFO<<"Finalizing"<<endreq;
00169     return StatusCode::SUCCESS;
00170   }


Public Methods
	CellMaker (const std::string &name, ISvcLocator *pSvcLocator)
	Standard Athena-Algorithm Constructor.
	~CellMaker ()
StatusCode	initialize ()
StatusCode	execute ()
StatusCode	finalize ()

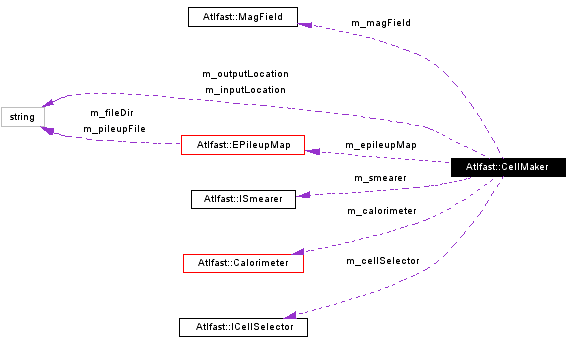

Private Attributes
Calorimeter *	m_calorimeter
ICellSelector *	m_cellSelector
HepMC_helper::IMCselector *	m_mcSelector
EPileupMap *	m_epileupMap
	EPileupMap contains the pileup energy distribution to be put into calorimeter.
ISmearer *	m_smearer
	CellSmearer, smears cells pt before put into CellCollection.
double	m_etaCoverage
double	m_minETCell
double	m_barrelForwardEta
bool	m_fieldOn
bool	m_doSmearing
	warning! not fully tested. Should not be used if JetSmearing == true
bool	m_fastShower
	flag to control if FastShower is to run
double	m_granBarrelEta
double	m_granBarrelPhi
double	m_granForwardEta
double	m_granForwardPhi
std::string	m_inputLocation
std::string	m_outputLocation
TesIO *	m_tesIO
MagField *	m_magField

Atlfast::CellMaker Class Reference

Public Methods

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
