SctPixelRod::TimSequin Class Reference

TimSequin: A class for TIM Sequencer information. More...

#include <TimSequin.h>

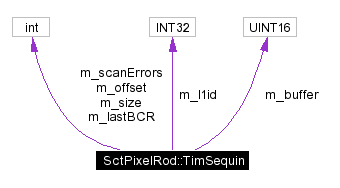

Collaboration diagram for SctPixelRod::TimSequin:

Public Methods
	TimSequin ()
	TimSequin: A class for TIM Sequencer. More...
	~TimSequin ()
int	getBuffer (const UINT16 size, UINT16 buffer[])
int	setBuffer (const UINT16 size, const UINT16 buffer[])
int	getLength ()
void	setOffset (const int offset)
void	addByBunch (const TimBitBackplane mask, const int bcid)
void	addByIndex (const TimBitBackplane mask, const int index)
void	addTrigger (const int index, const UINT32 ids[3], const int delays[2])
void	fill (const UINT16 size, const UINT16 value)
int	getBCID (const int iL1A, const int iBCR, const int offset)
int	getIndex (const int bcid, const int iBCR, const int offset)
void	reset ()
int	scanRun ()
TimScanResults	scan (const TimScanControl control)
TimScanControl	scanDefaults ()
Private Methods
void	m_scanError (const char *s, const int x, const int y)
void	m_scanPrintCMD (const char s, const int x, const int y, const char c)
void	m_scanPrintL1A (const int index, const int start[2], const int stop[2], const int bcid, const int l1id, const int ttid)
Private Attributes
UINT16	m_buffer [TIM_SEQ_SIZE]
INT32	m_l1id
int	m_lastBCR
int	m_size
int	m_offset
int	m_scanErrors

Detailed Description

TimSequin: A class for TIM Sequencer information.

This is useful for building TIM Sequences.

Contributors: John Lane <jbl@hep.ucl.ac.uk> - originator

Definition at line 67 of file TimSequin.h.

Constructor & Destructor Documentation

SctPixelRod::TimSequin::TimSequin ( )

TimSequin: A class for TIM Sequencer.
This is useful for loading the TIM Sequencer.
Contributors: John Lane <jbl@hep.ucl.ac.uk> - originator
Definition at line 46 of file TimSequin.cxx.
References reset.

SctPixelRod::TimSequin::~TimSequin ( )

Definition at line 53 of file TimSequin.cxx.

Member Function Documentation

void SctPixelRod::TimSequin::addByBunch ( const TimBitBackplane mask,

const int bcid

)

Definition at line 90 of file TimSequin.cxx.
References addByIndex, getIndex, m_lastBCR, m_offset, SctPixelRod::NONE, and SctPixelRod::TimBitBackplane.

void SctPixelRod::TimSequin::addByIndex ( const TimBitBackplane mask,

const int index

)

Definition at line 101 of file TimSequin.cxx.
References addTrigger, getBCID, m_buffer, m_l1id, m_lastBCR, m_offset, m_size, SctPixelRod::NONE, SctPixelRod::TIM_BCR, SctPixelRod::TIM_CAL, SctPixelRod::TIM_ECR, SctPixelRod::TIM_L1A, SctPixelRod::TIM_L1ID_FIRST, and SctPixelRod::TimBitBackplane.
Referenced by addByBunch.

void SctPixelRod::TimSequin::addTrigger ( const int index,

const UINT32 ids[3],

const int delays[2]

)

Parameters:

index Index of L1A in data buffer

Definition at line 133 of file TimSequin.cxx.
References getBCID, m_buffer, m_lastBCR, m_offset, m_size, SctPixelRod::NONE, SctPixelRod::s_bits, SctPixelRod::s_masks, SctPixelRod::s_words, SctPixelRod::TIM_L1A, and SctPixelRod::TIM_SEQ_SIZE.
Referenced by addByIndex.

void SctPixelRod::TimSequin::fill ( const UINT16 size,

const UINT16 value

)

Definition at line 184 of file TimSequin.cxx.
References m_buffer, and SctPixelRod::TIM_SEQ_SIZE.

int SctPixelRod::TimSequin::getBCID ( const int iL1A,

const int iBCR,

const int offset

)

Definition at line 195 of file TimSequin.cxx.
Referenced by addByIndex, addTrigger, and scan.

int SctPixelRod::TimSequin::getBuffer ( const UINT16 size,

UINT16 buffer[]

)

Definition at line 62 of file TimSequin.cxx.
References m_buffer, and m_size.

int SctPixelRod::TimSequin::getIndex ( const int bcid,

const int iBCR,

const int offset

)

Definition at line 202 of file TimSequin.cxx.
Referenced by addByBunch.

int SctPixelRod::TimSequin::getLength ( ) [inline]

Definition at line 82 of file TimSequin.h.
References m_size.

void SctPixelRod::TimSequin::m_scanError ( const char * s,

const int x,

const int y

) [private]

Definition at line 461 of file TimSequin.cxx.
References m_scanErrors.
Referenced by scan.

void SctPixelRod::TimSequin::m_scanPrintCMD ( const char * s,

const int x,

const int y,

const char * c

) [private]

Definition at line 473 of file TimSequin.cxx.
Referenced by m_scanPrintL1A, and scan.

void SctPixelRod::TimSequin::m_scanPrintL1A ( const int index,

const int start[2],

const int stop[2],

const int bcid,

const int l1id,

const int ttid

) [private]

Definition at line 483 of file TimSequin.cxx.
References m_scanPrintCMD.
Referenced by scan.

void SctPixelRod::TimSequin::reset ( )

Definition at line 211 of file TimSequin.cxx.
References m_buffer, m_l1id, m_lastBCR, m_offset, m_size, SctPixelRod::NONE, SctPixelRod::TIM_BCID_OFFSET, SctPixelRod::TIM_L1ID_FIRST, and SctPixelRod::TIM_SEQ_SIZE.
Referenced by TimSequin.

TimScanResults SctPixelRod::TimSequin::scan ( const TimScanControl control )

Definition at line 223 of file TimSequin.cxx.
References getBCID, m_buffer, m_scanError, m_scanErrors, m_scanPrintCMD, m_scanPrintL1A, SctPixelRod::NONE, SctPixelRod::s_bits, SctPixelRod::s_masks, SctPixelRod::s_words, SctPixelRod::TIM_BCR, SctPixelRod::TIM_BCR_DEADTIME, SctPixelRod::TIM_CAL, SctPixelRod::TIM_CAL_DEADTIME, SctPixelRod::TIM_CMD, SctPixelRod::TIM_ECR, SctPixelRod::TIM_ECR_DEADTIME, SctPixelRod::TIM_L1A, SctPixelRod::TIM_L1A_DEADTIME, SctPixelRod::TIM_L1ID_FIRST, SctPixelRod::TIM_RES, SctPixelRod::TIM_SID, and SctPixelRod::TIM_STT.
Referenced by scanRun.

TimScanControl SctPixelRod::TimSequin::scanDefaults ( )

Definition at line 419 of file TimSequin.cxx.
References m_offset, SctPixelRod::NONE, SctPixelRod::TIM_CAL_DEADTIME, and SctPixelRod::TIM_SEQ_SIZE.
Referenced by scanRun.

int SctPixelRod::TimSequin::scanRun ( )

Definition at line 438 of file TimSequin.cxx.
References m_lastBCR, m_offset, m_size, scan, scanDefaults, and SctPixelRod::TIM_CAL_DEADTIME.

int SctPixelRod::TimSequin::setBuffer ( const UINT16 size,

const UINT16 buffer[]

)

Definition at line 74 of file TimSequin.cxx.
References m_buffer, m_size, and SctPixelRod::TIM_SEQ_SIZE.

void SctPixelRod::TimSequin::setOffset ( const int offset ) [inline]

Definition at line 83 of file TimSequin.h.
References m_offset.

Member Data Documentation

UINT16 SctPixelRod::TimSequin::m_buffer[ TIM_SEQ_SIZE ] [private]

Definition at line 110 of file TimSequin.h.
Referenced by addByIndex, addTrigger, fill, getBuffer, reset, scan, and setBuffer.

INT32 SctPixelRod::TimSequin::m_l1id [private]

Definition at line 112 of file TimSequin.h.
Referenced by addByIndex, and reset.

int SctPixelRod::TimSequin::m_lastBCR [private]

Definition at line 113 of file TimSequin.h.
Referenced by addByBunch, addByIndex, addTrigger, reset, and scanRun.

int SctPixelRod::TimSequin::m_offset [private]

Definition at line 115 of file TimSequin.h.
Referenced by addByBunch, addByIndex, addTrigger, reset, scanDefaults, scanRun, and setOffset.

int SctPixelRod::TimSequin::m_scanErrors [private]

Definition at line 116 of file TimSequin.h.
Referenced by m_scanError, and scan.

int SctPixelRod::TimSequin::m_size [private]

Definition at line 114 of file TimSequin.h.
Referenced by addByIndex, addTrigger, getBuffer, getLength, reset, scanRun, and setBuffer.

The documentation for this class was generated from the following files:
