Constraints On New Theories Using Rivet
Information about this Contur run
Contur ran in /Users/jonbutterworth/Work/typeIIseesaw/mdpp-150_seed102/13TeV/0006 on analysis objects in ['runpoint_0006.yoda.gz']
Theory uncertainties assumed uncorrelated.
The model parameters were:
gap: 70.0
mdp: 220.0
mdpp: 150.0
Combined DATABG exclusion for these plots is 99.8427930659069 %
Combined SMBG exclusion for these plots is 96.2738186224478 %
Combined EXP exclusion for these plots is 88.5062014411707 %
In each analysis pool, these plots contributed:
Pool ATLAS_13_SSLLMET: two same-sign leptons(e/mu) plus missing energy jets
Exclusion with data as background from this pool: 25.46%
Most sensitive analysis is
ATLAS_2019_I1738841
Exclusion with SM as background from this pool: 25.46%
Most sensitive analysis is
ATLAS_2019_I1738841
Pool ATLAS_13_JETS: Inclusive hadronic final states
Exclusion with SM as background from this pool: 0.00%
Most sensitive analysis is
ATLAS_2018_I1634970
Exclusion with data as background from this pool: 0.49%
Subpool with 6 histograms.
Most sensitive analysis is
ATLAS_2018_I1634970
Expected exclusion from this pool: 0.09%
Subpool with 6 histograms.
Most sensitive analysis is
ATLAS_2018_I1634970
Pool CMS_13_JETS: Inclusive hadronic final states
Exclusion with data as background from this pool: 0.19%
Most sensitive analysis is
CMS_2018_I1682495
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_TTHAD: Fully hadronic top events
Exclusion with data as background from this pool: 0.00%
Most sensitive analysis is
ATLAS_2018_I1646686
Exclusion with SM as background from this pool: 0.00%
Most sensitive analysis is
ATLAS_2018_I1646686
Pool CMS_13_TTHAD: Fully hadronic top events
Exclusion with data as background from this pool: 0.00%
Most sensitive analysis is
CMS_2019_I1753720
Exclusion with SM as background from this pool: 0.00%
Most sensitive analysis is
CMS_2019_I1753720
Expected exclusion from this pool: 0.00%
Most sensitive analysis is
CMS_2019_I1753720
Pool ATLAS_13_GAMMA: Inclusive (multi)photons
Exclusion with SM as background from this pool: 0.02%
Most sensitive analysis is
ATLAS_2017_I1645627
Exclusion with data as background from this pool: 0.47%
Most sensitive analysis is
ATLAS_2019_I1772071
Pool ATLAS_13_EEJET: e+e- at the Z pole, plus optional jets
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_MMJET: mu+mu- at the Z pole, plus optional jets
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_LLJET: dileptons at the Z pole, plus optional jets
Exclusion with data as background from this pool: 5.84%
Most sensitive analysis is
ATLAS_2019_I1768911
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool CMS_13_EEJET: dileptons at the Z pole, plus optional jets
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool CMS_13_MMJET: dileptons at the Z pole, plus optional jets
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool CMS_13_HMDY: Dileptons above the Z pole
Exclusion with data as background from this pool: 3.45%
Subpool with 2 histograms.
Most sensitive analysis is
CMS_2018_I1711625
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_4L: four leptons
Exclusion with SM as background from this pool: 86.71%
Most sensitive analysis is
ATLAS_2021_I1849535
Exclusion with data as background from this pool: 81.07%
Subpool with 4 histograms.
Most sensitive analysis is
ATLAS_2021_I1849535
Expected exclusion from this pool: 77.62%
Subpool with 4 histograms.
Most sensitive analysis is
ATLAS_2021_I1849535
Pool ATLAS_13_LL_GAMMA: dilepton plus photon
Exclusion with data as background from this pool: 98.62%
Most sensitive analysis is
ATLAS_2019_I1764342
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_LMETJET: lepton, missing transverse momentum, plus optional jets (typically W, semi-leptonic ttbar analyses)
Pool CMS_13_MMETJET: muon, missing transverse momentum, plus optional jets (typically W, semi-leptonic ttbar analyses)
Exclusion with data as background from this pool: 0.14%
Most sensitive analysis is
CMS_2019_I1705068
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool CMS_13_LMETJET: lepton, missing transverse momentum, plus optional jets (typically W, semi-leptonic ttbar analyses)
Exclusion with SM as background from this pool: 0.01%
Most sensitive analysis is
CMS_2018_I1663958
Exclusion with data as background from this pool: 0.16%
Most sensitive analysis is
CMS_2018_I1663958
Expected exclusion from this pool: 0.08%
Most sensitive analysis is
CMS_2018_I1663958
Pool ATLAS_13_LMET_GAMMA: semileptonic ttbar+gamma
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_L1L2MET_GAMMA: fully leptonic ttbar+gamma
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_L1L2MET: unlike dilepton plus missing transverse momentum channel, with jet veto
Exclusion with data as background from this pool: 6.06%
Most sensitive analysis is
ATLAS_2019_I1734263
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_L1L2METJET: unlike dilepton plus missing transverse momentum and jets
Exclusion with data as background from this pool: 87.10%
Most sensitive analysis is
ATLAS_2021_I1852328
Exclusion with SM as background from this pool: 71.89%
Most sensitive analysis is
ATLAS_2021_I1852328
Pool CMS_13_LLJET: WW analyses in dilepton plus zero or one jet
Exclusion with data as background from this pool: 7.37%
Most sensitive analysis is
CMS_2020_I1814328
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool LHCB_13_L1L2B: top pairs via e mu plus b
Exclusion with data as background from this pool: 0.00%
Most sensitive analysis is
LHCB_2018_I1662483
Exclusion with SM as background from this pool: 0.00%
Most sensitive analysis is
LHCB_2018_I1662483
Pool ATLAS_13_GAMMA_MET: photon plus missing transverse momentum
No exclusion evaluated using SM as background.
No expected exclusion evaluated.
Pool ATLAS_13_METJET: missing transverse momentum plus jets
Exclusion with data as background from this pool: 0.00%
Most sensitive analysis is
ATLAS_2017_I1609448
Exclusion with SM as background from this pool: 0.00%
Most sensitive analysis is
ATLAS_2017_I1609448
List of all analyses considered:
Measurements of differential Z boson production cross sections in proton-proton collisions at 13 TeV (CMS_2019_I1753680:LMODE=EL)

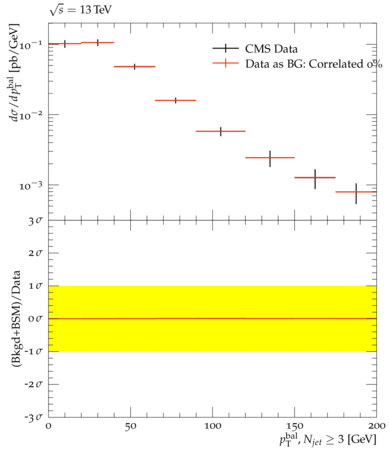

Differential cross section of Z boson production in association with jets in proton-proton collisions at $\sqrt{s} = 13\,$TeV (CMS_2018_I1667854:LMODE=EL)

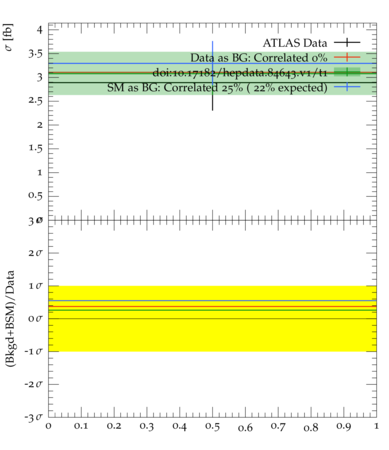

Same-sign $WW$ Observation at 13 TeV (ATLAS_2019_I1738841)
$p_T^\text{miss}$+jets cross-section ratios at 13 TeV (ATLAS_2017_I1609448)
Top-quark pair single- and double-differential cross-sections in the all-hadronic channel (ATLAS_2020_I1801434)
All-hadronic boosted ttbar at 13 TeV (ATLAS_2018_I1646686)

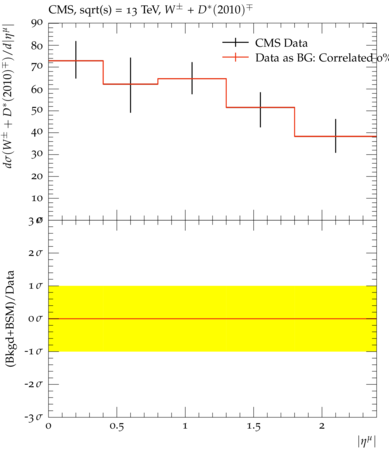

Measurement of associated production of a W boson and a charm quark in proton-proton collisions at 13 TeV (CMS_2019_I1705068)
Control region measurements for leptoquark search at 13 TeV (ATLAS_2019_I1718132:LMODE=ELMU)
dileptonic ttbar at 13 TeV (ATLAS_2019_I1759875)

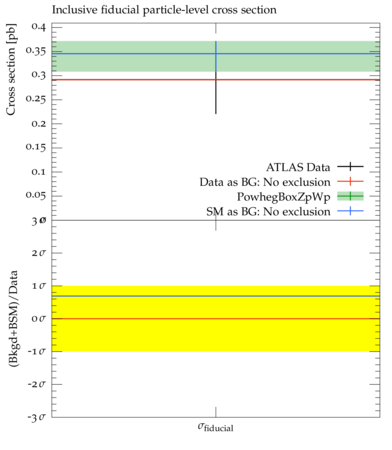

WW + $\geq$1 jet production at 13 TeV (ATLAS_2021_I1852328)
Measurements of differential Z boson production cross sections in proton-proton collisions at 13 TeV (CMS_2019_I1753680:LMODE=MU)
Differential cross section of Z boson production in association with jets in proton-proton collisions at $\sqrt{s} = 13\,$TeV (CMS_2018_I1667854:LMODE=MU)
Z(vv)+gamma measurement at 13 TeV (ATLAS_2018_I1698006:LVETO=ON)
$\gamma\gamma$ production at 13 TeV (ATLAS_2021_I1887997)

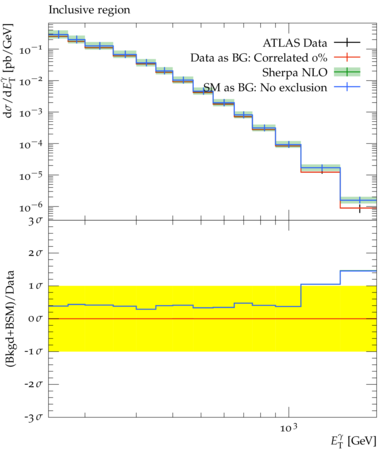

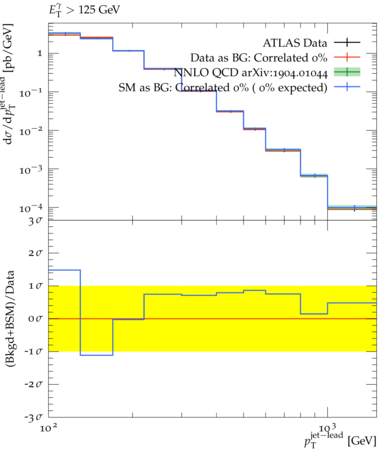

Isolated photon + jets at 13 TeV (ATLAS_2017_I1645627)
Measurement of isolated-photon plus two-jet production (ATLAS_2019_I1772071)
W$^+$W$^-$ boson pair production in proton-proton collisions at $\sqrt{s} =$ 13 TeV (CMS_2020_I1814328)
$t$-channel single top-quark differential cross sections and charge ratios at 13 TeV (CMS_2019_I1744604)

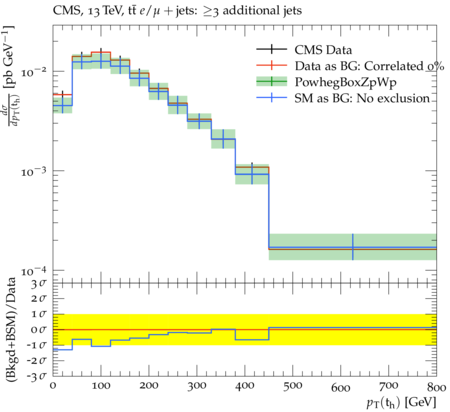

Measurement of the differential cross sections of top quark pair production as a function of kinematic event variables in pp collisions at sqrt(s) = 13 TeV (CMS_2018_I1662081)
ttbar lepton+jets 13 TeV (CMS_2018_I1663958)
Differential cross sections for top quark pair production using the lepton+jets final state in proton proton collisions at 13 TeV (CMS_2016_I1491950)
Differential cross-sections for Z + b-jets (ATLAS_2020_I1788444:LMODE=MU)

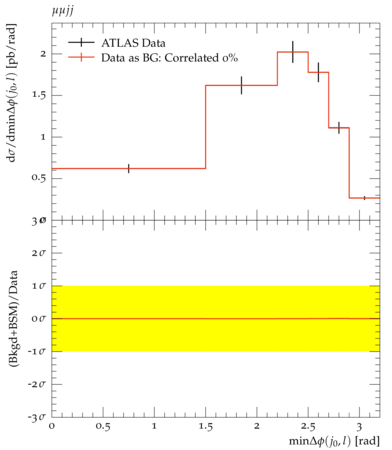

Control region measurements for leptoquark search at 13 TeV (ATLAS_2019_I1718132:LMODE=MUMU)
Z plus jets at 13 TeV (ATLAS_2017_I1514251:LMODE=MU)
WW production at 13 TeV (ATLAS_2019_I1734263)
Z(ll)y cross-section at 13 TeV (ATLAS_2019_I1764342)
Z pT and Z phi* at 13 TeV (ATLAS_2019_I1768911)
Electroweak Zjj at 13 TeV (ATLAS_2020_I1803608)
Measurement of the forward top pair production cross-section in the dilepton channel (LHCB_2018_I1662483)
Differential $t\bar{t}$ $l$+jets cross-sections at 13~TeV (ATLAS_2018_I1656578)
Resolved and boosted ttbar l+jets cross sections at 13 TeV (ATLAS_2017_I1614149)
ttbb at 13 TeV (ATLAS_2018_I1705857)
Semileptonic ttbar at 13 TeV (ATLAS_2019_I1750330:TYPE=BOTH)

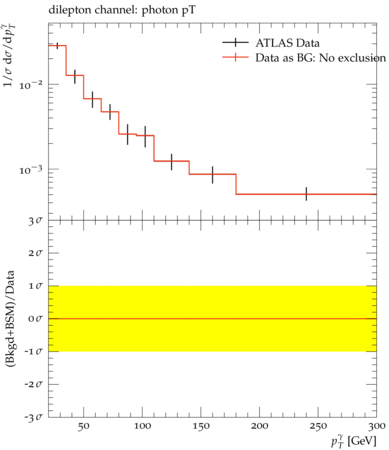

Measurement of normalized differential distributions in ttbar+photon production at 13 TeV (ATLAS_2018_I1707015:LMODE=DILEPTON)
Measurement of normalized differential distributions in ttbar+photon production at 13 TeV (ATLAS_2018_I1707015:LMODE=SINGLE)

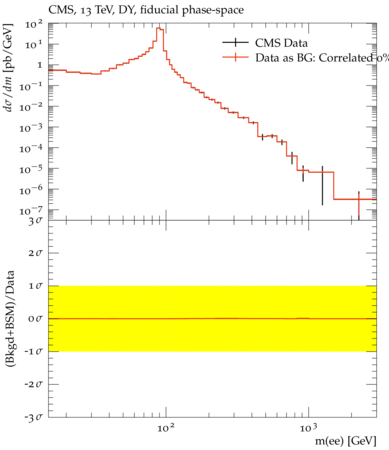

Measurement of the differential Drell-Yan cross section in proton-proton collisions at $\sqrt{s} = 13\,TeV$ (CMS_2018_I1711625)
Measurement of the inclusive jet cross-section in $pp$ collisions at $\sqrt{s} = 13~\TeV$ (CMS_2016_I1459051)
Measurements of angular distance and momentum ratio distributions in three-jet and Z + two-jet final states in pp collisions at 8 and 13 TeV (CMS_2021_I1847230:MODE=QCD13TeV)
Jet mass in dijet events in $pp$ collisions at 13~TeV (CMS_2018_I1682495)
Soft-Drop Jet Mass at 13 TeV (ATLAS_2017_I1637587)

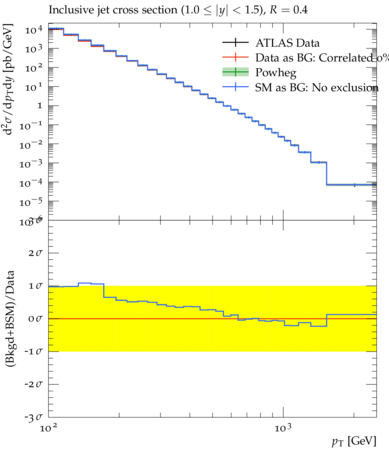

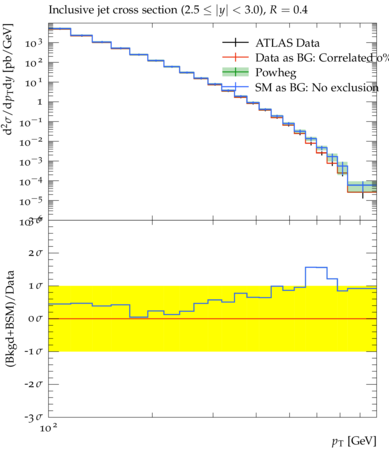

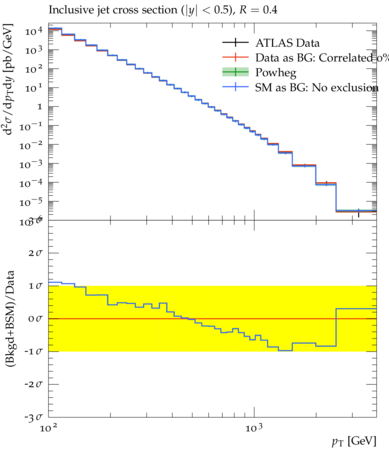

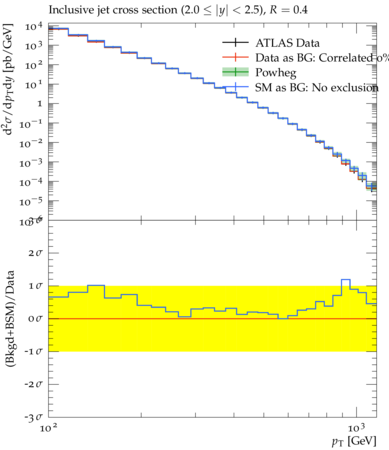

ATLAS Inclusive jet and dijet cross section measurement at sqrt(s)=13TeV (ATLAS_2018_I1634970)
Jet substructure at 13 TeV (ATLAS_2019_I1724098)
Hadronic event shapes in multijet final states (ATLAS_2020_I1808726)
Z plus jets at 13 TeV (ATLAS_2017_I1514251:LMODE=EL)
Control region measurements for leptoquark search at 13 TeV (ATLAS_2019_I1718132:LMODE=ELEL)
Differential cross-sections for Z + b-jets (ATLAS_2020_I1788444:LMODE=EL)

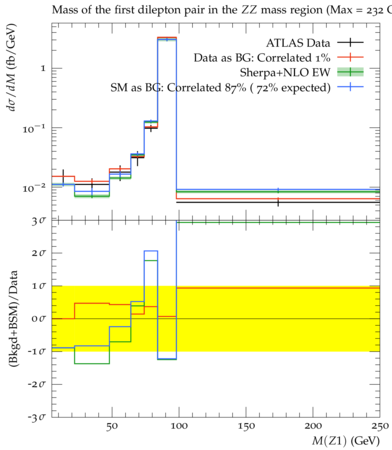

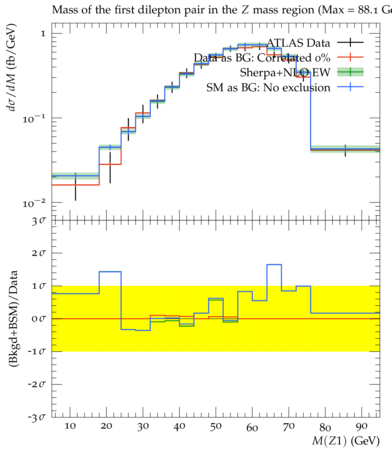

Inclusive 4-lepton cross sections at 13 TeV (ATLAS_2021_I1849535)
Measurement of $ZZ -> 4\ell$ production at 13 TeV (ATLAS_2017_I1625109)
Inclusive 4-lepton lineshape at 13 TeV (ATLAS_2019_I1720442)
Measurement of the ttbb production cross section in the all-jet final state in proton-proton collisions at centre-of-mass energy of 13 TeV with 35.9 fb^-1 of data collected in 2016. (CMS_2019_I1753720)
Measurement of the differential ttbar production cross section as a function of the jet mass and top quark mass in boosted hadronic top quark decays. (CMS_2019_I1764472)
