Atlfast::Calorimeter

Atlfast::Calorimeter Class Reference

Represents the detector's Calorimeter used in Cell making. More...

#include <Calorimeter.h>

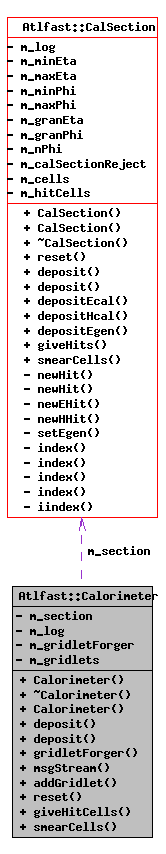

Collaboration diagram for Atlfast::Calorimeter:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Calorimeter (MsgStream &log, bool fastShower, const double etaCoverage, const double barrelForwardEta, const double granBarrelEta, const double granBarrelPhi, const double granForwardEta, const double granForwardPhi)
 ~Calorimeter ()
 Calorimeter (const Calorimeter &)
void deposit (ITransportedParticleCollectionIter &first, ITransportedParticleCollectionIter &last)
void deposit (std::vector< Atlfast::EPileupDeposit * >::iterator &first, std::vector< Atlfast::EPileupDeposit * >::iterator &last) const
const GridletForger * gridletForger () const
MsgStream & msgStream () const
void addGridlet (Gridlet *g)
void reset ()
void giveHitCells (const ICellSelector *, ITwoCptCellCollection *)
void smearCells (ISmearer *)

Private Attributes

CalSection * m_section [3]
MsgStream & m_log
GridletForger * m_gridletForger
std::vector< const Gridlet * > m_gridlets

Detailed Description

Represents the detector's Calorimeter used in Cell making.

At present, state construction is not available through jobOptions directly and therefore all parameters are temporarily passed in the Calorimeter constructor (i.e. parameters are properties of CellMaker which then constructs Calorimeter). The calorimeter consists of three CalSections in which energies of HepMC particles are deposited.

Definition at line 54 of file Calorimeter.h.

Constructor & Destructor Documentation

Atlfast::Calorimeter::Calorimeter ( MsgStream &  log,
bool  fastShower,
const double  etaCoverage,
const double  barrelForwardEta,
const double  granBarrelEta,
const double  granBarrelPhi,
const double  granForwardEta,
const double  granForwardPhi
)

Constructor providing coverage and granularity parameters, set in CellMaker jobOptions.

Definition at line 35 of file Calorimeter.cxx.

00044                             :m_log(log){
00045
00046     m_section[0] =  new CalSection(log,
00047                                    abs(barrelMaxEta),  abs(MaxEta),
00048                                    granForwardEta, granForwardPhi);
00049
00050     m_section[1] =  new CalSection(log,
00051                                    -abs(barrelMaxEta), abs(barrelMaxEta),
00052                                    granBarrelEta,  granBarrelPhi);
00053
00054     m_section[2] =  new CalSection(log,
00055                                    -abs(MaxEta),       -abs(barrelMaxEta),
00056                                    granForwardEta, granForwardPhi);
00057
00058     if(fastShower) {
00059       m_gridletForger   = new GridletForger;
00060     }else{
00061       m_gridletForger   = 0;
00062     }
00063
00064   }

Atlfast::Calorimeter::~Calorimeter (  )

Default destructor

Definition at line 65 of file Calorimeter.cxx.

00065                            {
00066     m_log<<MSG::DEBUG<<"Calorimeter destructor starts "<<endreq;
00067     delete m_section[0];
00068     delete m_section[1];
00069     delete m_section[2];
00070     delete m_gridletForger;
00071     m_log<<MSG::DEBUG<<"Calorimeter destructor ends "<<endreq;
00072   }

Atlfast::Calorimeter::Calorimeter ( const Calorimeter &   )

Copy constructor

Definition at line 73 of file Calorimeter.cxx.

00073                                               :m_log(c.m_log){
00074     //make m_sections point to different instances
00075     // of the CalSections, with the same value as those
00076     //owned by c.
00077     m_section[0]   = new CalSection(*(c.m_section[0]));
00078     m_section[1]   = new CalSection(*(c.m_section[1]));
00079     m_section[2]   = new CalSection(*(c.m_section[2]));
00080     m_gridletForger= new GridletForger(*(c.m_gridletForger));
00081   }

Member Function Documentation

void Atlfast::Calorimeter::deposit ( ITransportedParticleCollectionIter &  first,
ITransportedParticleCollectionIter &  last
)

Deposits HepMc::Particle. The double is the phi position of the particle* at the calorimeter. the "last" iterator will be modified...

Definition at line 116 of file Calorimeter.cxx.

00117                                                                   {
00118
00119     ITransportedParticleCollectionIter divider =
00120       std::partition(f, l, TryToShower(this));
00121
00122     //    std::for_each(m_gridlets.begin(), m_gridlets.end(), CheckNull());
00123
00124     // put all the elements from all gridlets into a containers
00125     Elements els;
00126     els = std::for_each(m_gridlets.begin(), m_gridlets.end(), els);
00127     std::pair<Elements::Iter, Elements::Iter> ei = els.eIters();
00128     std::pair<Elements::Iter, Elements::Iter> hi = els.hIters();
00129     std::for_each(ei.first, ei.second, CheckNull());
00130     std::for_each(hi.first, hi.second, CheckNull());
00131
00132     //    cerr<<"Calorimeter: no  of e elements "<<ei.second - ei.first<<endl;
00133     //    cerr<<"Calorimeter: no  of h elements "<<hi.second - hi.first<<endl;
00134
00135     //Deposit Elements, generated particle energies for showered particles
00136     //(needed for calibration) and unshowered particles.
00137     for(int ind =0 ;ind<=2; ++ind){
00138       //      cerr<<"Calsection "<<ind<<endl;
00139       //      cerr<<" E deposits "<<endl;
00140       //      cerr<<" E deposits "<<endl;
00141       m_section[ind]->depositEcal(ei.first, ei.second);
00142       //      cerr<<" H deposits "<<endl;
00143       m_section[ind]->depositHcal(hi.first, hi.second);
00144
00145       //need to make the iterators because the call is to references,
00146       //and so we need an object to reference. The following commented
00147       //out line does not work because there is nothing to reference!
00148       std::vector<const Gridlet*>::iterator b = m_gridlets.begin();
00149       std::vector<const Gridlet*>::iterator e = m_gridlets.end();
00150       //      cerr<<" Egen deposits "<<endl;
00151       m_section[ind]->depositEgen(b, e);
00152
00153       //m_section[ind]->depositEgen(m_gridlets.begin(), m_gridlets.end());
00154       //      cerr<<" Particle deposits "<<endl;
00155       m_section[ind]->deposit(divider, l);
00156     }
00157     // the iterators have been messed around with , so get a fresh set before
00158     // deleting the elements
00159     ei = els.eIters();
00160     hi = els.hIters();
00161     std::for_each(ei.first, ei.second, DeleteObject());
00162     std::for_each(hi.first, hi.second, DeleteObject());
00163   }

void Atlfast::Calorimeter::deposit ( std::vector< Atlfast::EPileupDeposit * >::iterator &  first,
std::vector< Atlfast::EPileupDeposit * >::iterator &  last
) const

Deposits Energy Pileup Map into the Calorimeter

Definition at line 167 of file Calorimeter.cxx.

00169          {
00170     //send energy pileup to calorimeter sections
00171     for(int ind =0 ;ind<=2; ++ind){
00172       m_section[ind]->deposit(f, l);
00173     }
00174
00175     }

const GridletForger * Atlfast::Calorimeter::gridletForger (  )  const

give the GridletForger

Definition at line 177 of file Calorimeter.cxx.

00177                                                          {
00178     return m_gridletForger;
00179   }

MsgStream & Atlfast::Calorimeter::msgStream (  )  const

make log available to those who want it

Definition at line 181 of file Calorimeter.cxx.

00181 {return m_log;}

void Atlfast::Calorimeter::addGridlet ( Gridlet *  g  )

Add to the collection of Gridlets

Definition at line 114 of file Calorimeter.cxx.

00114 {m_gridlets.push_back(g);}

void Atlfast::Calorimeter::reset (  )

Resets the calorimeter sections and local collections.

Definition at line 195 of file Calorimeter.cxx.

00195                          {
00196
00197     for(int ind=0; ind<=2; ++ind) {m_section[ind]->reset();}
00198
00199     std::for_each(m_gridlets.begin(), m_gridlets.end(), DeleteObject());
00200     m_gridlets.clear();
00201
00202   }

void Atlfast::Calorimeter::giveHitCells ( const ICellSelector *  ,
ITwoCptCellCollection *
)

Gives selected cells.

Definition at line 183 of file Calorimeter.cxx.

00184                                                                 {
00185
00186     // return cells in calorimeter passed by cellSelector
00187     // could make type change from Calorimeter cells to TES cells here
00188
00189     for(int ind=0; ind<=2; ++ind) {
00190       m_section[ind]->giveHits(p_cellSelector, cells);
00191     }
00192   }

void Atlfast::Calorimeter::smearCells ( ISmearer *   )

Smear the cells resolution

Definition at line 204 of file Calorimeter.cxx.

00205   {
00206     for(int ind=0; ind<=2; ++ind) {
00207       m_section[ind]->smearCells(p_smearer);
00208     }
00209   }

Member Data Documentation

CalSection* Atlfast::Calorimeter::m_section[3] [private]

Three calorimeter sections owned by the calorimeter. 1

Definition at line 118 of file Calorimeter.h.

MsgStream& Atlfast::Calorimeter::m_log [private]

Pointer to fastShowerer - 0 if no fast Showering

Definition at line 123 of file Calorimeter.h.

GridletForger* Atlfast::Calorimeter::m_gridletForger [private]

Definition at line 124 of file Calorimeter.h.

std::vector<const Gridlet* > Atlfast::Calorimeter::m_gridlets [private]

Definition at line 125 of file Calorimeter.h.

The documentation for this class was generated from the following files:
