Atlfast::CellMaker

Atlfast::CellMaker Class Reference

Deposits truth particle energies into Atlfast Cells. More...

#include <CellMaker.h>

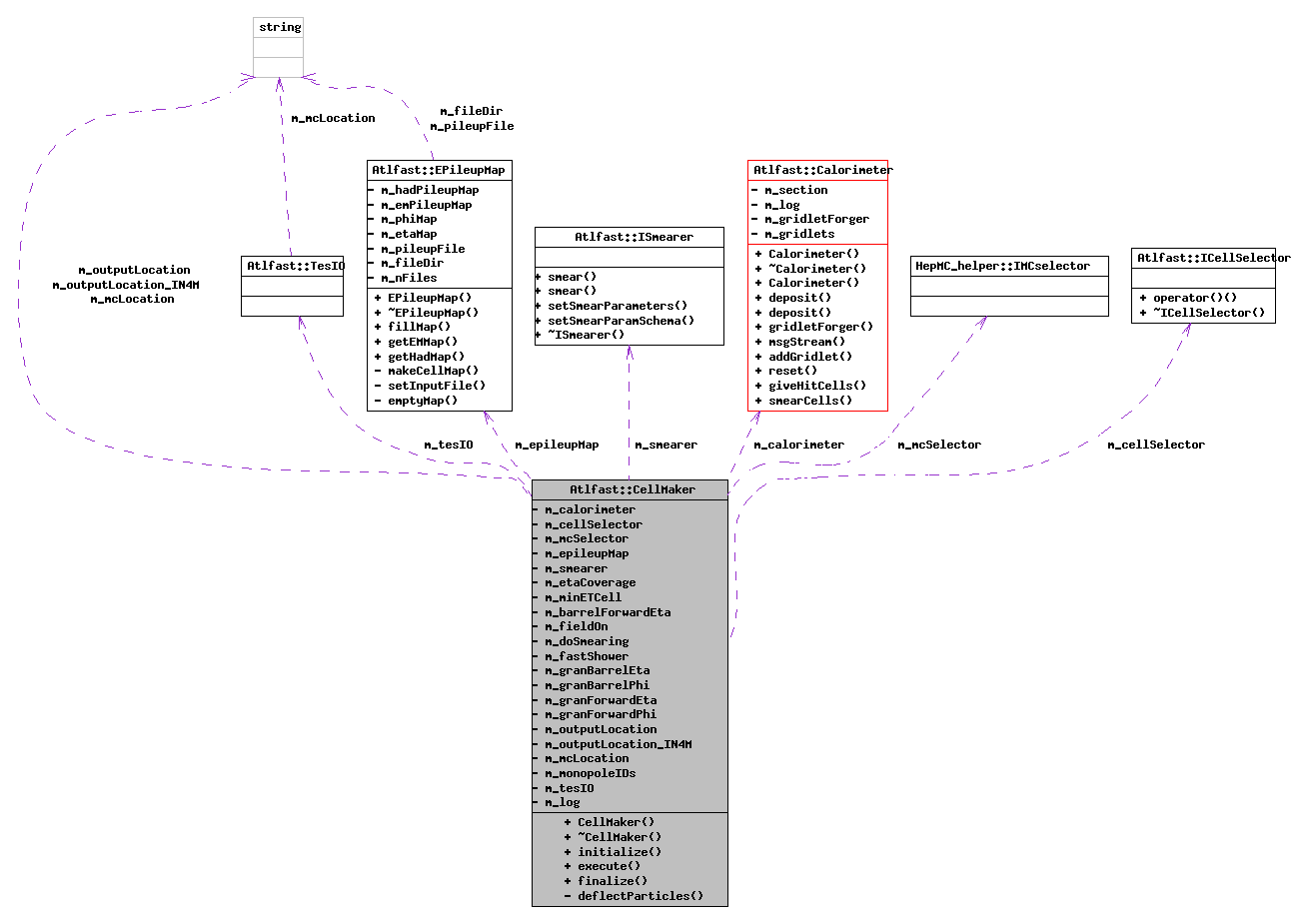

Collaboration diagram for Atlfast::CellMaker:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 CellMaker (const std::string &name, ISvcLocator *pSvcLocator)
 ~CellMaker ()
StatusCode initialize ()
StatusCode execute ()
StatusCode finalize ()

Private Member Functions

void deflectParticles (ITransportedParticleCollection &)

Private Attributes

Calorimeter * m_calorimeter
ICellSelector * m_cellSelector
HepMC_helper::IMCselector * m_mcSelector
EPileupMap * m_epileupMap
ISmearer * m_smearer
double m_etaCoverage
double m_minETCell
double m_barrelForwardEta
bool m_fieldOn
bool m_doSmearing
 warning! not fully tested. Should not be used if JetSmearing == true
bool m_fastShower
 flag to control if FastShower is to run
double m_granBarrelEta
double m_granBarrelPhi
double m_granForwardEta
double m_granForwardPhi
std::string m_outputLocation
std::string m_outputLocation_IN4M
std::string m_mcLocation
std::vector< int > m_monopoleIDs
TesIO * m_tesIO
MsgStream m_log

Detailed Description

Deposits truth particle energies into Atlfast Cells.

Maker class which reads Monte Carlo information from the TES and causes a calorimeter simulation of their energy deposits.
This results in a collection of hit Cell entities to be written to the TES


CellMaker sequence

Definition at line 54 of file CellMaker.h.

Constructor & Destructor Documentation

Atlfast::CellMaker::CellMaker ( const std::string &  name,
ISvcLocator *  pSvcLocator
)

Standard Athena-Algorithm Constructor

This doSmearing is still in experimental phase and should NOT be set to true by any user

WARNING!! DoSmearing should not be changed from default of false

Definition at line 39 of file CellMaker.cxx.

00039                                                                       :
00040     Algorithm(name,pSvcLocator),
00041     m_calorimeter(0),
00042     m_cellSelector(0),
00043     m_mcSelector(0),
00044     m_epileupMap(0),
00045     m_smearer(0),
00046     m_tesIO(0),
00047     m_log( messageService(), name )
00048   {
00049
00050     //default paths for entities in the TES
00051     m_outputLocation      = "/Event/AtlfastCells" ;
00052     m_outputLocation_IN4M = "/Event/AtlfastCellsIN4M";
00053
00054     // default parameters to build the calorimeter
00055     m_etaCoverage        = 5.0;
00056     m_minETCell          = 0.0*GeV;
00057     m_granBarrelEta      = 0.1;
00058     m_granBarrelPhi      = 0.1;
00059     m_granForwardEta     = 0.2;
00060     m_granForwardPhi     = 0.2;
00063     m_doSmearing         = false;
00064     m_fastShower         = false;
00065
00066     declareProperty("OutputLocation",     m_outputLocation);
00067     declareProperty("OutputLocationIN4M", m_outputLocation_IN4M);
00068     declareProperty("EtaCoverage",        m_etaCoverage);
00069     declareProperty("MinETCell",          m_minETCell);
00070     declareProperty("GranBarrelEta",      m_granBarrelEta);
00071     declareProperty("GranBarrelPhi",      m_granBarrelPhi);
00072     declareProperty("GranForwardEta",     m_granForwardEta);
00073     declareProperty("GranForwardPhi",     m_granForwardPhi);
00075     declareProperty("DoSmearing",     m_doSmearing);
00076     declareProperty("FastShower",     m_fastShower);
00077
00078   }

Atlfast::CellMaker::~CellMaker (  )

Default destructor

Definition at line 81 of file CellMaker.cxx.

00081                        {
00082
00083     m_log<<MSG::DEBUG<<"CellMaker destructor starts "<<endreq;
00084
00085     m_log<<MSG::DEBUG<<"Deleting Calorimeter "<<endreq;
00086     if (m_calorimeter) delete m_calorimeter;
00087
00088     m_log<<MSG::DEBUG<<"Deleting TesIO "<<endreq;
00089     if (m_tesIO) delete m_tesIO;
00090
00091     m_log<<MSG::DEBUG<<"Deleting Cell Selector "<<endreq;
00092     if (m_cellSelector) delete m_cellSelector;
00093
00094     if (m_epileupMap) delete m_epileupMap;
00095     if (m_smearer) delete m_smearer;
00096
00097     m_log<<MSG::DEBUG<<"CellMaker destructor ends "<<endreq;
00098   }

Member Function Documentation

StatusCode Atlfast::CellMaker::initialize (  )

Standard Athena-Algorithm initialize

NOTE!! Smearing should not be switched on

if we want to perform cell level smearing, must make a CellSmearer and a Energy Pileup map

Definition at line 100 of file CellMaker.cxx.

00101   {
00102
00103
00104     //set up objects used to determine particle charge,
00105     // and to select input MC 4-vectors.
00106     m_cellSelector  = new CellsAboveThreshold(m_minETCell);
00107
00108
00109     //get the Global Event Data using singleton pattern
00110     GlobalEventData* ged = GlobalEventData::Instance();
00111     m_fieldOn          = ged -> fieldOn();
00112     m_mcSelector       = ged -> visibleToCal();
00113     m_barrelForwardEta = ged -> barrelForwardEta();
00114     m_mcLocation       = ged -> mcLocation();
00115     m_monopoleIDs      = ged -> monopoleIDs();
00116
00117     //    m_tesIO = new TesIO(eventDataService());
00118     m_tesIO = new TesIO(m_mcLocation, ged->justHardScatter());
00119
00120
00121     if (fabs(m_etaCoverage) < fabs(m_barrelForwardEta) ) {
00122       m_log << MSG::ERROR
00123           << "asked to makecalo with max extent "
00124           << m_etaCoverage
00125           << "but barrel-forward boundary at "
00126           << m_barrelForwardEta << endreq;
00127       return StatusCode::FAILURE;
00128     }
00129     m_calorimeter = new Calorimeter(
00130                                     m_log,
00131                                     m_fastShower,
00132                                     m_etaCoverage,
00133                                     m_barrelForwardEta,
00134                                     m_granBarrelEta,
00135                                     m_granBarrelPhi,
00136                                     m_granForwardEta,
00137                                     m_granForwardPhi
00138                                     );
00142     if(m_doSmearing == true){
00143       m_epileupMap = new EPileupMap(ged->lumi());
00144       m_smearer = new CellSmearer(ged->randSeed(),m_barrelForwardEta);
00145     }else{
00146       m_epileupMap = NULL;
00147       m_smearer = NULL;
00148     }
00149
00150     HeaderPrinter hp("Atlfast Cell Maker:", m_log);
00151
00152     hp.add("Min Cell ET                         ", m_minETCell);
00153     hp.add("Magnetic Field is on?               ", m_fieldOn);
00154     hp.add("MC Input Location                   ", m_mcLocation);
00155     hp.add("Output Location                     ", m_outputLocation);
00156     hp.add("INavigable4Momentum Output Location ", m_outputLocation_IN4M);
00157     hp.add("DoSmearing                          ", m_doSmearing);
00158     hp.add("Run FastShower                      ", m_fastShower);
00159     hp.add("Calorimeter Geometry:               ");
00160     hp.add("Total Eta Range                     ", m_etaCoverage);
00161     hp.add("Barrel Eta Range                    ", m_barrelForwardEta);
00162     hp.add("Barrel Eta Granularity              ", m_granBarrelEta);
00163     hp.add("Barrel Phi Granularity              ", m_granBarrelPhi);
00164     hp.add("Forward Eta Granularity             ", m_granForwardEta);
00165     hp.add("Forward Phi Granularity             ", m_granForwardPhi);
00166     hp.print();
00167
00168
00169
00170     return StatusCode::SUCCESS;
00171   }

StatusCode Atlfast::CellMaker::execute (  )

Standard Athena-Algorithm execute

randomly fill the map from a text file

deposit energy pileup into EM calorimeter

deposit energy pileup into EM calorimeter

pass pointer to smearer as well, if not NULL, then cells pT is smeared before the ITwoCellCollection is filled

Definition at line 181 of file CellMaker.cxx.

00182   {
00183     //.............................................
00184
00185     m_log << MSG::DEBUG << "CellMaker execute()" << endreq;
00186
00187     ITransportedParticleCollection particlesAtCal;
00188     deflectParticles(particlesAtCal);
00189
00190     // give to calorimeter (iseq gives the interval [begin,end)
00191     ITransportedParticleCollectionIter fpart = particlesAtCal.begin();
00192     ITransportedParticleCollectionIter lpart = particlesAtCal.end();
00193     m_calorimeter->deposit(fpart, lpart);
00194
00195     //Delete the the container of transported particles and its pointers
00196     containerDelete(particlesAtCal.begin(), particlesAtCal.end());
00197
00198
00199     // Add in the energy pileup
00200     if(m_doSmearing){
00201
00202       //Smear the cells resolution first
00203       m_calorimeter->smearCells(m_smearer);
00204       m_log << MSG::DEBUG << "Doing Smearing" << endreq;
00205
00207       m_epileupMap->fillMap();
00208       m_log << MSG::DEBUG
00209           << "Size of EM EPileup vector: "
00210           << m_epileupMap->getEMMap()->size()
00211           << endreq;
00212       std::vector<Atlfast::EPileupDeposit*>::iterator fdep =
00213         m_epileupMap->getEMMap()->begin();
00214       std::vector<Atlfast::EPileupDeposit*>::iterator ldep =
00215         m_epileupMap->getEMMap()->end();
00216
00218       m_calorimeter->deposit(fdep, ldep);
00219       m_log << MSG::DEBUG << "ECAL pileup deposited" << endreq;
00220       m_log << MSG::DEBUG << "Size of HAD EPileup vector: "
00221           << m_epileupMap->getHadMap()->size()
00222           << endreq;
00223       fdep = m_epileupMap->getHadMap()->begin();
00224       ldep = m_epileupMap->getHadMap()->end();
00225
00227       m_calorimeter->deposit(fdep, ldep);
00228       m_log << MSG::DEBUG << "HCAL pileup deposited" << endreq;
00229     }
00230
00231     m_log << MSG::DEBUG << "deposit" << endreq;
00232
00233     // Ask for Cells passing selection criteria of m_cellSelector (=Et).
00234
00235     // For now, we will make, fill and store two collections here
00236     // The first is to be used iternally by Atlfast Algorithms:
00237     ITwoCptCellCollection* cells = new ITwoCptCellCollection;
00238     // The second will be read in by the full jet reconstruction:
00239     INavigable4MomentumCollection *cells_IN4M =
00240       new INavigable4MomentumCollection(SG::VIEW_ELEMENTS);
00241
00242
00243     //************************
00246     m_calorimeter->giveHitCells(m_cellSelector, cells);
00247     m_log << MSG::DEBUG << "hit cells retrieved, " << cells->size()
00248         << " cells were hit this event " << endreq;
00249
00250     // Fill the IN4M collection with pointers to the ITwoCptCells
00251     ITwoCptCellCollection::const_iterator cellItr = cells->begin();
00252     for (;cellItr != cells->end(); ++cellItr){
00253       INavigable4Momentum *cell_IN4M = *cellItr;
00254       cells_IN4M->push_back(cell_IN4M);
00255     }
00256
00257     // finished with the calorimeter
00258     m_calorimeter->reset();
00259     m_log << MSG::DEBUG << "calorimeter reset" << endreq;
00260
00261     // then store and return
00262     TesIoStat stat = m_tesIO->store(cells, m_outputLocation );
00263     std::string mess = stat ? "Stored cells in TES":"Failed store cells in TES";
00264     m_log << MSG::DEBUG << mess << endreq;
00265
00266     stat = m_tesIO->store(cells_IN4M, m_outputLocation_IN4M );
00267     if (stat) m_log << MSG::DEBUG << "Stored cells in TES as INavigable4MomentumCollection" << endreq;
00268     else m_log << MSG::ERROR << "Failed to store cells in TES as INavigable4MomentumCollection" << endreq;
00269
00270     return stat;
00271
00272   }

StatusCode Atlfast::CellMaker::finalize (  )

Standard Athena-Algorithm finalize

Definition at line 173 of file CellMaker.cxx.

00174   {
00175
00176     m_log<<MSG::INFO<<"Finalizing"<<endreq;
00177     return StatusCode::SUCCESS;
00178   }

void Atlfast::CellMaker::deflectParticles ( ITransportedParticleCollection &   )  [private]

Definition at line 274 of file CellMaker.cxx.

00274                                                                       {
00275
00276     m_log << MSG::DEBUG << "CellMaker deflectParticles()" << endreq;
00277
00278     // read MC particles from TES
00279     MCparticleCollection p;
00280     TesIoStat stat = m_tesIO->getMC( p, m_mcSelector ) ;
00281     std::string mess;
00282     mess = stat? "Retrieved MC from TES ":"Failed MC retrieve from TES ";
00283     m_log << MSG::DEBUG << mess << p.size()<<endreq;
00284
00285     MCparticleCollectionCIter ip= p.begin();
00286     for(; ip<p.end(); ++ip){
00287
00288       // Factory comes back with the relevant TransportedParticle
00289       ITransportedParticle *itp = ITransportedParticleFactory::create(*ip,m_monopoleIDs);
00290       itp->deflect();
00291       itpc.push_back(itp);
00292
00293     }
00294
00295     return;
00296
00297   }

Member Data Documentation

Calorimeter* Atlfast::CellMaker::m_calorimeter [private]

Definition at line 74 of file CellMaker.h.

ICellSelector* Atlfast::CellMaker::m_cellSelector [private]

Definition at line 75 of file CellMaker.h.

HepMC_helper::IMCselector* Atlfast::CellMaker::m_mcSelector [private]

Definition at line 76 of file CellMaker.h.

EPileupMap* Atlfast::CellMaker::m_epileupMap [private]

EPileupMap contains the pileup energy distribution to be put into calorimeter

Definition at line 78 of file CellMaker.h.

ISmearer* Atlfast::CellMaker::m_smearer [private]

CellSmearer, smears cells pt before put into CellCollection

Definition at line 80 of file CellMaker.h.

double Atlfast::CellMaker::m_etaCoverage [private]

Definition at line 83 of file CellMaker.h.

double Atlfast::CellMaker::m_minETCell [private]

Definition at line 84 of file CellMaker.h.

double Atlfast::CellMaker::m_barrelForwardEta [private]

Definition at line 85 of file CellMaker.h.

bool Atlfast::CellMaker::m_fieldOn [private]

Definition at line 86 of file CellMaker.h.

bool Atlfast::CellMaker::m_doSmearing [private]

warning! not fully tested. Should not be used if JetSmearing == true

switch on cell smearing

Definition at line 89 of file CellMaker.h.

bool Atlfast::CellMaker::m_fastShower [private]

flag to control if FastShower is to run

Definition at line 91 of file CellMaker.h.

double Atlfast::CellMaker::m_granBarrelEta [private]

Definition at line 94 of file CellMaker.h.

double Atlfast::CellMaker::m_granBarrelPhi [private]

Definition at line 95 of file CellMaker.h.

double Atlfast::CellMaker::m_granForwardEta [private]

Definition at line 96 of file CellMaker.h.

double Atlfast::CellMaker::m_granForwardPhi [private]

Definition at line 97 of file CellMaker.h.

std::string Atlfast::CellMaker::m_outputLocation [private]

Definition at line 100 of file CellMaker.h.

std::string Atlfast::CellMaker::m_outputLocation_IN4M [private]

Definition at line 101 of file CellMaker.h.

std::string Atlfast::CellMaker::m_mcLocation [private]

Definition at line 104 of file CellMaker.h.

std::vector<int> Atlfast::CellMaker::m_monopoleIDs [private]

Definition at line 107 of file CellMaker.h.

TesIO* Atlfast::CellMaker::m_tesIO [private]

Definition at line 109 of file CellMaker.h.

MsgStream Atlfast::CellMaker::m_log [private]

Definition at line 110 of file CellMaker.h.

The documentation for this class was generated from the following files:
Generated on Mon Sep 24 14:19:35 2007 for AtlfastAlgs by  doxygen 1.5.1
