Atlfast::AOObase Class Reference

#include <AOObase.h>

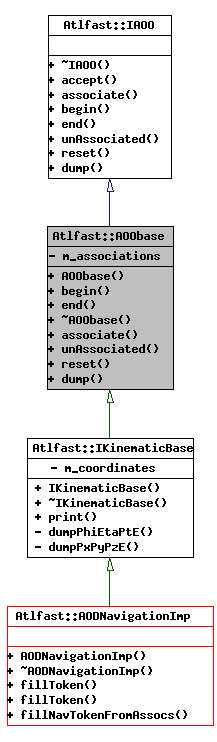

Inheritance diagram for Atlfast::AOObase:

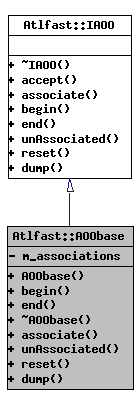

[legend]Collaboration diagram for Atlfast::AOObase:

[legend]List of all members.

Public Member Functions
	AOObase ()
virtual std::vector< const IAOO * >::const_iterator	begin () const
	iterators for the store.
virtual std::vector< const IAOO * >::const_iterator	end () const
virtual	~AOObase ()
virtual void	associate (const IAOO *otherEntity)
	store any object with IAOO above it the inheritance heirarchy
virtual bool	unAssociated () const
	A quick way to find out whether there are any associations at a ll.
virtual void	reset ()
	zero the container
virtual void	dump (const std::string &) const
	dump out debug info
virtual void	accept (IAOOvisitor *) const =0
	to be implemented by the concrete classes
Private Attributes
std::vector< const IAOO * >	m_associations
	A container to hold the associations.

---

Detailed Description

Definition at line 22 of file AOObase.h.

---

Constructor & Destructor Documentation

Atlfast::AOObase::AOObase

(

)

[inline]

Definition at line 24 of file AOObase.h.

{}

Atlfast::AOObase::~AOObase

(

)

[virtual]

Definition at line 8 of file AOObase.cxx.

{}

---

Member Function Documentation

std::vector< const IAOO * >::const_iterator Atlfast::AOObase::begin

(

)

const [virtual]

iterators for the store.

Implements Atlfast::IAOO.

Definition at line 10 of file AOObase.cxx.

                                                           {
    return m_associations.begin();
  }

std::vector< const IAOO * >::const_iterator Atlfast::AOObase::end

(

)

const [virtual]

Implements Atlfast::IAOO.

Definition at line 14 of file AOObase.cxx.

                                                           {
    return m_associations.end();
  }

void Atlfast::AOObase::associate

(

const IAOO *

otherEntity

)

[virtual]

store any object with IAOO above it the inheritance heirarchy

Implements Atlfast::IAOO.

Definition at line 18 of file AOObase.cxx.

                                           {
    m_associations.push_back( other ) ;
  }

virtual bool Atlfast::AOObase::unAssociated

(

)

const [inline, virtual]

A quick way to find out whether there are any associations at a ll.

Implements Atlfast::IAOO.

Definition at line 31 of file AOObase.h.

{ return m_associations.empty() ; }

virtual void Atlfast::AOObase::reset

(

)

[inline, virtual]

zero the container

Implements Atlfast::IAOO.

Definition at line 32 of file AOObase.h.

{ m_associations.clear();}

void Atlfast::AOObase::dump

(

const std::string &

)

const [virtual]

dump out debug info

Implements Atlfast::IAOO.

Definition at line 22 of file AOObase.cxx.

                                            {
    std::cout<<'\n'<<s<<"Associations: "
             <<std::setw(6)<<m_associations.size()
             <<std::string(53,' ')
             <<"AOObase"<<std::endl;
    //std::for_each(m_associations.begin(),
    //    m_associations.end(),
    //    AtlfastDumperObject("Associations", "   ")
    //    );
  }

virtual void Atlfast::IAOO::accept

(

IAOOvisitor *

)

const [pure virtual, inherited]

to be implemented by the concrete classes

Implemented in Atlfast::Cell, Atlfast::Cluster, Atlfast::Jet, Atlfast::KtCluster, Atlfast::ReconstructedParticle, Atlfast::SimpleKinematic, Atlfast::Track, and Atlfast::TwoCptCell.

---

Member Data Documentation

std::vector<const IAOO*> Atlfast::AOObase::m_associations [private]

A container to hold the associations.

Definition at line 36 of file AOObase.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastEvent/AtlfastEvent/AOObase.h
• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastEvent/src/AOObase.cxx

---
