Atlfast::ReconstructedParticle Class Reference

#include <ReconstructedParticle.h>

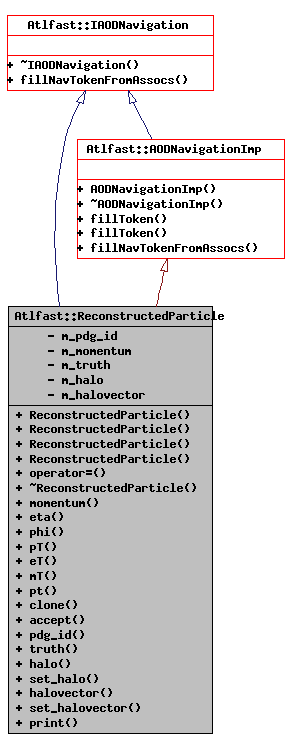

Inheritance diagram for Atlfast::ReconstructedParticle:

[legend]Collaboration diagram for Atlfast::ReconstructedParticle:

[legend]List of all members.

Public Member Functions
	ReconstructedParticle ()
	Constructors.
	ReconstructedParticle (const int pdg_id, const HepLorentzVector &vec, const HepMC::GenParticle *progenitor)
	ReconstructedParticle (const ReconstructedParticle &src)
	ReconstructedParticle (const ReconstructedParticle *src)
ReconstructedParticle &	operator= (const ReconstructedParticle &src)
virtual	~ReconstructedParticle ()
virtual HepLorentzVector	momentum () const
virtual double	eta () const
virtual double	phi () const
virtual double	pT () const
virtual double	eT () const
virtual double	mT () const
virtual double	pt () const
virtual IKinematic *	clone () const
virtual void	accept (IAOOvisitor *iaPtr) const
	IAOO interface.
int	pdg_id () const
	pdg identifier of particle
const HepMC::GenParticle *	truth () const
	4-vec used for generation
double	halo () const
	4-vec used for generation
void	set_halo (double halo)
HepLorentzVector	halovector () const
void	set_halovector (HepLorentzVector halovector)
virtual void	print (const std::string &coor, std::string t="") const
	IKinematic debug.
virtual void	fillNavTokenFromAssocs (INavigationToken &) const=0
virtual double	e () const
virtual double	m () const
virtual void	associate (const IAOO *otherEntity)=0
	store any object with IAOO above it the inheritance heirarchy
virtual std::vector< const IAOO * >::const_iterator	begin () const=0
	iterators for the store.
virtual std::vector< const IAOO * >::const_iterator	end () const=0
virtual bool	unAssociated () const=0
	A quick way to find out whether there are any associations at a ll.
virtual void	reset ()=0
	zero the container
virtual void	dump (const std::string &s) const =0
	dump out debug info
Private Member Functions
virtual void	fillToken (INavigationToken &) const
virtual void	fillToken (INavigationToken &, const boost::any &) const
virtual void	fillNavTokenFromAssocs (INavigationToken &) const
virtual void	associate (const IAOO *otherEntity)
	store any object with IAOO above it the inheritance heirarchy
virtual std::vector< const IAOO * >::const_iterator	begin () const
	iterators for the store.
virtual std::vector< const IAOO * >::const_iterator	end () const
virtual bool	unAssociated () const
	A quick way to find out whether there are any associations at a ll.
virtual void	reset ()
	zero the container
virtual void	dump (const std::string &) const
	dump out debug info
Private Attributes
int	m_pdg_id
HepLorentzVector	m_momentum
	pdg identity code
const HepMC::GenParticle *	m_truth
	4-momentum of particle
double	m_halo
HepLorentzVector	m_halovector
	Cal energy in dR(0.2,0.4), scalar sum.

---

Detailed Description

Definition at line 103 of file ReconstructedParticle.h.

---

Constructor & Destructor Documentation

Atlfast::ReconstructedParticle::ReconstructedParticle

(

)

Constructors.

Definition at line 63 of file ReconstructedParticle.cxx.

00063                                               :
00064     AODNavigationImp(),
00065     m_pdg_id(0),
00066     m_momentum(HepLorentzVector(0.0,0.0,0.0,0.0)),
00067     m_truth(0),
00068     m_halo(0.),
00069     m_halovector(HepLorentzVector(0.,0.,0.,0.)){
00070   }
  HepLorentzVector ReconstructedParticle::momentum() const {

Atlfast::ReconstructedParticle::ReconstructedParticle	(	const int	pdg_id,
		const HepLorentzVector &	vec,
		const HepMC::GenParticle *	progenitor
	)

Definition at line 8 of file ReconstructedParticle.cxx.

                                                           :
    IKinematic(),
    AODNavigationImp(),m_pdg_id(pdg_id),
    m_momentum(vec), m_truth(progenitor),
    m_halo(0.),
    m_halovector(HepLorentzVector(0.,0.,0.,0.)) {
  }

Atlfast::ReconstructedParticle::ReconstructedParticle

(

const ReconstructedParticle &

src

)

Definition at line 19 of file ReconstructedParticle.cxx.

                                                :
    Atlfast::IAOO(src),
    INavigable(src),
    I4Momentum(src),
    INavigable4Momentum(src),
    Atlfast::IKinematic(src),
    Atlfast::IAODNavigation(src),
    AODNavigationImp( src ){
    m_pdg_id     = src.m_pdg_id;
    m_momentum   = src.m_momentum;
    m_truth      = src.m_truth;
    m_halo       = src.m_halo;
    m_halovector = src.m_halovector;
  }

Atlfast::ReconstructedParticle::ReconstructedParticle

(

const ReconstructedParticle *

src

)

Definition at line 36 of file ReconstructedParticle.cxx.

                                                :AODNavigationImp( *src ){
    m_pdg_id     = src->m_pdg_id;
    m_momentum   = src->m_momentum;
    m_truth      = src->m_truth;
    m_halo       = src->m_halo;
    m_halovector = src->m_halovector;
  }

virtual Atlfast::ReconstructedParticle::~ReconstructedParticle

(

)

[inline, virtual]

Definition at line 118 of file ReconstructedParticle.h.

{}

---

Member Function Documentation

ReconstructedParticle & Atlfast::ReconstructedParticle::operator=

(

const ReconstructedParticle &

src

)

Definition at line 48 of file ReconstructedParticle.cxx.

                                                                   {

    if(this == &src) return *this;

    AODNavigationImp::operator=( src );
    m_pdg_id     = src.m_pdg_id;
    m_momentum   = src.m_momentum;
    m_truth      = src.m_truth;
    m_halo       = src.m_halo;
    m_halovector = src.m_halovector;
    return *this;
  }

HepLorentzVector Atlfast::ReconstructedParticle::momentum

(

)

const [virtual]

.............................................. IKinematic interface

Implements Atlfast::IKinematic.

Definition at line 71 of file ReconstructedParticle.cxx.

                                                         {
    return m_momentum;
  }

double Atlfast::ReconstructedParticle::eta

(

)

const [virtual]

Implements Atlfast::IKinematic.

Definition at line 74 of file ReconstructedParticle.cxx.

                                           {
    return m_momentum.pseudoRapidity() ;
  }

double Atlfast::ReconstructedParticle::phi

(

)

const [virtual]

Implements Atlfast::IKinematic.

Definition at line 77 of file ReconstructedParticle.cxx.

                                           {
    return m_momentum.phi() ;
  }

double Atlfast::ReconstructedParticle::pT

(

)

const [virtual]

Implements Atlfast::IKinematic.

Definition at line 80 of file ReconstructedParticle.cxx.

                                           {
    return m_momentum.perp() ;
  }

double Atlfast::ReconstructedParticle::eT

(

)

const [virtual]

Implements Atlfast::IKinematic.

Definition at line 86 of file ReconstructedParticle.cxx.

                                           {
      return m_momentum.e()*m_momentum.perp()/m_momentum.rho() ;
  }

double Atlfast::ReconstructedParticle::mT

(

)

const [virtual]

Implements Atlfast::IKinematic.

Definition at line 89 of file ReconstructedParticle.cxx.

                                           {
    return m_momentum.mt() ;
  }

double Atlfast::ReconstructedParticle::pt

(

)

const [virtual]

Definition at line 83 of file ReconstructedParticle.cxx.

                                           {
    return m_momentum.perp() ;
  }

IKinematic * Atlfast::ReconstructedParticle::clone

(

)

const [virtual]

Implements Atlfast::IKinematic.

Definition at line 92 of file ReconstructedParticle.cxx.

                                                   {
    IKinematic* ik =  new ReconstructedParticle(*this) ;
    return ik;
  }

void Atlfast::ReconstructedParticle::accept

(

IAOOvisitor *

iaPtr

)

const [virtual]

IAOO interface.

Implements Atlfast::IAOO.

Definition at line 97 of file ReconstructedParticle.cxx.

                                                            {
    iaPtr->process(this);
  }

int Atlfast::ReconstructedParticle::pdg_id

(

)

const

pdg identifier of particle

Definition at line 101 of file ReconstructedParticle.cxx.

                                          {
    return m_pdg_id ;
  }

const HepMC::GenParticle * Atlfast::ReconstructedParticle::truth

(

)

const

4-vec used for generation

Definition at line 105 of file ReconstructedParticle.cxx.

                                                             {
    return m_truth ;
  }

double Atlfast::ReconstructedParticle::halo

(

)

const [inline]

4-vec used for generation

Definition at line 141 of file ReconstructedParticle.h.

{return m_halo;}

void Atlfast::ReconstructedParticle::set_halo

(

double

halo

)

[inline]

Definition at line 142 of file ReconstructedParticle.h.

{m_halo = halo;}

HepLorentzVector Atlfast::ReconstructedParticle::halovector

(

)

const [inline]

Definition at line 143 of file ReconstructedParticle.h.

{return m_halovector;}

void Atlfast::ReconstructedParticle::set_halovector

(

HepLorentzVector

halovector

)

[inline]

Definition at line 144 of file ReconstructedParticle.h.

{m_halovector = halovector;}

void Atlfast::ReconstructedParticle::print	(	const std::string &	coor,
		std::string	t = ""
	)			const [virtual]

IKinematic debug.

Implements Atlfast::IKinematic.

Definition at line 109 of file ReconstructedParticle.cxx.

                                                       {
    AODNavigationImp::print(coor, t);
    std::cout<<t<<std::string(73,' ')<<"ReconstructedParticle"<<std::endl;
  }

virtual void Atlfast::IAODNavigation::fillNavTokenFromAssocs

(

INavigationToken &

)

const [pure virtual, inherited]

Implemented in Atlfast::AODNavigationImp.

virtual double Atlfast::IKinematic::e

(

)

const [inline, virtual, inherited]

Reimplemented in Atlfast::Jet.

Definition at line 75 of file IKinematic.h.

{return this->momentum().e();}

virtual double Atlfast::IKinematic::m

(

)

const [inline, virtual, inherited]

Definition at line 76 of file IKinematic.h.

{return this->momentum().m();}

virtual void Atlfast::IAOO::associate

(

const IAOO *

otherEntity

)

[pure virtual, inherited]

store any object with IAOO above it the inheritance heirarchy

Implemented in Atlfast::AOObase.

virtual std::vector<const IAOO*>::const_iterator Atlfast::IAOO::begin

(

)

const [pure virtual, inherited]

iterators for the store.

Implemented in Atlfast::AOObase.

virtual std::vector<const IAOO*>::const_iterator Atlfast::IAOO::end

(

)

const [pure virtual, inherited]

Implemented in Atlfast::AOObase.

virtual bool Atlfast::IAOO::unAssociated

(

)

const [pure virtual, inherited]

A quick way to find out whether there are any associations at a ll.

Implemented in Atlfast::AOObase.

virtual void Atlfast::IAOO::reset

(

)

[pure virtual, inherited]

zero the container

Implemented in Atlfast::AOObase.

virtual void Atlfast::IAOO::dump

(

const std::string &

s

)

const [pure virtual, inherited]

dump out debug info

Implemented in Atlfast::AOObase.

virtual void Atlfast::AODNavigationImp::fillToken

(

INavigationToken &

)

const [inline, virtual, inherited]

Reimplemented in Atlfast::Cluster, and Atlfast::Jet.

Definition at line 48 of file AODNavigationImp.h.

{ };

virtual void Atlfast::AODNavigationImp::fillToken	(	INavigationToken &	,
		const boost::any &
	)			const [inline, virtual, inherited]

Reimplemented in Atlfast::Cluster, and Atlfast::Jet.

Definition at line 49 of file AODNavigationImp.h.

{ };

void Atlfast::AODNavigationImp::fillNavTokenFromAssocs

(

INavigationToken &

)

const [virtual, inherited]

Implements Atlfast::IAODNavigation.

Definition at line 14 of file AODNavigationImp.cxx.

                                                                            {
    NavigationToken<I4Momentum>* i4Token =
      dynamic_cast< NavigationToken<I4Momentum>* >(&token);
    if ( i4Token == 0 ) return;

    TypeVisitor typeVisitor = SimpleAssocsDispatcher(this, TypeVisitor());

    std::vector<const I4Momentum*> i4s = typeVisitor.i4momenta();
    std::vector<const I4Momentum*>::const_iterator iter = i4s.begin();
    for(;iter!= i4s.end(); ++iter){i4Token->setObject(*iter);}
  }

void Atlfast::AOObase::associate

(

const IAOO *

otherEntity

)

[virtual, inherited]

store any object with IAOO above it the inheritance heirarchy

Implements Atlfast::IAOO.

Definition at line 18 of file AOObase.cxx.

                                           {
    m_associations.push_back( other ) ;
  }

std::vector< const IAOO * >::const_iterator Atlfast::AOObase::begin

(

)

const [virtual, inherited]

iterators for the store.

Implements Atlfast::IAOO.

Definition at line 10 of file AOObase.cxx.

                                                           {
    return m_associations.begin();
  }

std::vector< const IAOO * >::const_iterator Atlfast::AOObase::end

(

)

const [virtual, inherited]

Implements Atlfast::IAOO.

Definition at line 14 of file AOObase.cxx.

                                                           {
    return m_associations.end();
  }

virtual bool Atlfast::AOObase::unAssociated

(

)

const [inline, virtual, inherited]

A quick way to find out whether there are any associations at a ll.

Implements Atlfast::IAOO.

Definition at line 31 of file AOObase.h.

{ return m_associations.empty() ; }

virtual void Atlfast::AOObase::reset

(

)

[inline, virtual, inherited]

zero the container

Implements Atlfast::IAOO.

Definition at line 32 of file AOObase.h.

{ m_associations.clear();}

void Atlfast::AOObase::dump

(

const std::string &

)

const [virtual, inherited]

dump out debug info

Implements Atlfast::IAOO.

Definition at line 22 of file AOObase.cxx.

                                            {
    std::cout<<'\n'<<s<<"Associations: "
             <<std::setw(6)<<m_associations.size()
             <<std::string(53,' ')
             <<"AOObase"<<std::endl;
    //std::for_each(m_associations.begin(),
    //    m_associations.end(),
    //    AtlfastDumperObject("Associations", "   ")
    //    );
  }

---

Member Data Documentation

int Atlfast::ReconstructedParticle::m_pdg_id [private]

Definition at line 151 of file ReconstructedParticle.h.

HepLorentzVector Atlfast::ReconstructedParticle::m_momentum [private]

pdg identity code

Definition at line 152 of file ReconstructedParticle.h.

const HepMC::GenParticle* Atlfast::ReconstructedParticle::m_truth [private]

4-momentum of particle

Pointer to Truth HepMC::Particile

Todo:

Should be implemented as GenParticleLink

Definition at line 157 of file ReconstructedParticle.h.

double Atlfast::ReconstructedParticle::m_halo [private]

Definition at line 159 of file ReconstructedParticle.h.

HepLorentzVector Atlfast::ReconstructedParticle::m_halovector [private]

Cal energy in dR(0.2,0.4), scalar sum.

Definition at line 160 of file ReconstructedParticle.h.

---

The documentation for this class was generated from the following files:

• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastEvent/AtlfastEvent/ReconstructedParticle.h
• /afs/cern.ch/user/s/sdean/project_builds/AtlasOffline-rel_1/Simulation/Atlfast/AtlfastEvent/src/ReconstructedParticle.cxx

---
